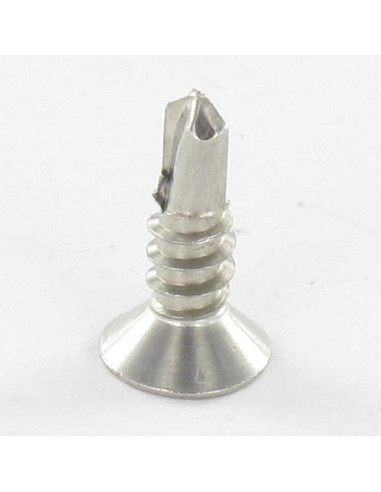

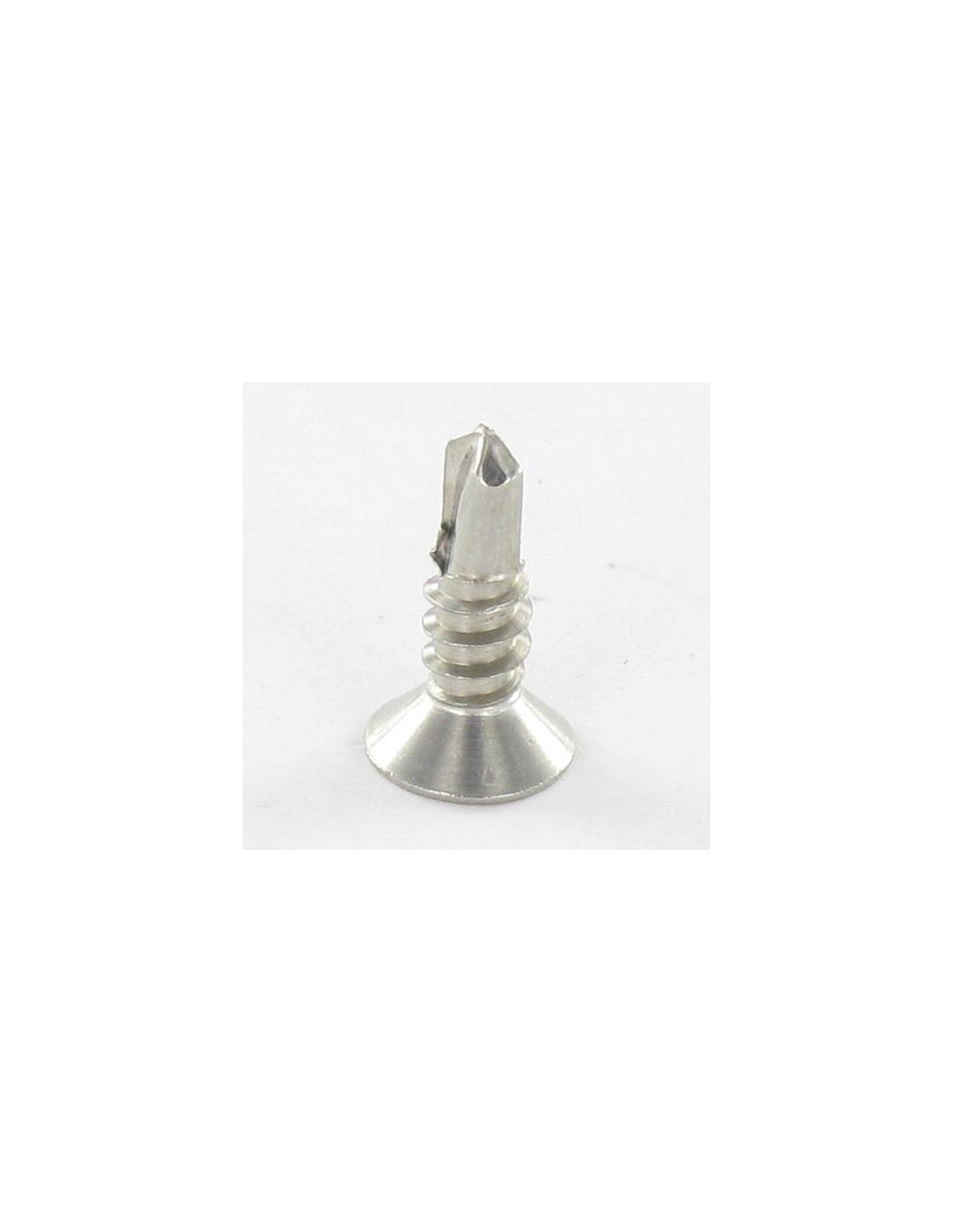

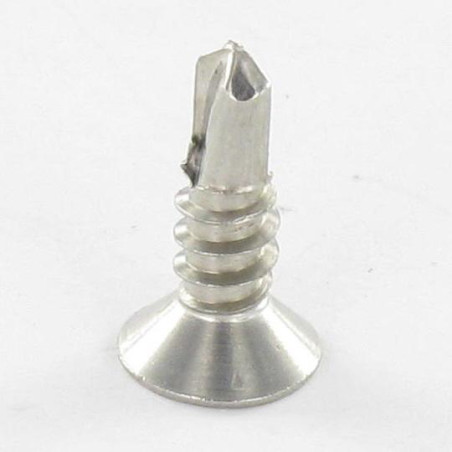

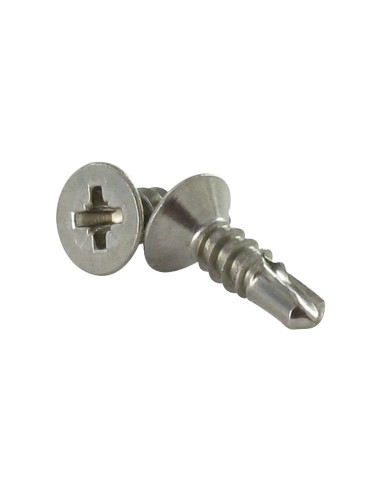

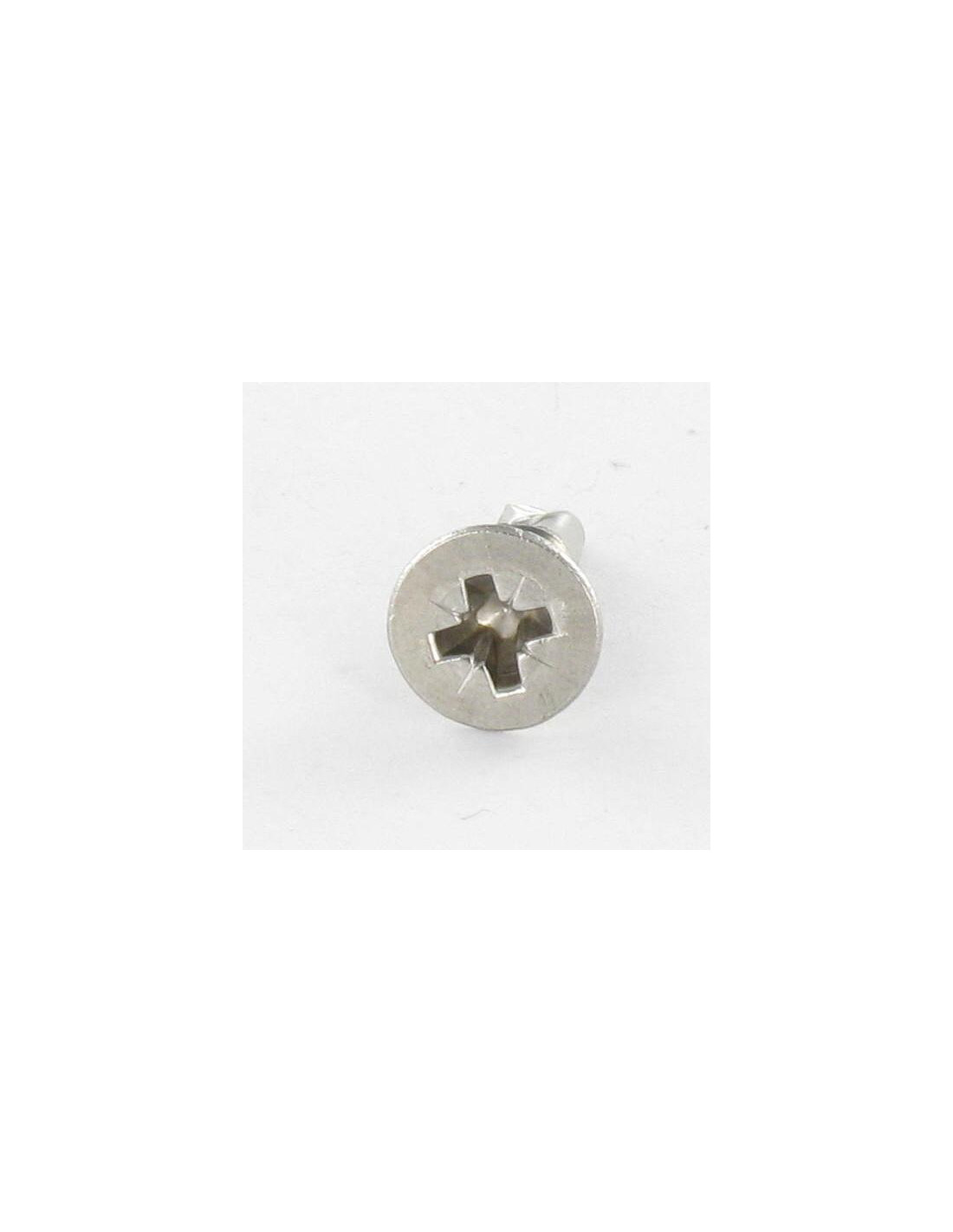

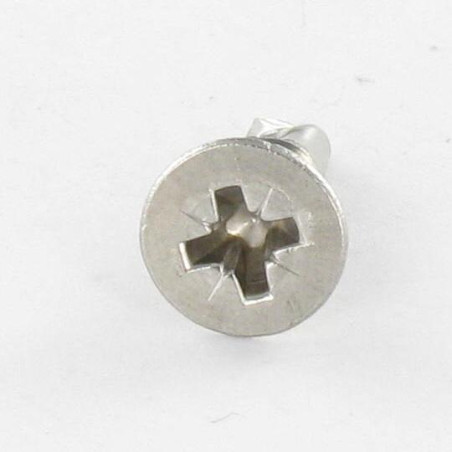

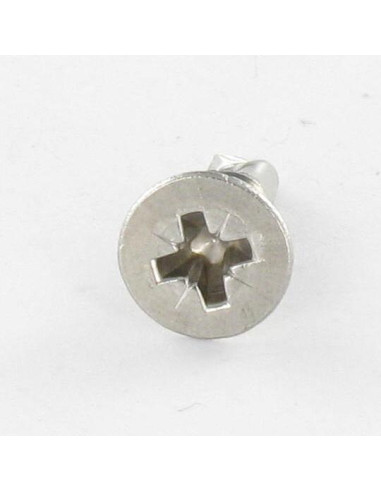

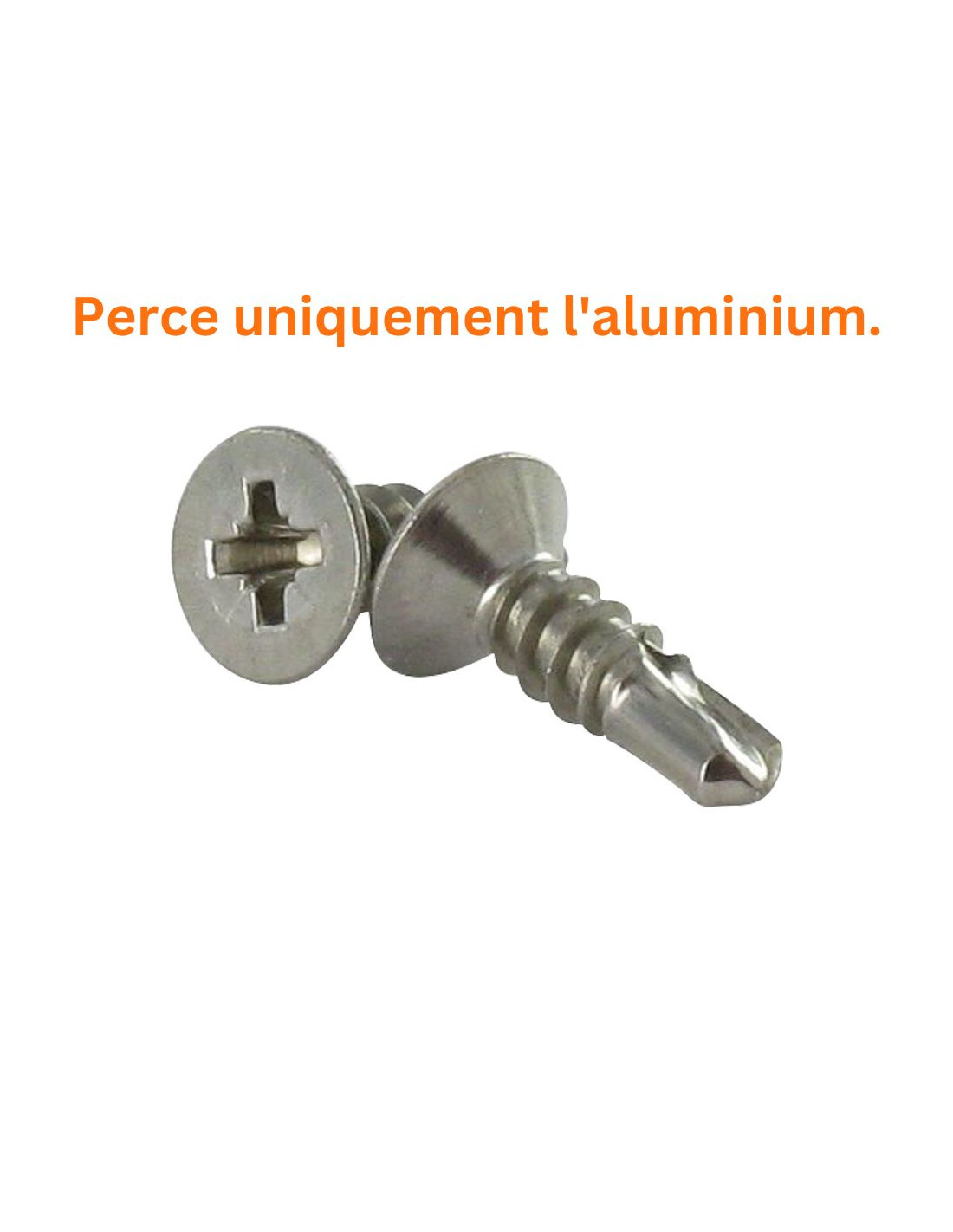

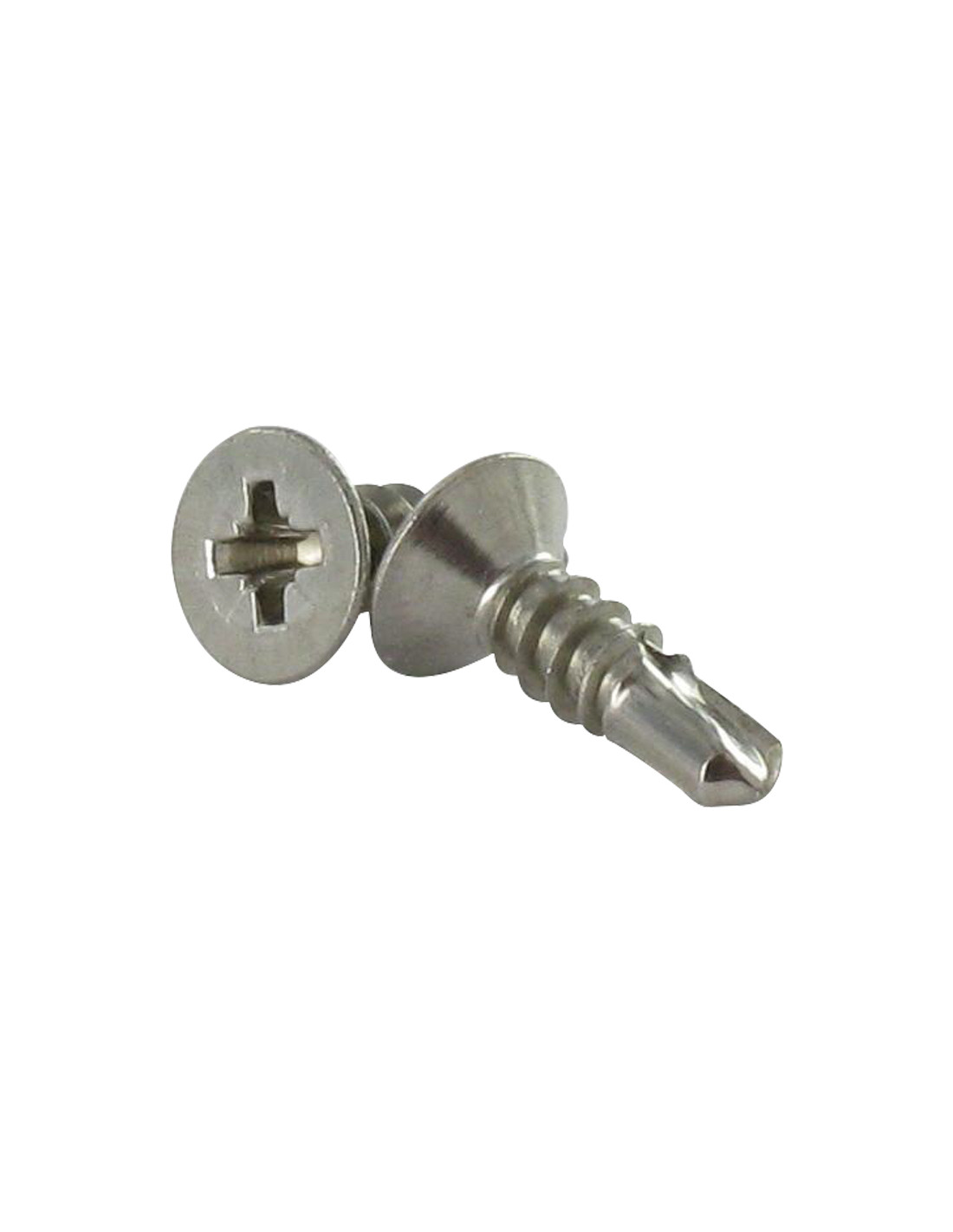

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X38

8324703818_1
In stock 5360 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €12.10
DIN 7504 P,VS3124 - Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X38

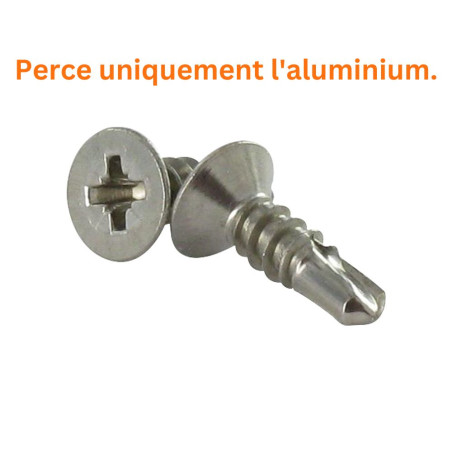

Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
3.9
Length
38
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 P,VS3124
Sub product family
Countersunk Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
30.5
Unit weight
2.64 GR
Material to be drilled
Aluminium
5360 Items
3663072153417
Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X38
Diameter = 3.9, Length = 38, Material = Stainless Steel A2, Norm = DIN 7504 P,VS3124, Size Drive Type = Spanner 5.5


dimensional guide (mm)
Jauge number67810
Diameter3.53.94.24.8
Pitch6.87.58.19.5
Head Tickness2.12.32.53
Pozi1222
Avec une vis auto-perceuse en inox A2 ou A4, vous pourrez percer une tole en ALUMINIUM uniquement
Une vis auto-perceuse INOX ne perce pas l'acier ni l'inox.

Other Reference : 624323,9X38 624323,9X38 0976549900 1140212 VISM4X40TFAU 62432 AQAC0264 MG4-3 3663072153417
Annabelle B. (vis-express.fr)
2024-04-07

Allows you to hang battens on a van Self-perforating screws are required to pass through metal partitions
