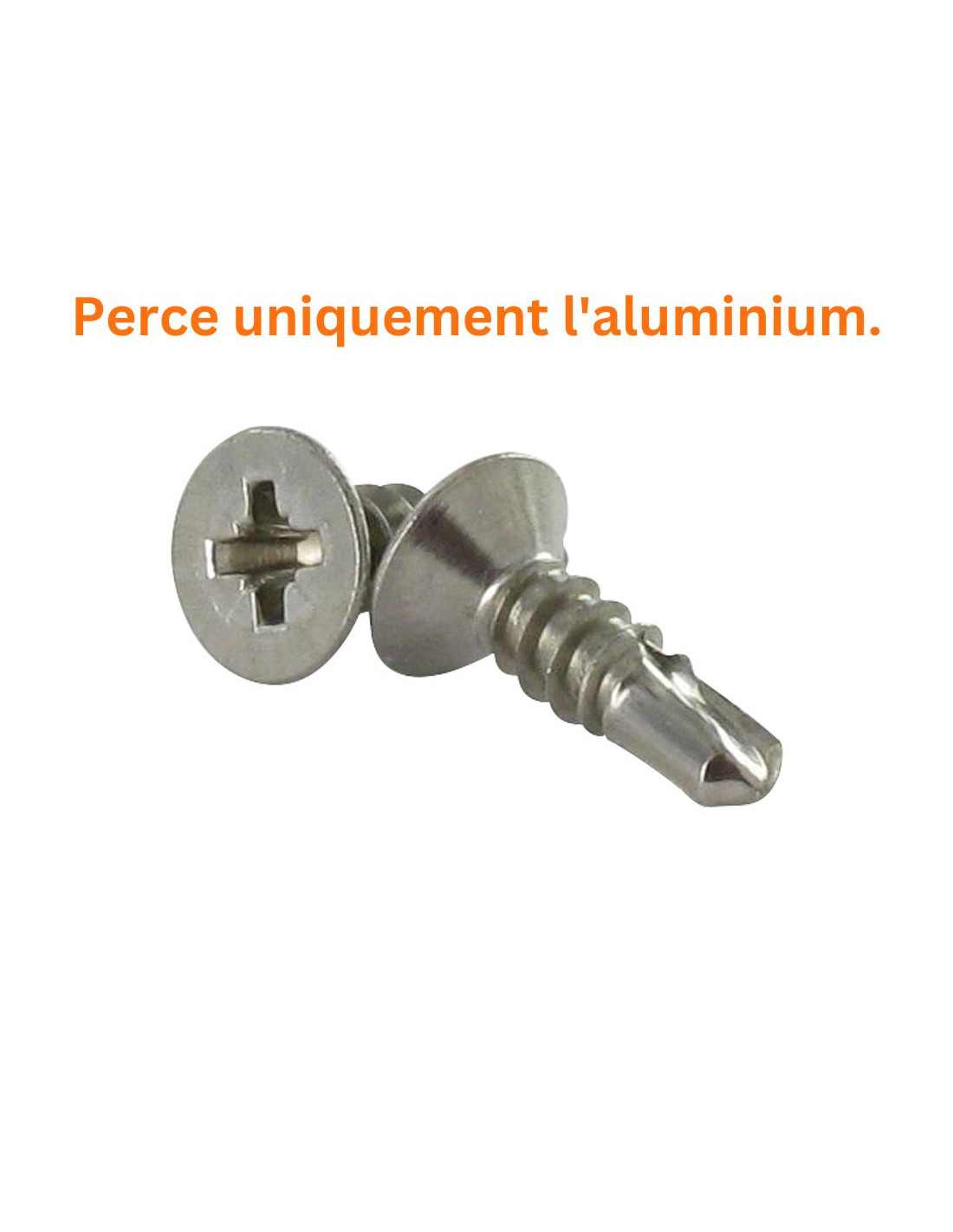

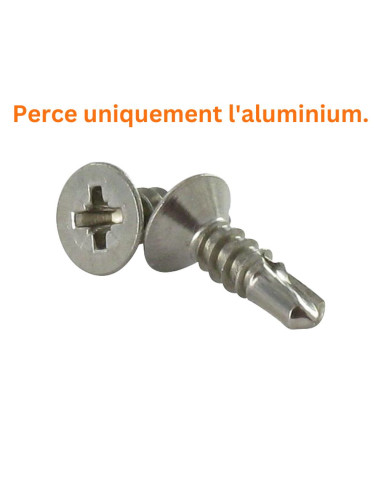

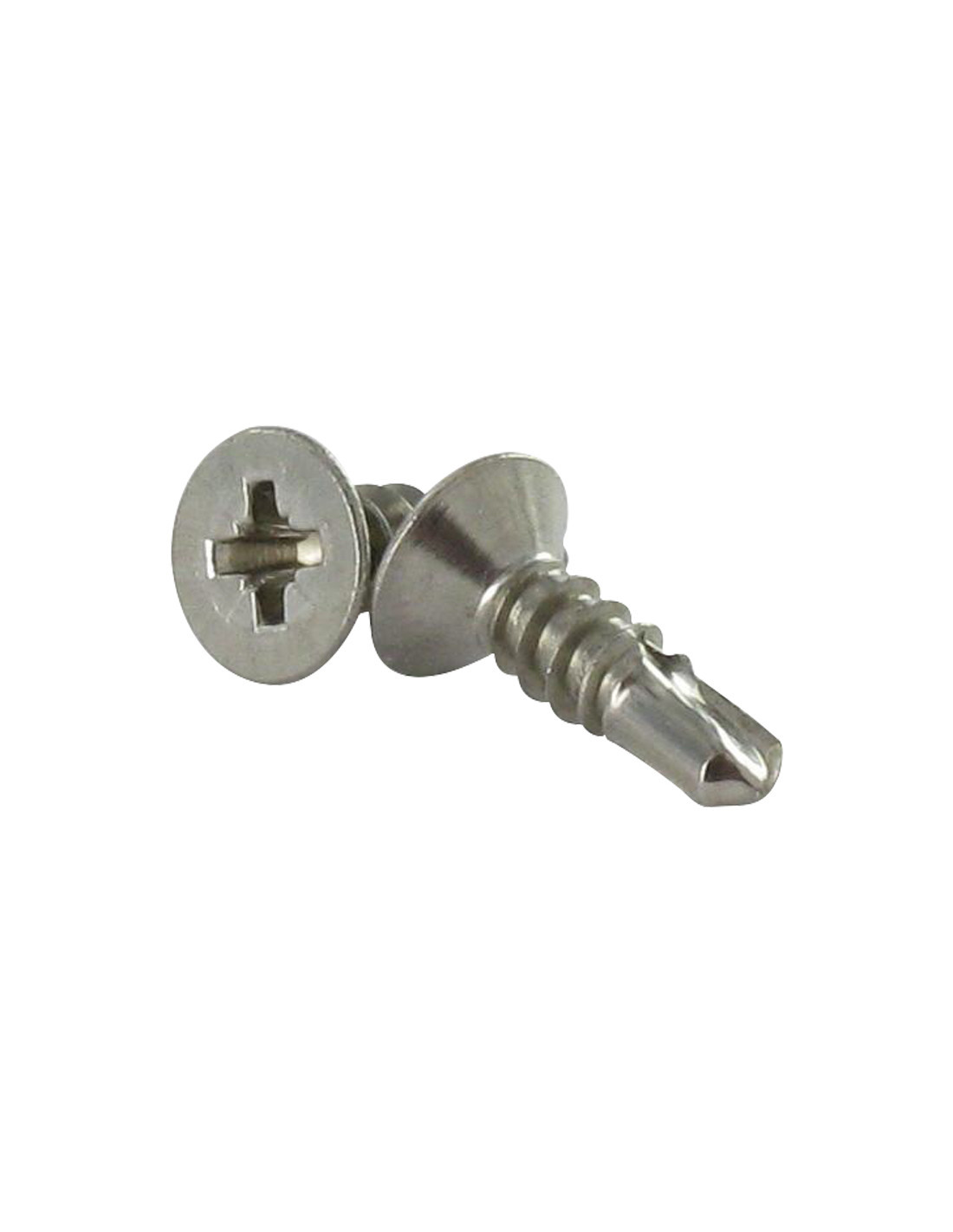

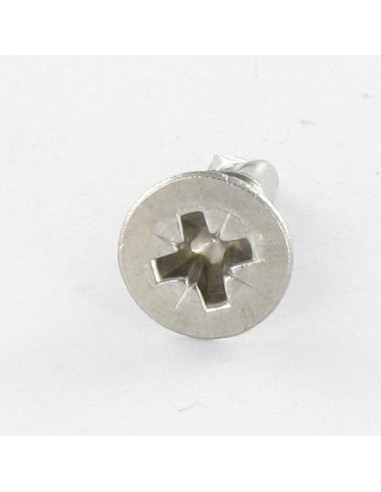

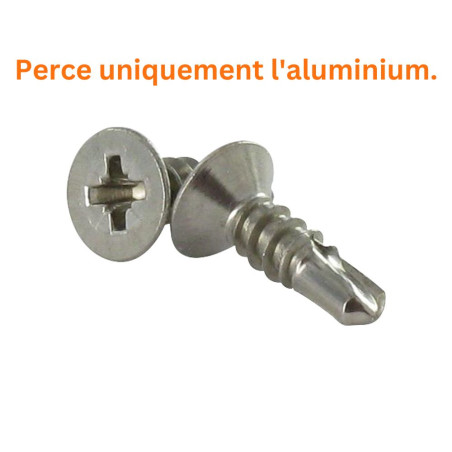

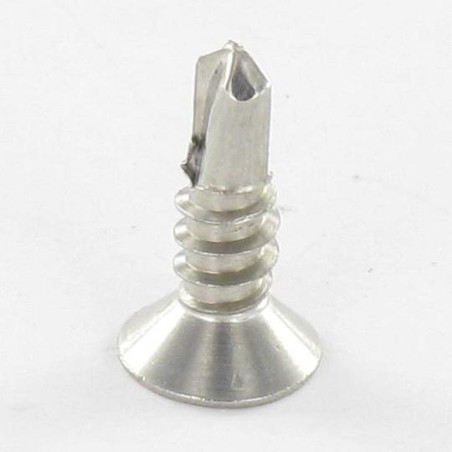

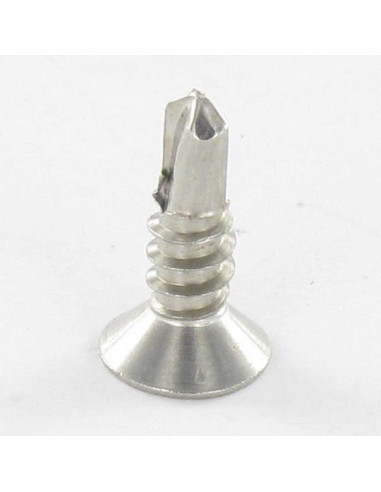

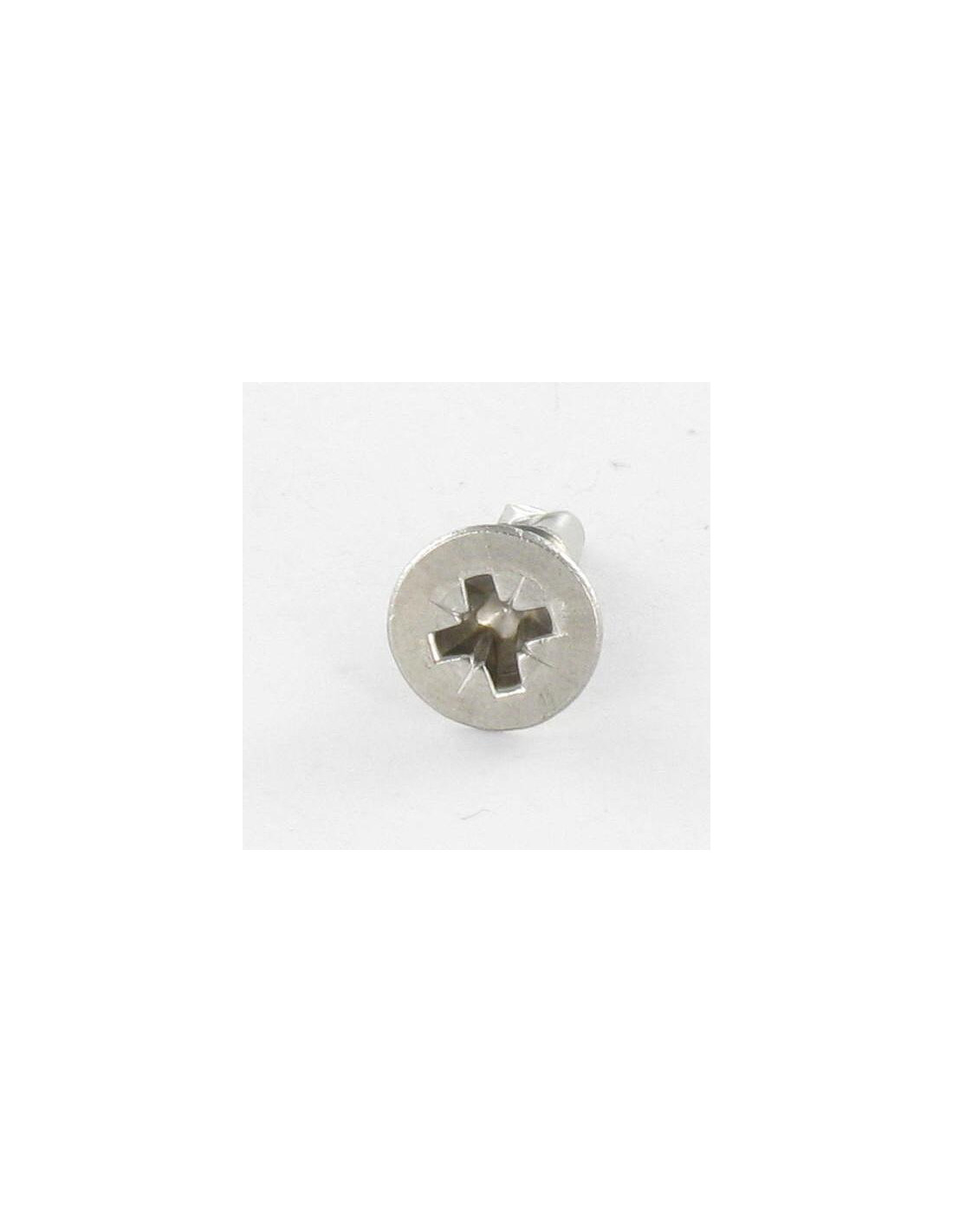

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X16
1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X16
1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X16
1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X16
1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...

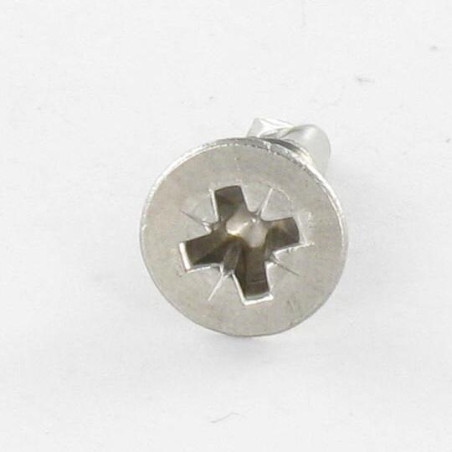

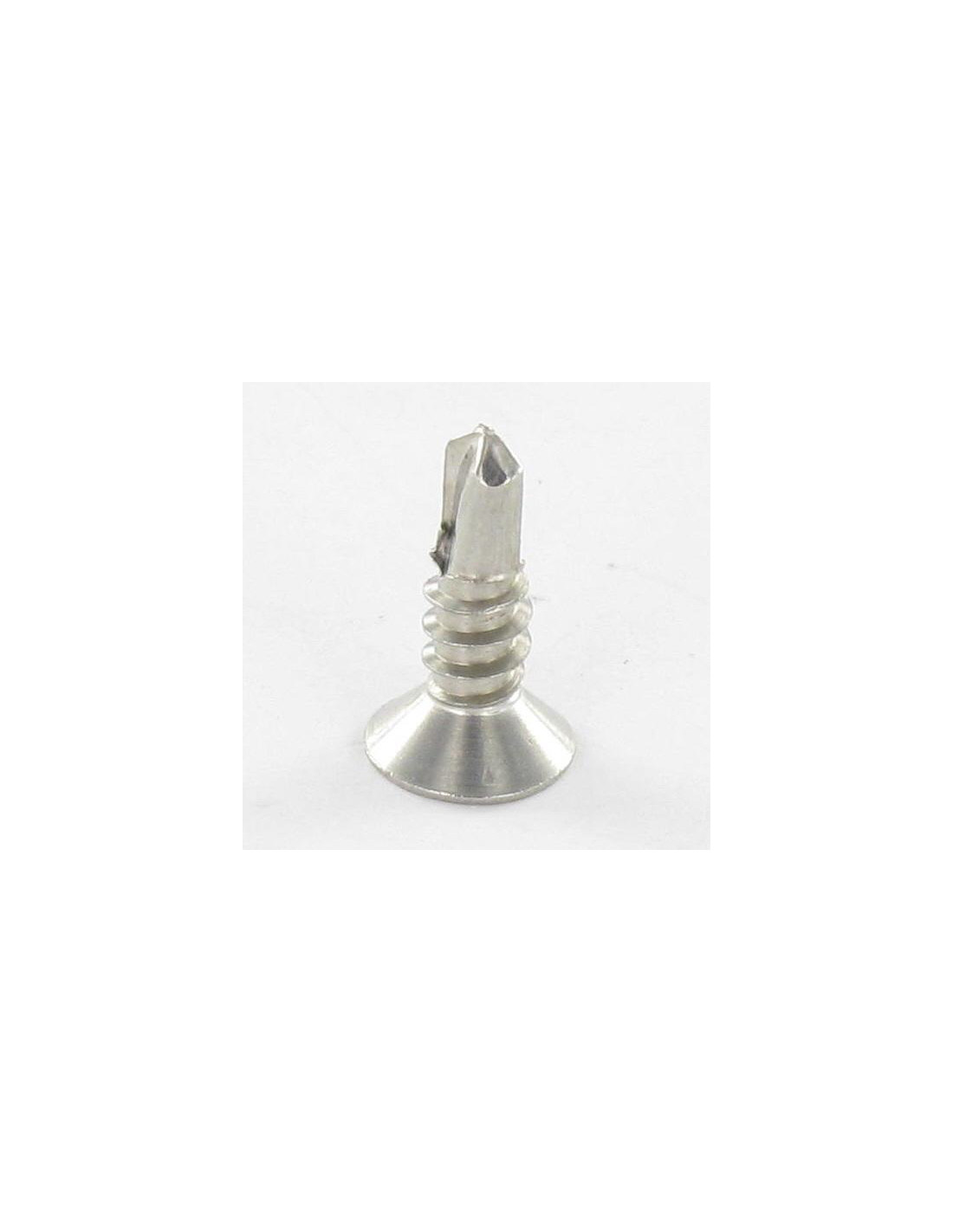

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X16

8324701618_1
In stock 36448 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €10.00
DIN 7504 P,VS3124 - Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X16
Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
3.9
Length
16
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 P,VS3124
Sub product family
Countersunk Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
Class 8.8
Unit weight
1.25 GR
Material to be drilled
Aluminium
36448 Items
3663072153370
Self Drilling Stainless Steel A2 Countersunk Head Pozi 3.9X16
Diameter = 3.9, Length = 16, Material = Stainless Steel A2, Norm = DIN 7504 P,VS3124, Size Drive Type = Spanner 5.5


dimensional guide (mm)
Jauge number 6 7 8 10
Diameter 3.5 3.9 4.2 4.8
Pitch 6.8 7.5 8.1 9.5
Head Tickness 2.1 2.3 2.5 3
Pozi 1 2 2 2
Avec une vis auto-perceuse en inox A2 ou A4, vous pourrez percer une tole en ALUMINIUM uniquement
Une vis auto-perceuse INOX ne perce pas l'acier ni l'inox.

Other Reference : 624323,9X15, TF3916 640092 5199 CS107713 3663072153370
