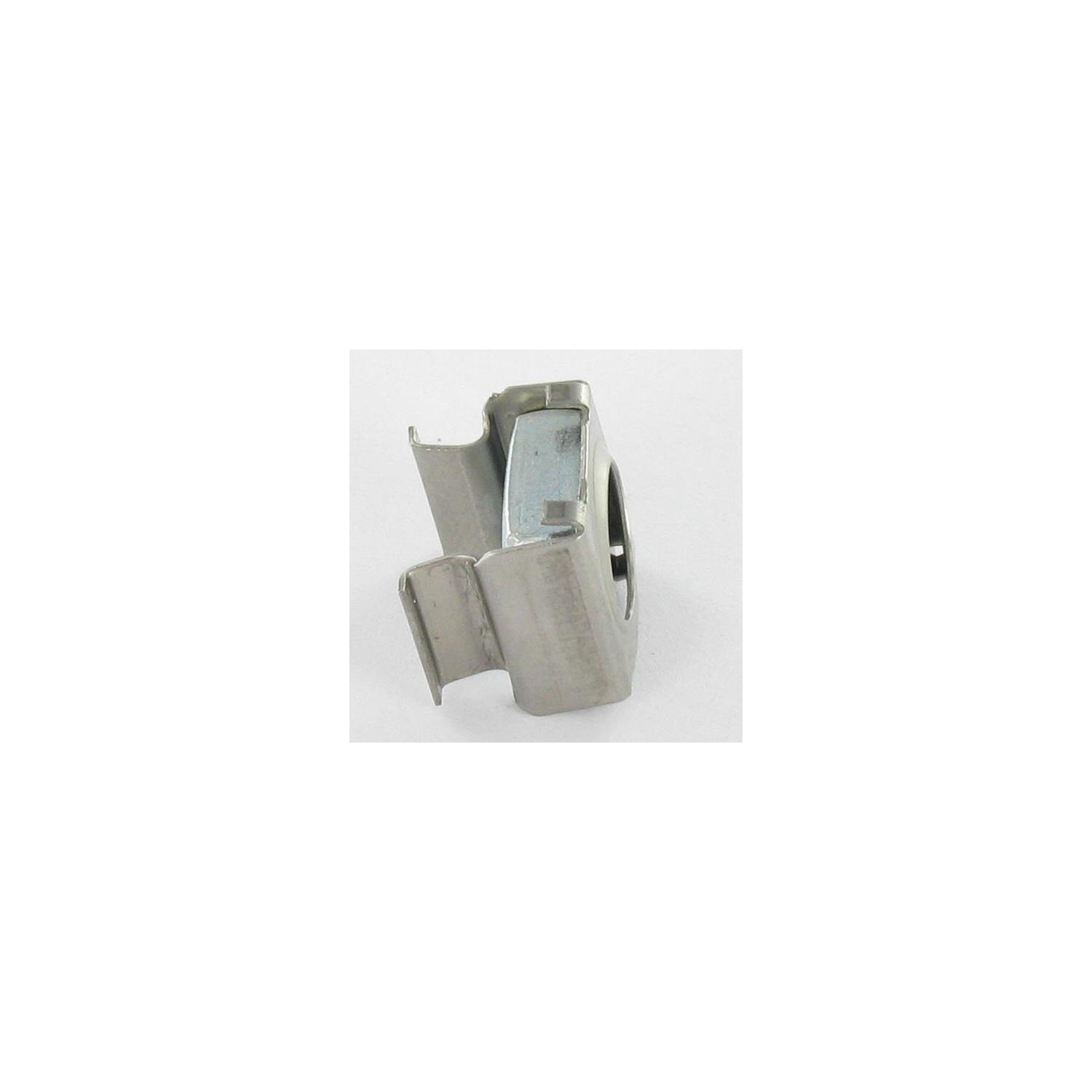

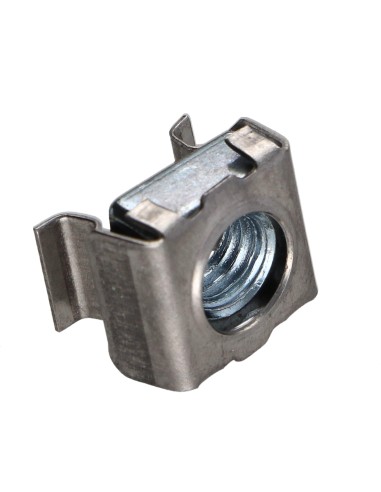

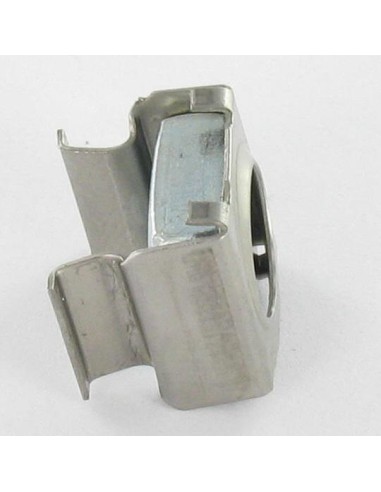

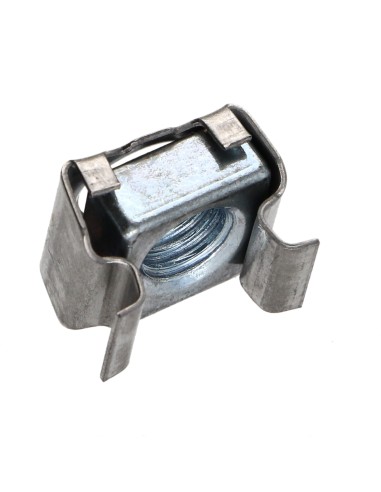

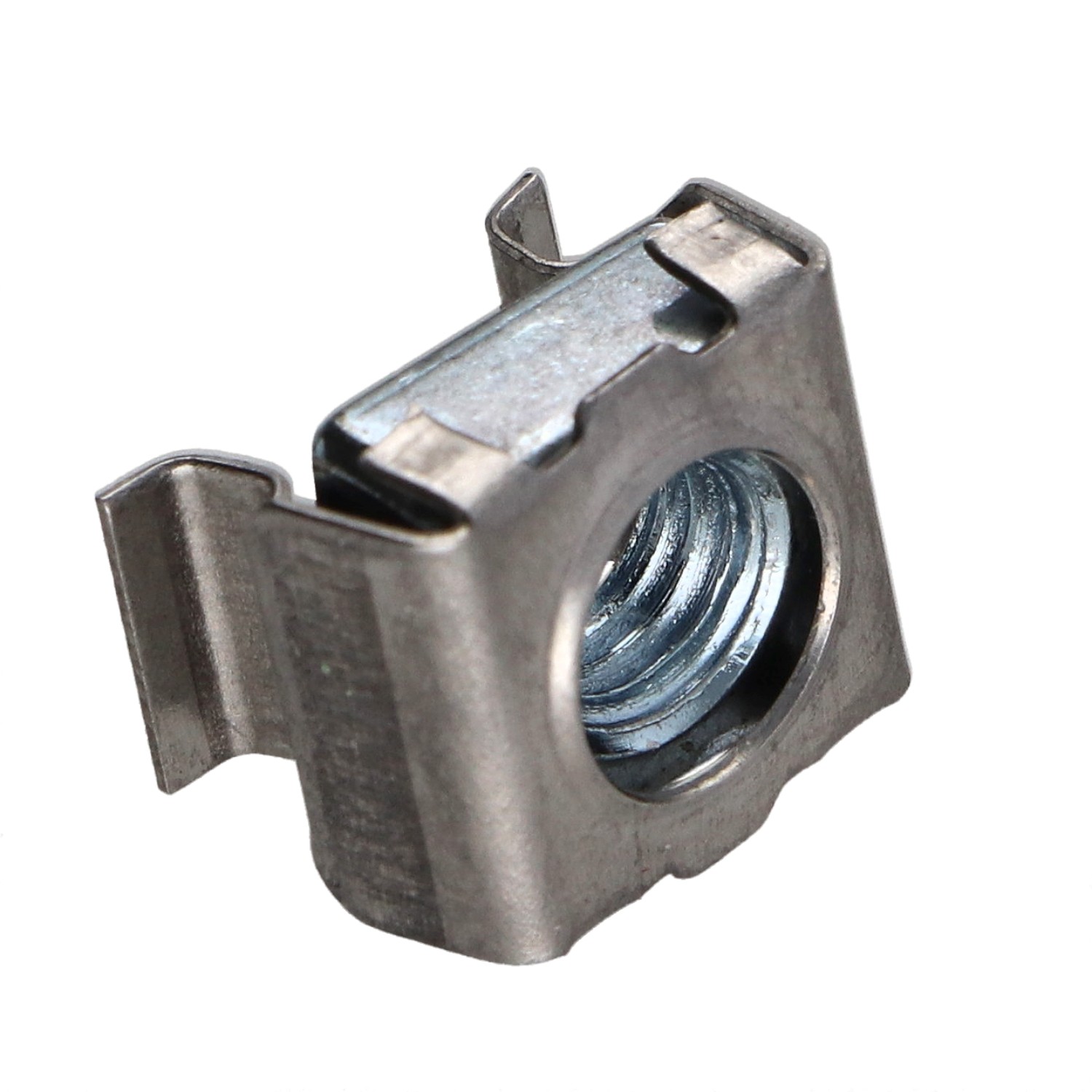

10 x Caged Nut Stainless Steel Zinc Plated C4805A M5 Thickness Material 1.2 to 1.6

4336000501_10
In stock 4751 Pièces
£2.95 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included £1.48 £2.95 £10.37 £49.20 £196.80

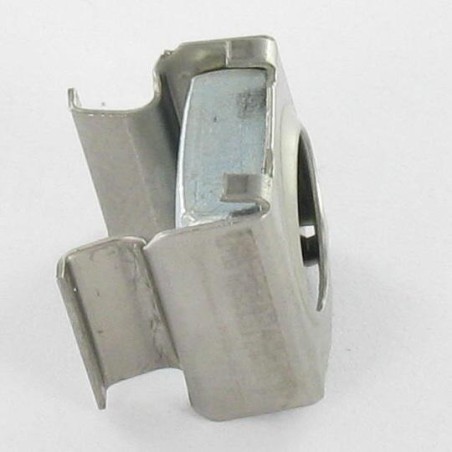

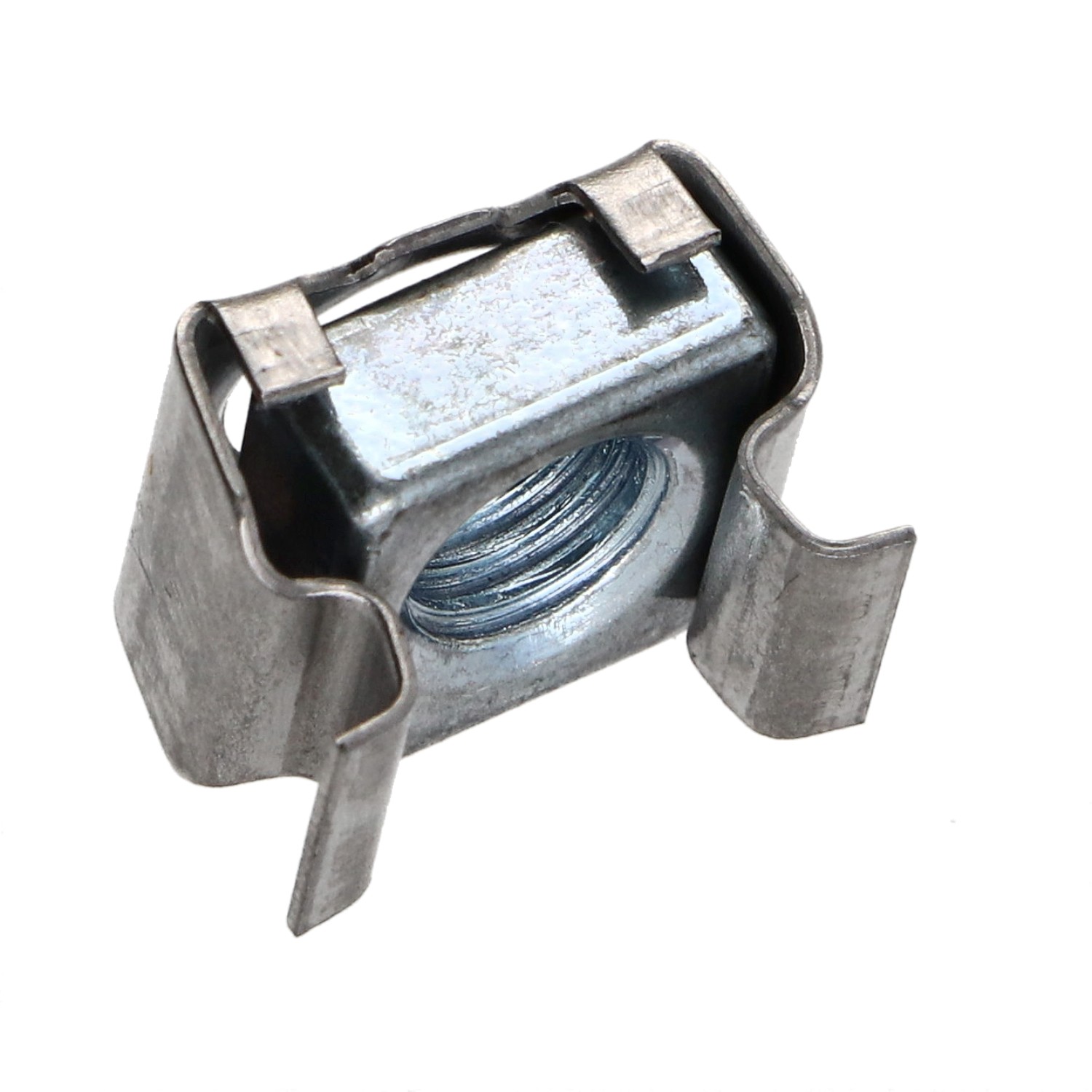

Caged Nut Stainless Steel Zinc Plated C4805A M5 Thickness Material 1.2 to 1.6
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
M5
Product Family
Nut
Use
External
Grip range
1.2 to 1.6 MM
Unit weight
3.6 GR
4751 Items
3617501921184
Caged Nut Stainless Steel Zinc Plated C4805A M5 Thickness Material 1.2 to 1.6
Diameter = M5, Use = External, Product Family = Nut

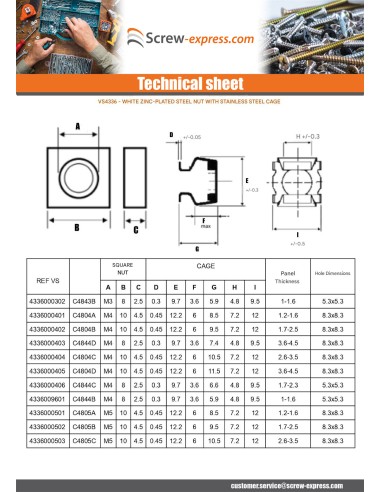

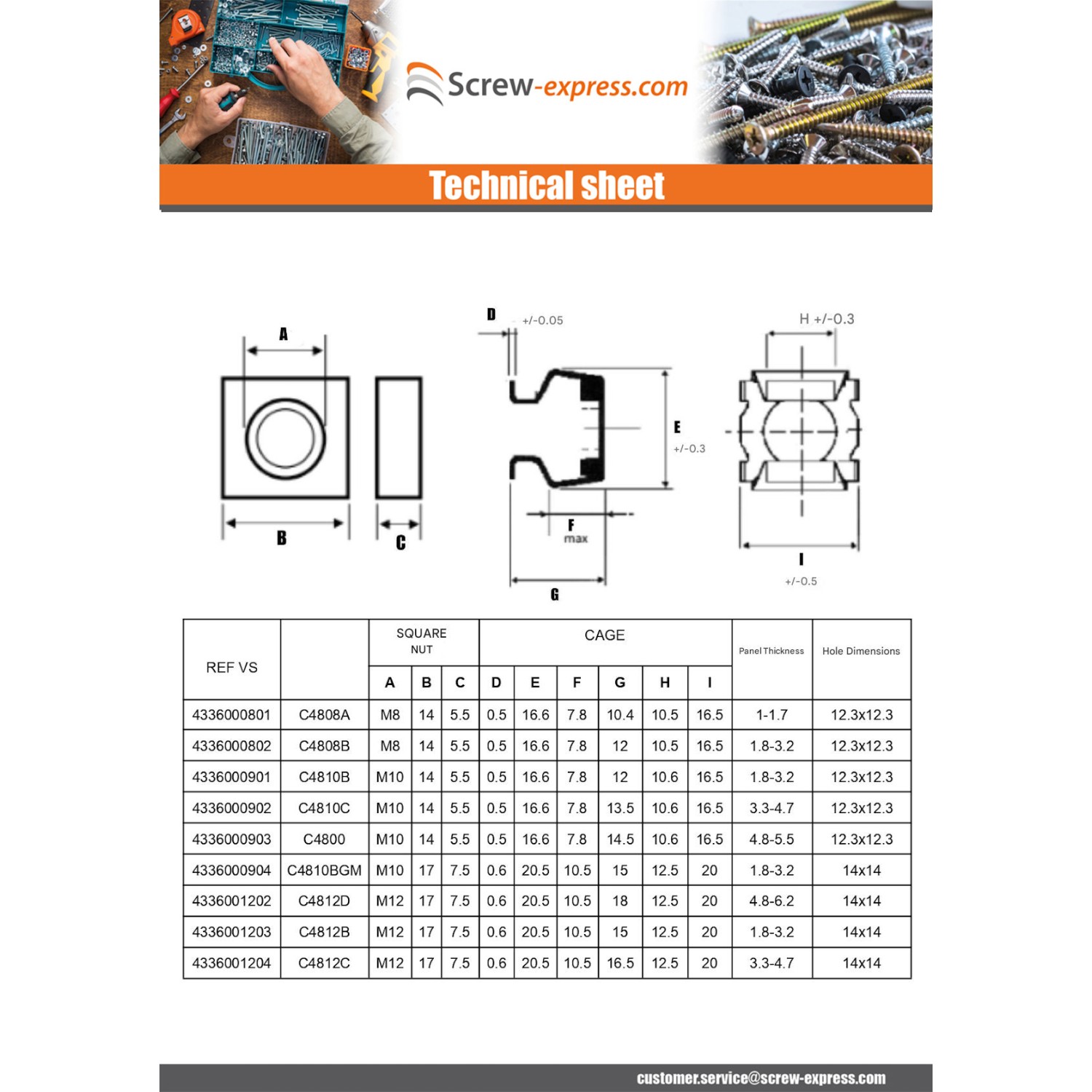

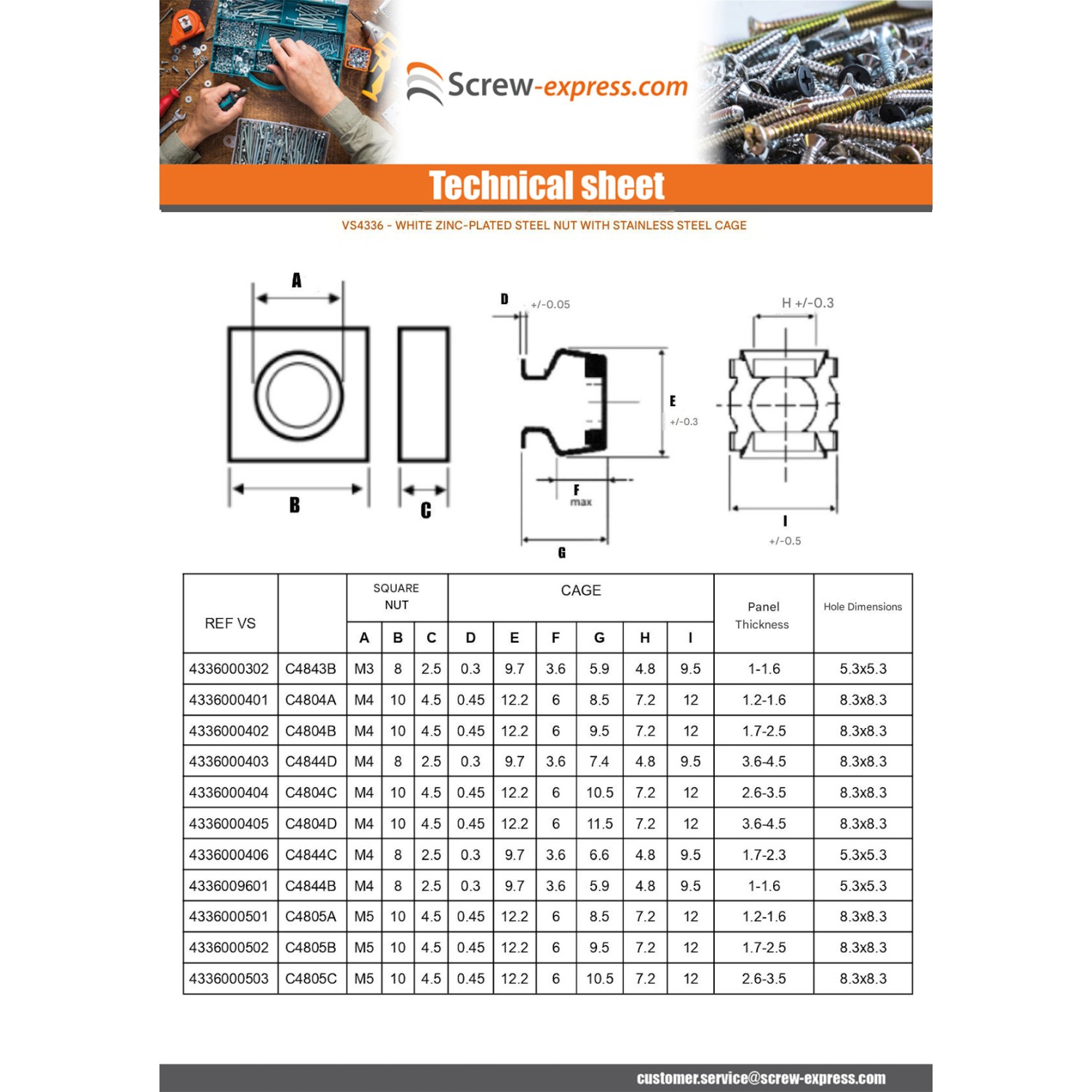

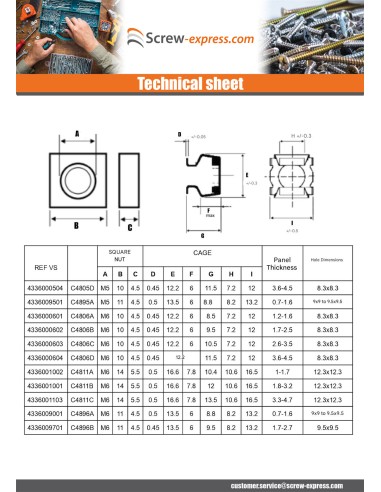

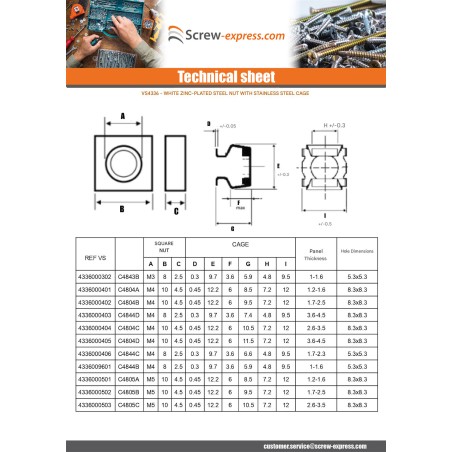

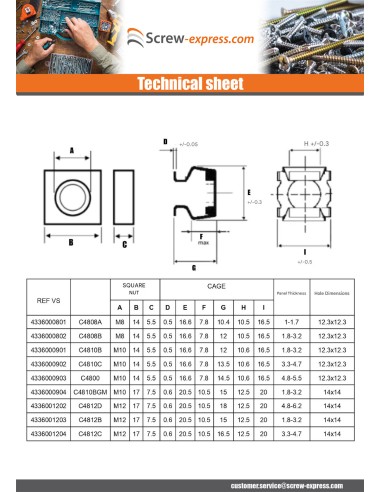

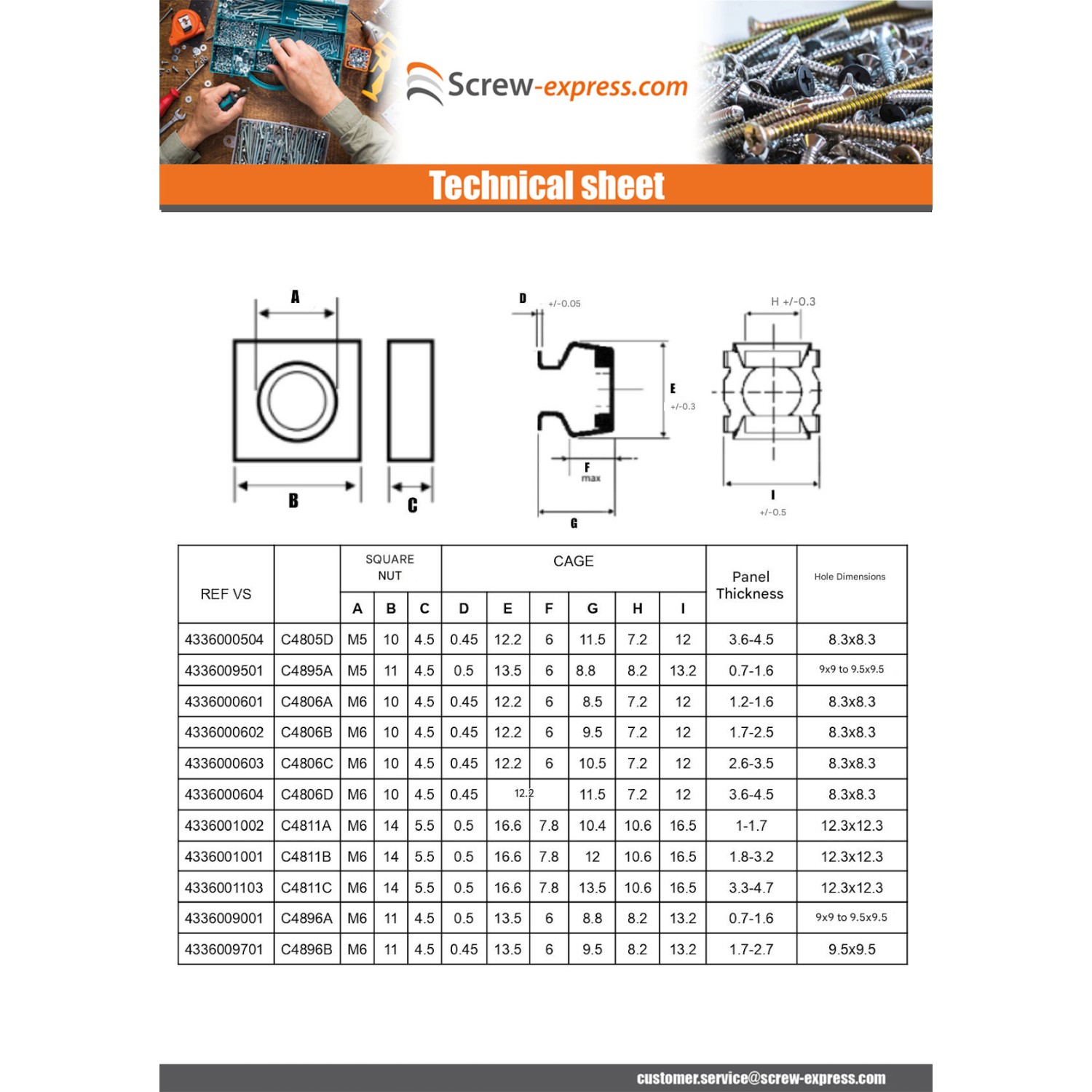

dimensional guide (mm)
Diameter M3 M4 M4 M4 M4 M5 M5 M5 M5 M5 M6 M6 M6 M6 M6 M6 M6 M6 M6 M10 M12 M12 M12
EPAISEUR PANNEAU 1A1.6 1A1.6 2.4A3.1 1.2A1.6 1.7A2.5 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 0.7A1.6 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 1A1.7 1.8A3.2 3.3A4.7 0.7A1.6 1.7A2.7 3.3A4.7 1.8A3.2 3.3A4.7 4.8A6.2
REF. C4843B C4844B C4844D C4804A C4804B C4805A C4805B C4805C C4805D C4895A C4806A C4806B C4806C C4806D C4811A C4811B C4811C C4896A C4896B C4810C C4812B C4812C C4812D
DIMENSION CARRE 9.3 9.3 9.3 12 12 12 12 12 12 13 12 12 12 12 16 16 16 13 13 16 20 20 20
HAUTEUR 5.9 5.9 7.4 8.5 9.5 8.5 9.5 10.5 11.5 8.8 8.5 9.5 10.5 11.5 10.4 11.9 13.4 8.8 10 13.4 14.7 16.2 17.7

Other Reference : DG834A FI 7322312 971885000 0420402 7687634805a 0198001 65243 65243 272051 10153 ECR05CAG1.2- 1.85.408.00 13119 EC0295 1001048 ECPM05 835 870298 971885000 201018 201018 971885000 13119 3663072090880
Thierry S. (vis-express.fr)
2026-05-03

Je suis à rénover une DS 20 de 1975 et au niveau des ailes avant il y en a Pour fixer les globes de phares et la traverse entre les ailes


Maurice C. (vis-express.fr)
2024-04-14

Assembly of a garden shed Biohort HighLine H3 with apprentices size L
