1 x Caged Nut Stainless Steel Zinc Plated C4805D M5 Thickness Material 3.6 to 4.5

4336000504_1
In stock 774 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £12.41 £59.05

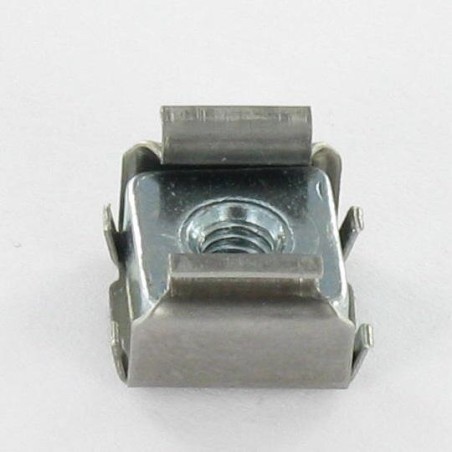

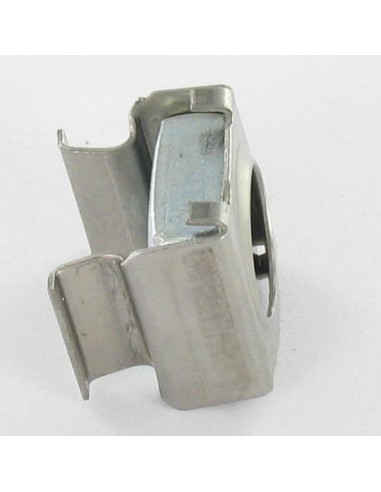

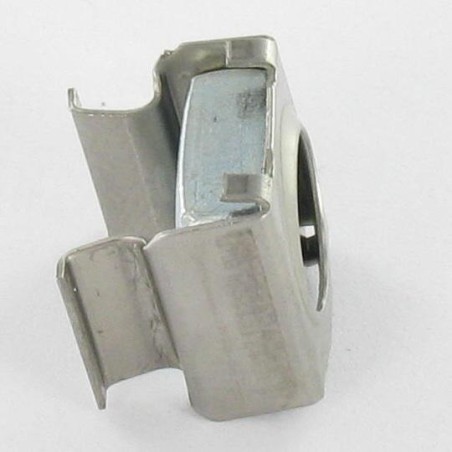

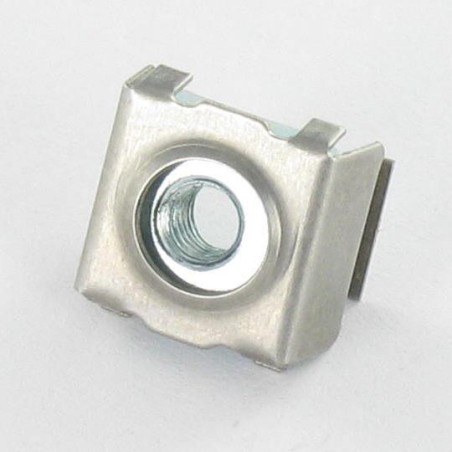

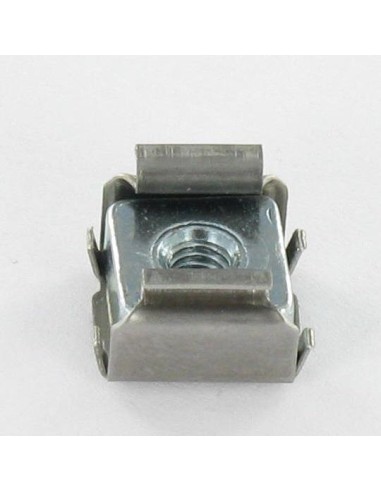

Caged Nut Stainless Steel Zinc Plated C4805D M5 Thickness Material 3.6 to 4.5
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M5
Product Family
Nut
Use
External
Grip range
3.6 to 4.5 MM
Unit weight
1.5 GR
774 Items
3663072340947

Application

  • Assembly of metal panels.
  • Securing industrial covers and housings.
  • Automotive and bodywork.
  • Electrical and electronic equipment.
  • Metal furniture.
  • Ventilation, air conditioning and technical ducts.
  • Assembly of electrical boxes and cabinets.
Caged Nut Stainless Steel Zinc Plated C4805D M5 Thickness Material 3.6 to 4.5
Diameter = M5, Use = External, Product Family = Nut

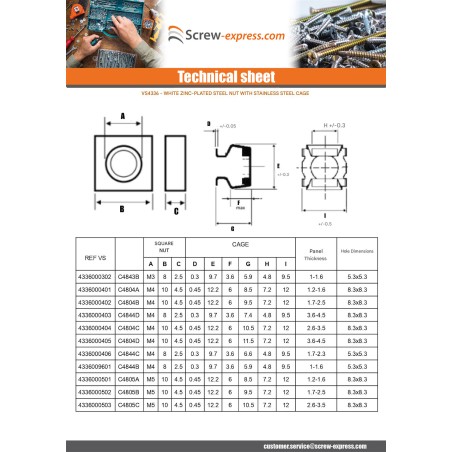

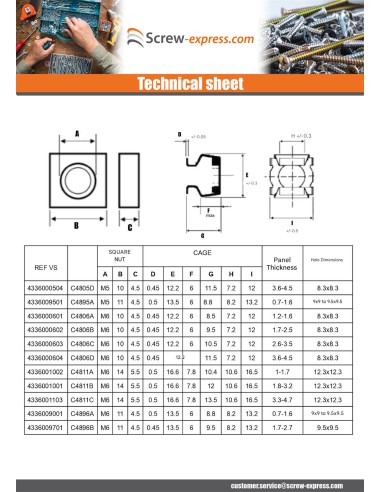

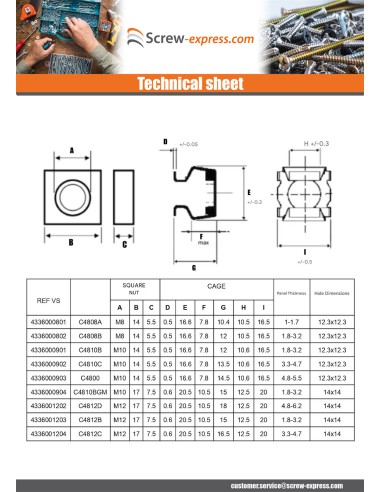

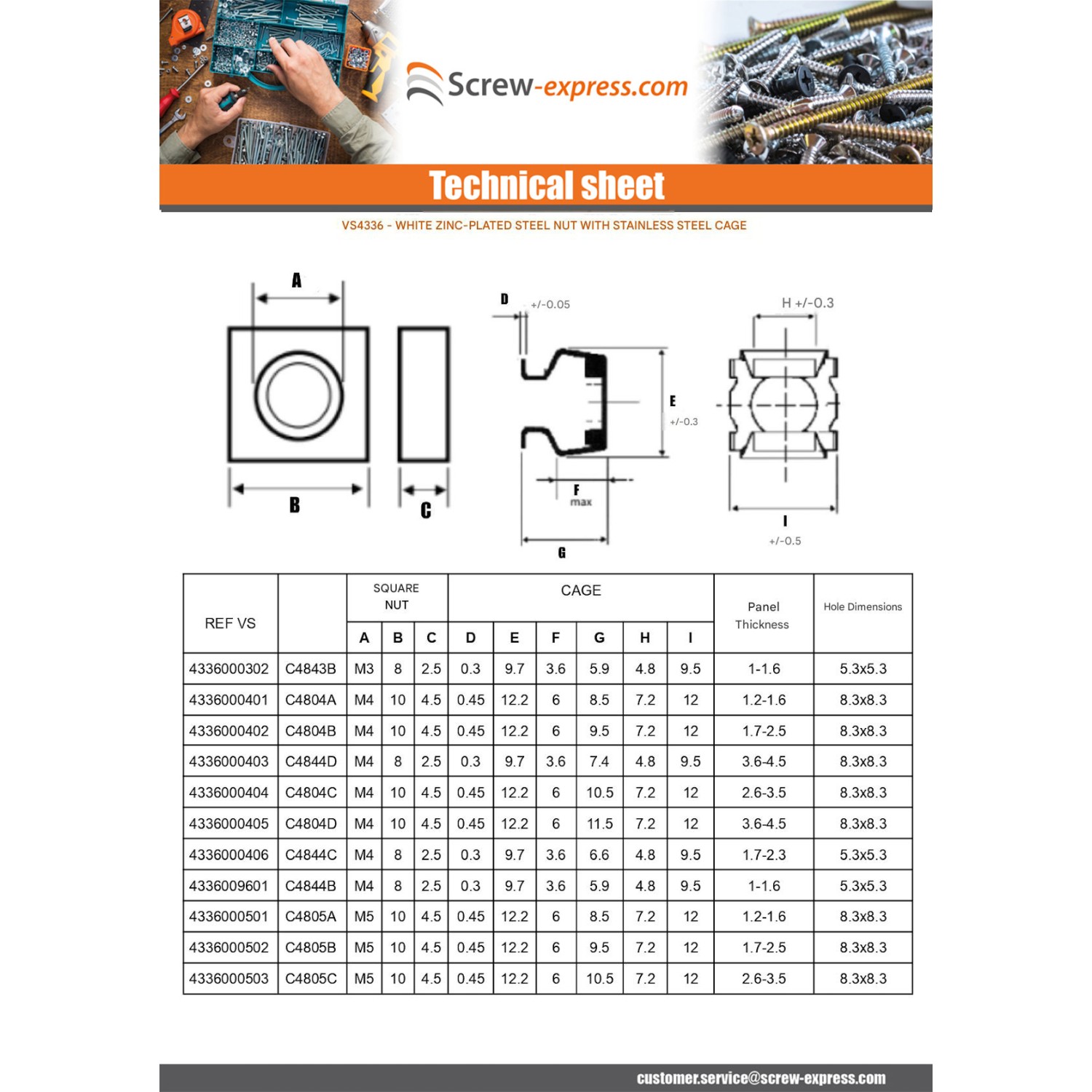

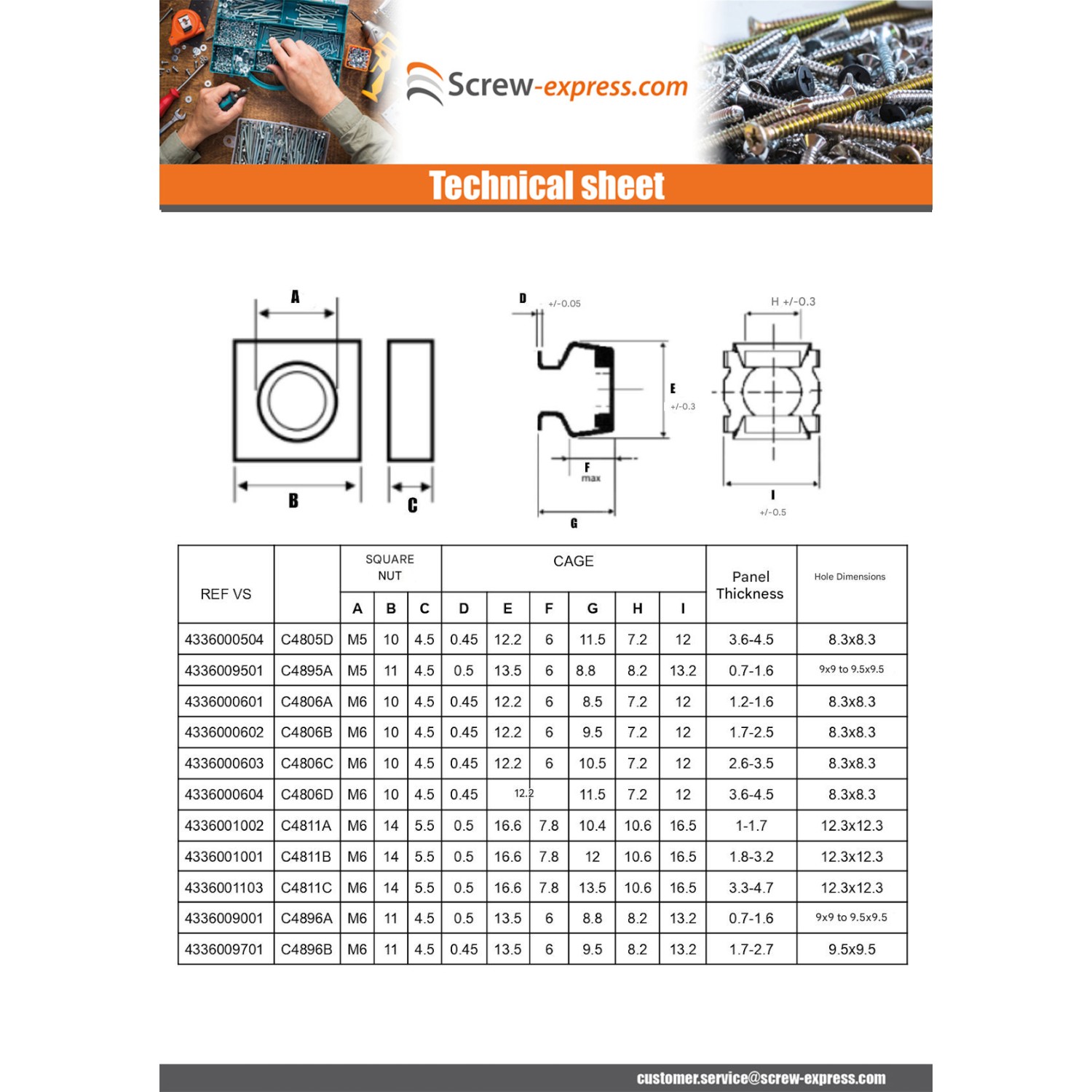

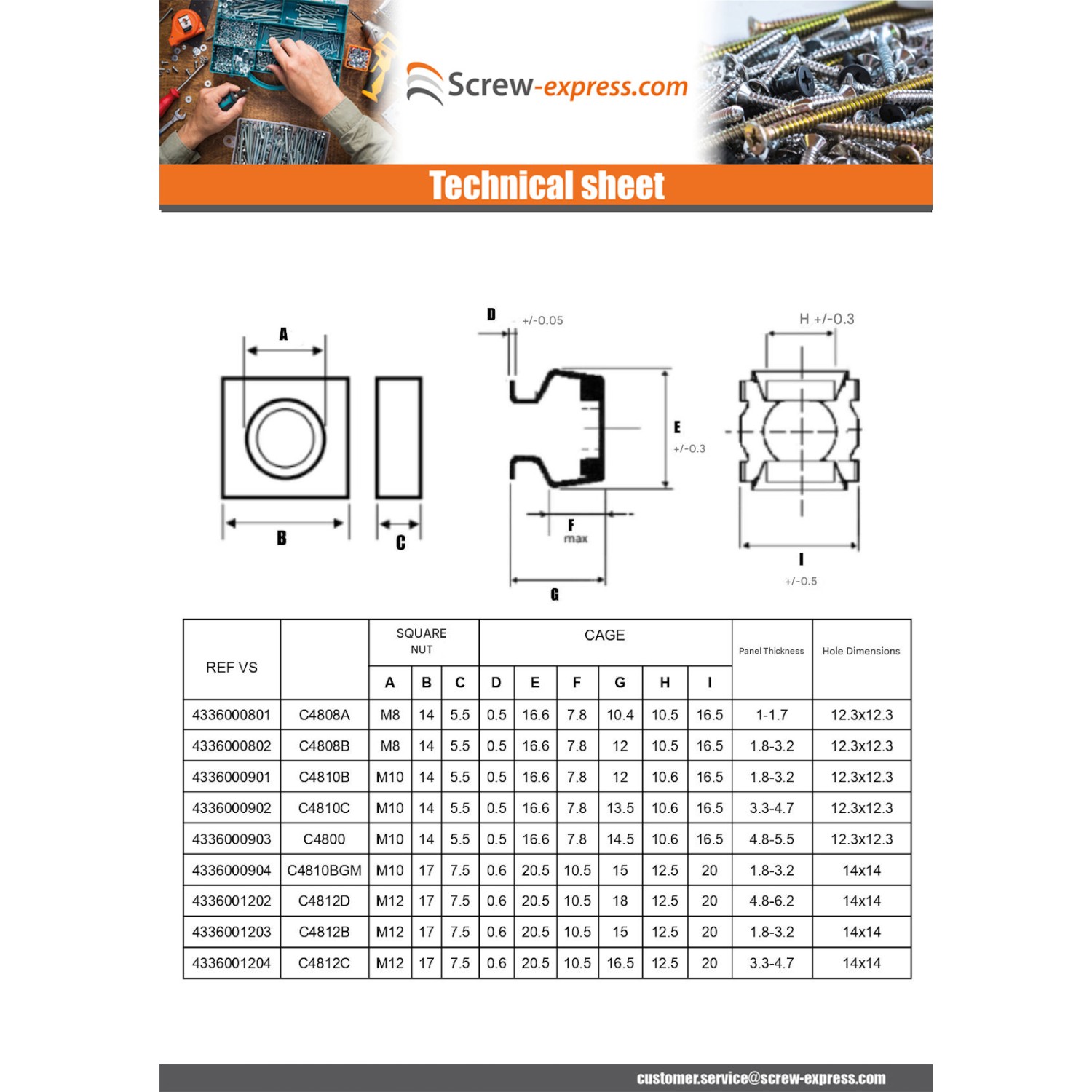

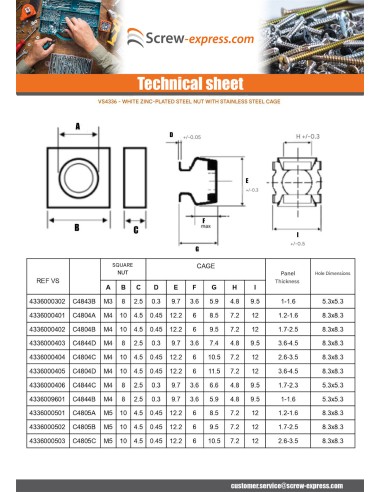

dimensional guide (mm)
Diameter M3 M4 M4 M4 M4 M5 M5 M5 M5 M5 M6 M6 M6 M6 M6 M6 M6 M6 M6 M10 M12 M12 M12
EPAISEUR PANNEAU 1A1.6 1A1.6 2.4A3.1 1.2A1.6 1.7A2.5 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 0.7A1.6 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 1A1.7 1.8A3.2 3.3A4.7 0.7A1.6 1.7A2.7 3.3A4.7 1.8A3.2 3.3A4.7 4.8A6.2
REF. C4843B C4844B C4844D C4804A C4804B C4805A C4805B C4805C C4805D C4895A C4806A C4806B C4806C C4806D C4811A C4811B C4811C C4896A C4896B C4810C C4812B C4812C C4812D
DIMENSION CARRE 9.3 9.3 9.3 12 12 12 12 12 12 13 12 12 12 12 16 16 16 13 13 16 20 20 20
HAUTEUR 5.9 5.9 7.4 8.5 9.5 8.5 9.5 10.5 11.5 8.8 8.5 9.5 10.5 11.5 10.4 11.9 13.4 8.8 10 13.4 14.7 16.2 17.7

Other Reference : DG835D FI VIS000016 7687634805 3663072340947
