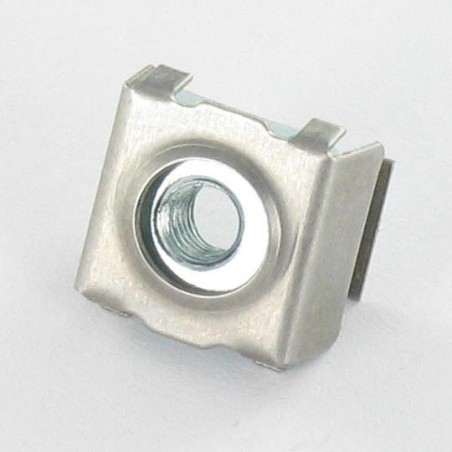

1 x Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5
1 x Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5
1 x Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5
1 x Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5
1 x Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5
1 x Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5

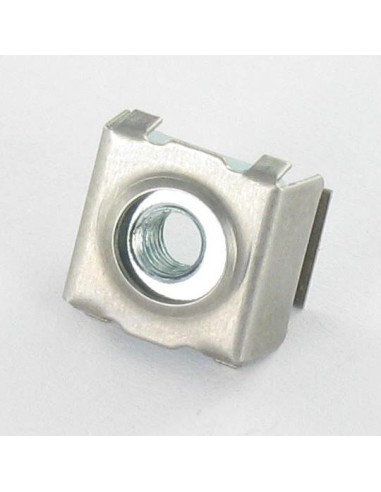

1 x Caged Nut Stainless Steel Zinc Plated...

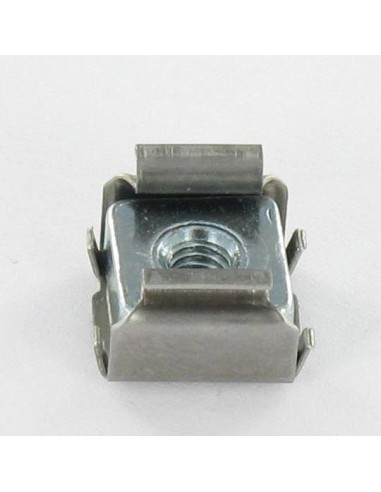

1 x Caged Nut Stainless Steel Zinc Plated...
1 x Caged Nut Stainless Steel Zinc Plated...
1 x Caged Nut Stainless Steel Zinc Plated...
1 x Caged Nut Stainless Steel Zinc Plated...
1 x Caged Nut Stainless Steel Zinc Plated...

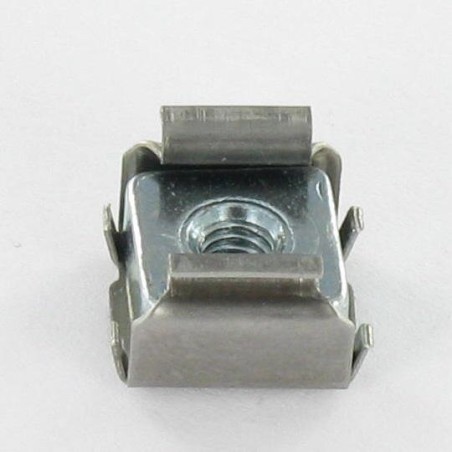

1 x Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5

4336000402_1
In stock 7610 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.34 £6.68 £11.02 £47.77
Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
M4
Product Family
Nut
Use
External
Grip range
1.7 to 2.5 MM
Unit weight
3.6 GR
7610 Items
3663072090873
Caged Nut Stainless Steel Zinc Plated C4804B M4 Thickness Material 1.7 to 2.5
Diameter = M4, Use = External, Product Family = Nut


dimensional guide (mm)
Diameter M3 M4 M4 M4 M4 M5 M5 M5 M5 M5 M6 M6 M6 M6 M6 M6 M6 M6 M6 M10 M12 M12 M12
EPAISEUR PANNEAU 1A1.6 1A1.6 2.4A3.1 1.2A1.6 1.7A2.5 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 0.7A1.6 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 1A1.7 1.8A3.2 3.3A4.7 0.7A1.6 1.7A2.7 3.3A4.7 1.8A3.2 3.3A4.7 4.8A6.2
REF. C4843B C4844B C4844D C4804A C4804B C4805A C4805B C4805C C4805D C4895A C4806A C4806B C4806C C4806D C4811A C4811B C4811C C4896A C4896B C4810C C4812B C4812C C4812D
DIMENSION CARRE 9.3 9.3 9.3 12 12 12 12 12 12 13 12 12 12 12 16 16 16 13 13 16 20 20 20
HAUTEUR 5.9 5.9 7.4 8.5 9.5 8.5 9.5 10.5 11.5 8.8 8.5 9.5 10.5 11.5 10.4 11.9 13.4 8.8 10 13.4 14.7 16.2 17.7

Other Reference : DG834B FG ECR-TO-M4-A ECROUCAGEC48 05170256 05170256 EC/ZH/CGA2.M C4804B PROTOTYPE 60.000.006 141039 400190 COV00094 3663072090873
