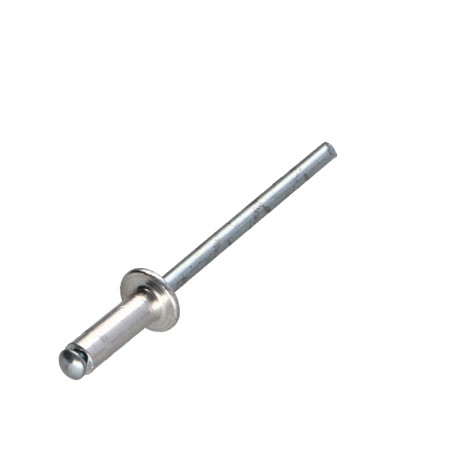

1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX

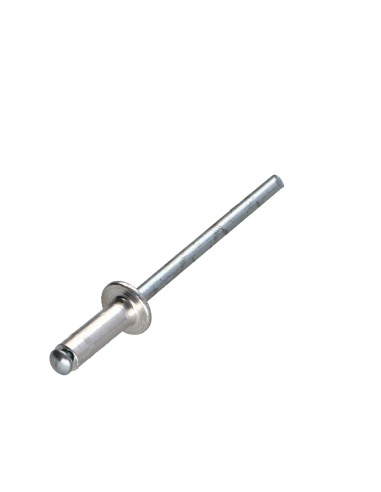

1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...

1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX

3702481212_1
In stock 71221 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €4.80 €19.95 €79.80
Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Sub product family
Flat Head
WEIGHT For THERE unit
2.6 GR
Clamping thickness
5 to 7 MM
Rivet body length
12
71221 Items
3663072064171

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Flat Head ALX
Diameter = Class 4.8


dimensional guide (mm)
Body diameter2.433.244.866.4
Head diameter566.589.511.512
Drilling diameter2.63.23.44.256.26.6
resistance a la traction50080010001600260038004600
Shear strength4006508501300210030003500
longueur tige2525252727272727

Other Reference : 103148121 YRIVACIALUTP A300104002 VAPARC4816 AN RIV4.8X12 RIVET4.8X12 RIV-ALU-4.8* 2299049 130511 VAPARC4816 A5390 0577 RIVALS4812 1002 N/A001 RIVALS4812 WD40001 6VIS1RA005 24528 RVT-AL0412R1 VIRIVD637T93 AC0422 38078 39761 AN 11802 X86014 VU051 RIVET-0001 64RIV4812P-C 21VI400 38078 30520368 q027209900 203579 R140645 WRT048012 0012303 1361058 9800002 39761 39761 RIVE0024 RIPO04812 0648512 RIV4.8X12 39761 RIVET4.8*12A 640300148110 22278 500 VIS062BIS RIVET*ALU*TP 020004020020 141027 212035 2741010 HMRIVET4812 503574 39761 09378412 VIRIVD637T93 014108 223051-CH POP4-12 URIV14812 07787 V001563 101076 MC4812 QUIRIVEZT4.8 VZ024 CO220030 6971 DMRIV0035 QRI10020 / AN 38078 39761 10300064 R4812 3663072064171
julien B. (vis-express.fr)
2026-02-15

boat decking construction
