1 x Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Extra Large Head ALX

3700320612_1
In stock 3588 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €21.30

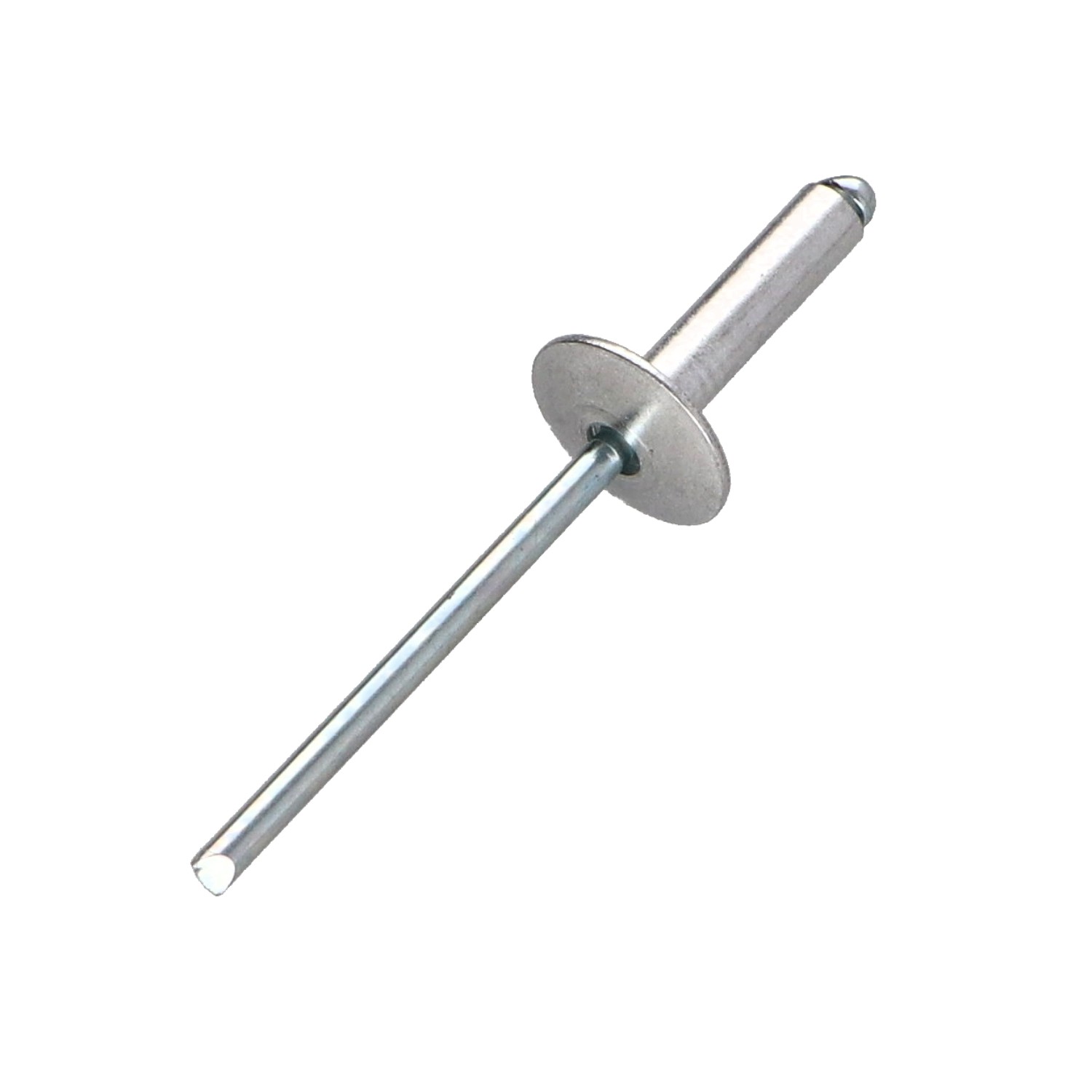

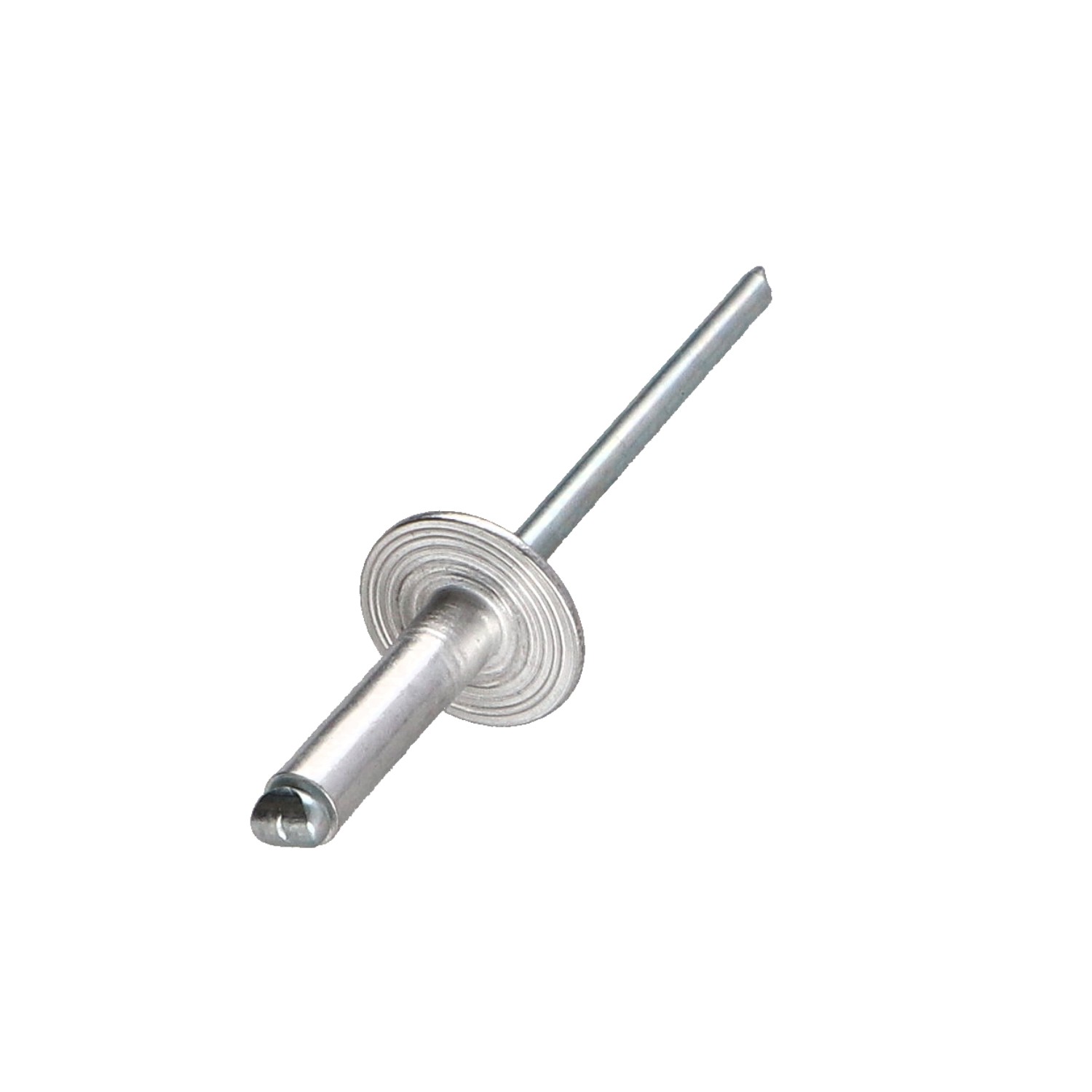

Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Extra Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Diameter Head
10
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
500
Clamping thickness
1 a 3 mm
Rivet body length
6
Unit weight
1.18 GR
Head shape
Head EXTRA-LARGE
Hole diameter
3.4
Tensile strength
700
3588 Items
3663072301634

Application

  • Fixing of plastics, PVC, polycarbonate
  • Installation of thin or insulating panels
  • Tarpaulins, thin sheets, lightweight cladding
  • Aluminium joinery / signage
Blind rivets Aluminium Stahlgewinde 3.2X6 Thickness Of Panel 1 to 3 Extra Large Head ALX
Diameter = 3.2, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 10

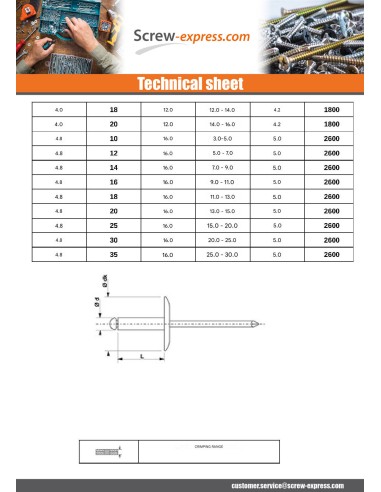

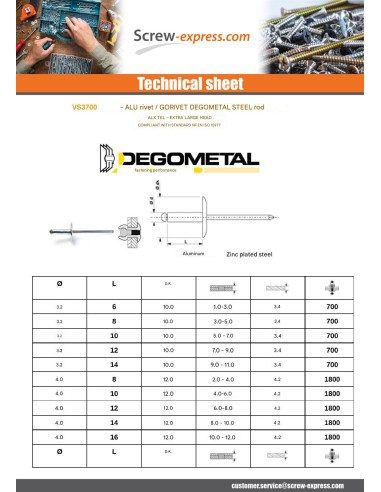

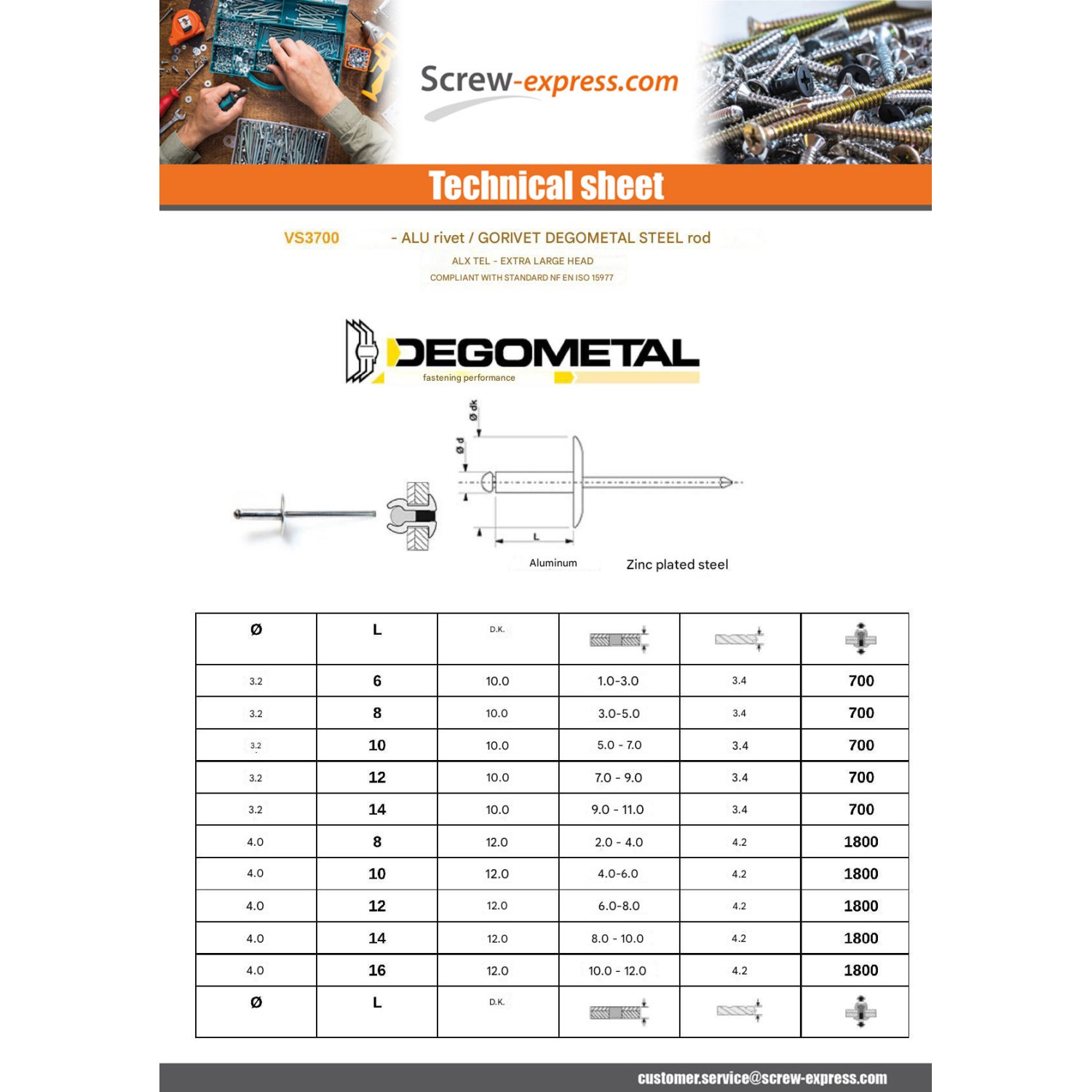

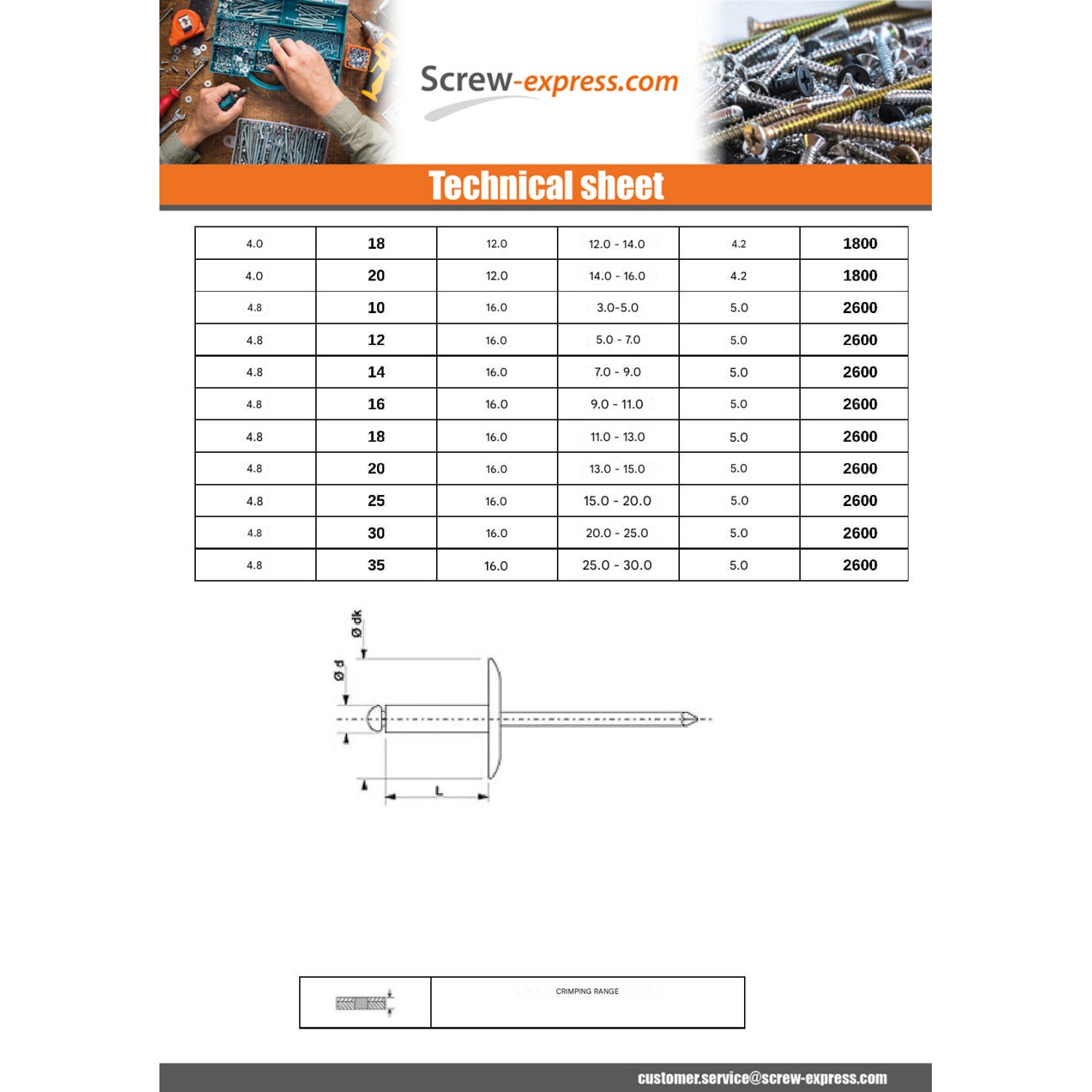

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 10 12 16
Drilling diameter 3.4 4.2 5
Tensile strength 1000 1600 2600
Shear strength 850 1300 2100
La longueur indique la longueur du coprs (longueur utile)

Other Reference : 103332061 RI4 0005 00 3663072301634
