1 x Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Extra Large Head ALX

3700482012_1
In stock 9469 Pièces
£1.61 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250 1000
Lot price VAT included £1.61 £3.21 £3.91 £23.86 £90.68

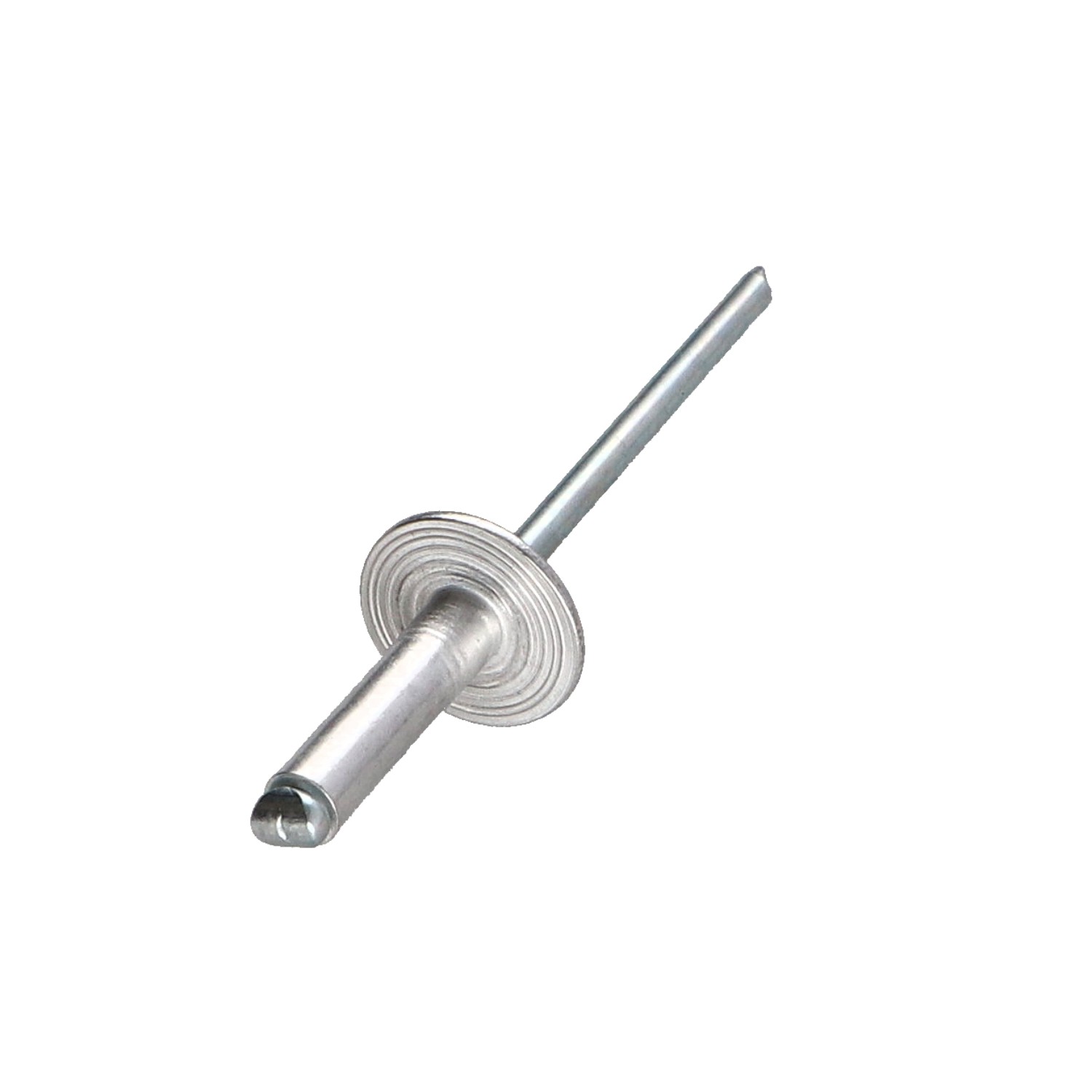

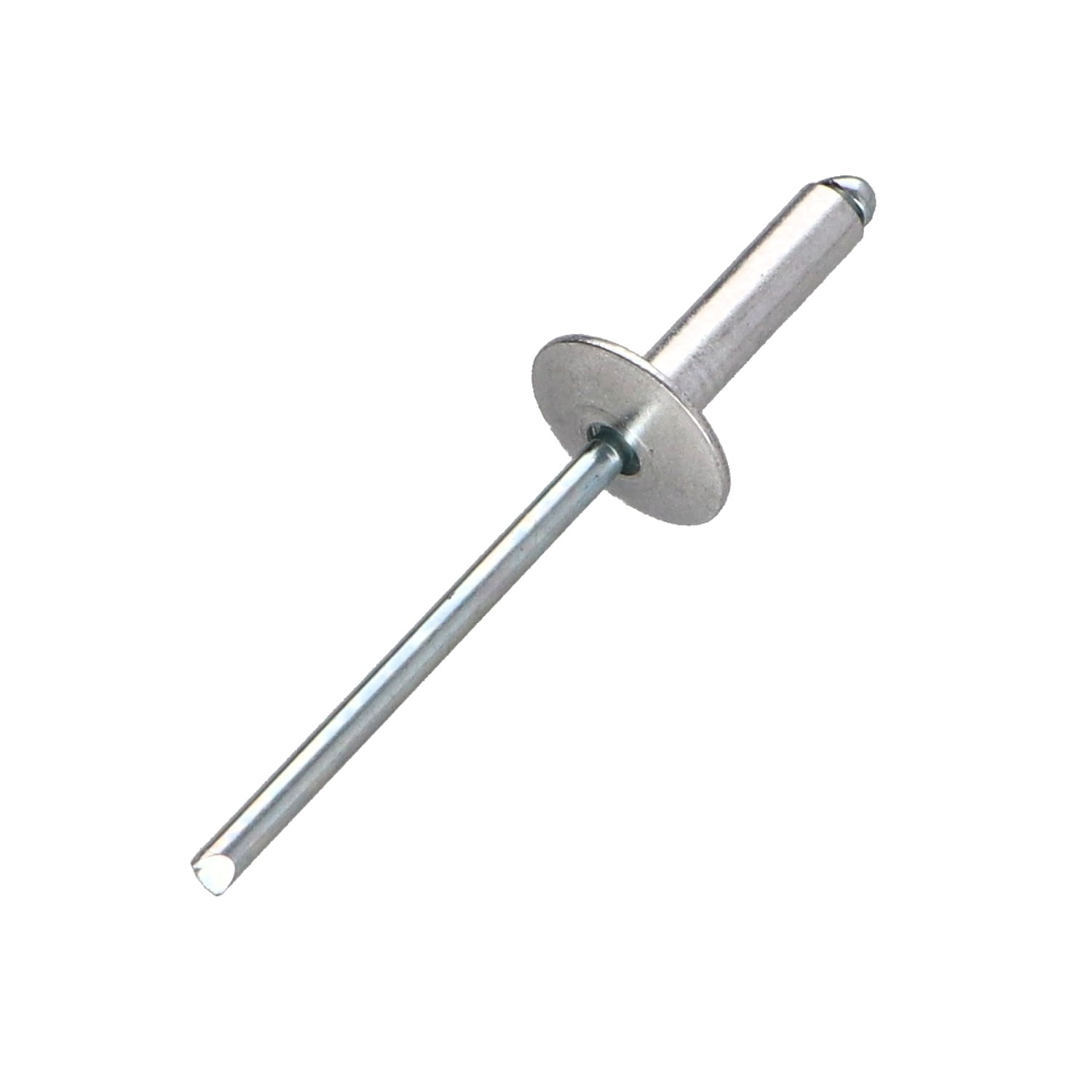

Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Extra Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
16
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
13 a 15 mm
Rivet body length
20
Unit weight
4.05 GR
Head shape
Head EXTRA-LARGE
Hole diameter
5
Tensile strength
2600
9469 Items
3663072301726

Application

  • Fixing of plastics, PVC, polycarbonate
  • Installation of thin or insulating panels
  • Tarpaulins, thin sheets, lightweight cladding
  • Aluminium joinery / signage
Blind rivets Aluminium Stahlgewinde 4.8X20 Thickness Of Panel 13 to 15 Extra Large Head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 16

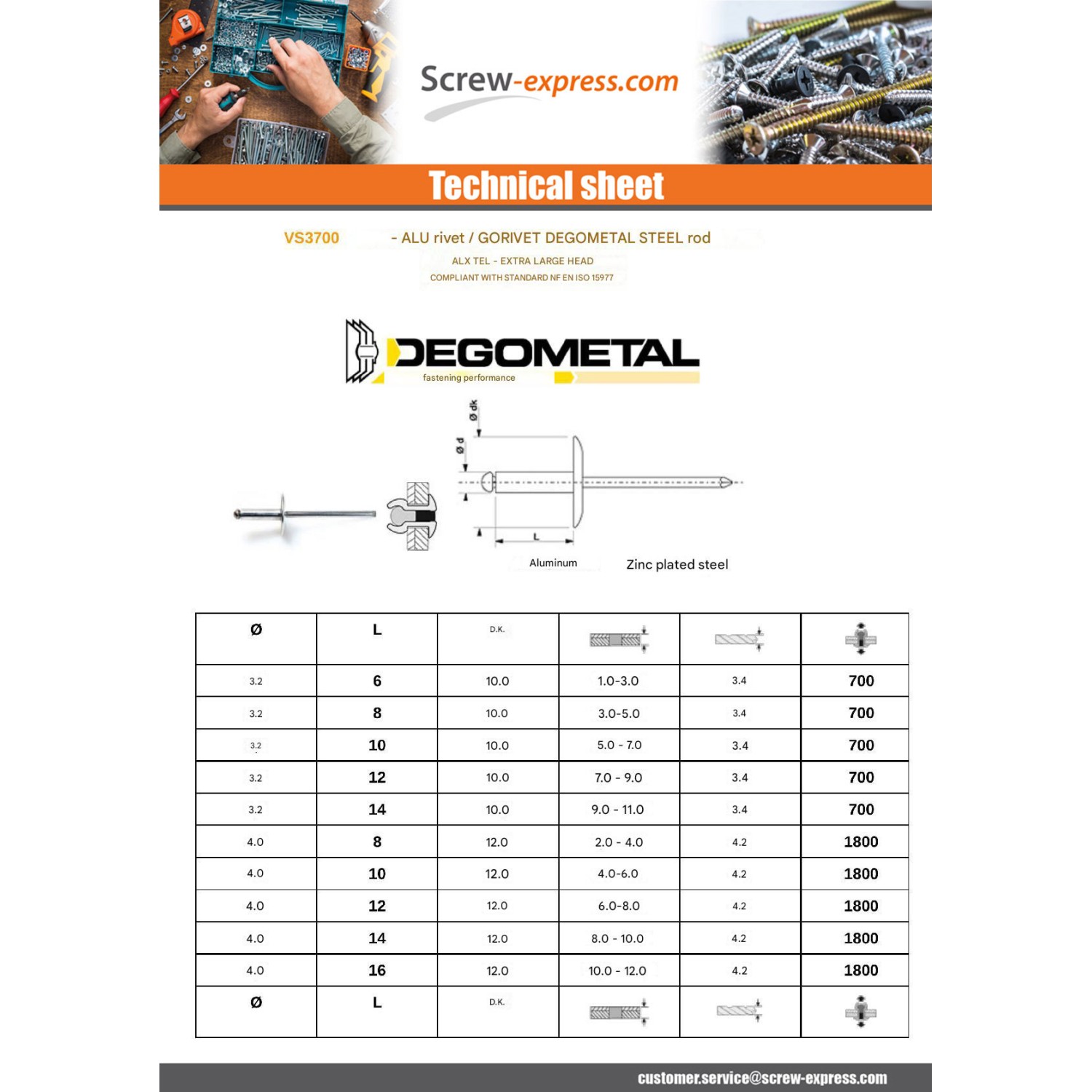

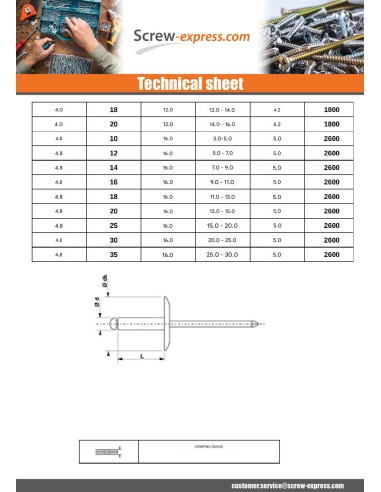

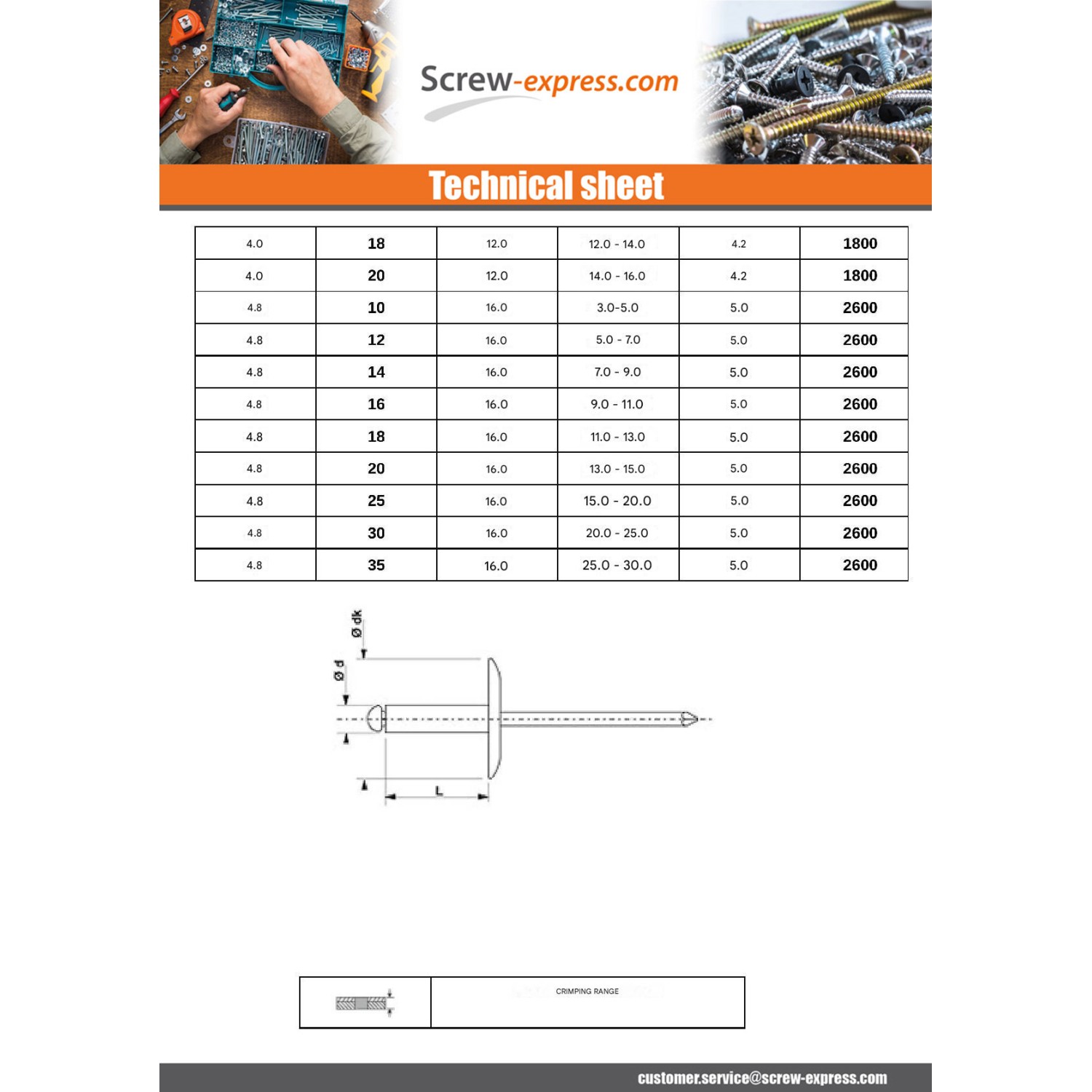

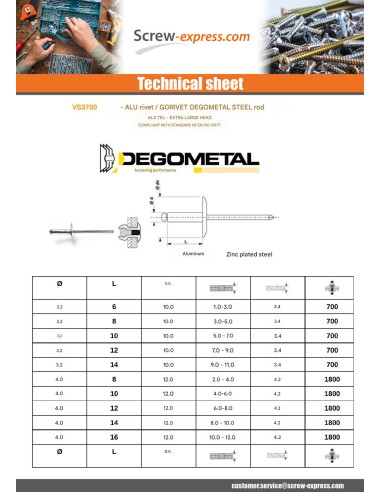

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 10 12 16
Drilling diameter 3.4 4.2 5
Tensile strength 1000 1600 2600
Shear strength 850 1300 2100
La longueur indique la longueur du coprs (longueur utile)

Other Reference : 103348201 1347000850 7499 3663072301726
