3700401012_1
In stock 17109 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €4.05 €16.15 €64.60

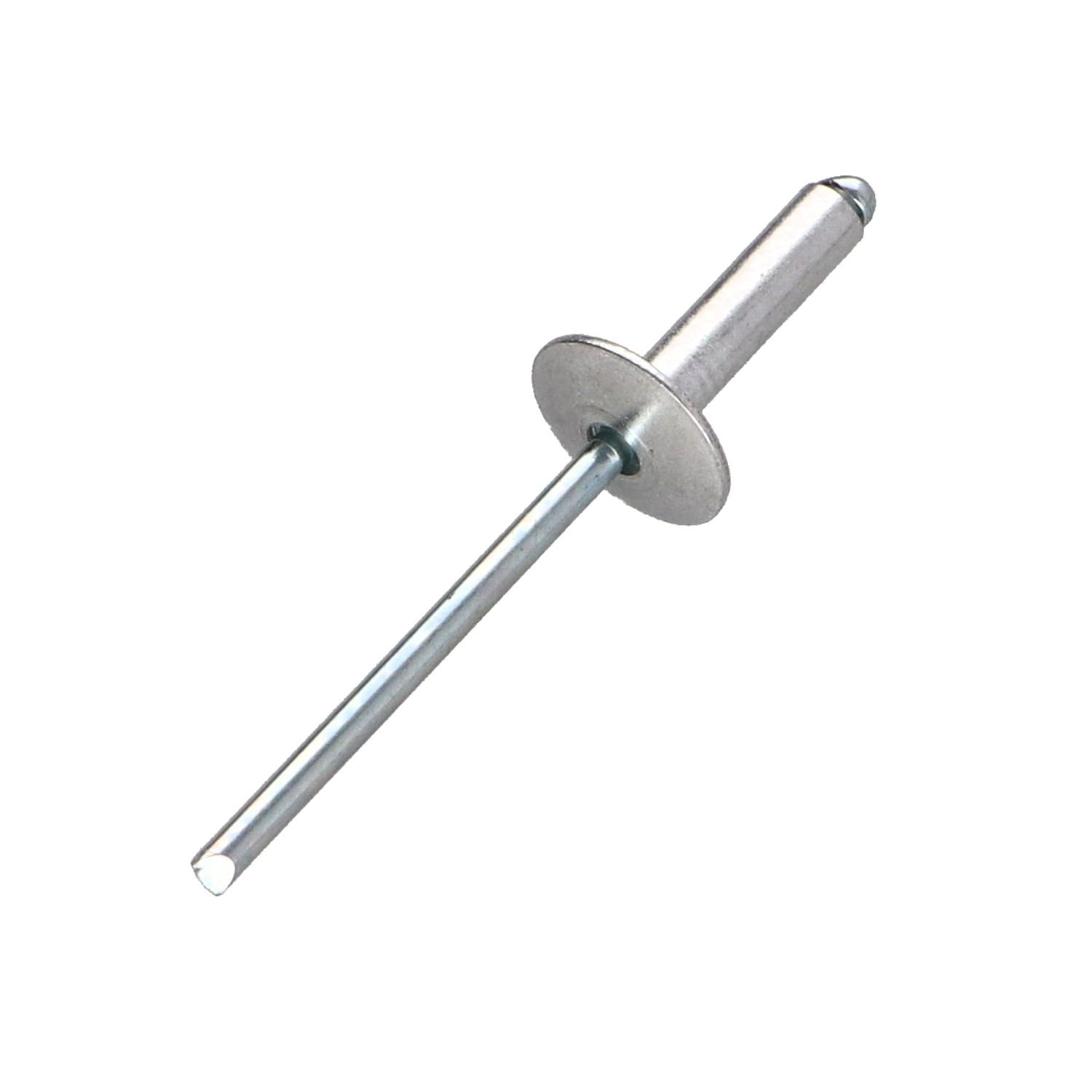

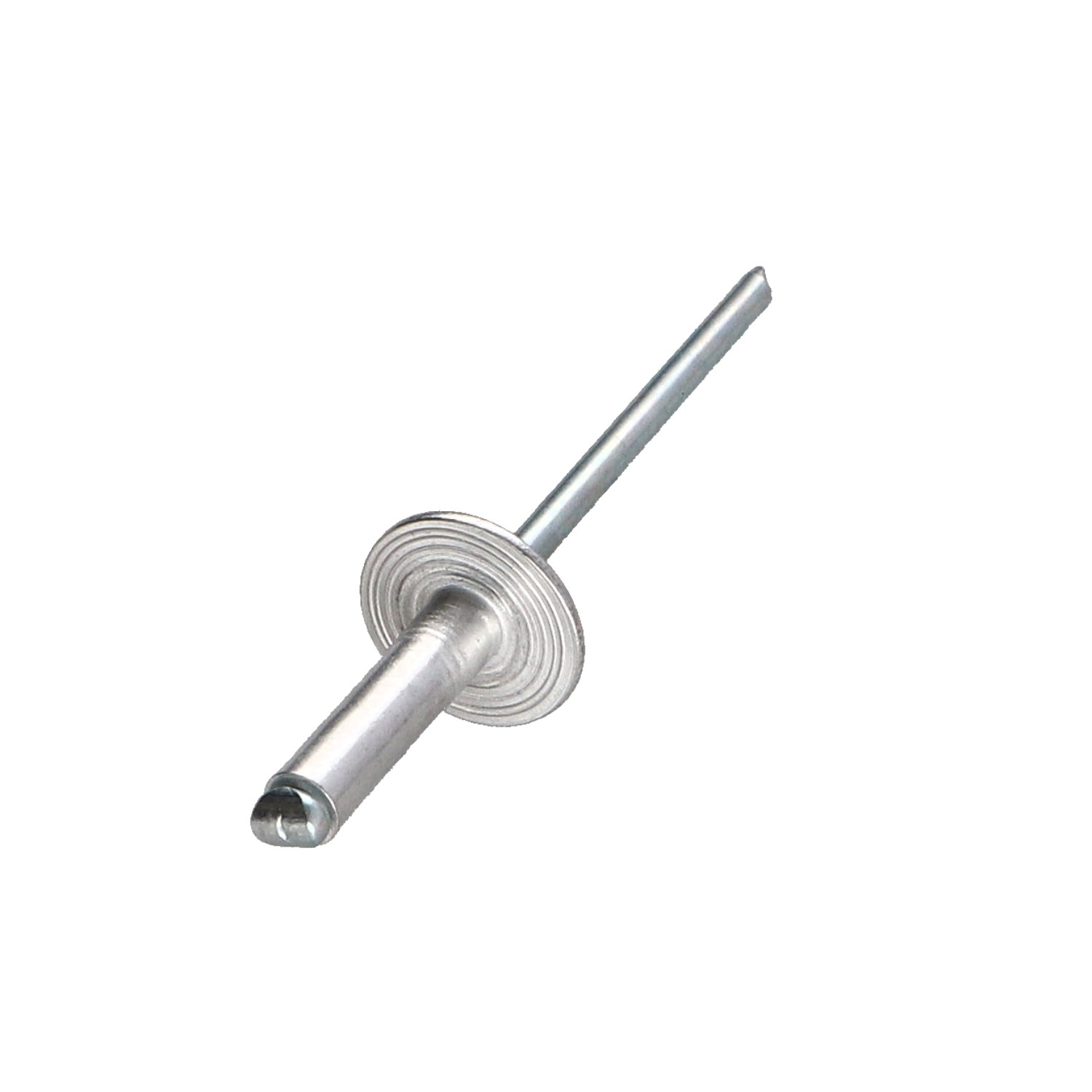

Blind rivets Aluminium Stahlgewinde 4X10 Thickness Of Panel 4 to 6 Extra Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
12
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
4 a 6 mm
Rivet body length
10
Unit weight
2 GR
Head shape
Head EXTRA-LARGE
Hole diameter
4.2
Tensile strength
1800
17109 Items
3663072063563

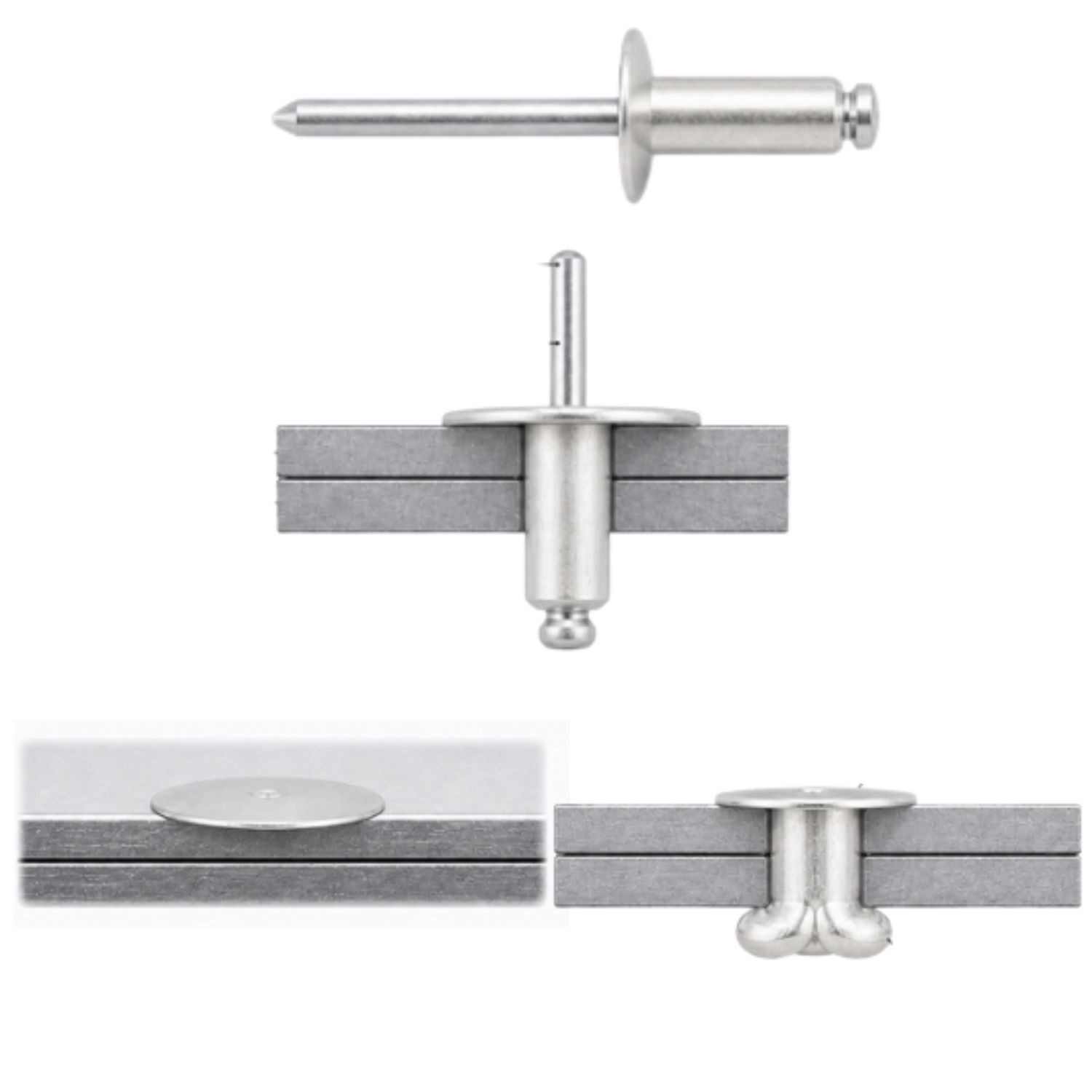

Application

  • Fixing of plastics, PVC, polycarbonate
  • Installation of thin or insulating panels
  • Tarpaulins, thin sheets, lightweight cladding
  • Aluminium joinery / signage
Blind rivets Aluminium Stahlgewinde 4X10 Thickness Of Panel 4 to 6 Extra Large Head ALX
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 12

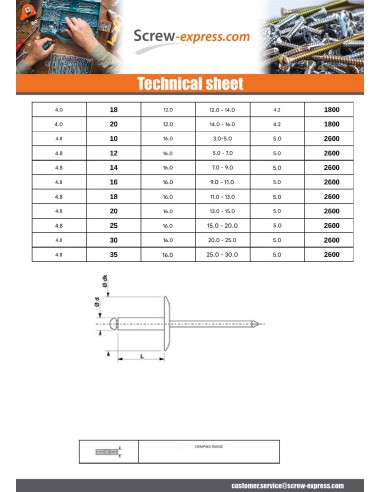

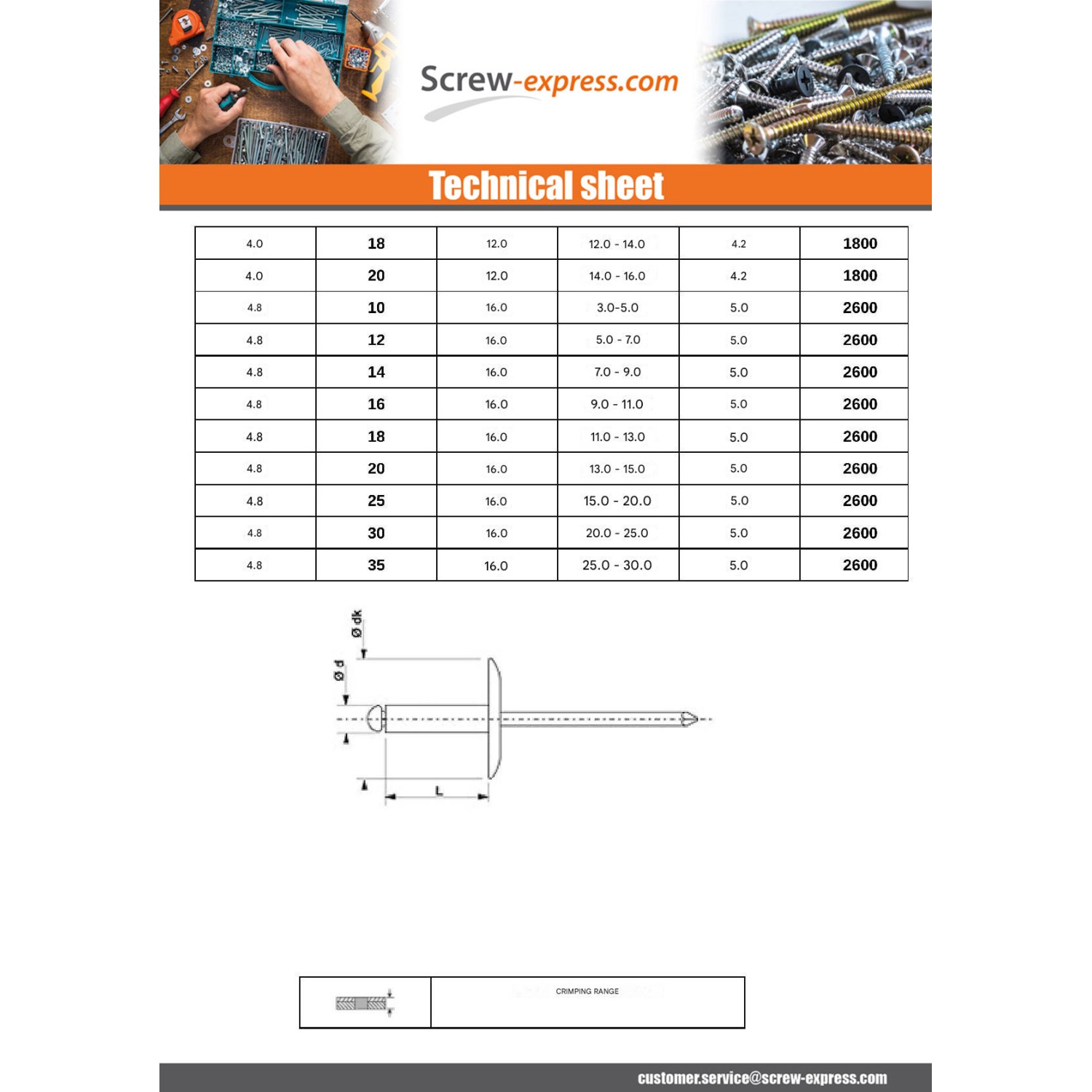

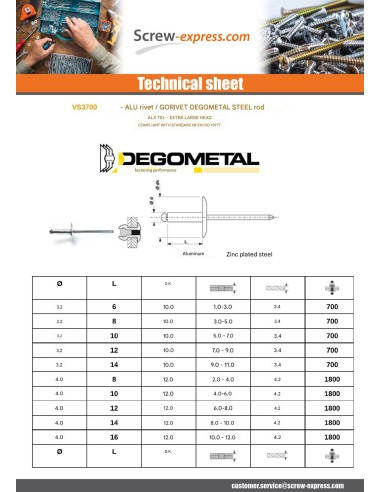

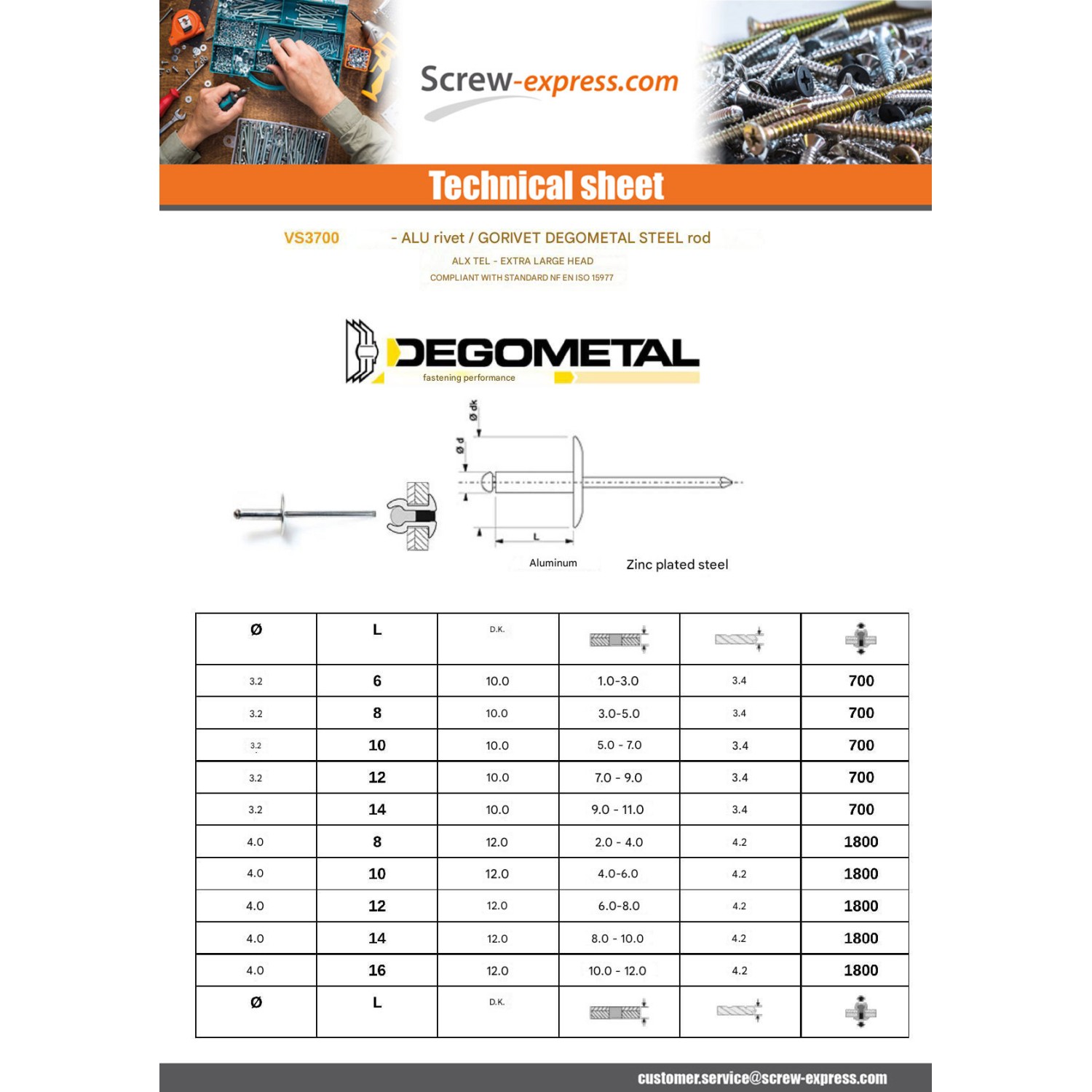

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 10 12 16
Drilling diameter 3.4 4.2 5
Tensile strength 1000 1600 2600
Shear strength 850 1300 2100
La longueur indique la longueur du coprs (longueur utile)

Other Reference : 103340101 260064 QURI1560 QRIV4010LA01 0844809900 101077 8900199 3663072063563
Arnaud S. (vis-express.fr)
2025-11-02

Use for securing condoms


Julien P. (vis-express.fr)
2024-12-29

Sheet metal fixing Barn door making


Adrien V. (vis-express.fr)
2023-11-26

Product used to attach mesh to aluminum tubes 2mx1m aviary panels
