3700481012_1
In stock 13997 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €4.25 €8.45 €10.20 €18.25

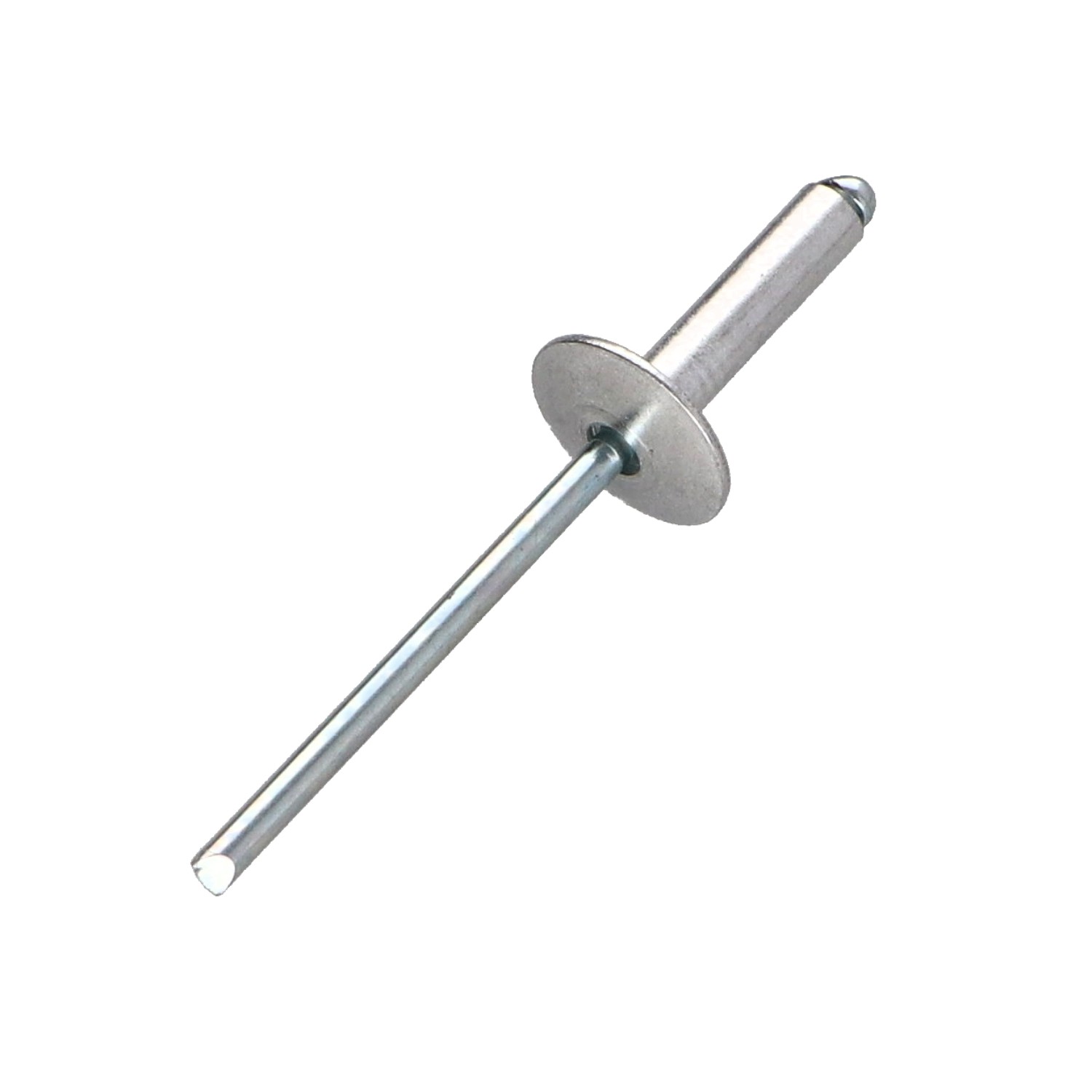

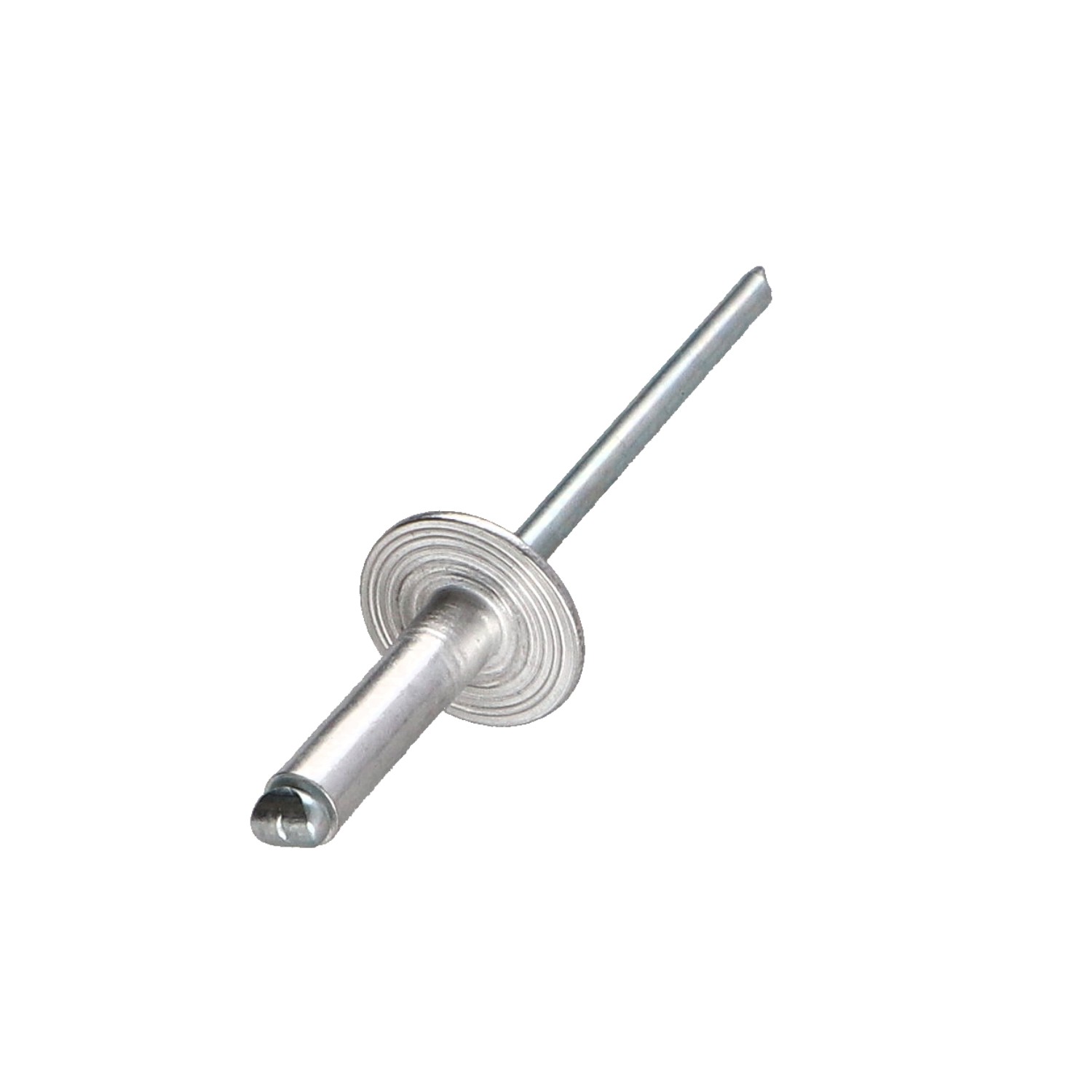

Blind rivets Aluminium Stahlgewinde 4.8X10 Thickness Of Panel 3 to 5 Extra Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
16
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
3 a 5 mm
Rivet body length
10
Unit weight
3.3 GR
Head shape
Head EXTRA-LARGE
Hole diameter
5
Tensile strength
2600
13997 Items
3663072219861

Application

  • Fixing of plastics, PVC, polycarbonate
  • Installation of thin or insulating panels
  • Tarpaulins, thin sheets, lightweight cladding
  • Aluminium joinery / signage
Blind rivets Aluminium Stahlgewinde 4.8X10 Thickness Of Panel 3 to 5 Extra Large Head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 16

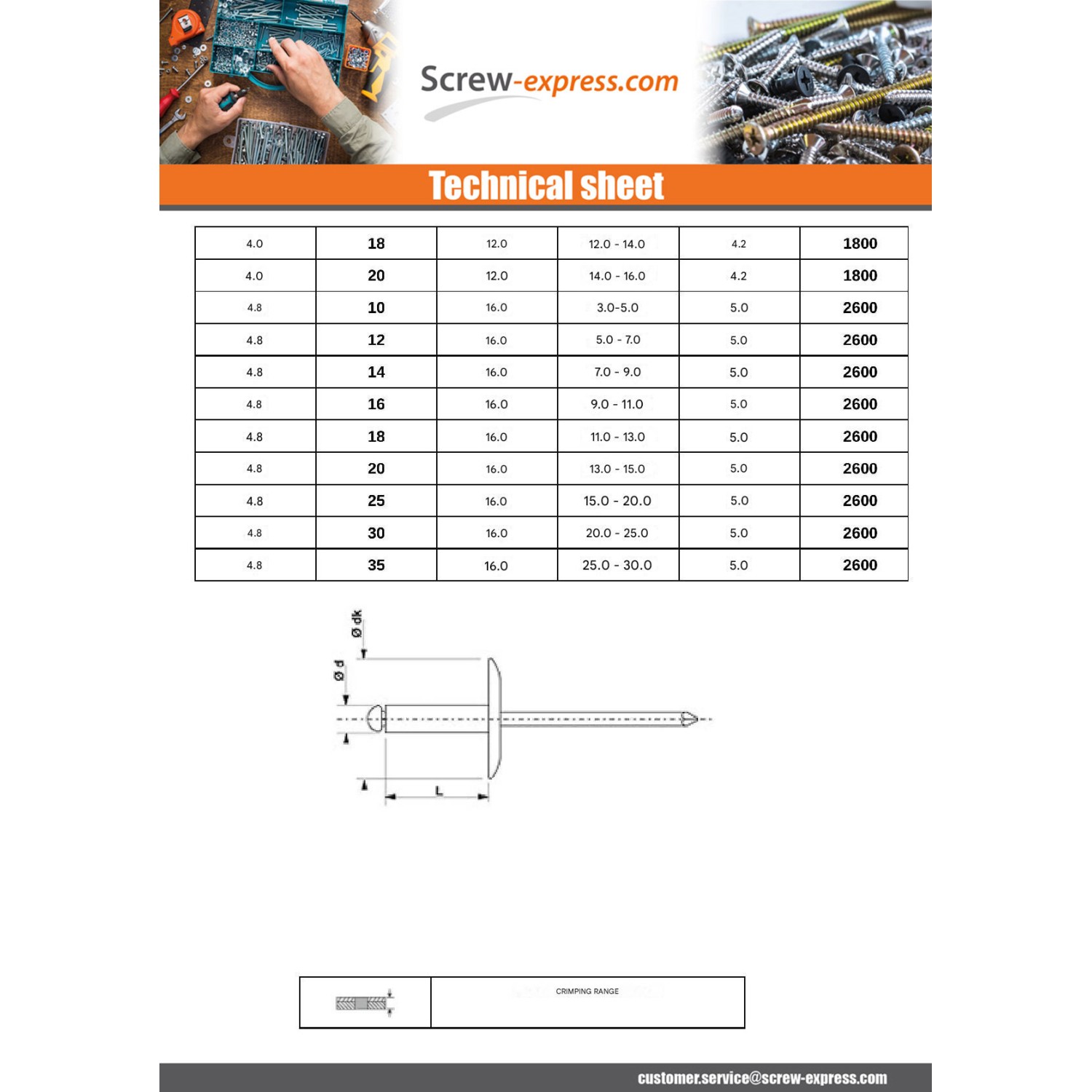

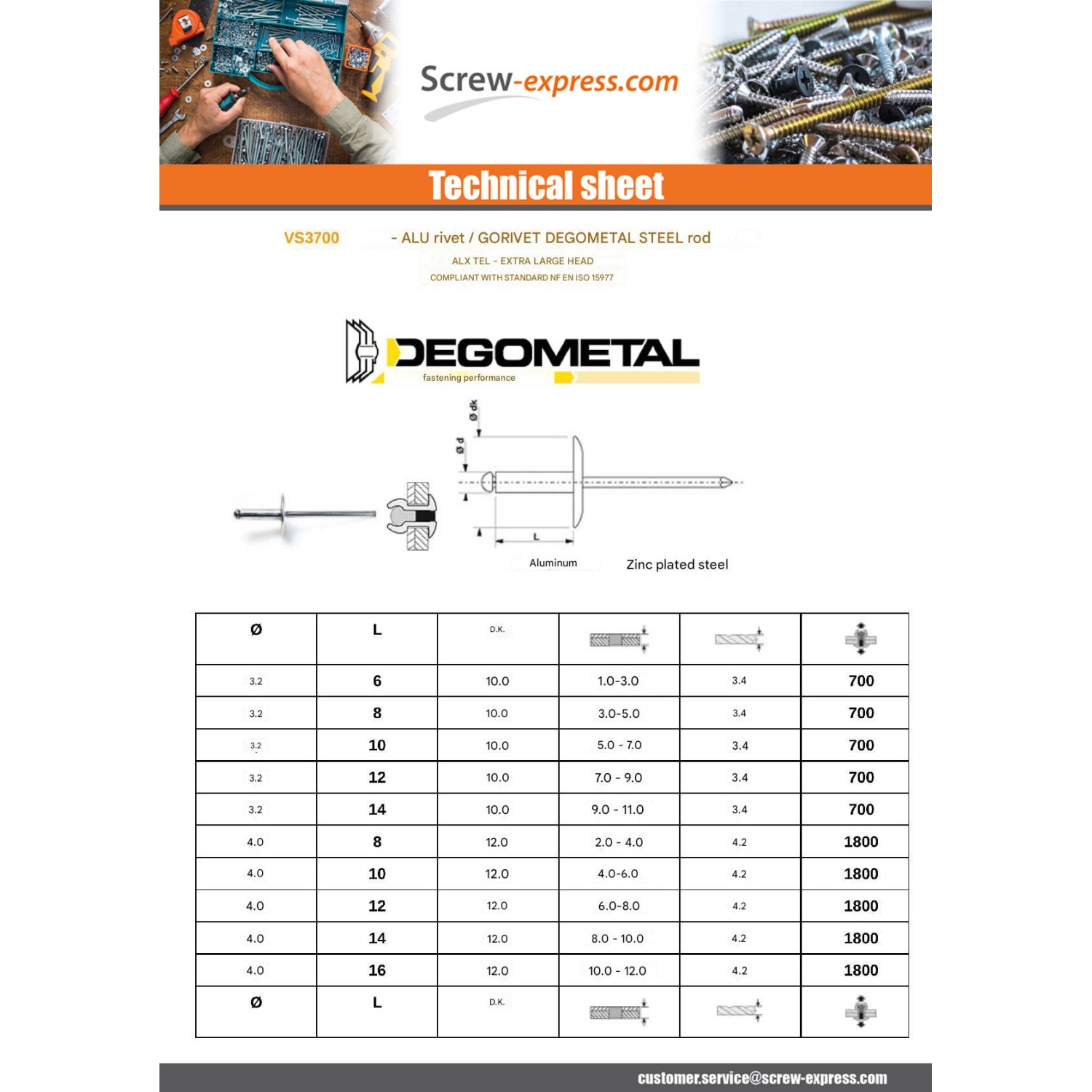

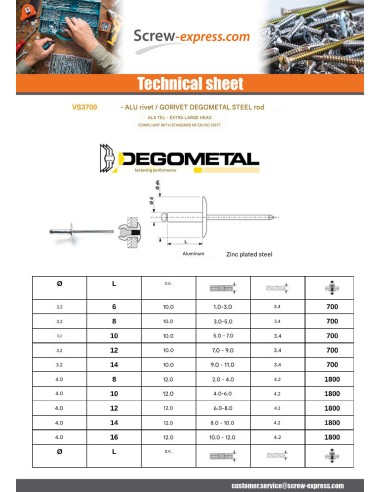

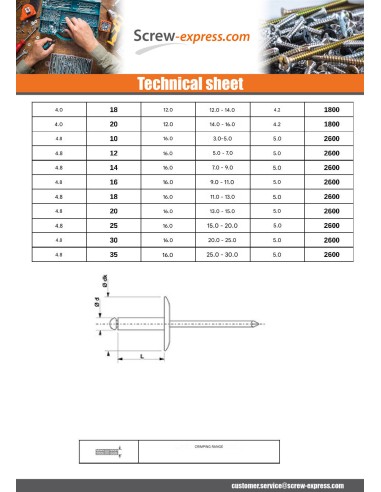

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 10 12 16
Drilling diameter 3.4 4.2 5
Tensile strength 1000 1600 2600
Shear strength 850 1300 2100
La longueur indique la longueur du coprs (longueur utile)

Other Reference : 103348101 461309 AC035462 PA013332 3663072219861
