3700401612_1
In stock 48792 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €28.55

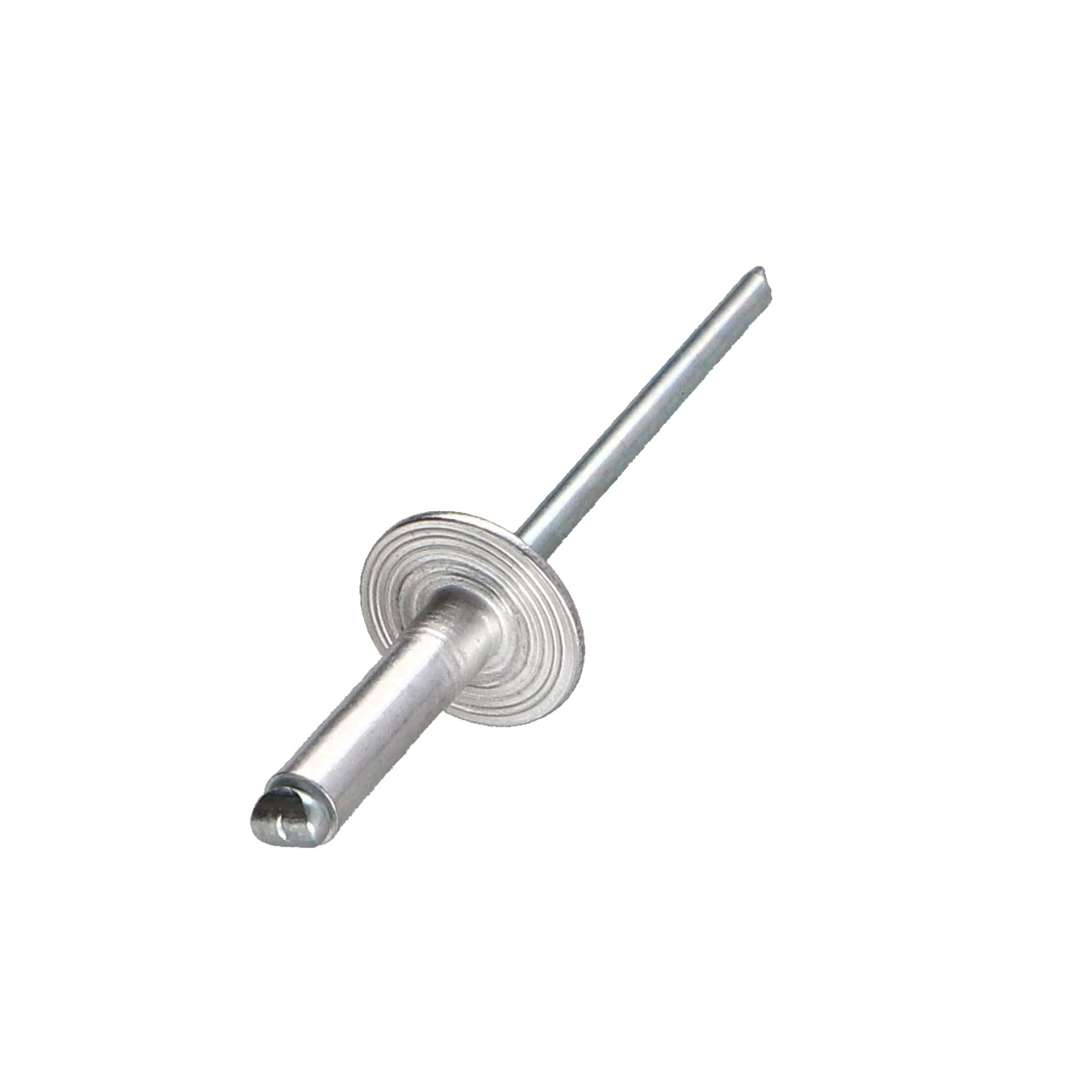

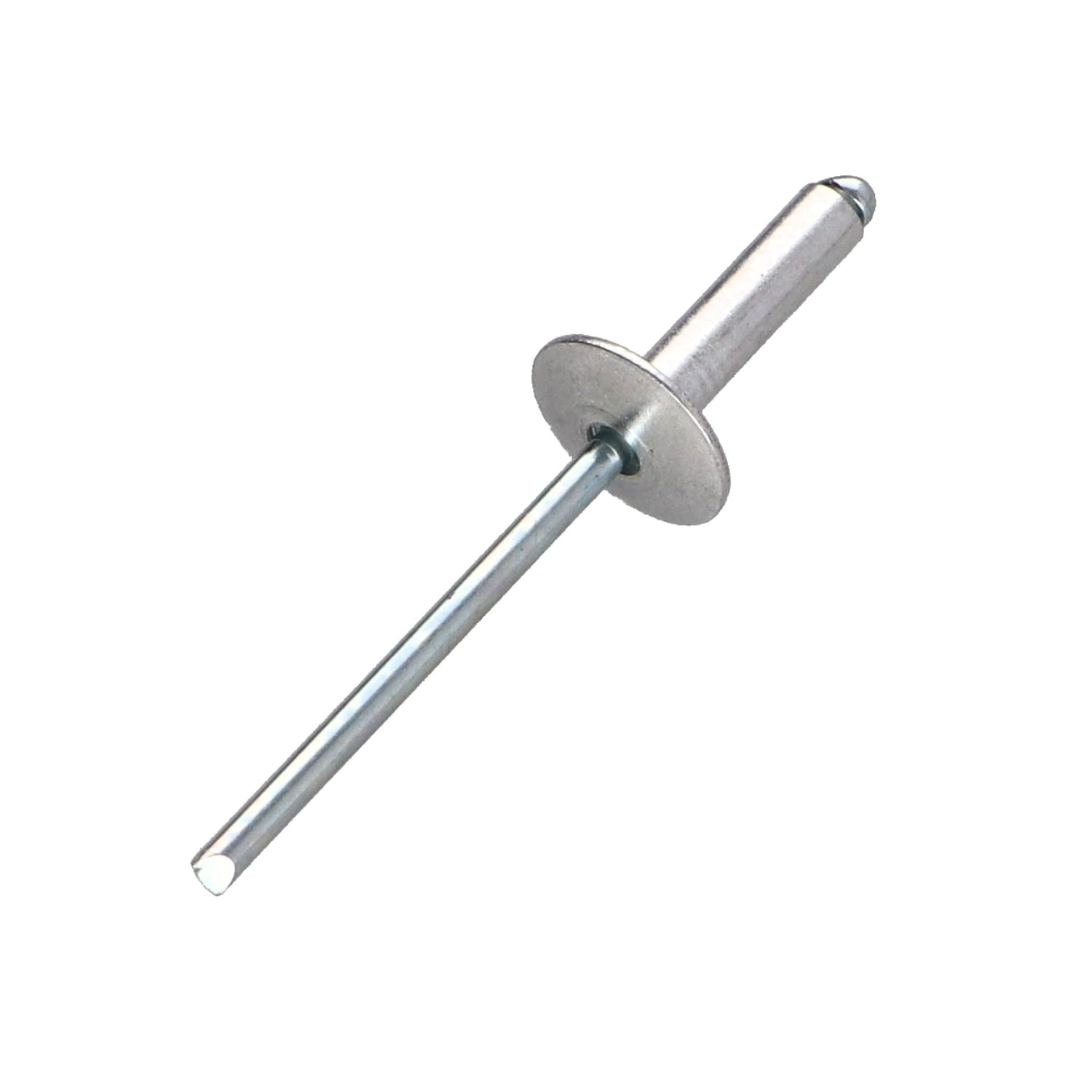

Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Extra Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
12
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
10 a 12 mm
Rivet body length
16
Unit weight
2.4 GR
Head shape
Head EXTRA-LARGE
Hole diameter
4.2
Tensile strength
1800
48792 Items
3663072301689

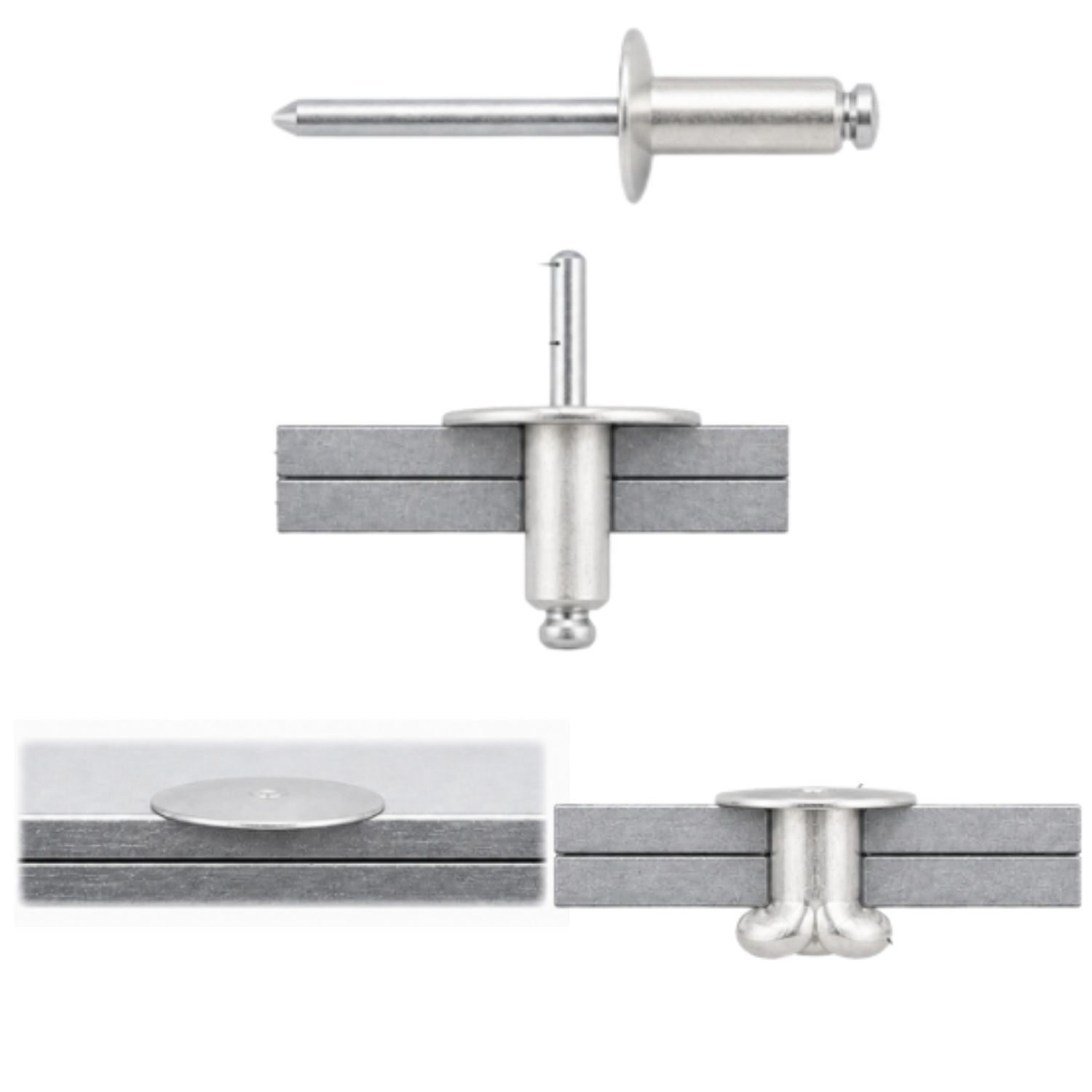

Application

  • Fixing of plastics, PVC, polycarbonate
  • Installation of thin or insulating panels
  • Tarpaulins, thin sheets, lightweight cladding
  • Aluminium joinery / signage
Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Extra Large Head ALX
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 12

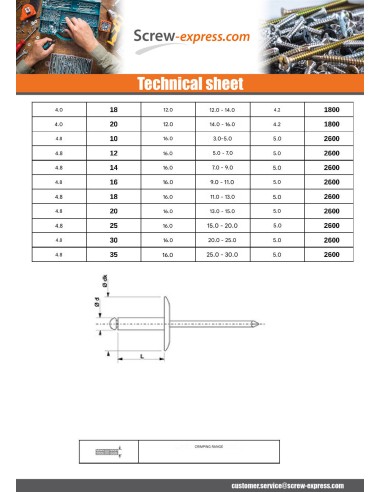

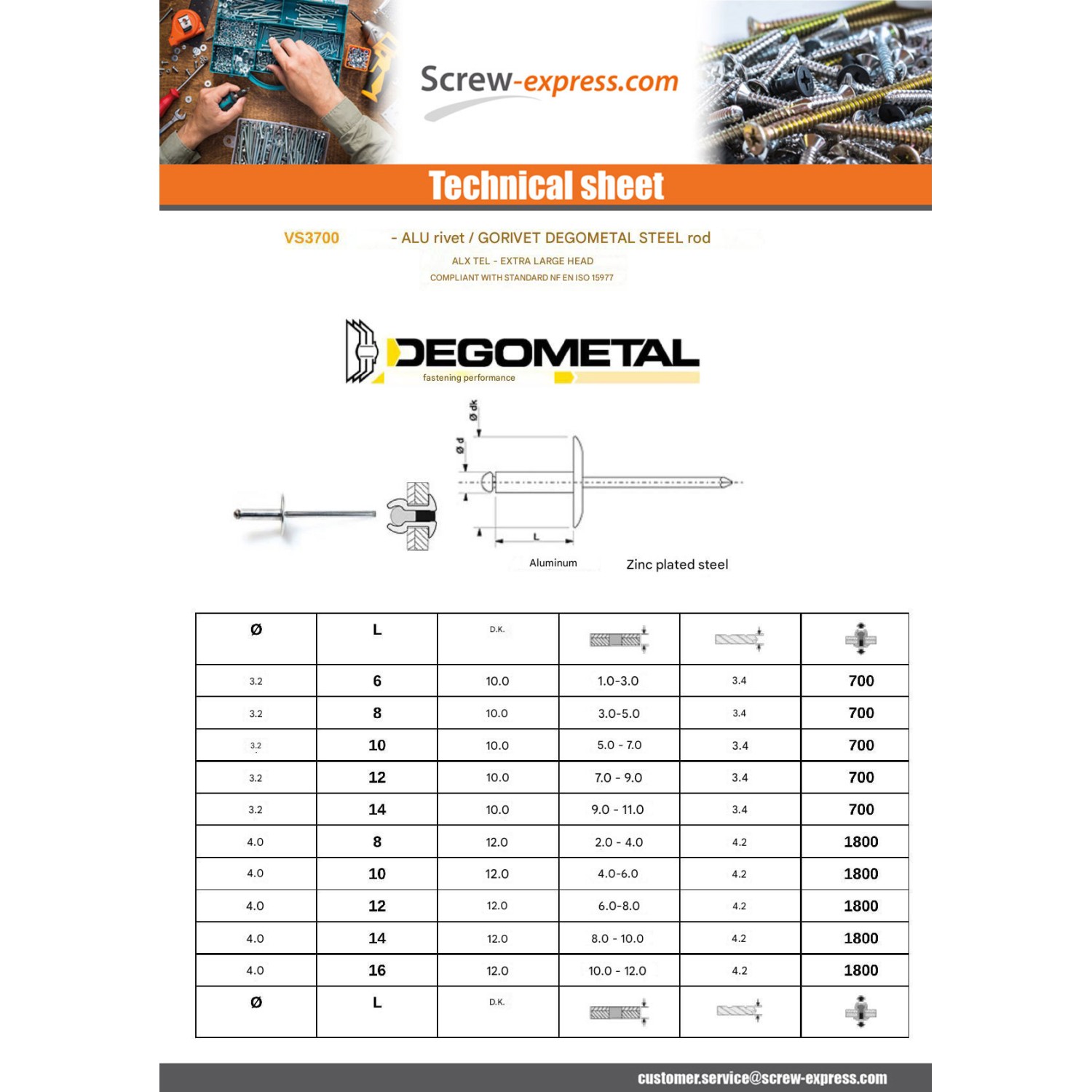

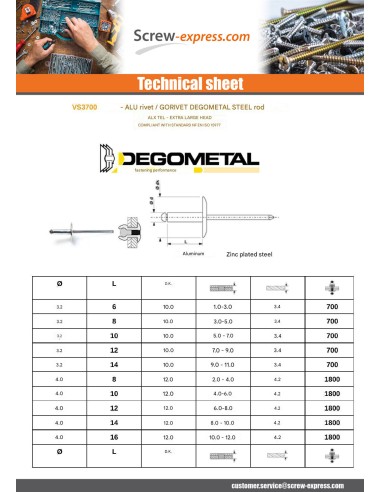

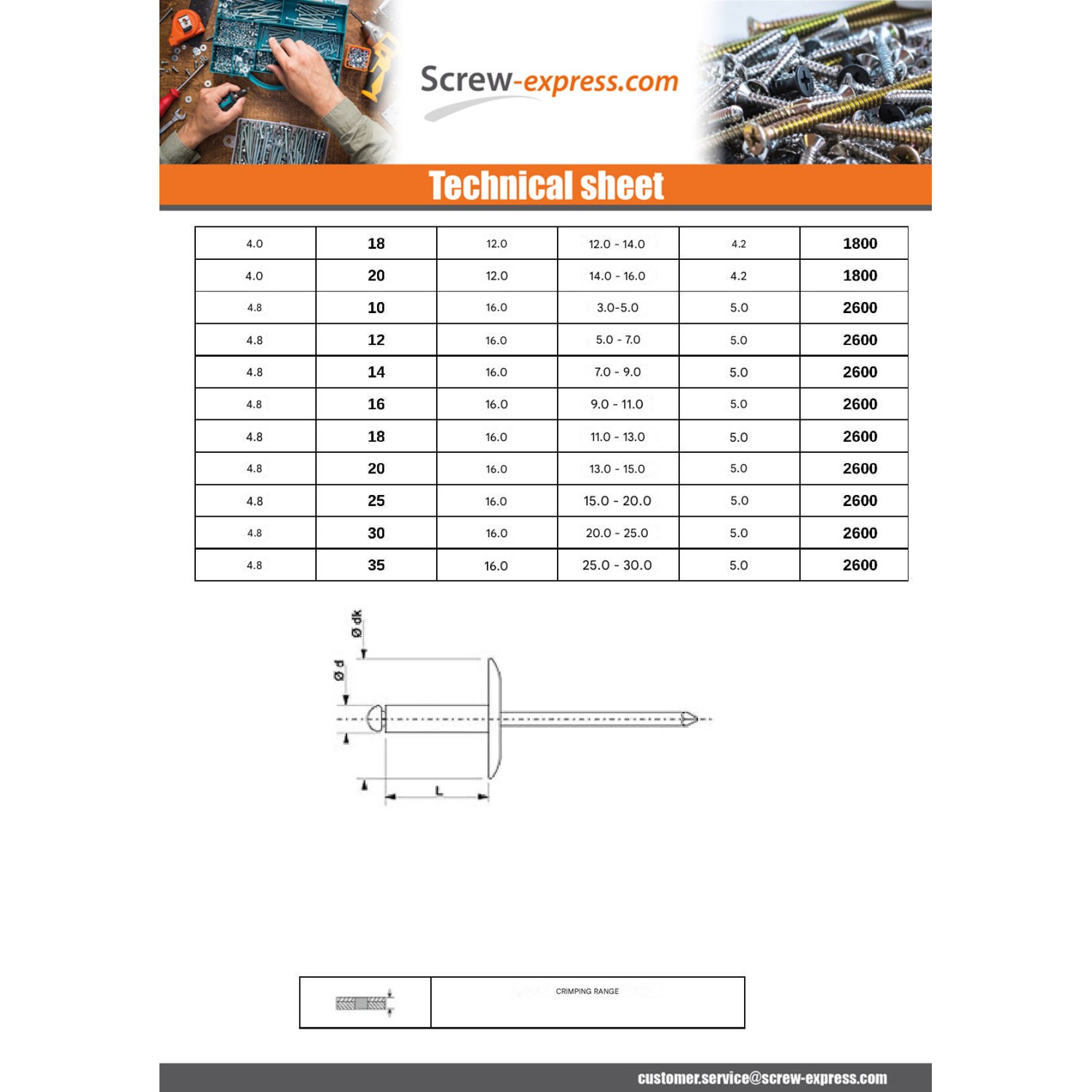

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 10 12 16
Drilling diameter 3.4 4.2 5
Tensile strength 1000 1600 2600
Shear strength 850 1300 2100
La longueur indique la longueur du coprs (longueur utile)

Other Reference : 103340161 3663072301689
