3700481412_1
In stock 11855 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €3.85 €7.70 €9.30 €16.15

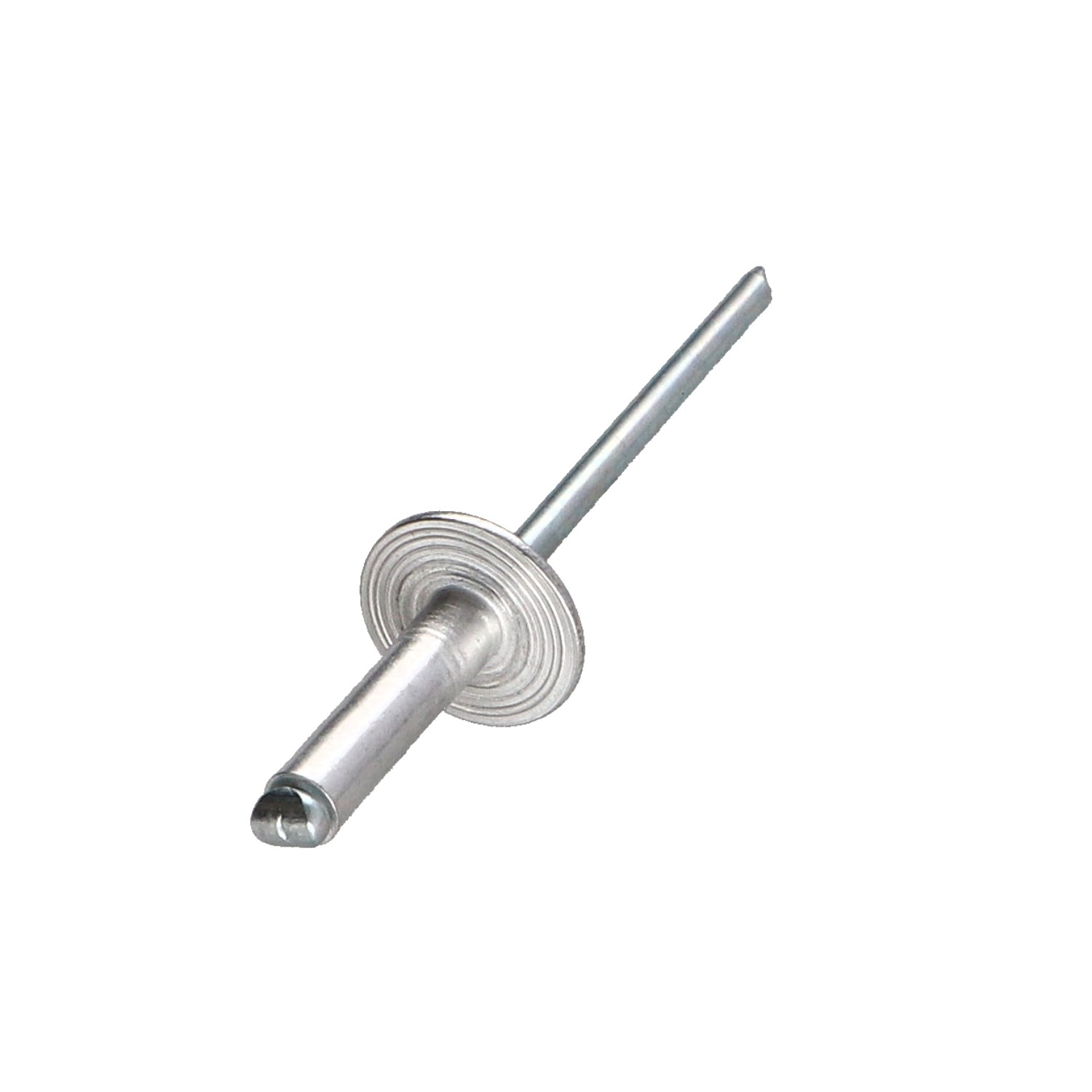

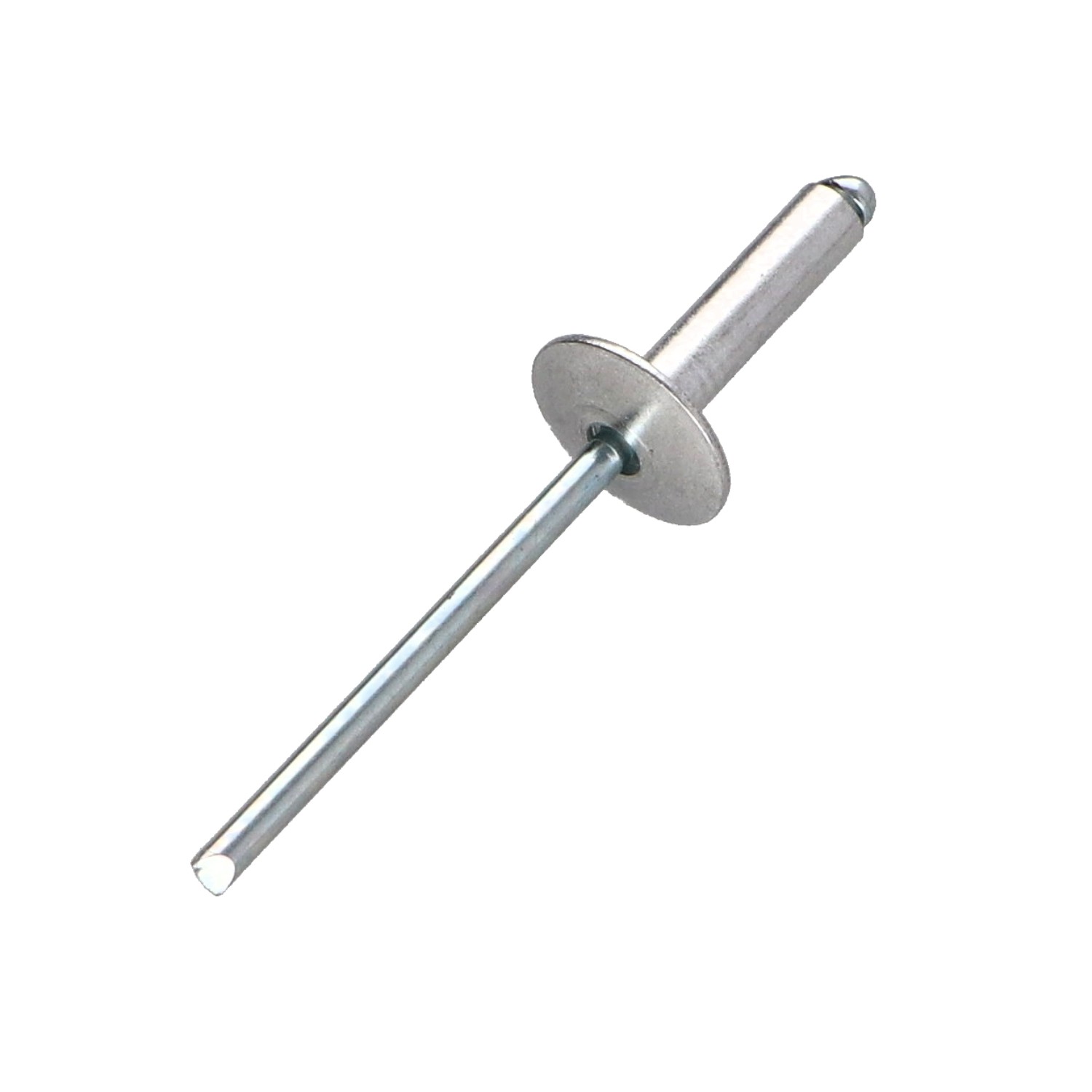

Blind rivets Aluminium Stahlgewinde 4.8X14 Thickness Of Panel 7 to 9 Extra Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
16
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
7 a 9 mm
Rivet body length
14
Unit weight
3.5 GR
Head shape
Head EXTRA-LARGE
Hole diameter
5
Tensile strength
2600
11855 Items
3663072212251

Application

  • Fixing of plastics, PVC, polycarbonate
  • Installation of thin or insulating panels
  • Tarpaulins, thin sheets, lightweight cladding
  • Aluminium joinery / signage
Blind rivets Aluminium Stahlgewinde 4.8X14 Thickness Of Panel 7 to 9 Extra Large Head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 16

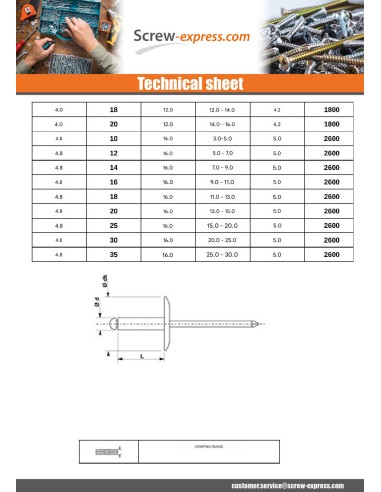

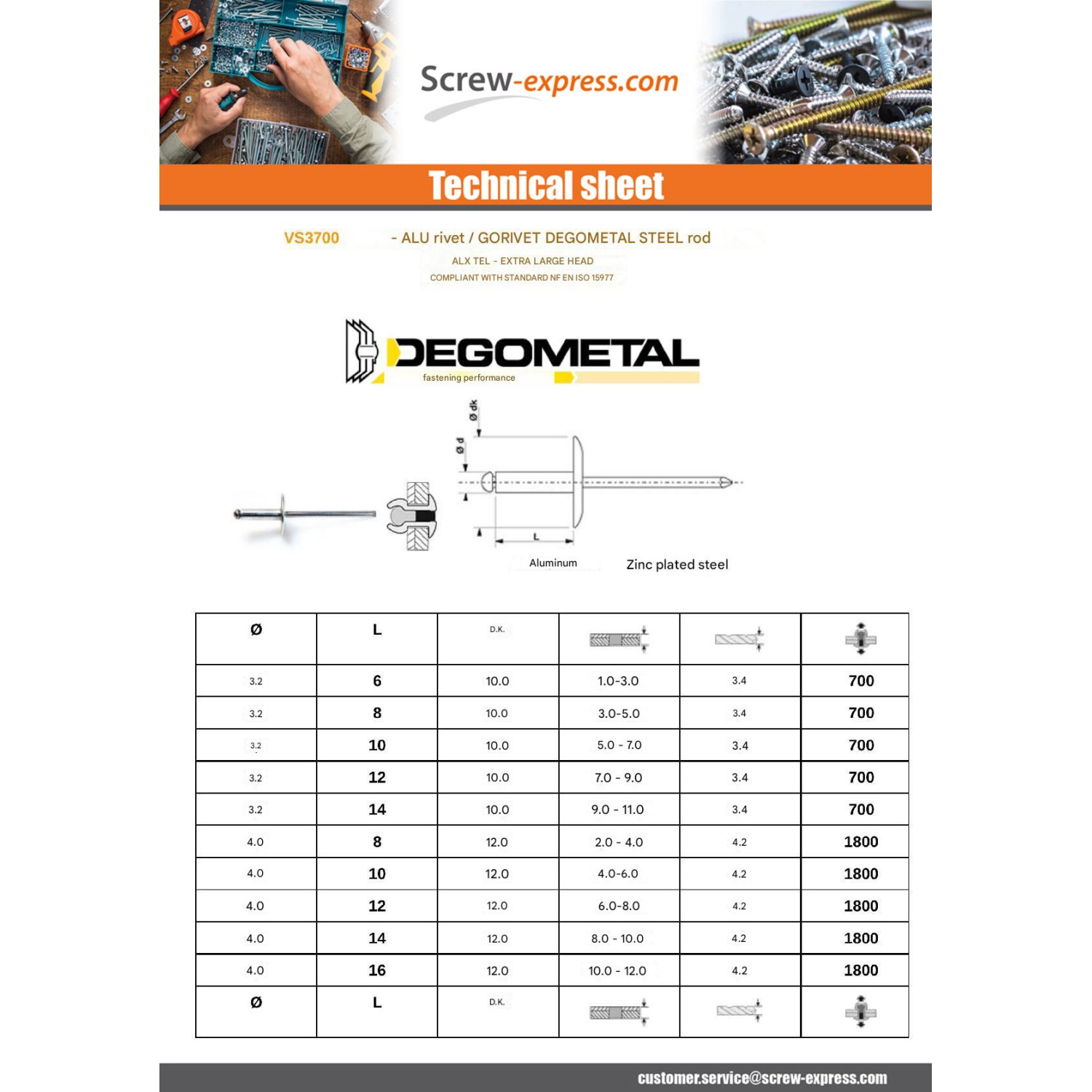

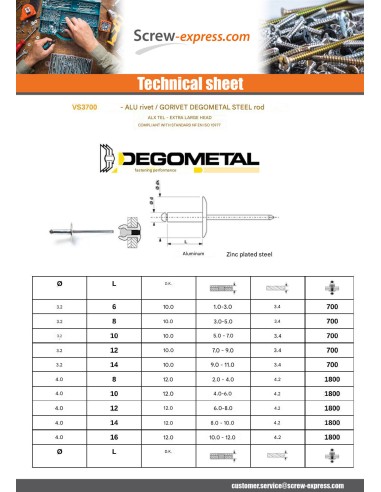

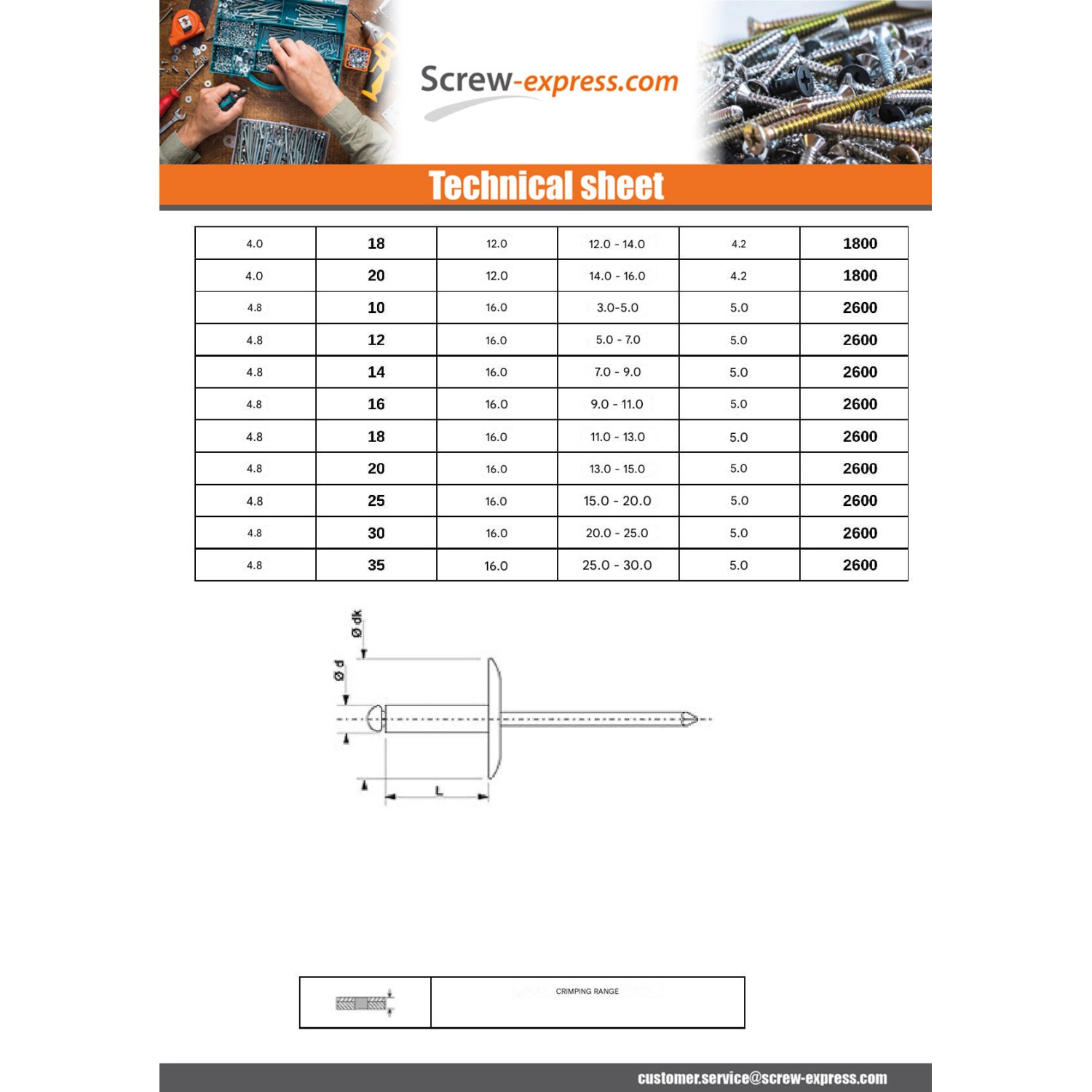

dimensional guide (mm)
Body diameter 3.2 4 4.8
Head diameter 10 12 16
Drilling diameter 3.4 4.2 5
Tensile strength 1000 1600 2600
Shear strength 850 1300 2100
La longueur indique la longueur du coprs (longueur utile)

Other Reference : 103348141 23804814 19RA5014 3663072212251
Romain Q. (vis-express.fr)
2026-02-15

They help me reattach aluminum profiles to a pool enclosure White aluminum pool enclosure with cellular lacquer
