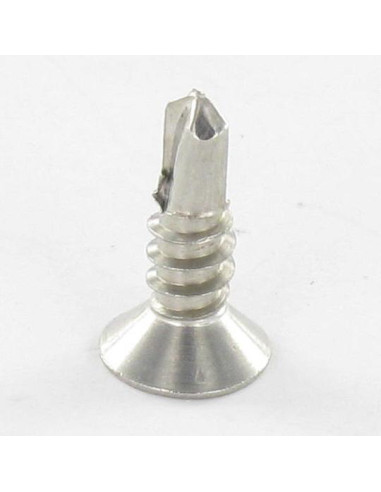

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 4.8X32
1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 4.8X32
1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 4.8X32
1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 4.8X32
1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...
1 x Self Drilling Stainless Steel A2...

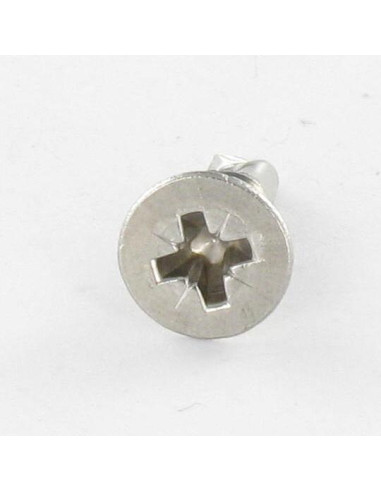

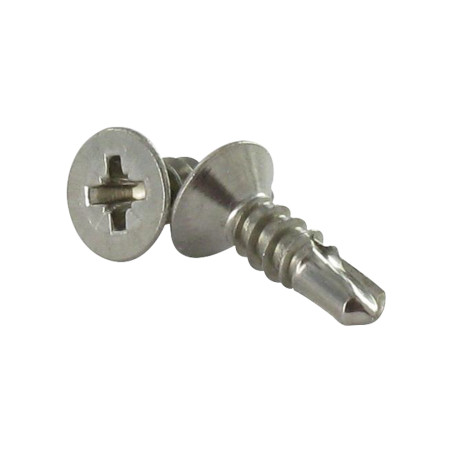

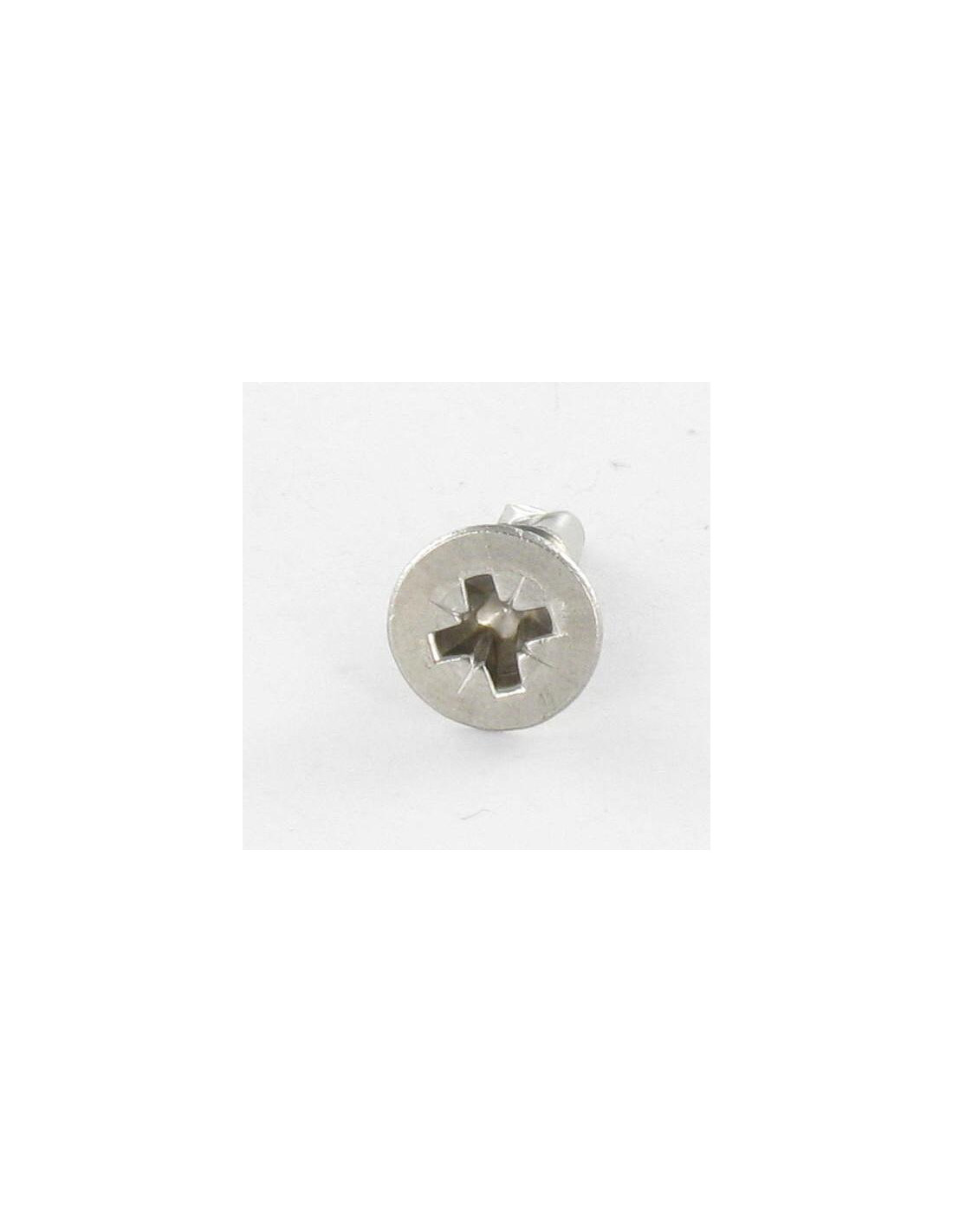

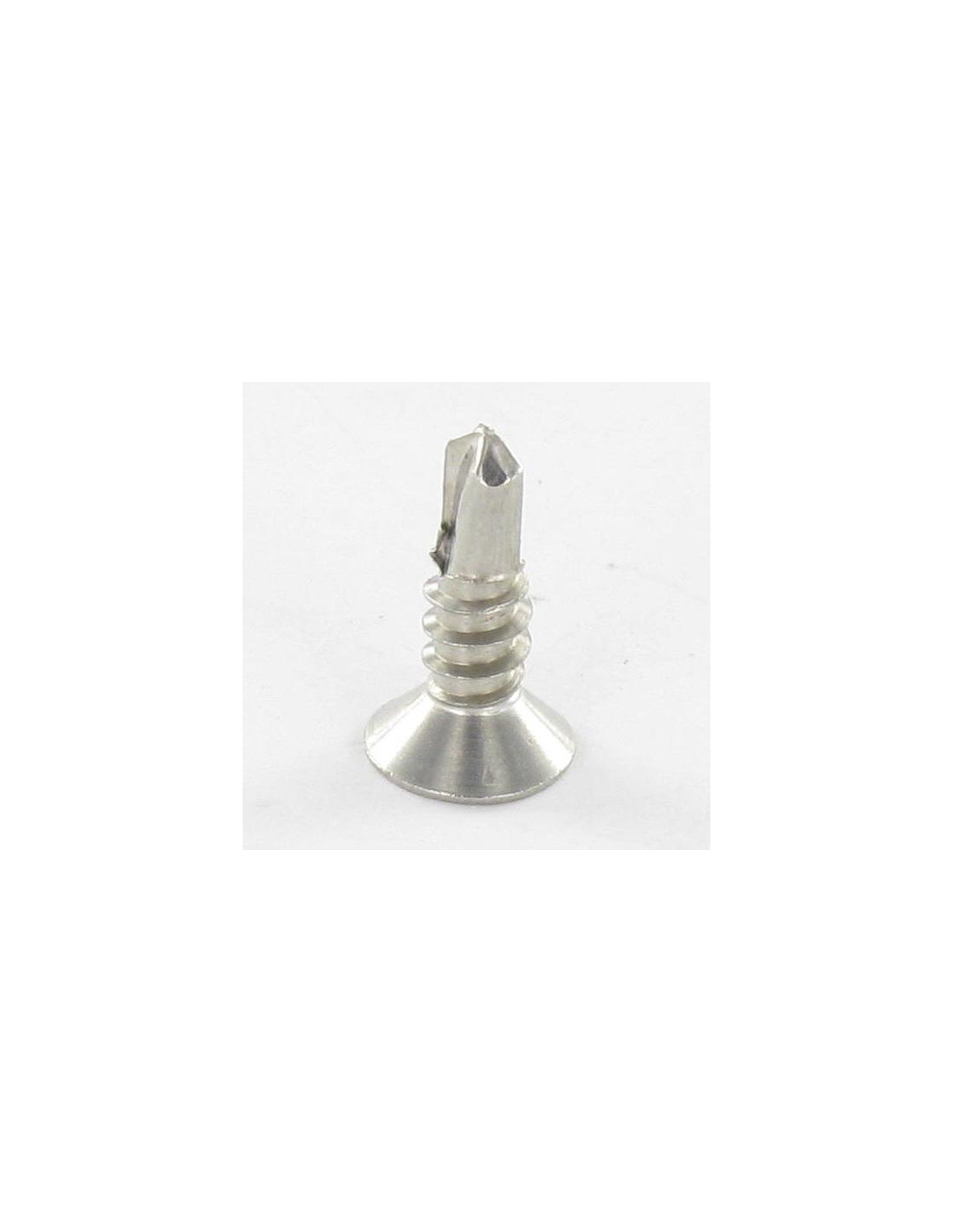

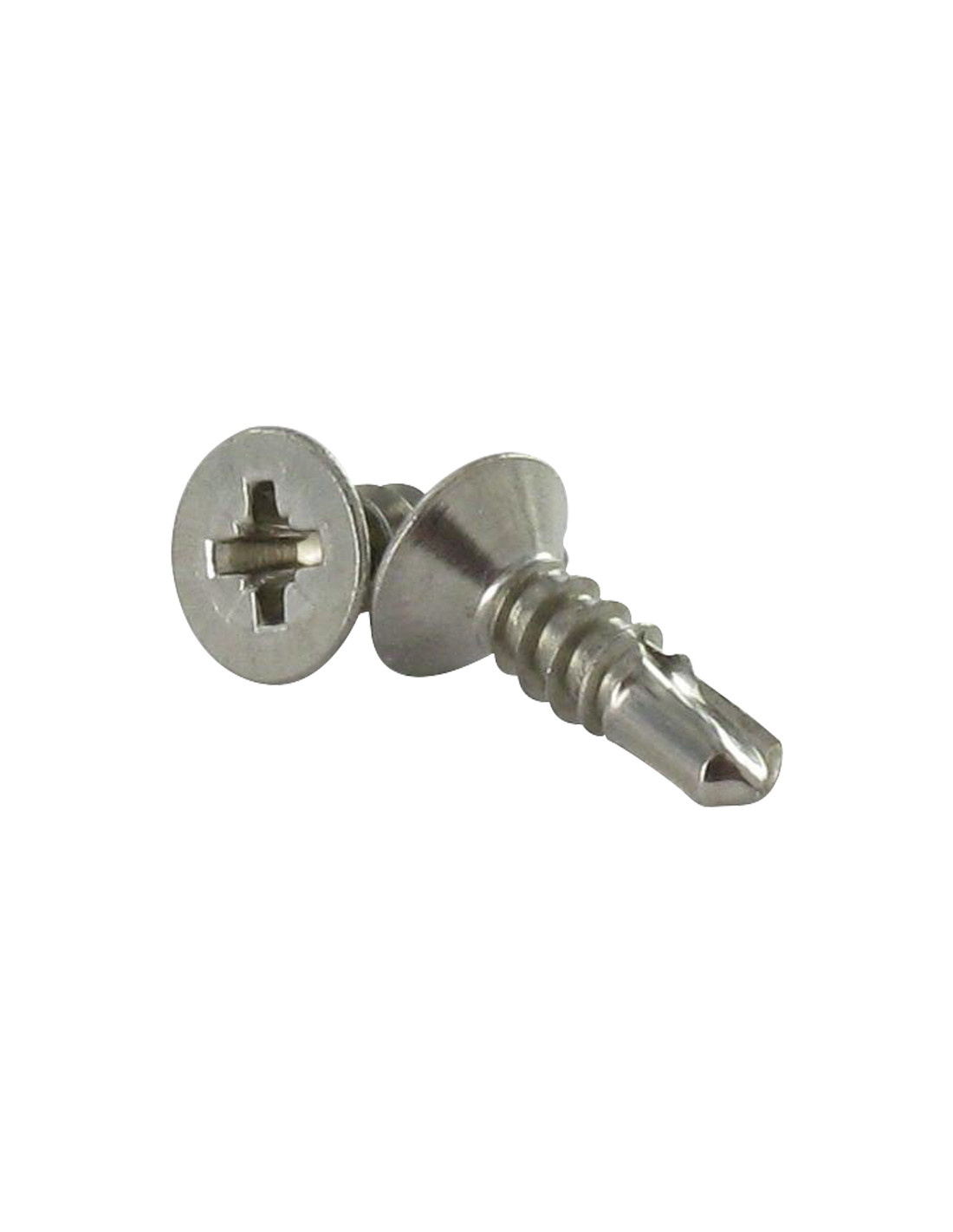

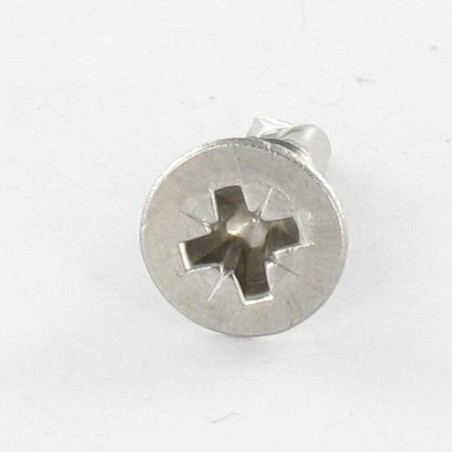

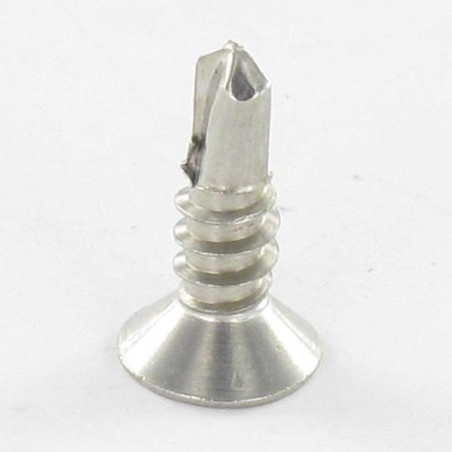

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 4.8X32

8324103218_1
In stock 15736 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €13.40
DIN 7504 P,VS3124 - Self Drilling Stainless Steel A2 Countersunk Head Pozi 4.8X32

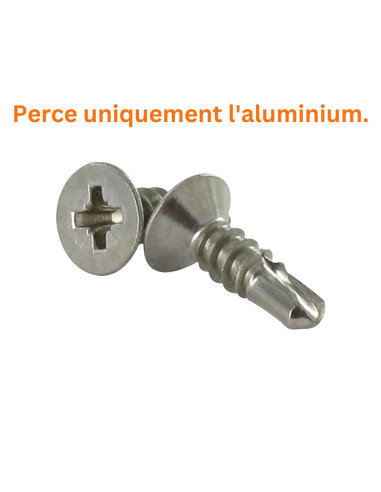

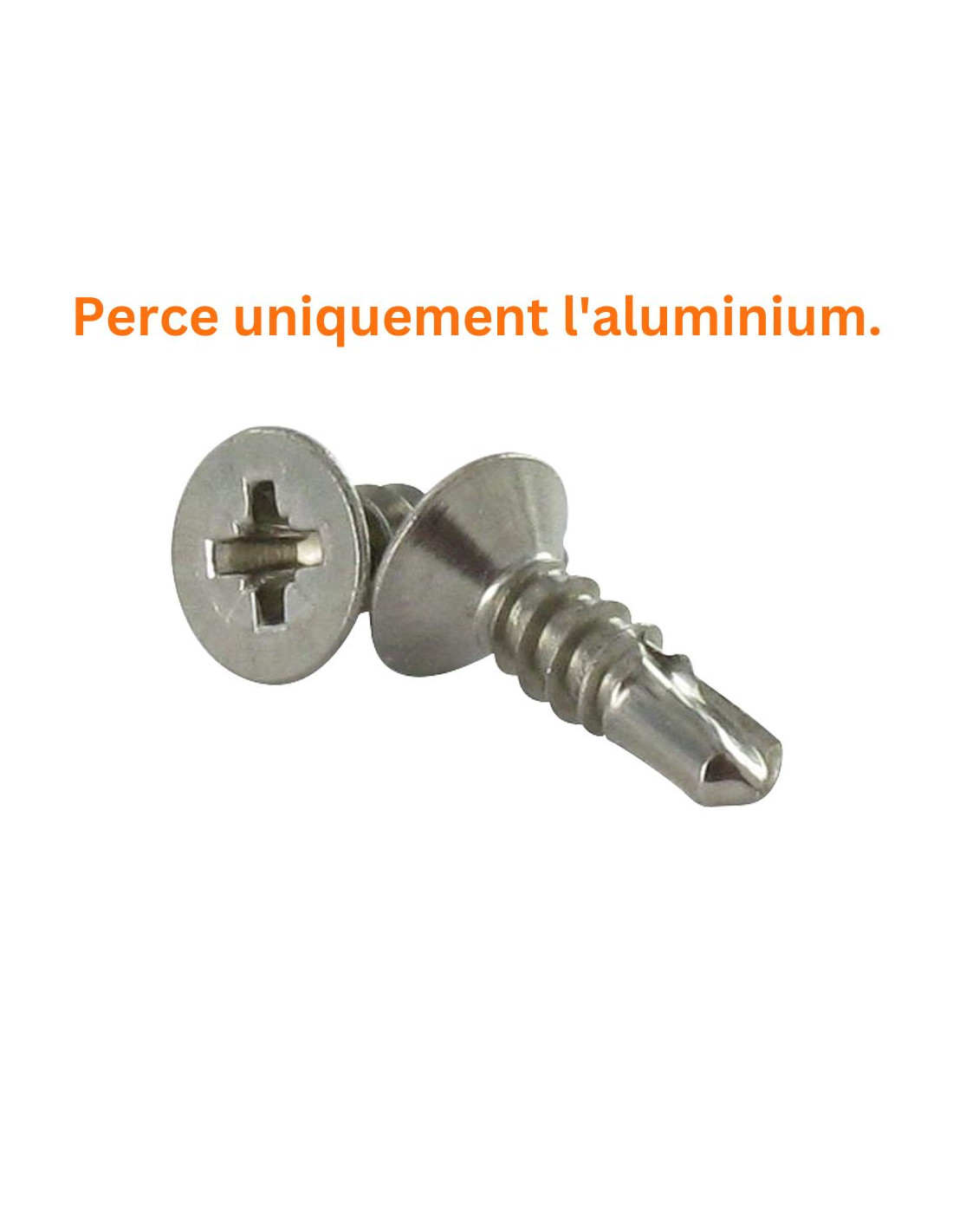

Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
32
Size Drive Type
KEY Of 8
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 P,VS3124
Sub product family
Countersunk Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
21.5
Unit weight
3.25 GR
Material to be drilled
Aluminium
15736 Items
3663072153301
Self Drilling Stainless Steel A2 Countersunk Head Pozi 4.8X32
Diameter = Class 4.8, Length = 32, Material = Stainless Steel A2, Norm = DIN 7504 P,VS3124, Size Drive Type = Spanner 8


dimensional guide (mm)
Jauge number 6 7 8 10
Diameter 3.5 3.9 4.2 4.8
Pitch 6.8 7.5 8.1 9.5
Head Tickness 2.1 2.3 2.5 3
Pozi 1 2 2 2
Avec une vis auto-perceuse en inox A2 ou A4, vous pourrez percer une tole en ALUMINIUM uniquement
Une vis auto-perceuse INOX ne perce pas l'acier ni l'inox.

Other Reference : 624324,8X31, 05170210 05170210 VP304A-MAT01 7115 40297 1 AD Nø10X32 7504P48317ZA GEN601200 RVI432 42500014 MG4-3 V010008 3663072153301
