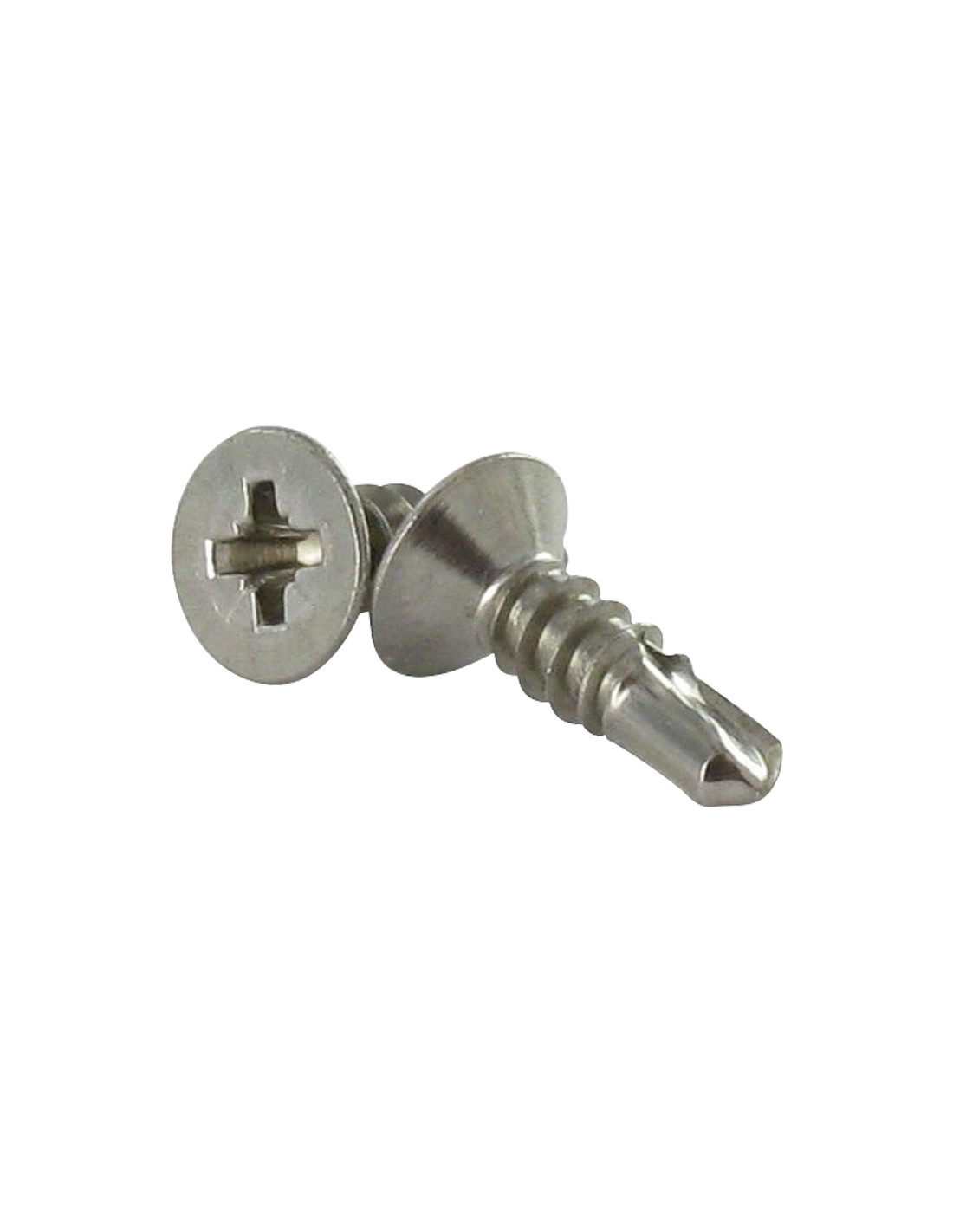

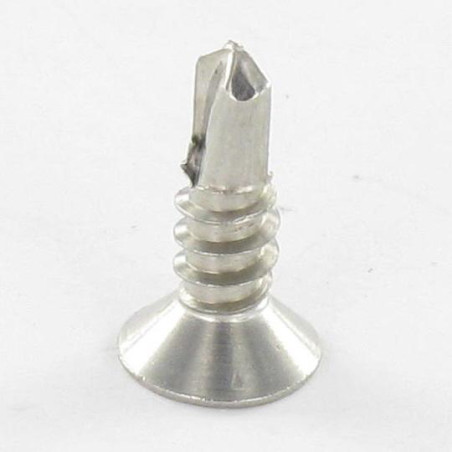

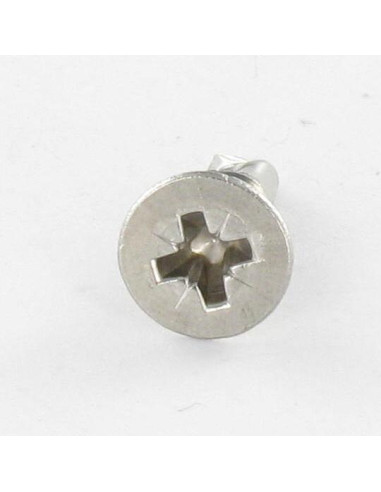

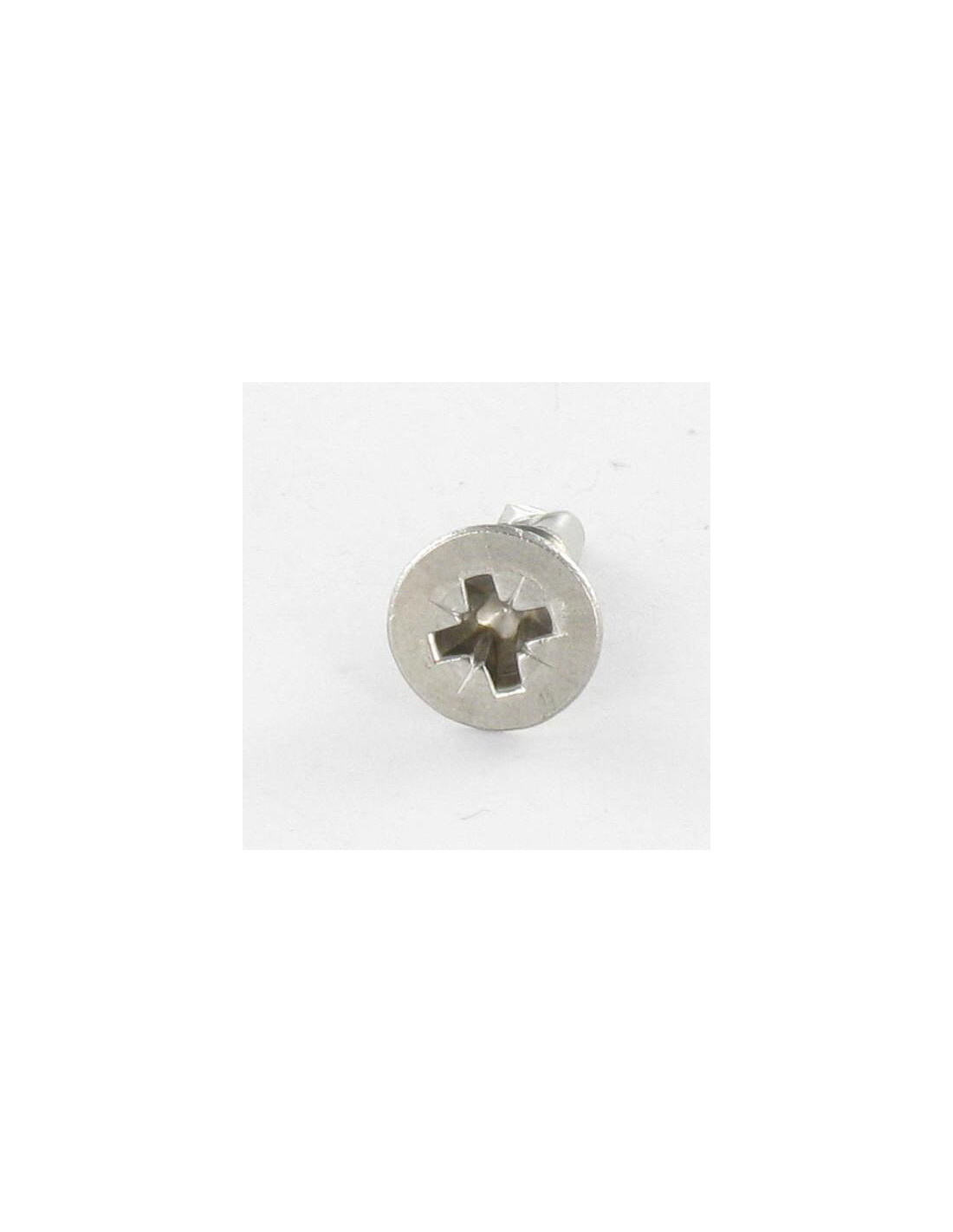

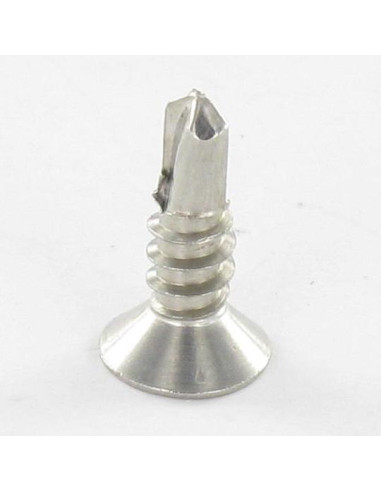

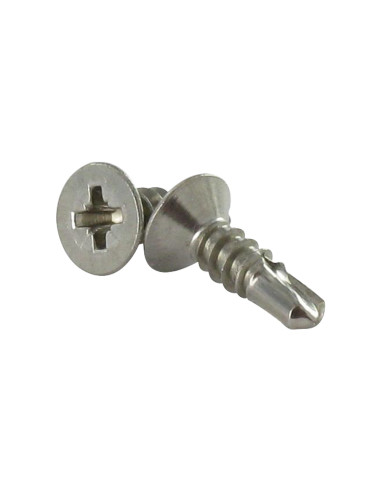

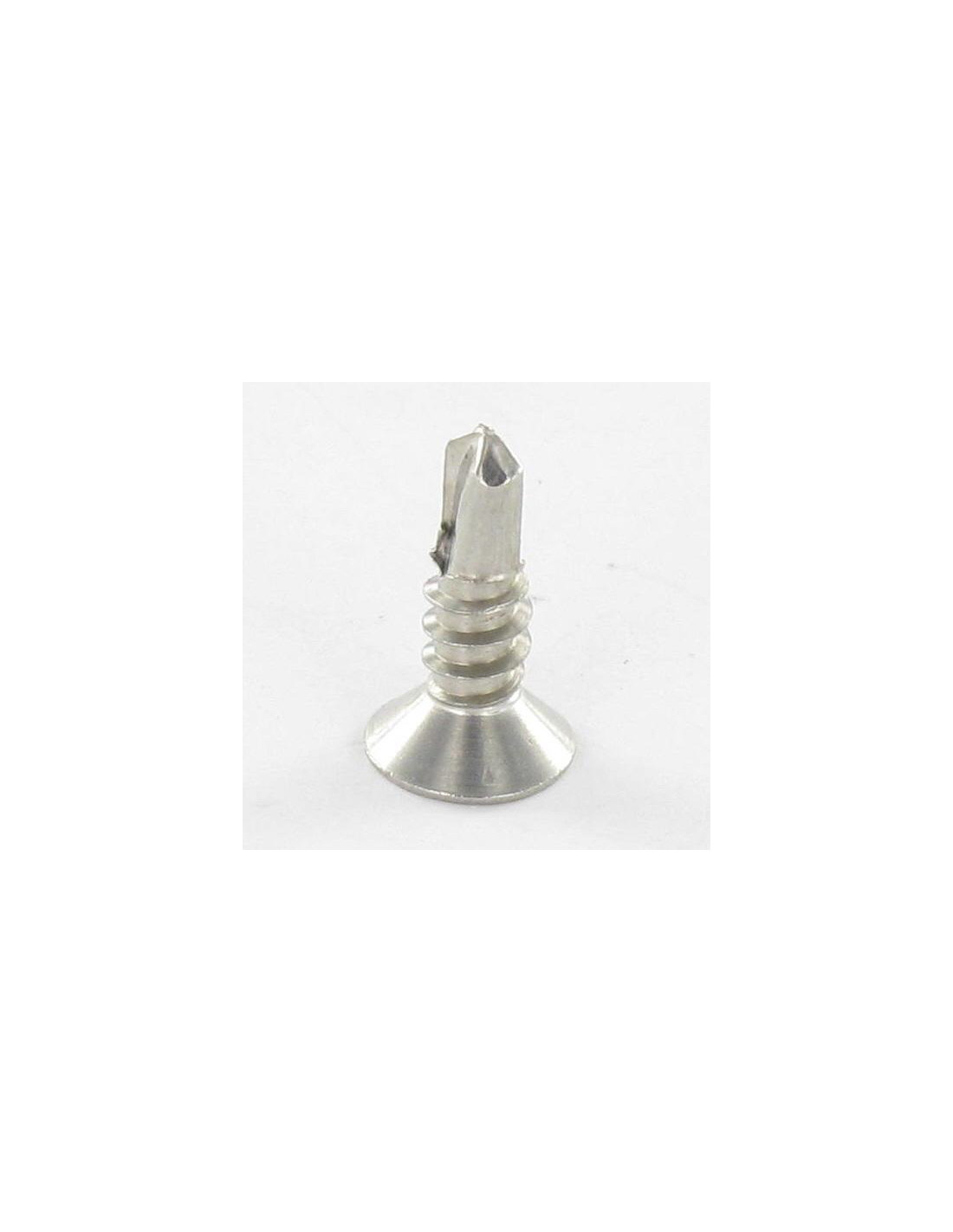

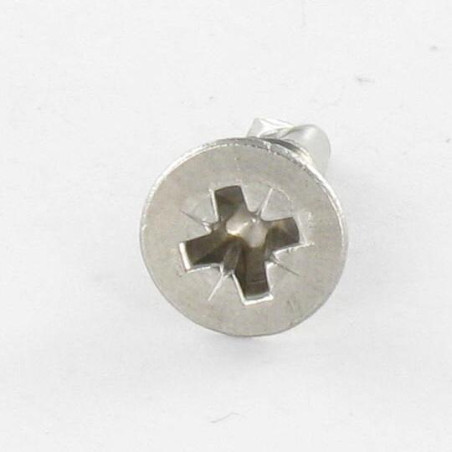

1 x Self Drilling Stainless Steel A2 Countersunk Head Pozi 5.5X50

8324125018_1
In stock 14699 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.69 £7.33 £8.85 £28.03
DIN 7504 P,VS3124 - Self Drilling Stainless Steel A2 Countersunk Head Pozi 5.5X50

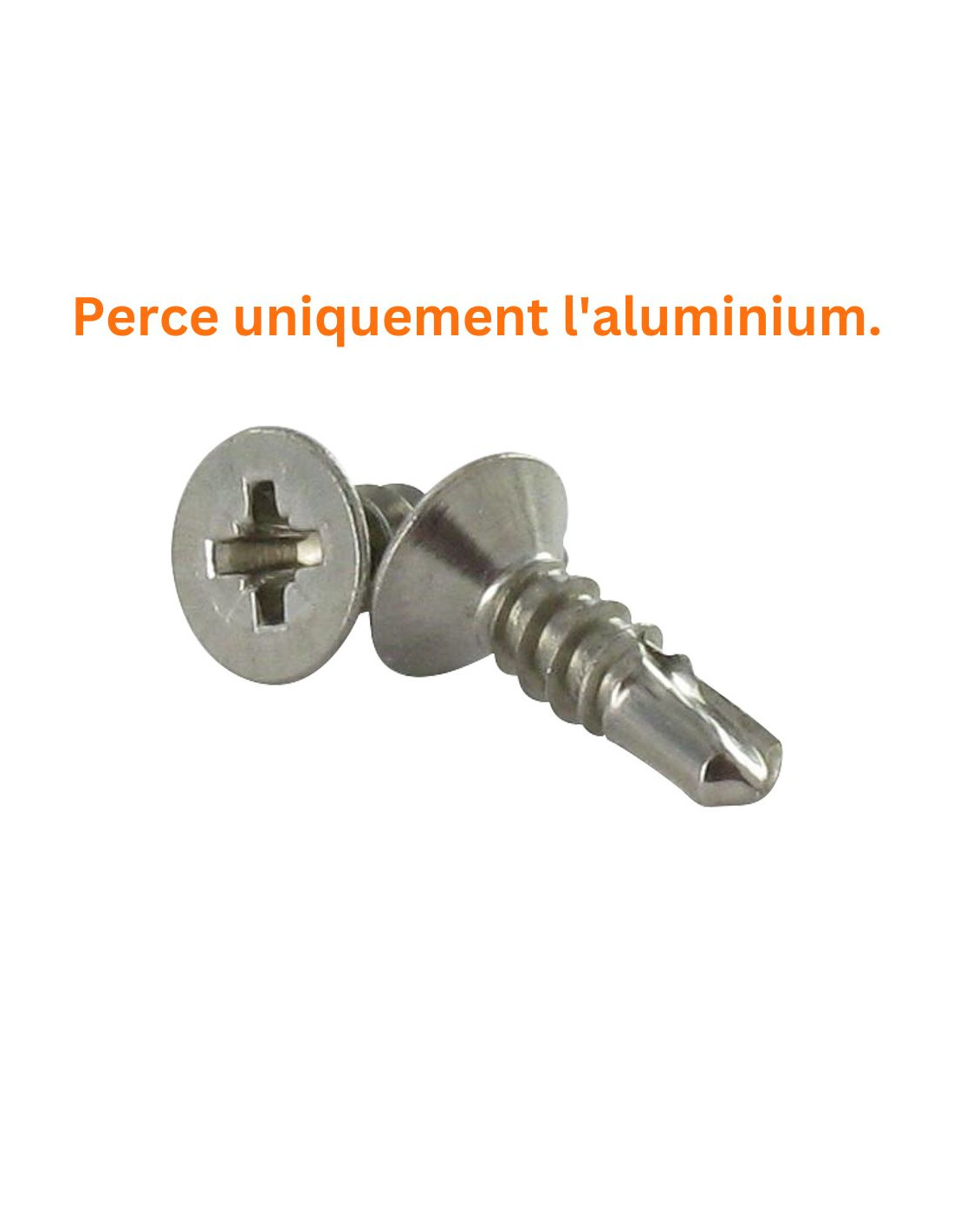

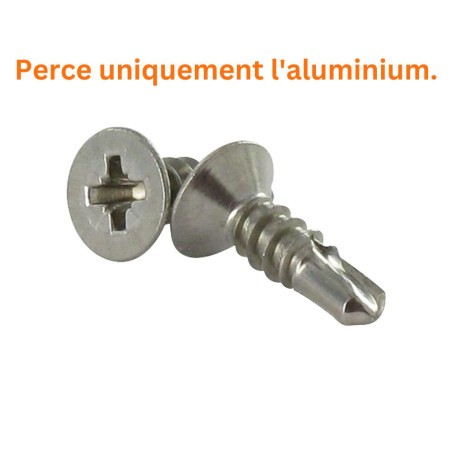

Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
5.5
Length
50
Size Drive Type
KEY Of 8
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 P,VS3124
Sub product family
Countersunk Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
10
Maximum thickness to be fixed
39.5
Unit weight
5 GR
Material to be drilled
Aluminium
14699 Items
3663072389625
Self Drilling Stainless Steel A2 Countersunk Head Pozi 5.5X50
Diameter = 5.5, Length = 50, Material = Stainless Steel A2, Norm = DIN 7504 P,VS3124, Size Drive Type = Spanner 8


dimensional guide (mm)
Jauge number 6 7 8 10
Diameter 3.5 3.9 4.2 4.8
Pitch 6.8 7.5 8.1 9.5
Head Tickness 2.1 2.3 2.5 3
Pozi 1 2 2 2
Avec une vis auto-perceuse en inox A2 ou A4, vous pourrez percer une tole en ALUMINIUM uniquement
Une vis auto-perceuse INOX ne perce pas l'acier ni l'inox.

Other Reference : 3617500230348 1880017 3663072389625
