3704300601_1
In stock 8938 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €10.15 €33.10

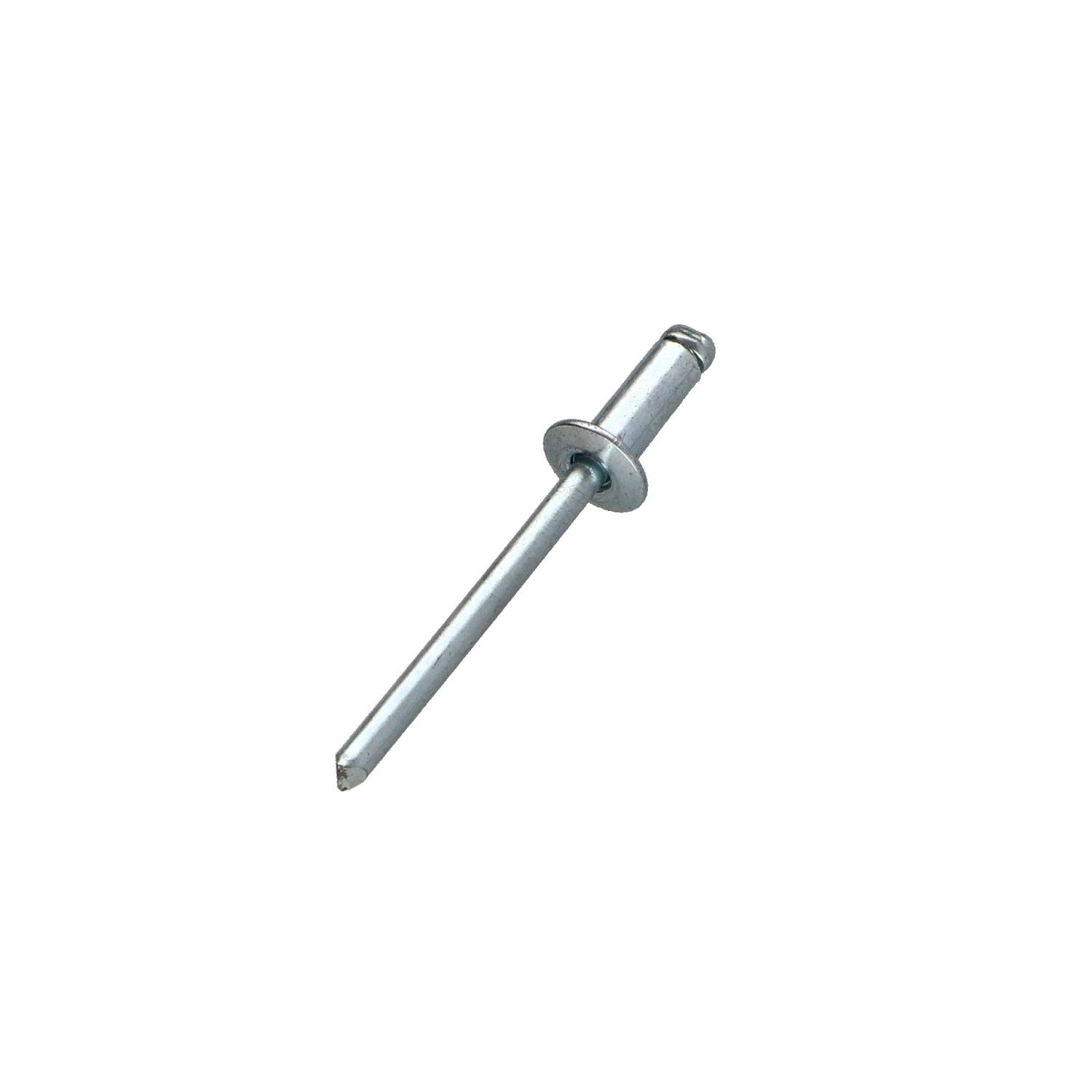

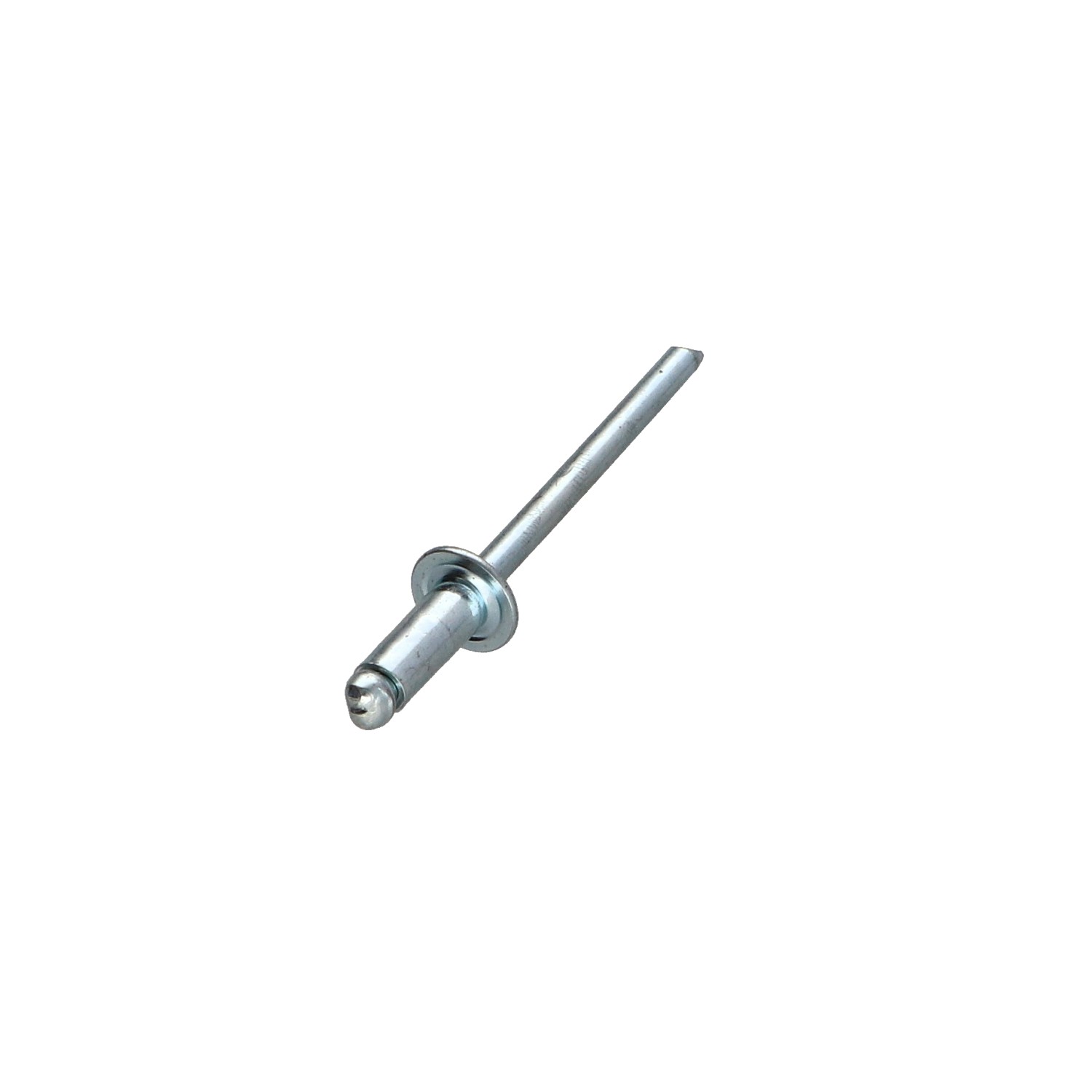

Rivet Steel/ steel ZING 3X6 Thickness Of Panel 1 to 3 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
3
Diameter Head
6
Material
BODY Steel / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
950
Clamping thickness
1 a 3 mm
Rivet body length
6
Unit weight
1.3 GR
Head shape
Round Head standard
Hole diameter
3.2
Tensile strength
1100
8938 Items
3663072302297

Application

  • Automobile
  • Trailers
  • Storage and handling equipment
  • Scales
Rivet Steel/ steel ZING 3X6 Thickness Of Panel 1 to 3 Flat Head
Diameter = 3, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

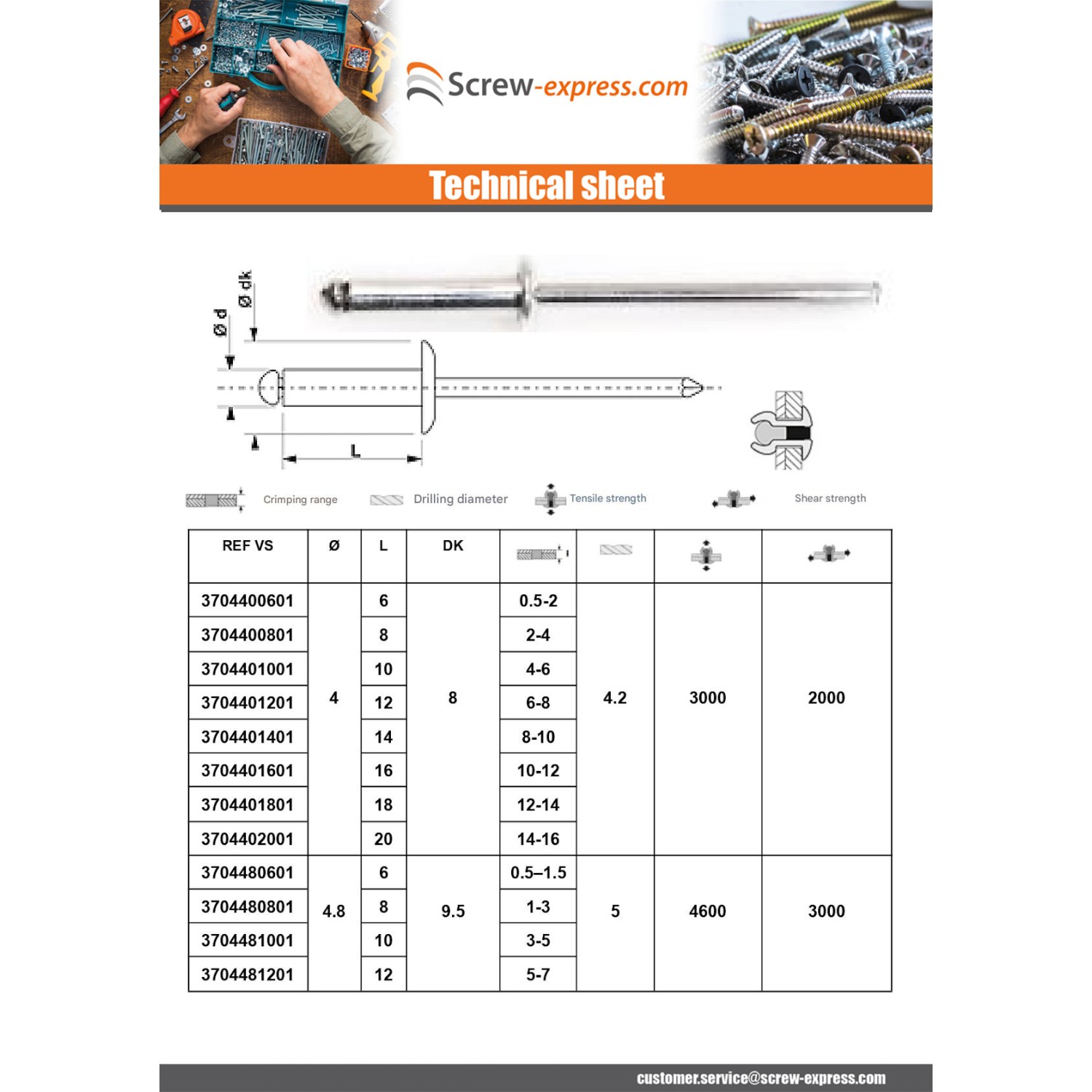

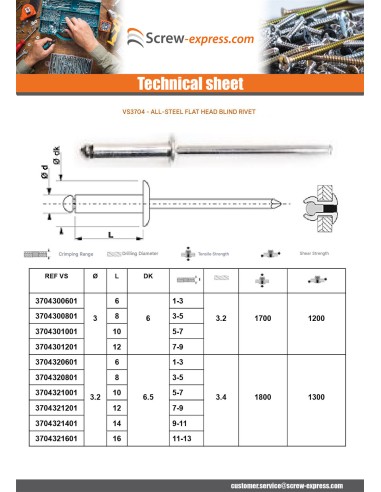

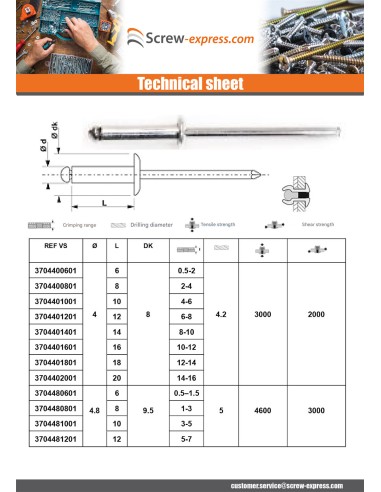

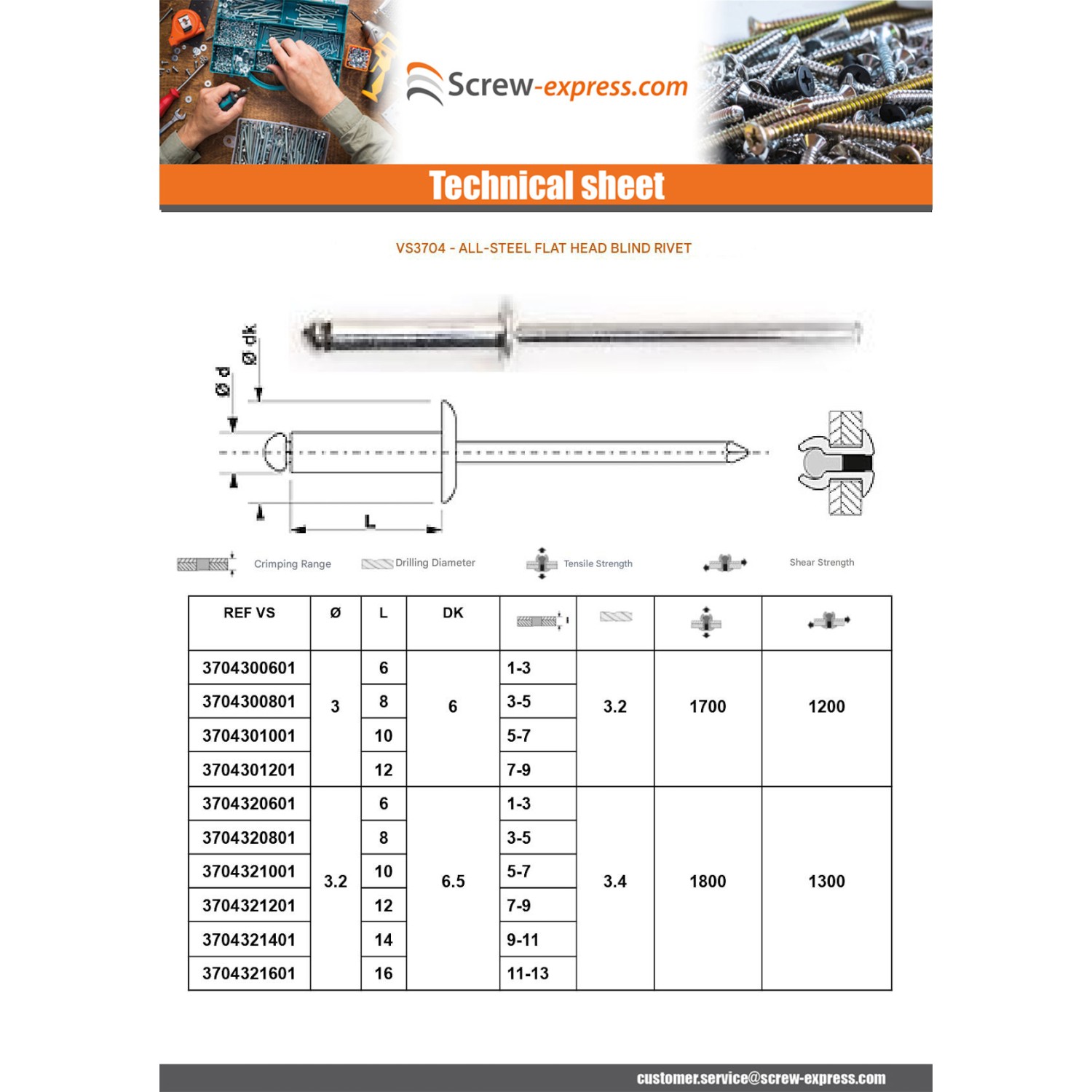

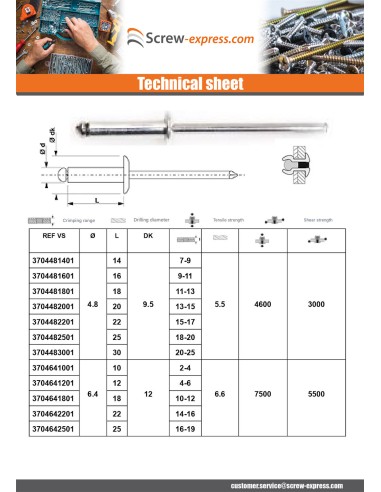

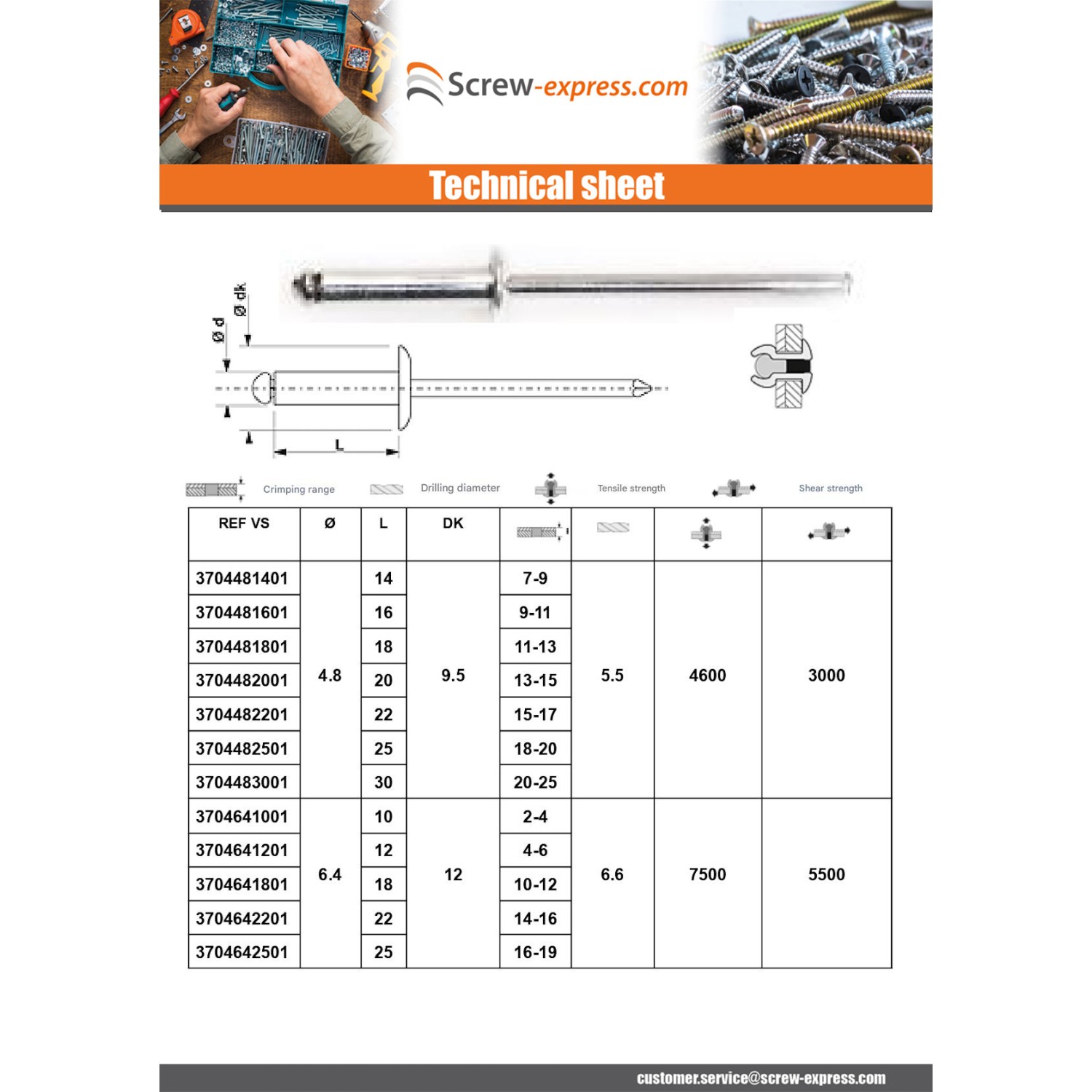

dimensional guide (mm)
Body diameter 3 3.2 4.8 6.4
Head diameter 6 6.5 8 5 6.6
Drilling diameter 3.2 3.4 4.2 5 6.6
longueur tige 25 25 27 27 27
resistance a la traction 1700 1800 3000 4600 7500
Shear strength 1200 1300 2000 3000 5500
La longueur indique dans la designation est le longueur utile (le corps).

Other Reference : 104130061 QIF36 17700007 3663072302297
