3704481401_1
In stock 4240 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £8.81 £36.53

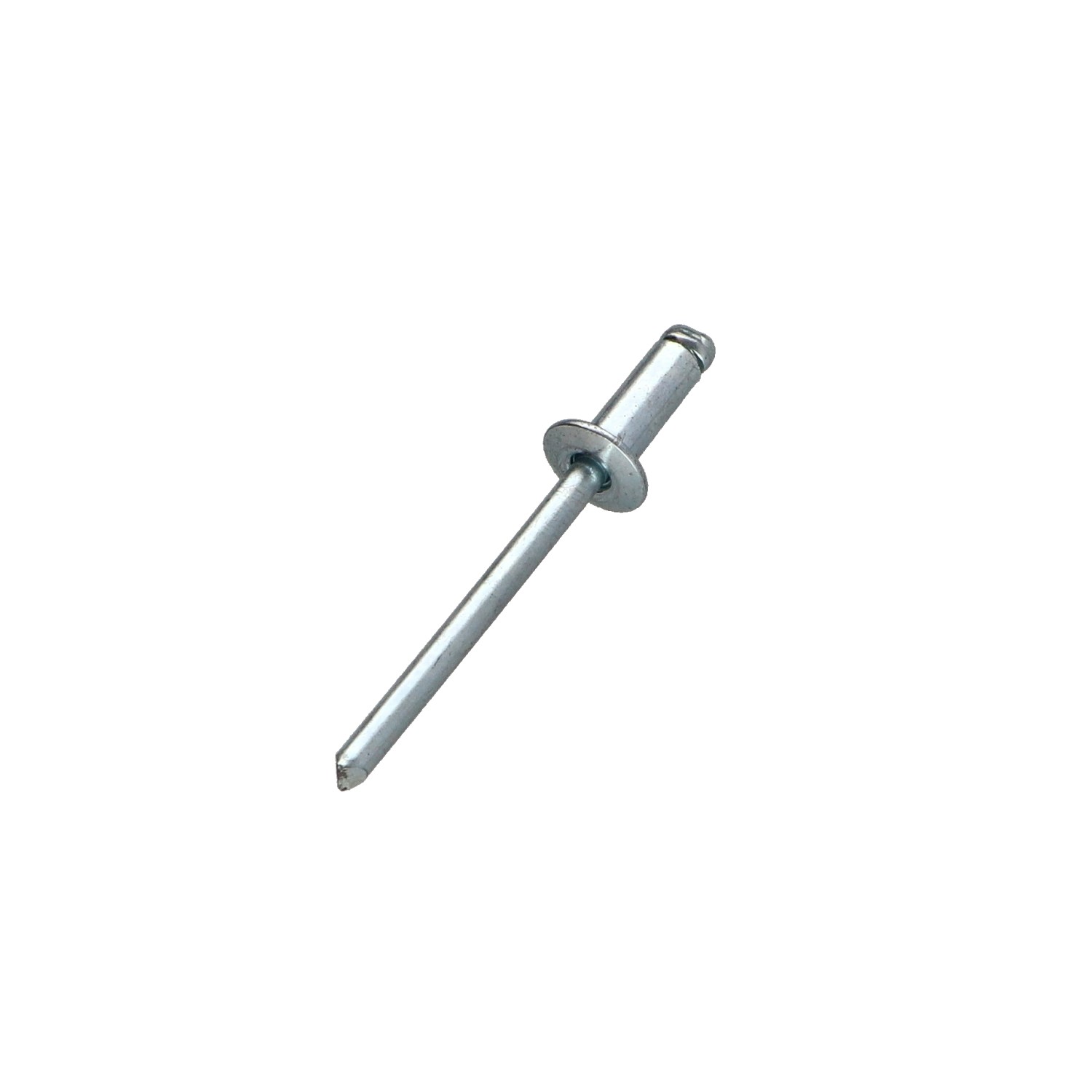

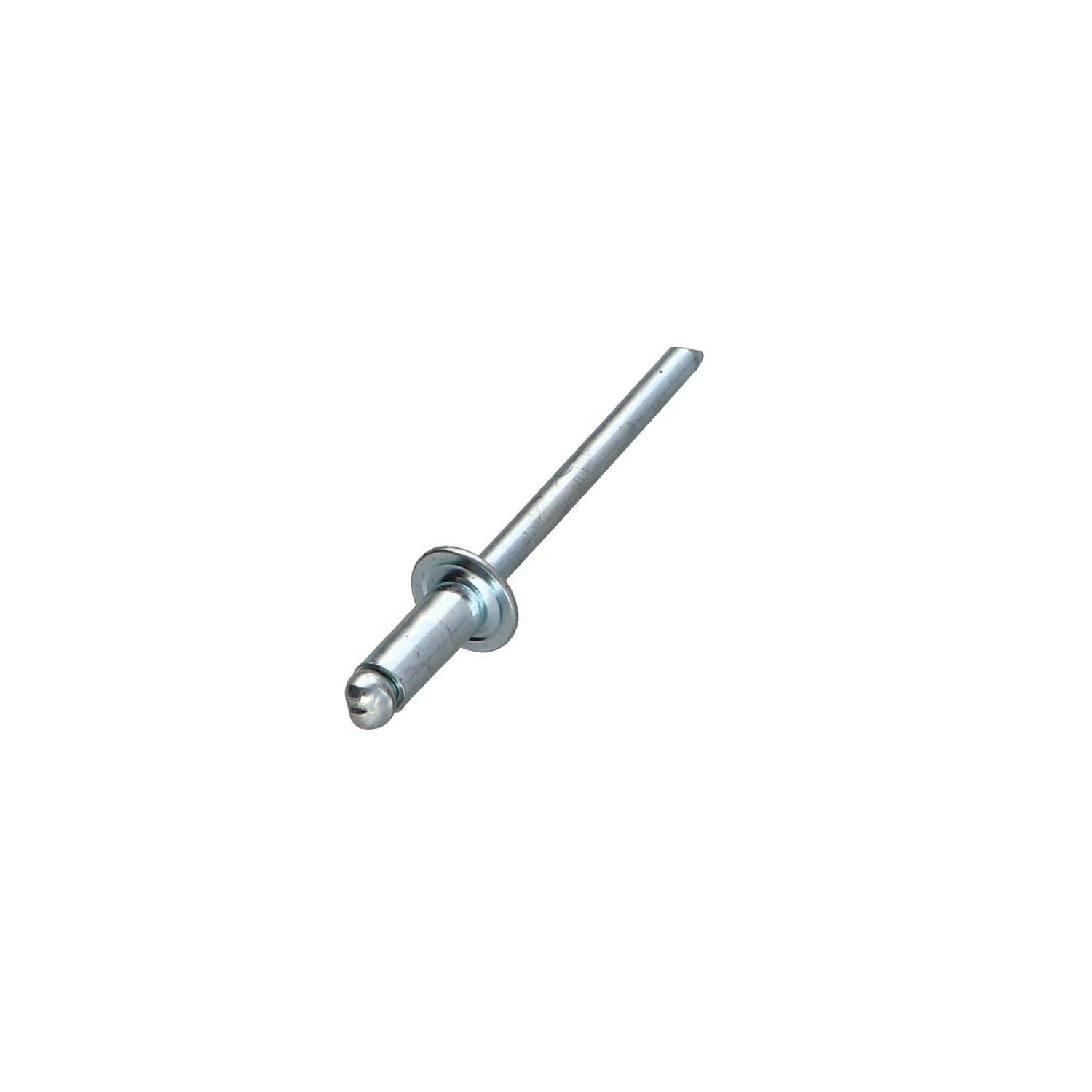

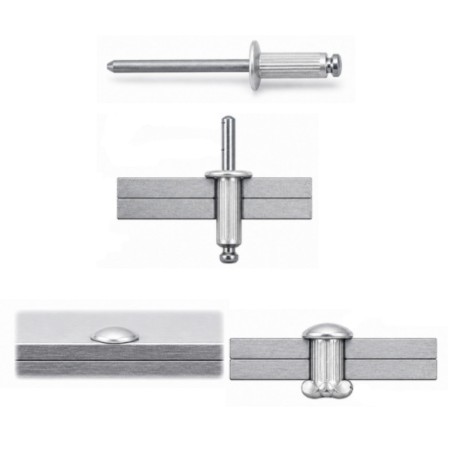

Rivet Steel/ steel ZING 4.8X14 Thickness Of Panel 7 to 9 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Steel / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
2900
Clamping thickness
7 a 9 mm
Rivet body length
14
Unit weight
4.11 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
3100
4240 Items
3663072064591

Application

  • Automobile
  • Trailers
  • Storage and handling equipment
  • Scales
Rivet Steel/ steel ZING 4.8X14 Thickness Of Panel 7 to 9 Flat Head
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

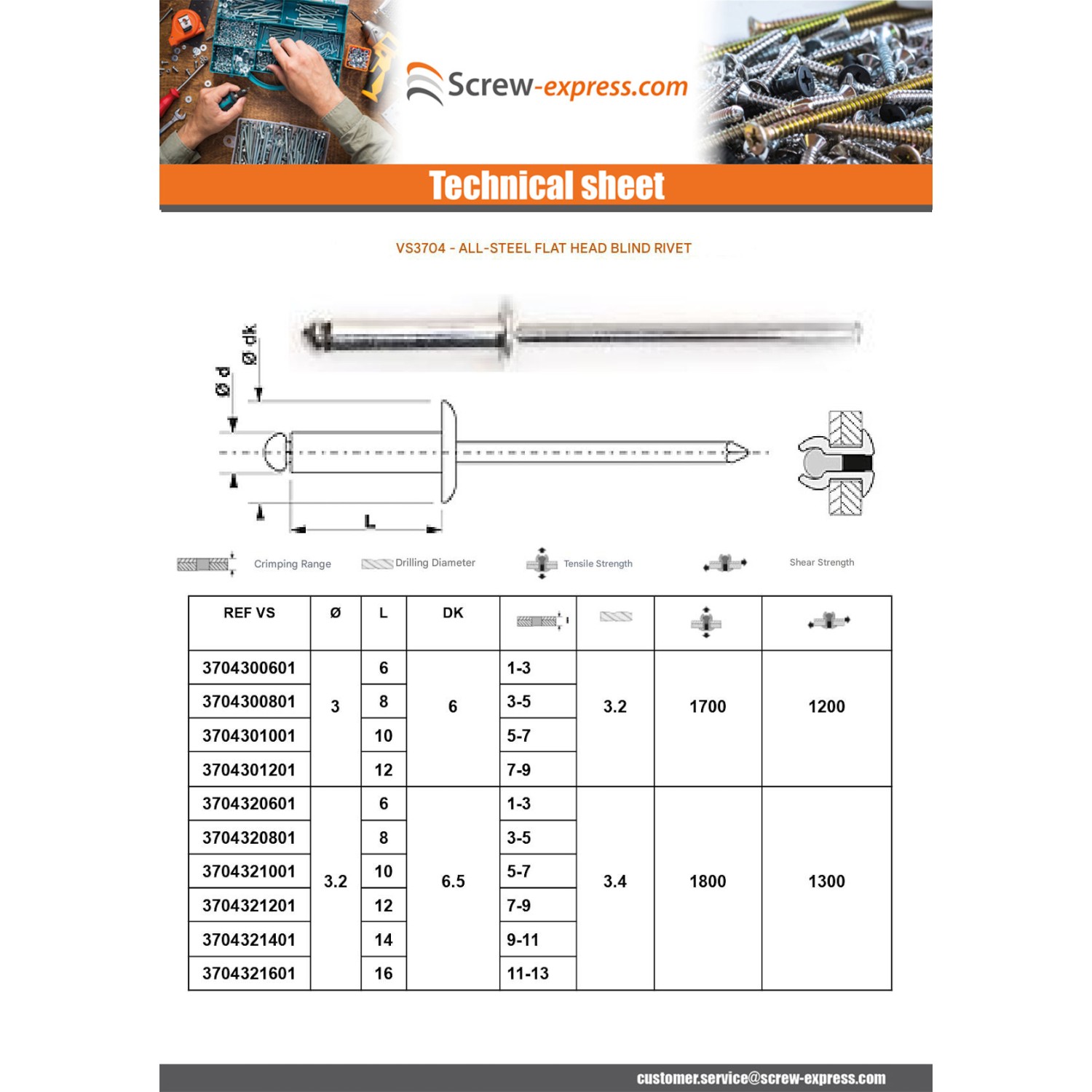

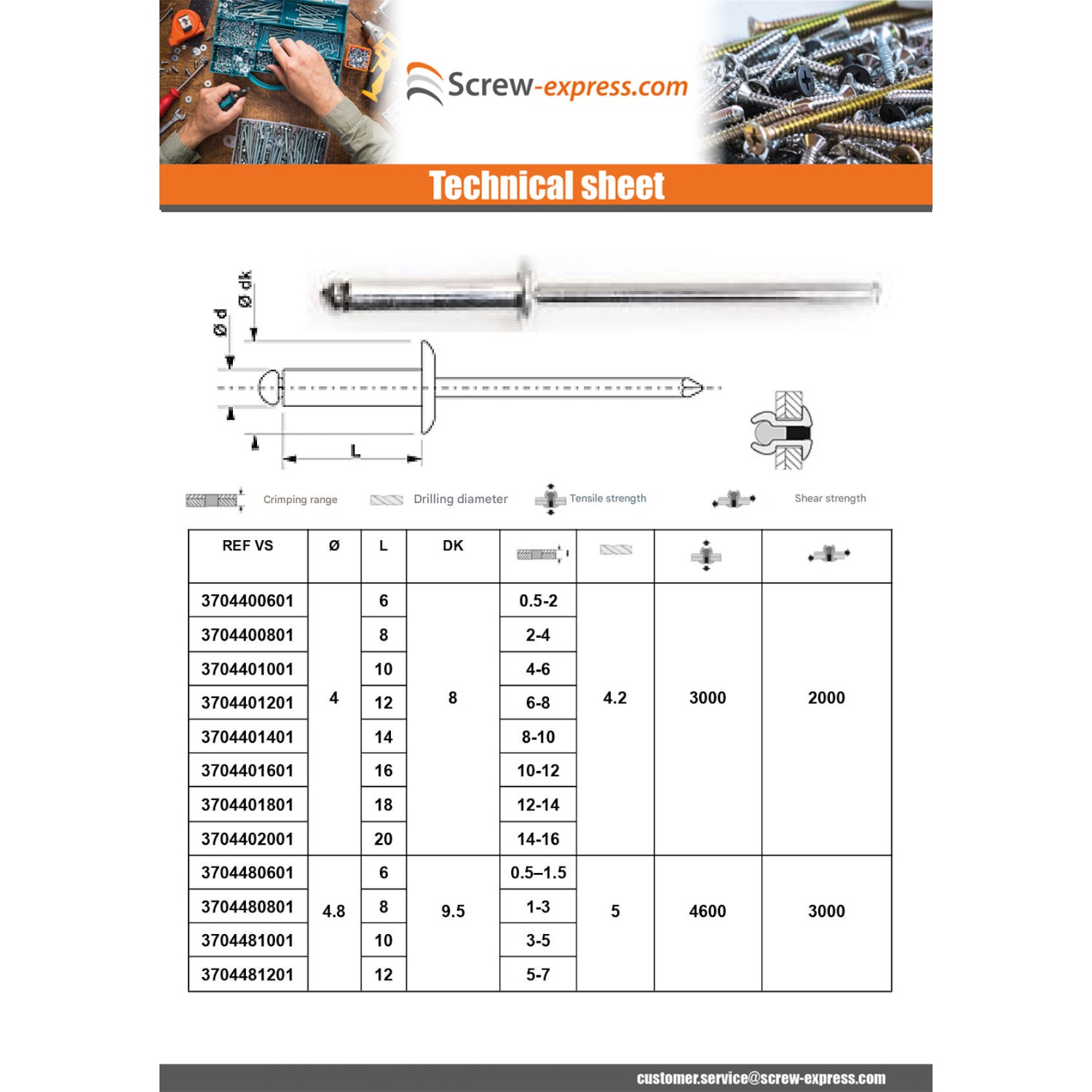

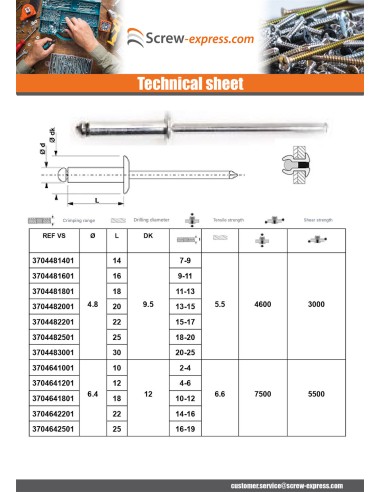

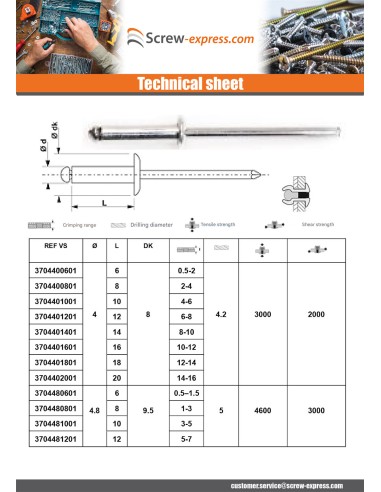

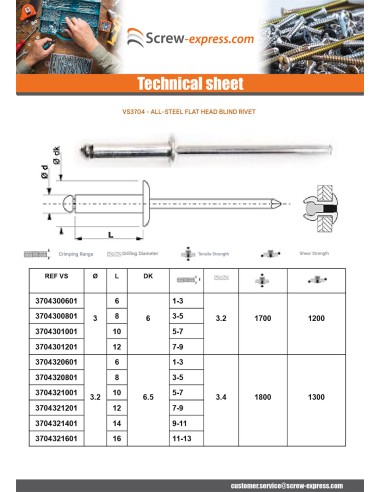

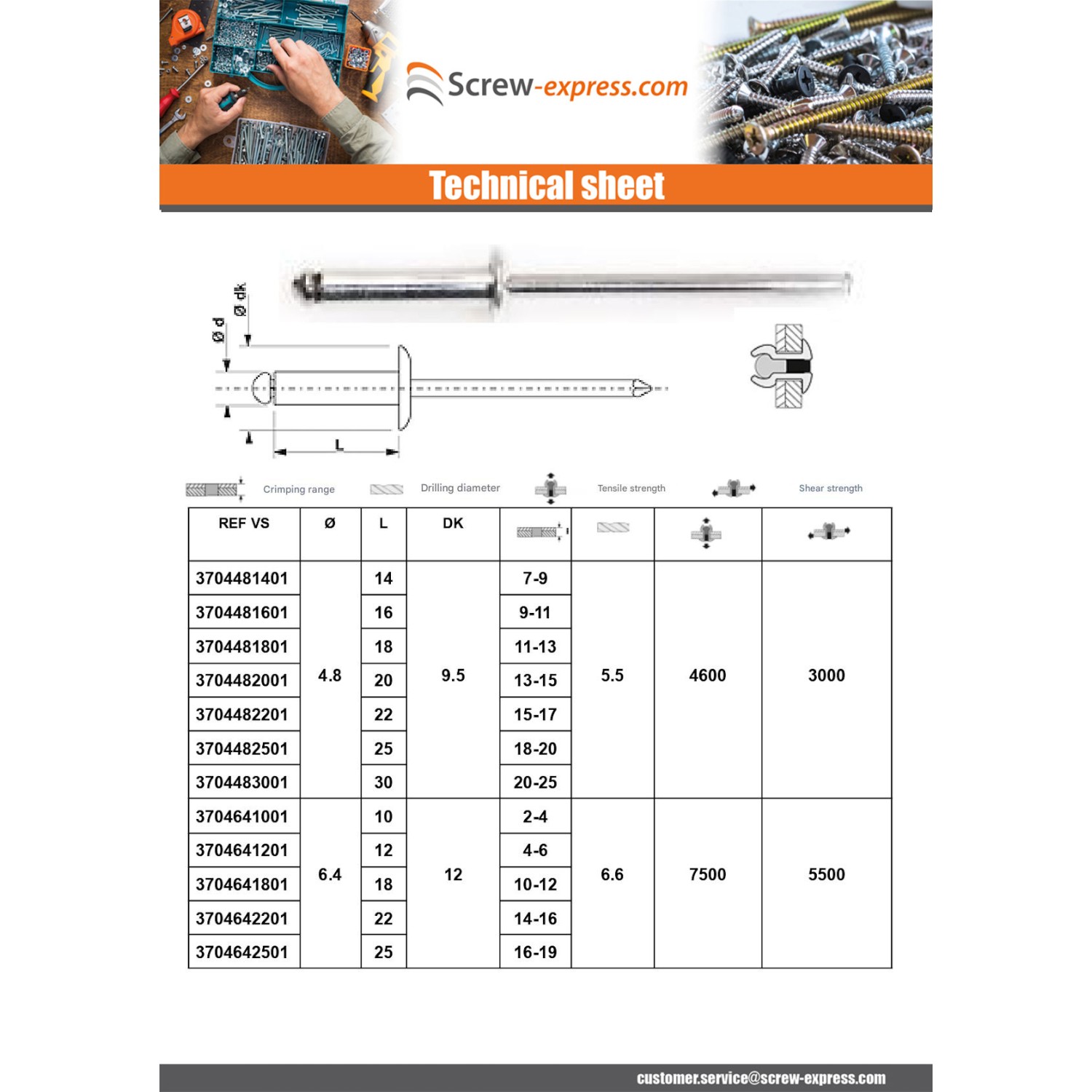

dimensional guide (mm)
Body diameter 3 3.2 4.8 6.4
Head diameter 6 6.5 8 5 6.6
Drilling diameter 3.2 3.4 4.2 5 6.6
longueur tige 25 25 27 27 27
resistance a la traction 1700 1800 3000 4600 7500
Shear strength 1200 1300 2000 3000 5500
La longueur indique dans la designation est le longueur utile (le corps).

Other Reference : 104148141 A3014814 ZQRI24.813.5 AN RIV4-12TPACI POP4-14AA AN A3014814 101085 A711020014 3663072064591
