1 x Rivet Steel/ steel ZING 4X12 Thickness Of Panel 6 to 8 Flat Head

3704401201_1
In stock 3100 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.34 £6.68 £8.03 £17.14

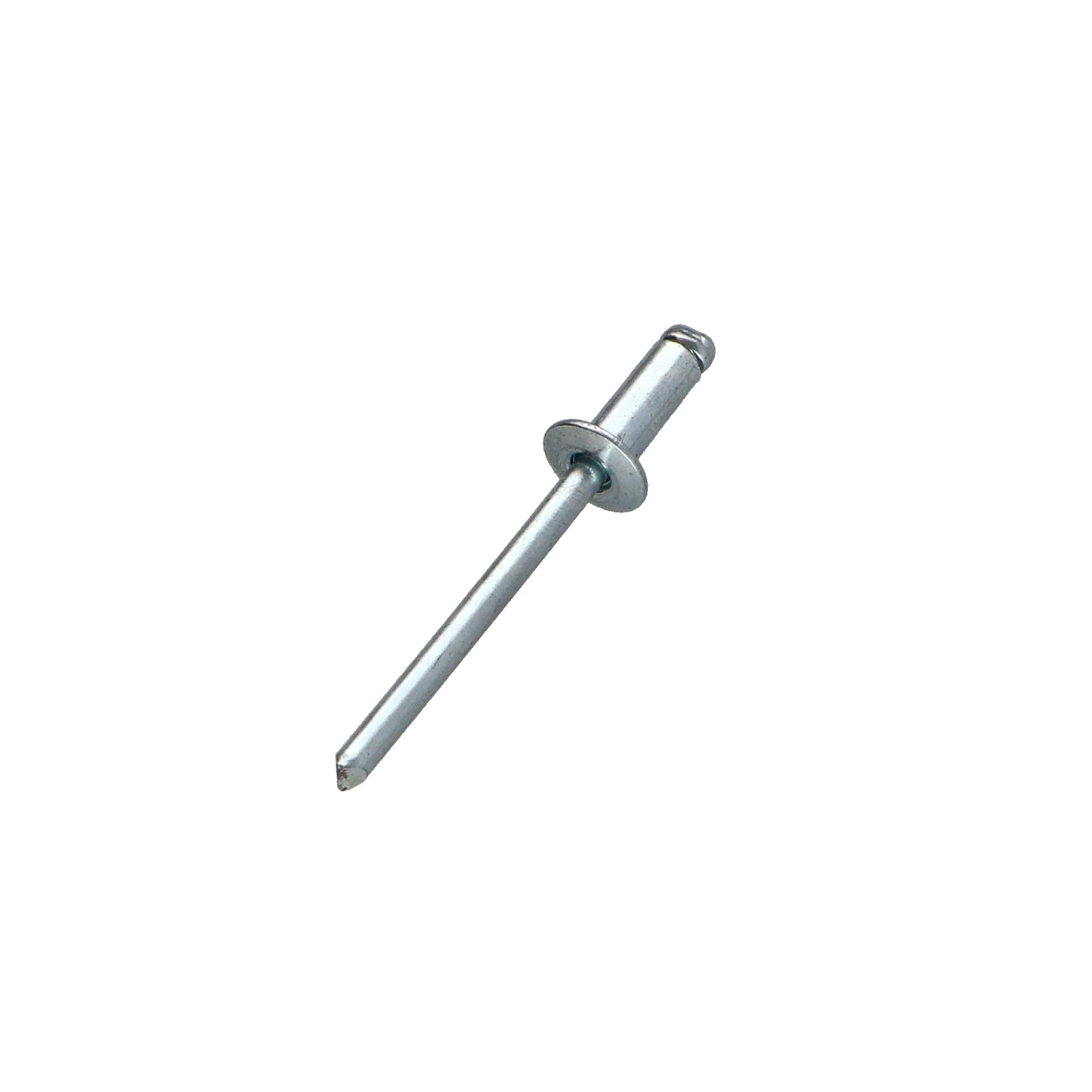

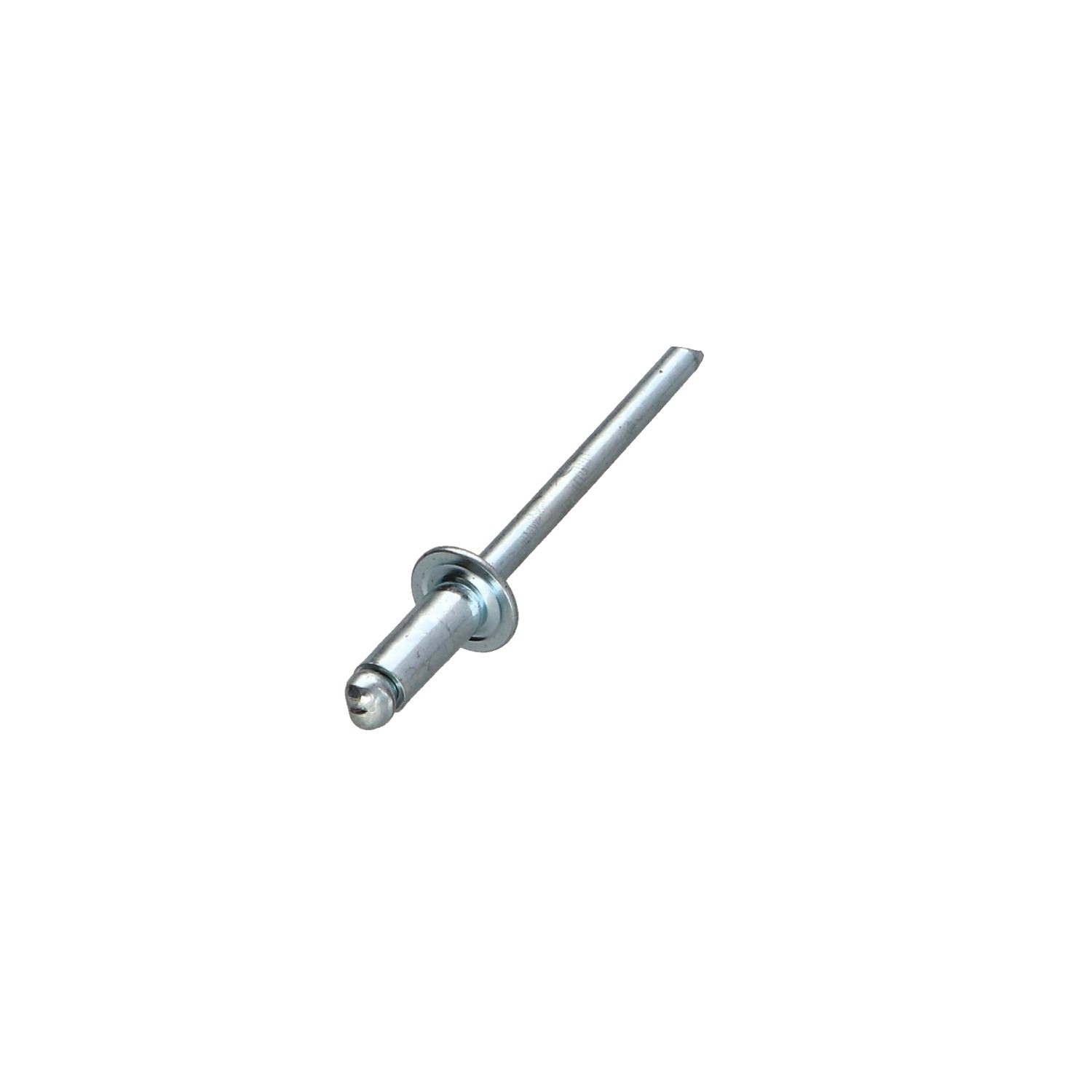

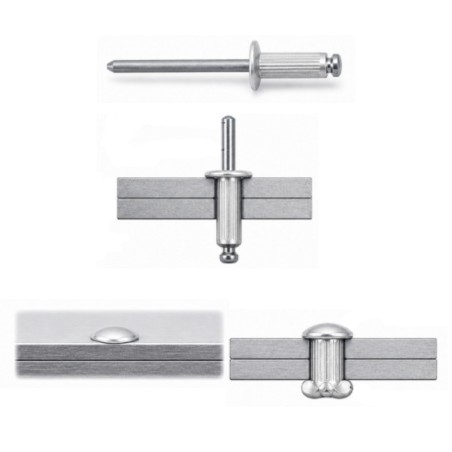

Rivet Steel/ steel ZING 4X12 Thickness Of Panel 6 to 8 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Steel / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1700
Clamping thickness
6 a 8 mm
Rivet body length
12
Unit weight
2.67 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
2200
3100 Items
3663072207813

Application

  • Automobile
  • Trailers
  • Storage and handling equipment
  • Scales
Rivet Steel/ steel ZING 4X12 Thickness Of Panel 6 to 8 Flat Head
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

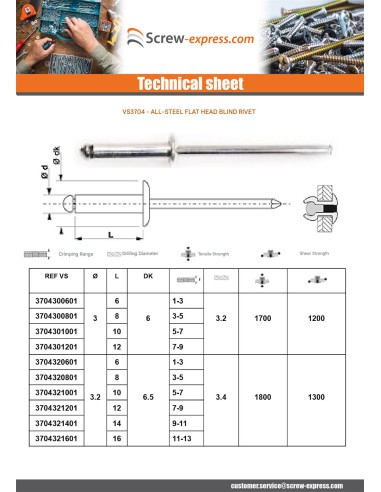

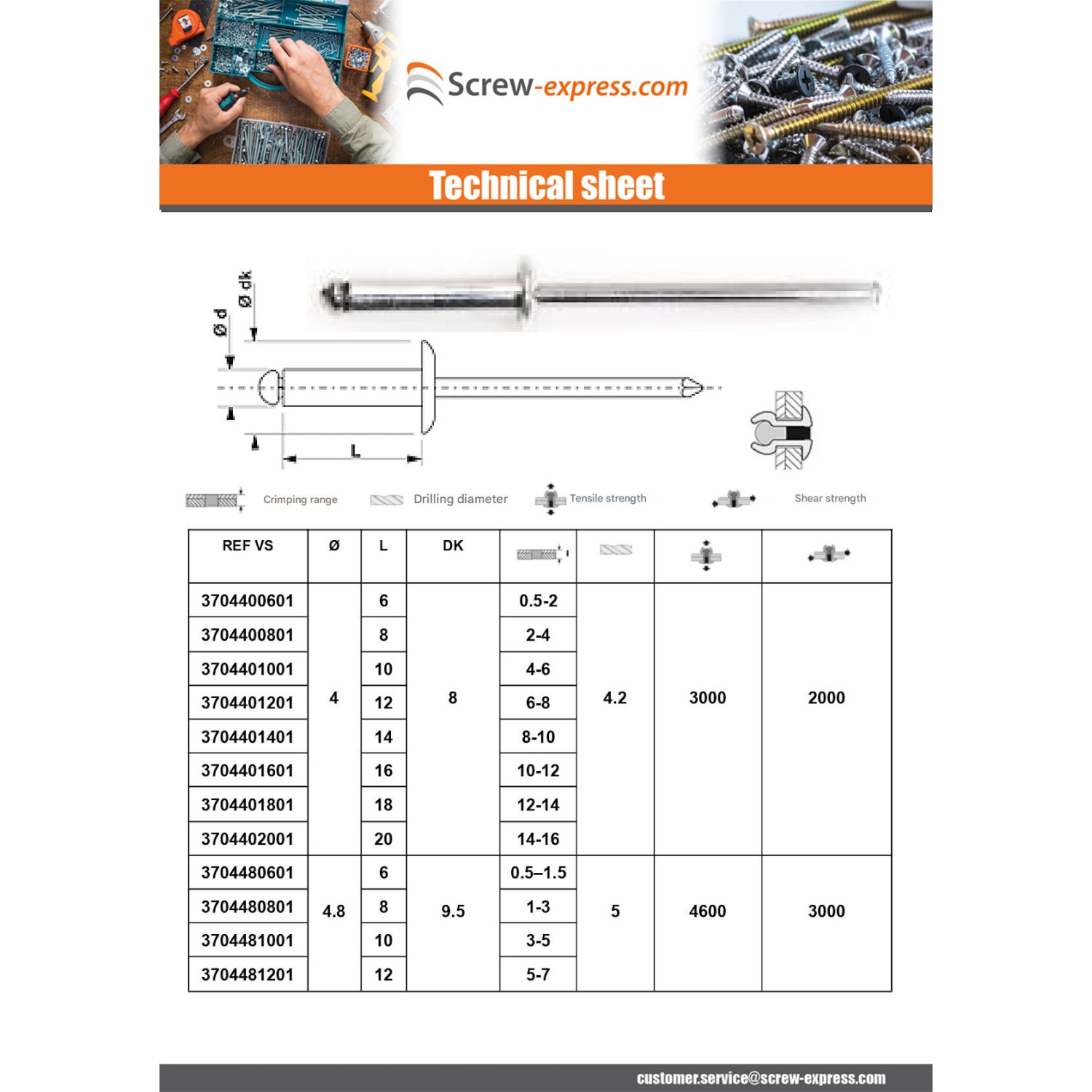

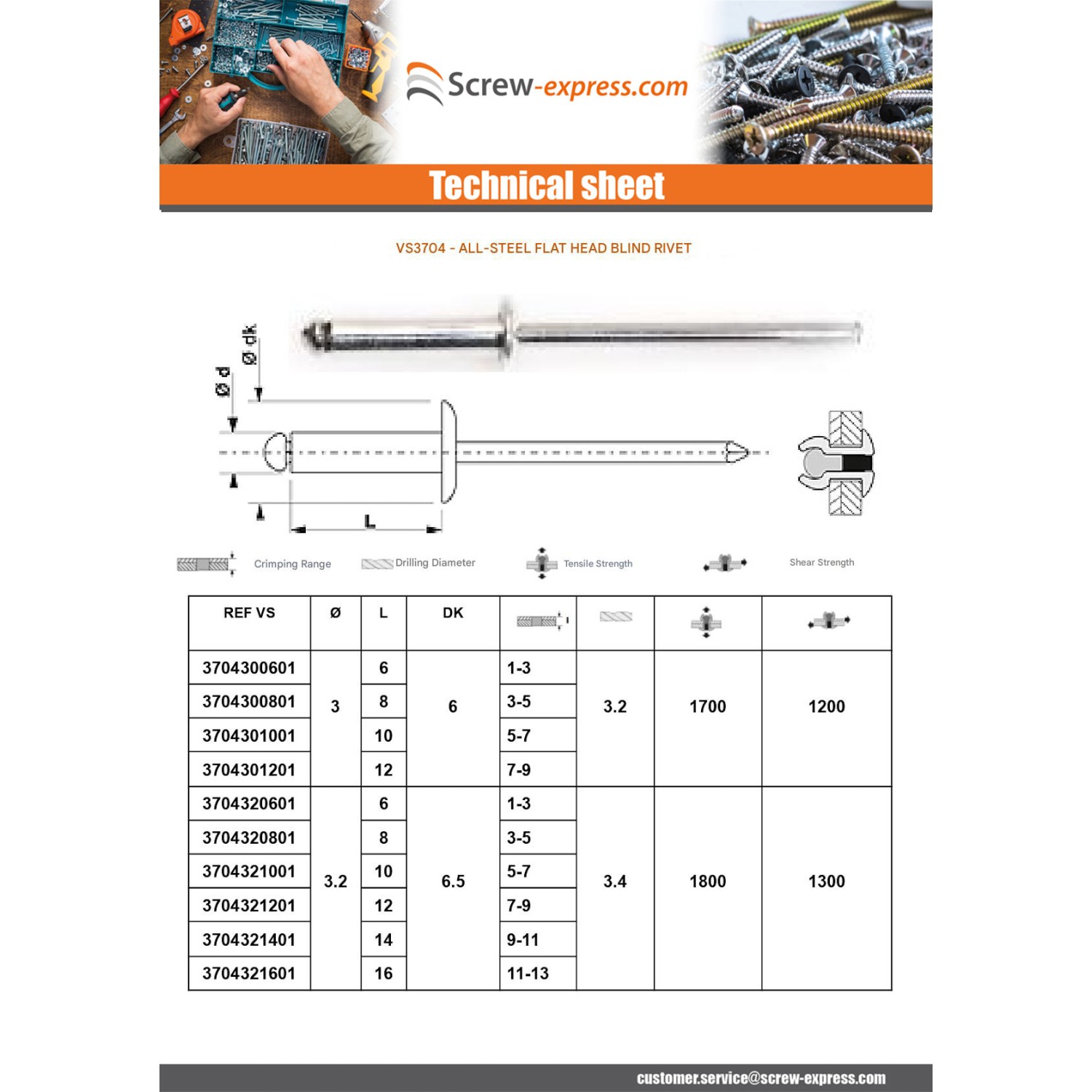

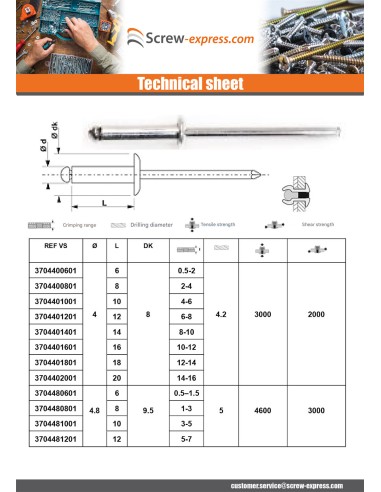

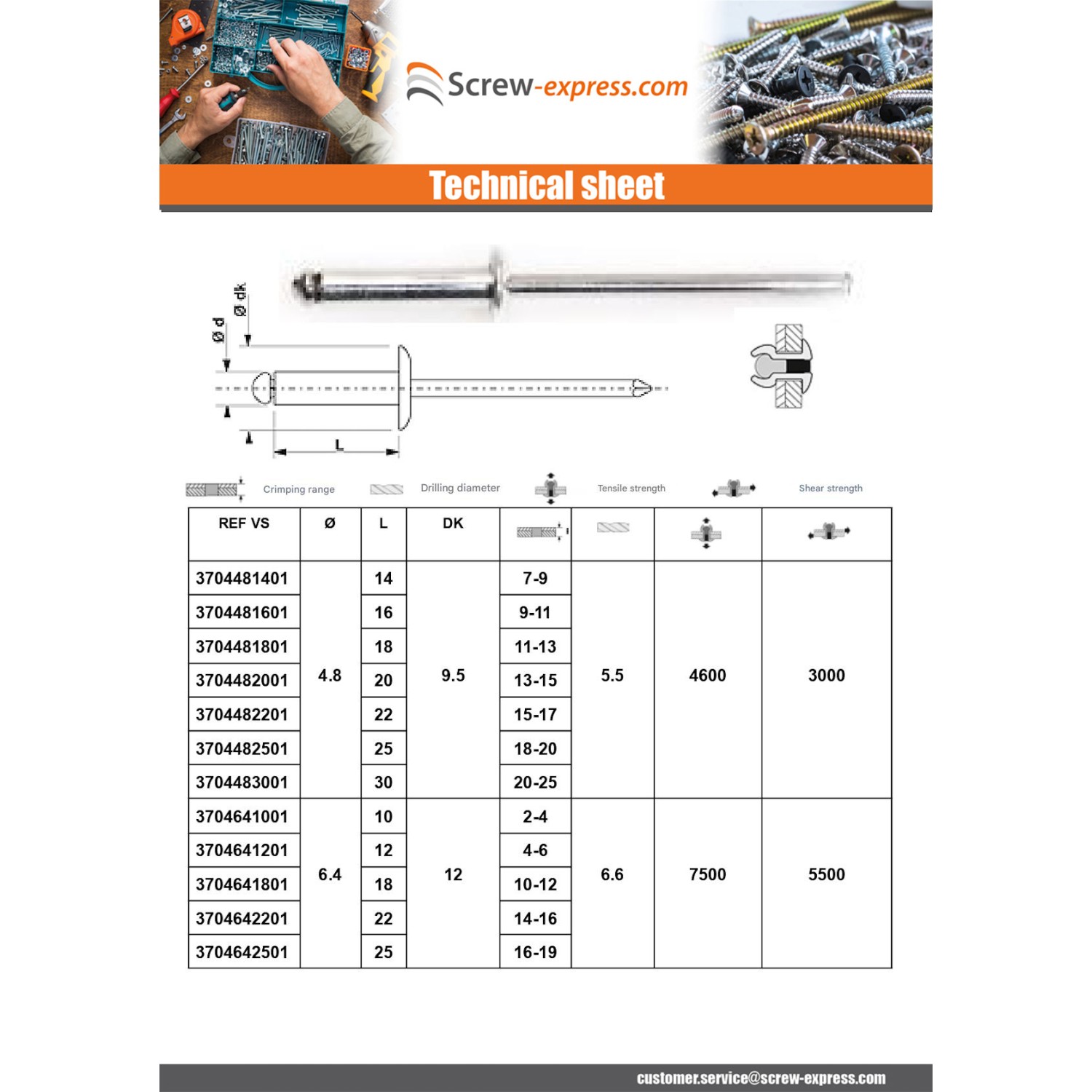

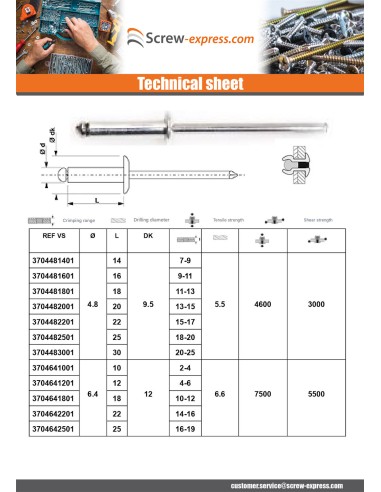

dimensional guide (mm)
Body diameter 3 3.2 4.8 6.4
Head diameter 6 6.5 8 5 6.6
Drilling diameter 3.2 3.4 4.2 5 6.6
longueur tige 25 25 27 27 27
resistance a la traction 1700 1800 3000 4600 7500
Shear strength 1200 1300 2000 3000 5500
La longueur indique dans la designation est le longueur utile (le corps).

Other Reference : 104140121 QIF412 348-0026 ACC18049 39766 B800008 3663072207813
Carlos Ramos E. (vis-express.fr)
2024-12-01

automotive field (car upholstery)
