3704482501_1
In stock 863 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included £3.34 £6.68 £8.07 £24.30

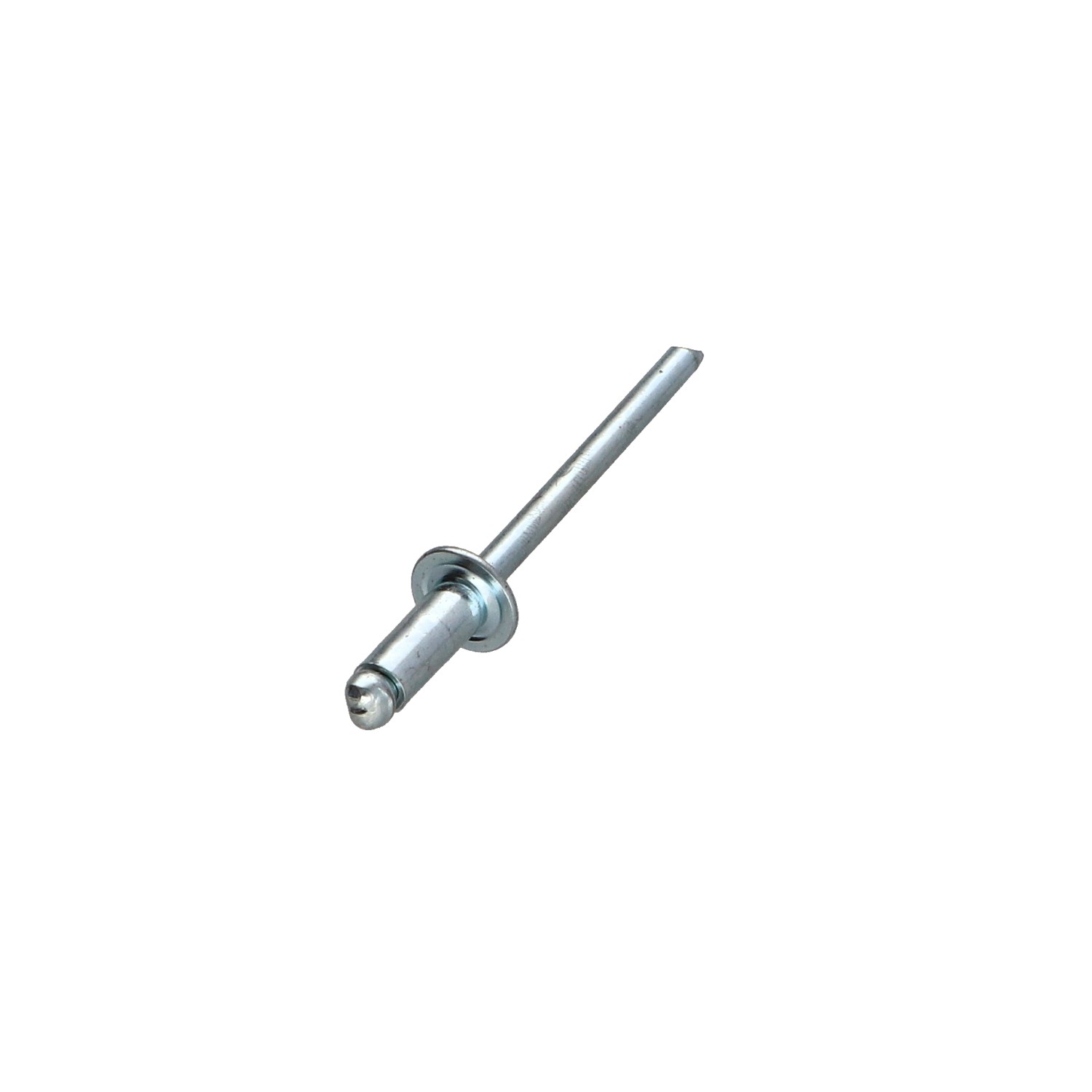

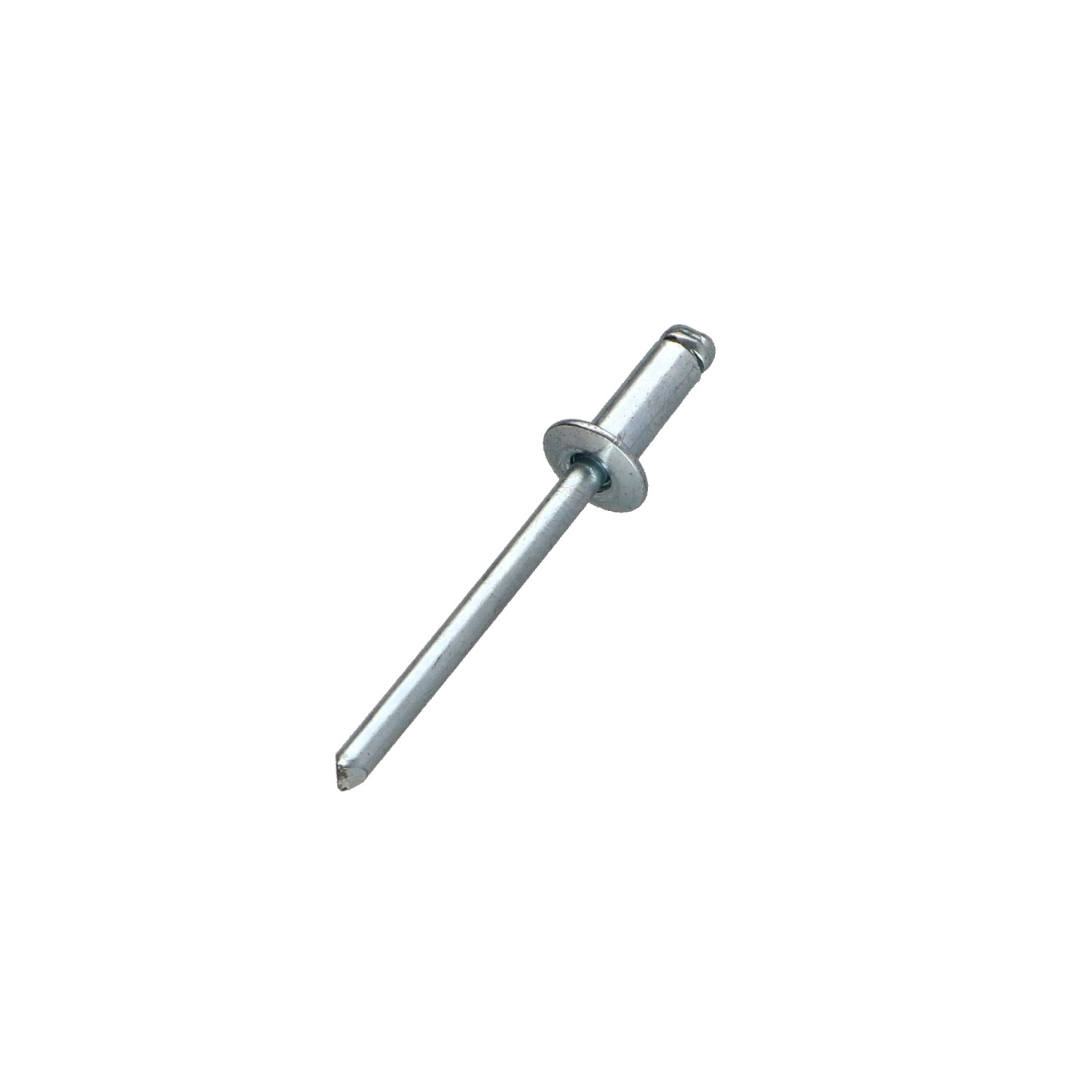

Rivet Steel/ steel ZING 4.8X25 Thickness Of Panel 18 to 20 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Steel / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
2900
Clamping thickness
18 a 20 mm
Rivet body length
25
Unit weight
5.9 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
3100
863 Items
3663072302433

Application

  • Automobile
  • Trailers
  • Storage and handling equipment
  • Scales
Rivet Steel/ steel ZING 4.8X25 Thickness Of Panel 18 to 20 Flat Head
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

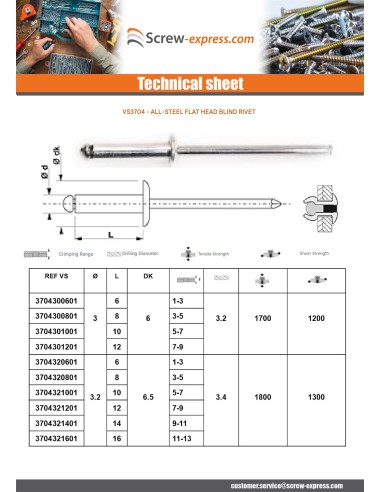

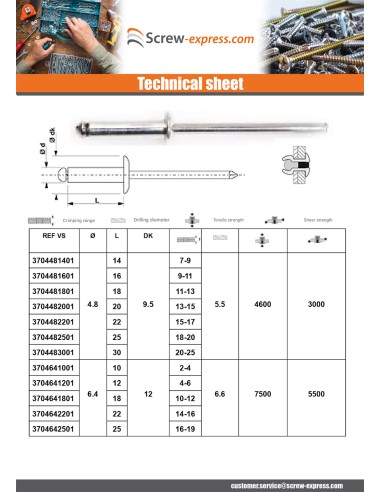

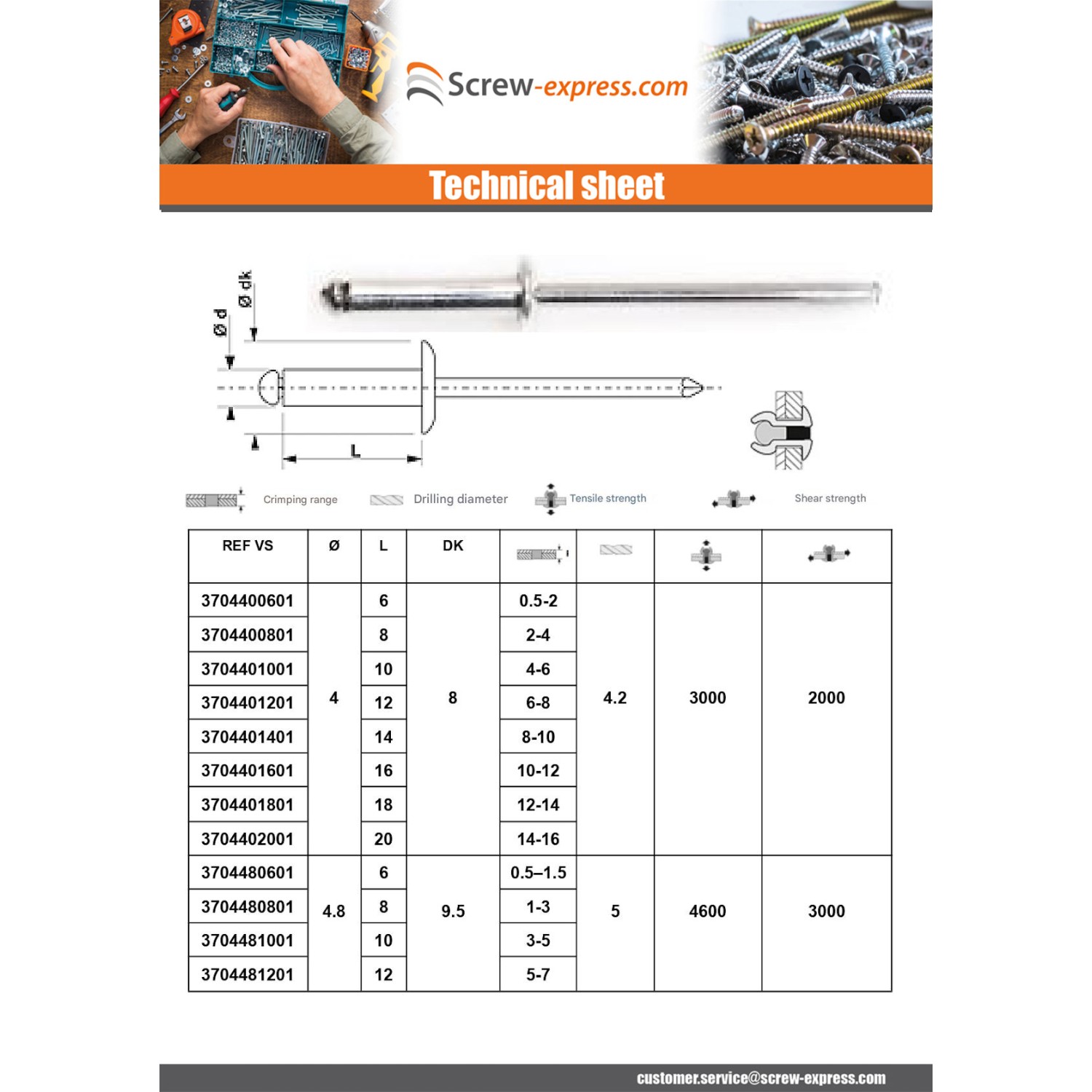

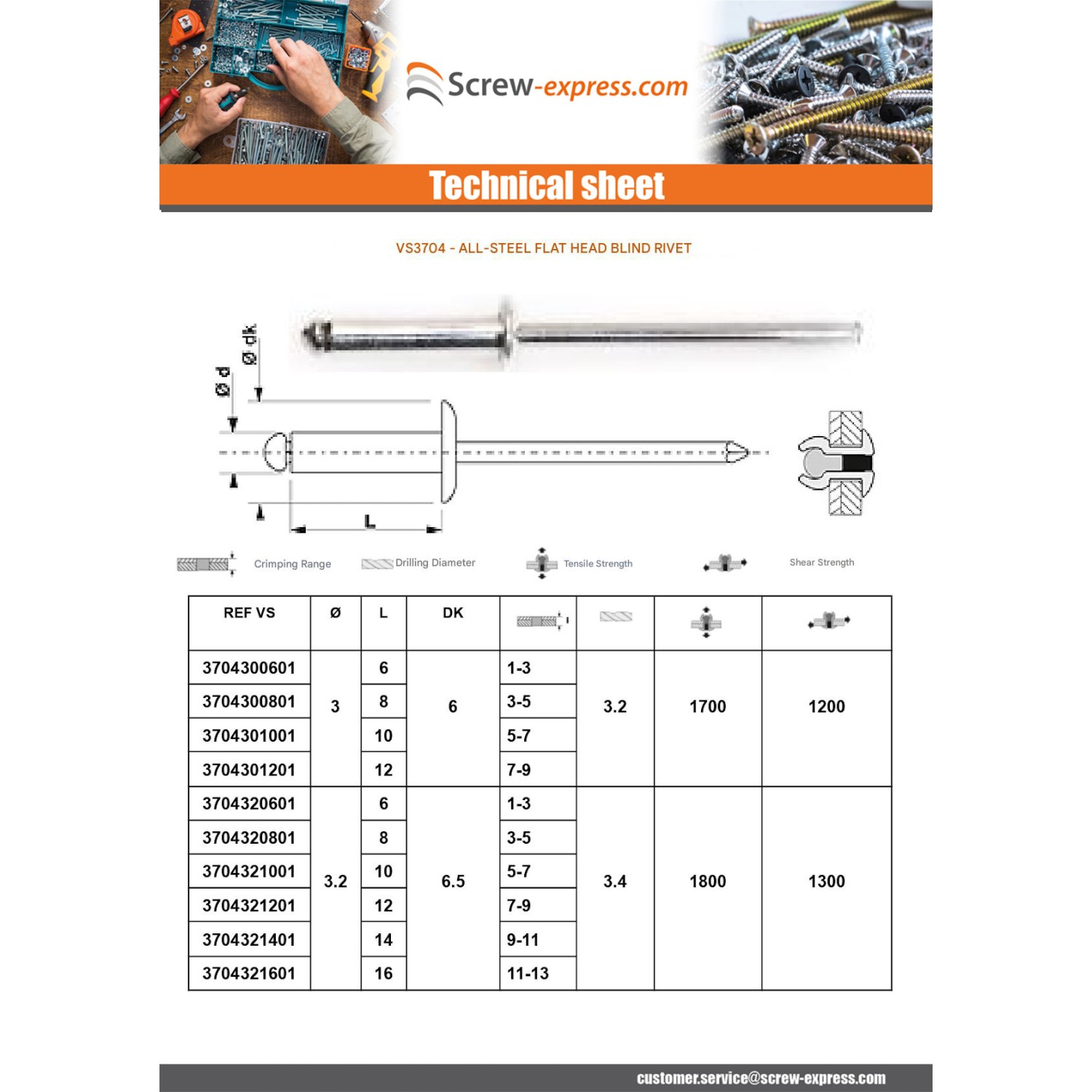

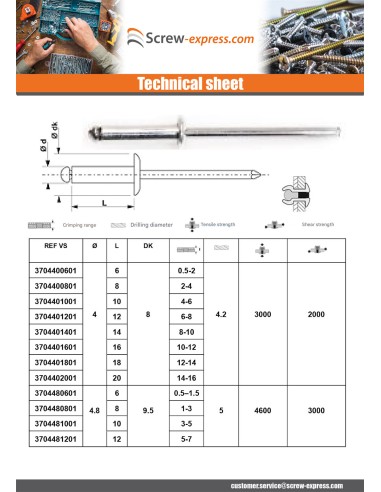

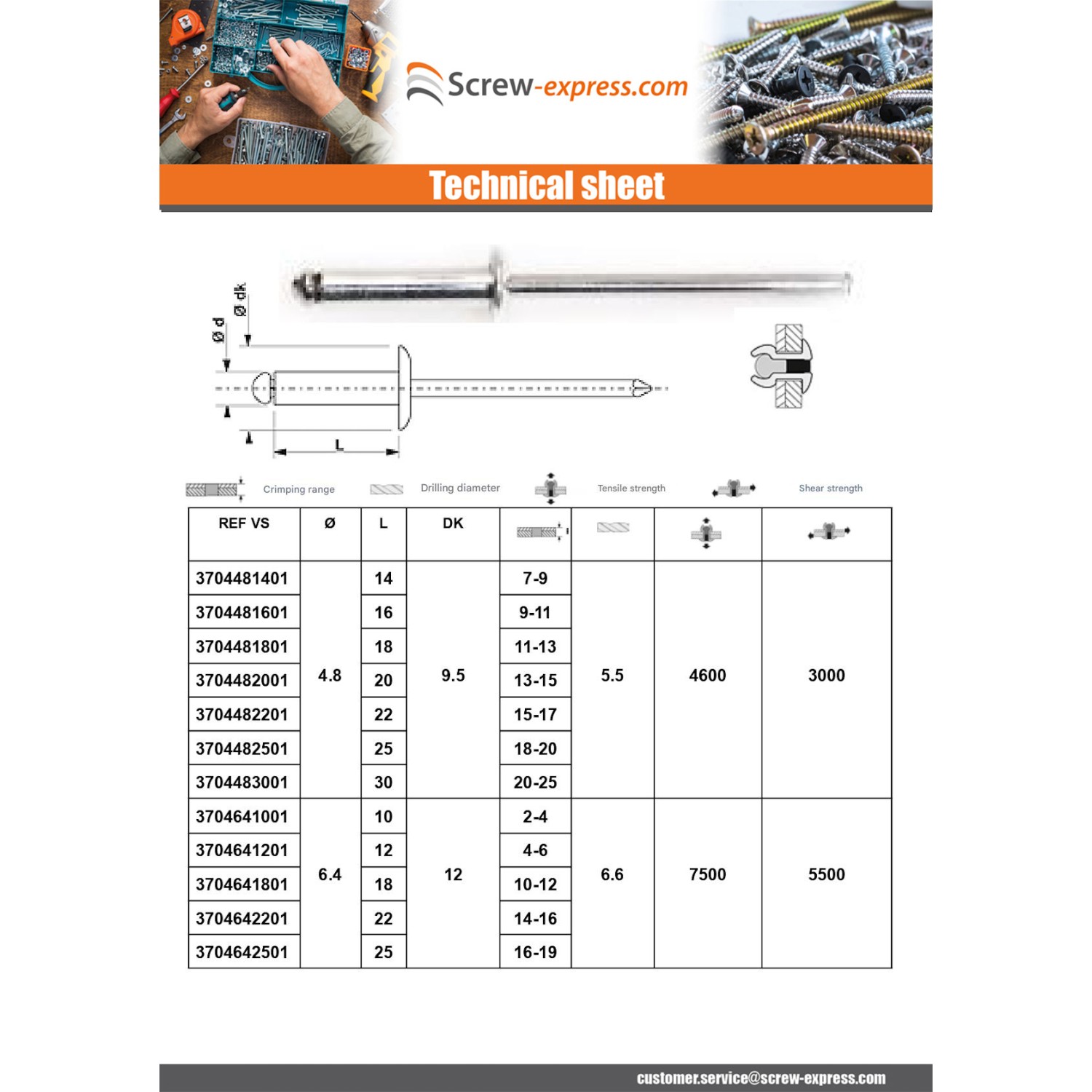

dimensional guide (mm)
Body diameter 3 3.2 4.8 6.4
Head diameter 6 6.5 8 5 6.6
Drilling diameter 3.2 3.4 4.2 5 6.6
longueur tige 25 25 27 27 27
resistance a la traction 1700 1800 3000 4600 7500
Shear strength 1200 1300 2000 3000 5500
La longueur indique dans la designation est le longueur utile (le corps).

Other Reference : 104148251 920013 POP4-25A/C 3663072302433
daniel E. (vis-express.fr)
2026-02-15

The rivets will be used to make the mobile disco flight cases.
