3704641801_1
In stock 1570 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €4.25 €8.45 €10.20 €48.05

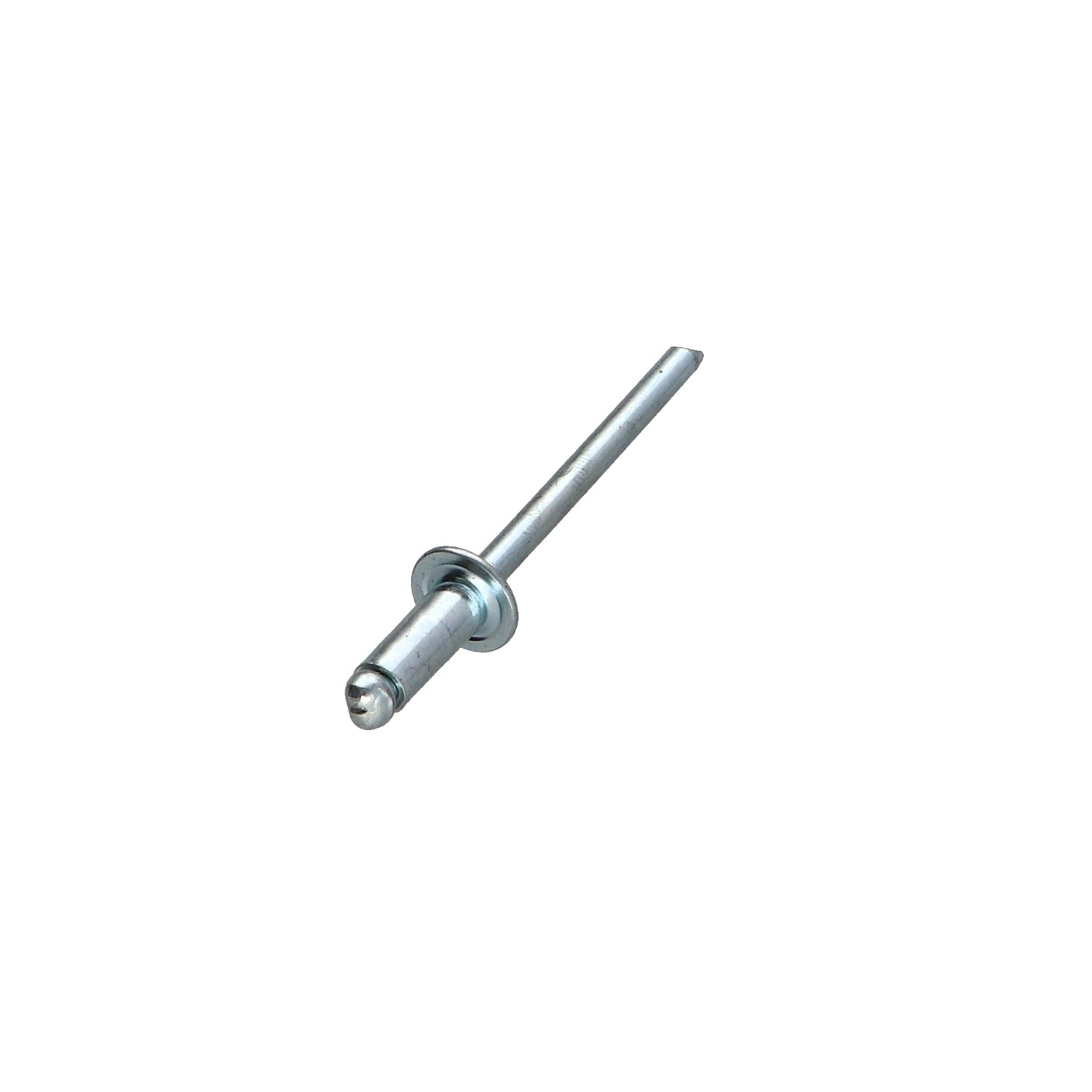

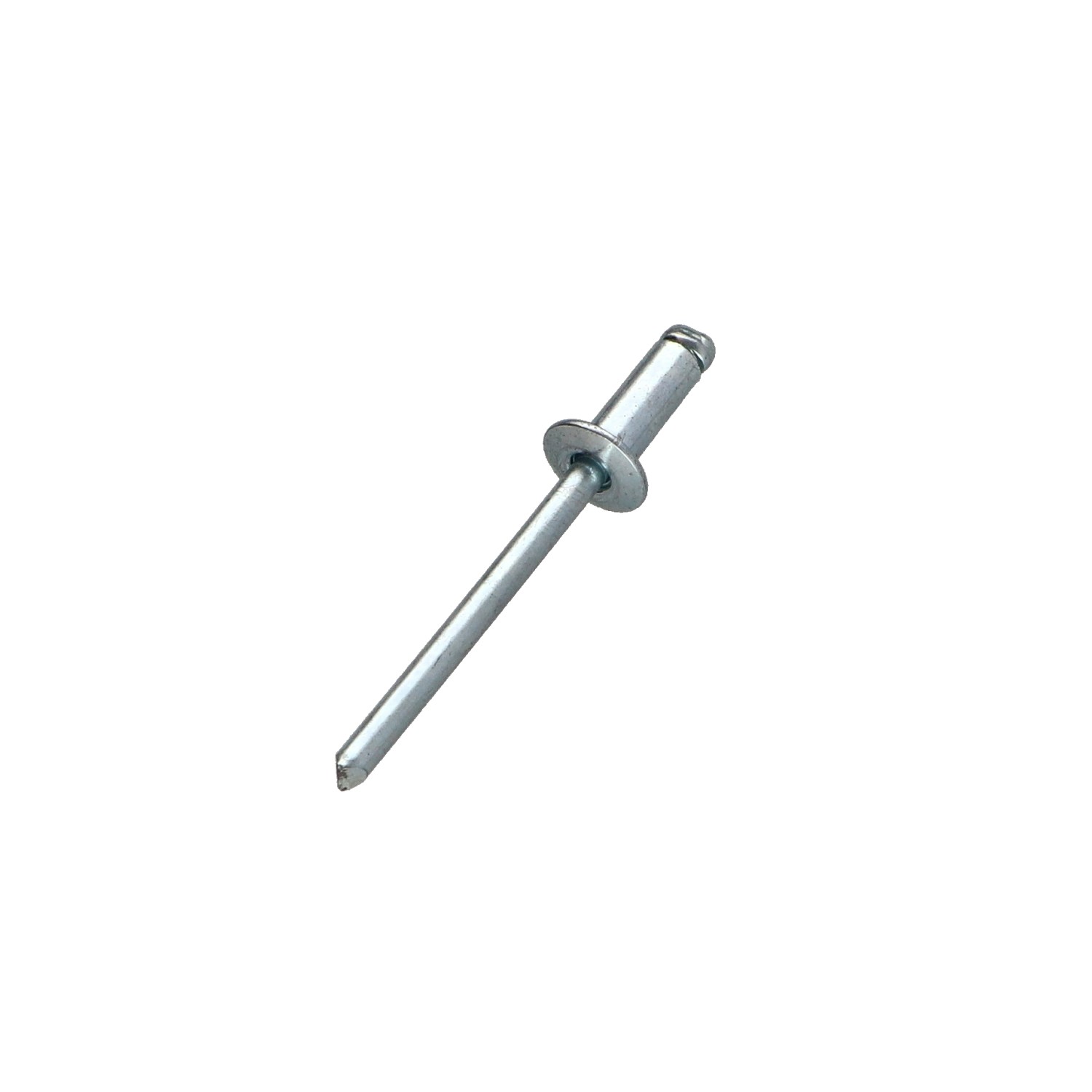

Rivet Steel/ steel ZING 6.4X18 Thickness Of Panel 10 to 12 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
6.4
Diameter Head
12
Material
BODY Steel / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
4900
Clamping thickness
10 a 12 mm
Rivet body length
18
Unit weight
9.57 GR
Head shape
Round Head standard
Hole diameter
6.6
Tensile strength
5700
1570 Items
3663072302471

Application

  • Automobile
  • Trailers
  • Storage and handling equipment
  • Scales
Rivet Steel/ steel ZING 6.4X18 Thickness Of Panel 10 to 12 Flat Head
Diameter = 6.4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL)

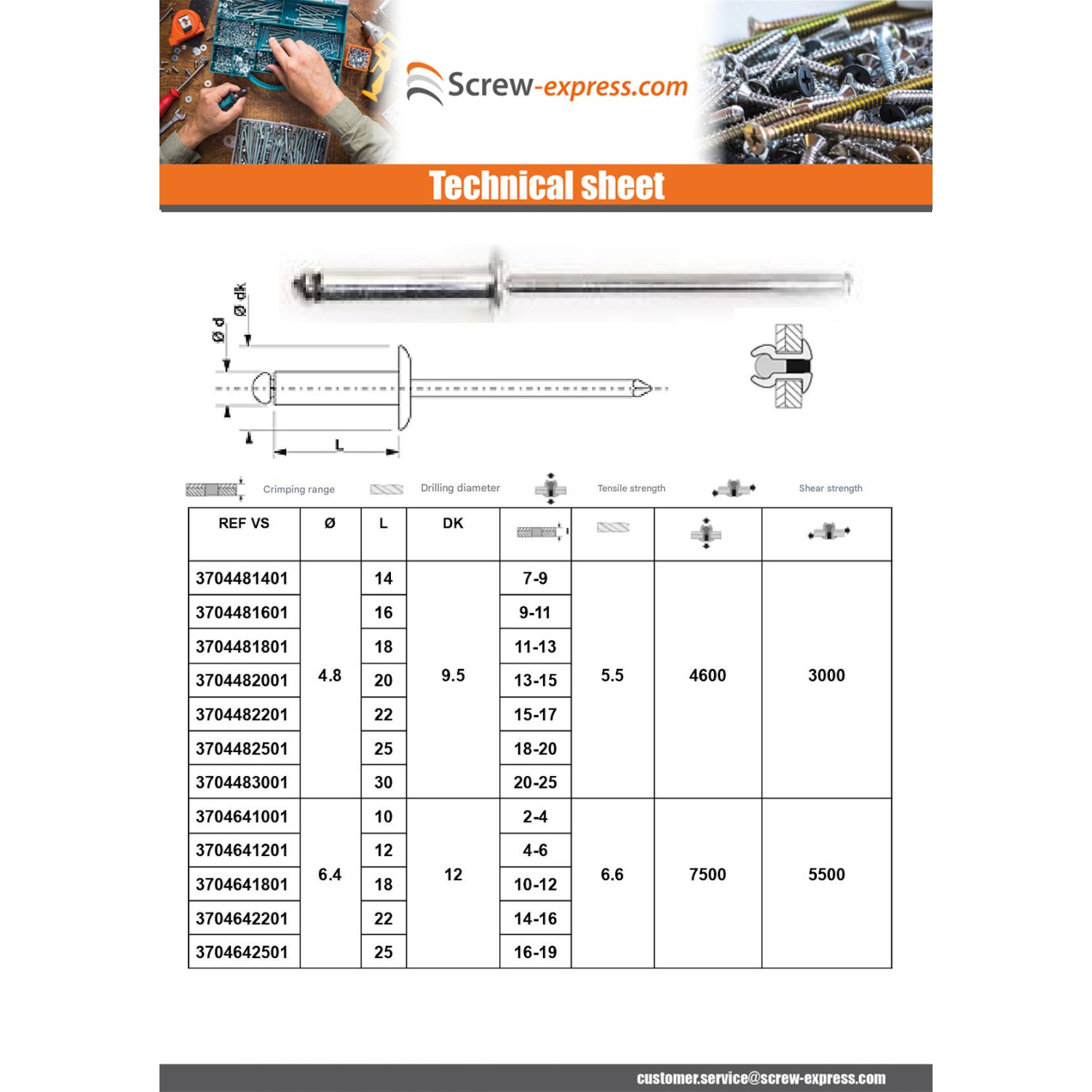

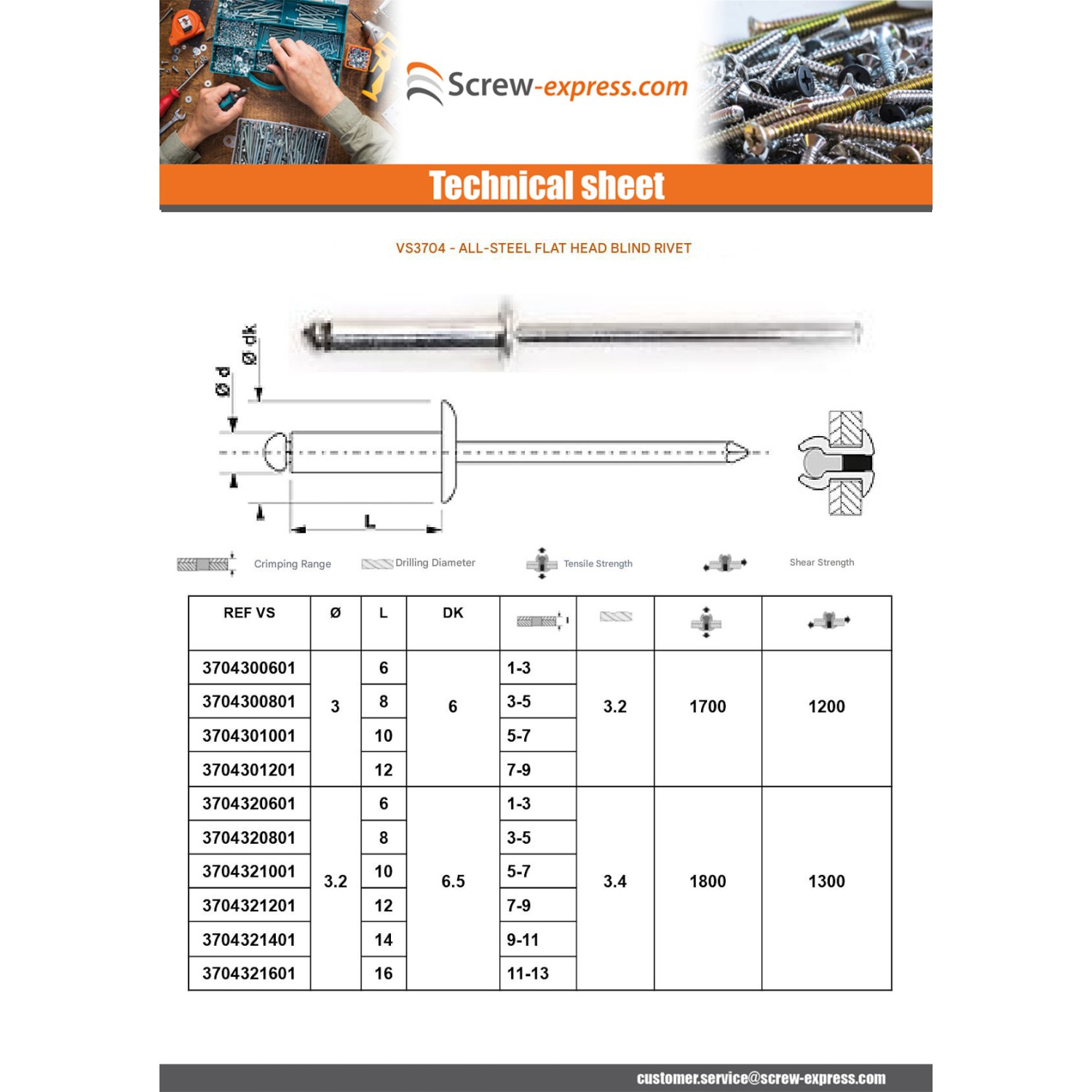

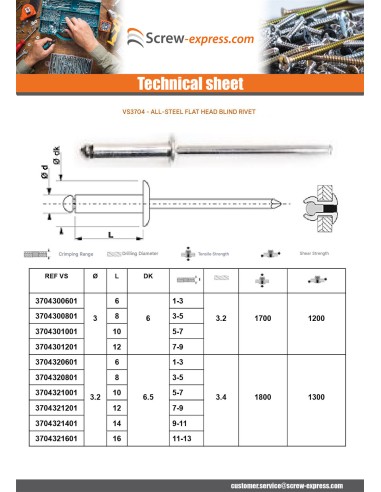

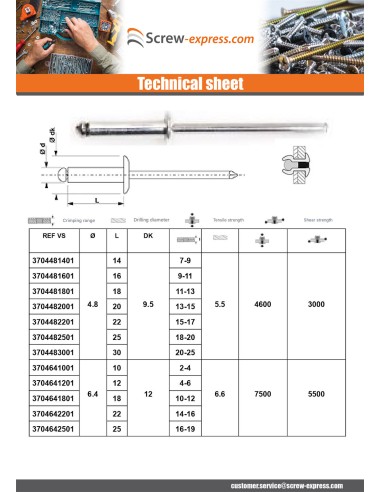

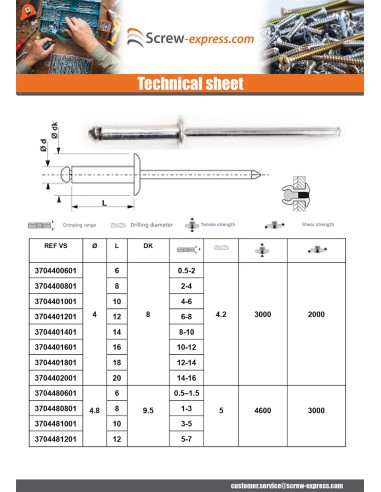

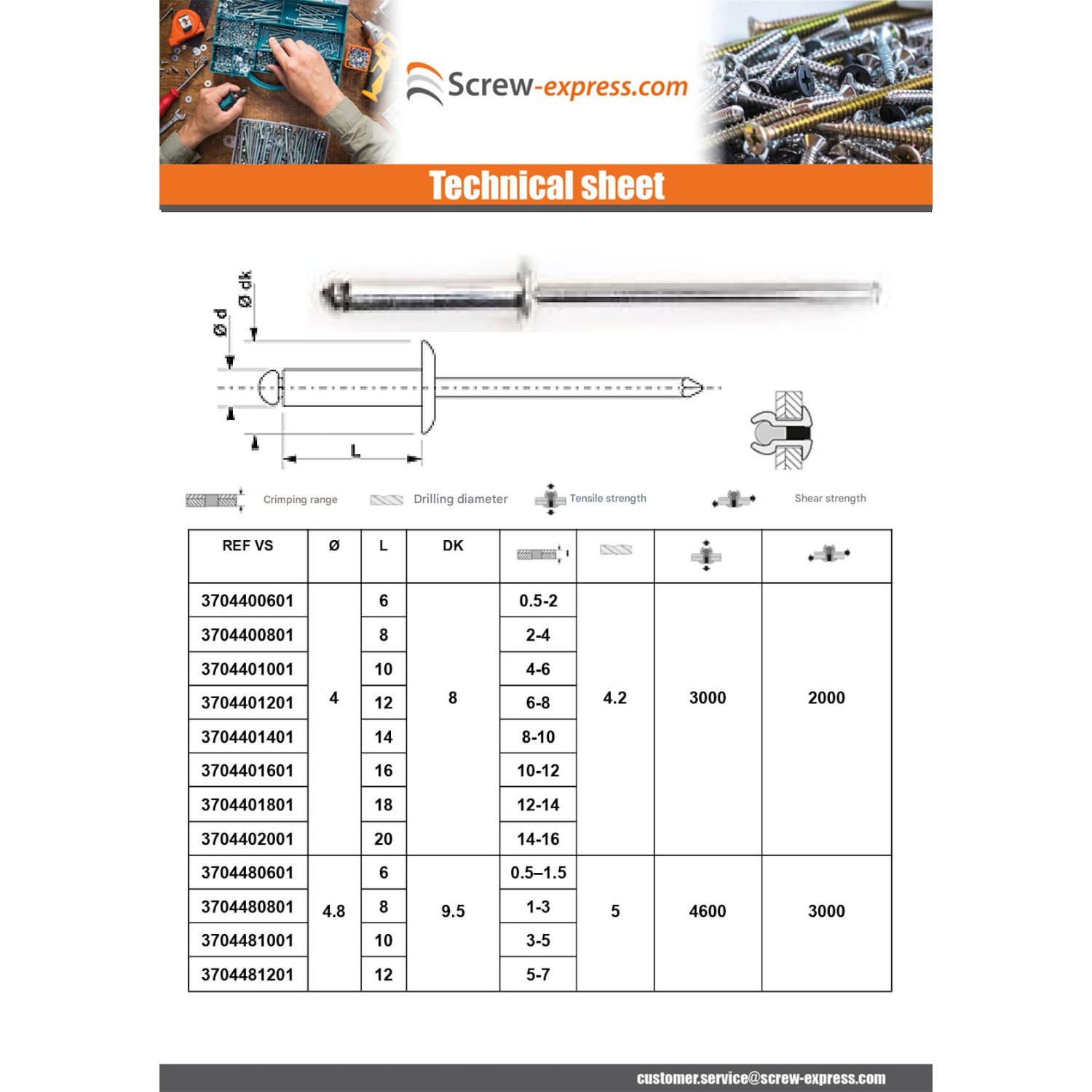

dimensional guide (mm)
Body diameter 3 3.2 4.8 6.4
Head diameter 6 6.5 8 5 6.6
Drilling diameter 3.2 3.4 4.2 5 6.6
longueur tige 25 25 27 27 27
resistance a la traction 1700 1800 3000 4600 7500
Shear strength 1200 1300 2000 3000 5500
La longueur indique dans la designation est le longueur utile (le corps).

Other Reference : 104164181 32RI618 ACC18054 ACC18054 3663072302471
