1 x Caged Nut Stainless Steel Zinc Plated C4812D M12 Thickness Material 4.8 to 6.2

4336001202_1
In stock 817 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.34 £6.68 £12.11 £40.31

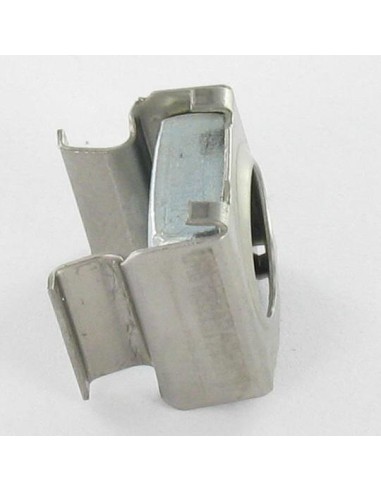

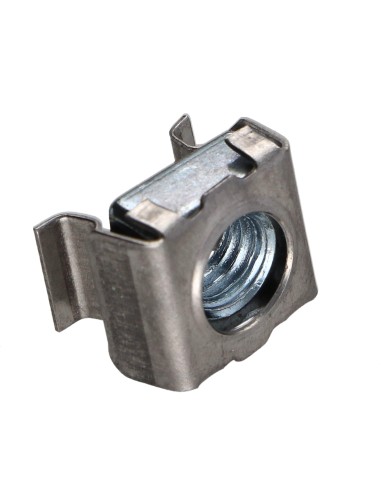

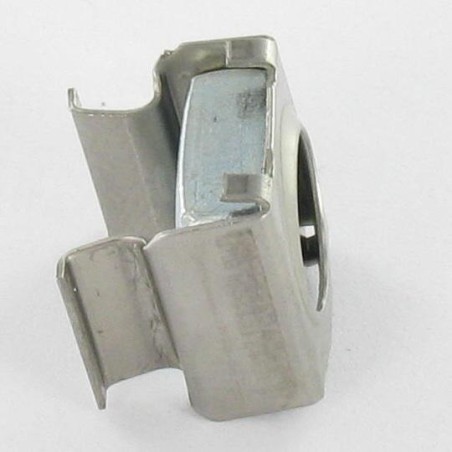

Caged Nut Stainless Steel Zinc Plated C4812D M12 Thickness Material 4.8 to 6.2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M12
Product Family
Nut
Use
External
Grip range
Class 4.8 to 6.2 MM
Unit weight
13 GR
817 Items
3663072090996
Caged Nut Stainless Steel Zinc Plated C4812D M12 Thickness Material 4.8 to 6.2
Diameter = M12, Use = External, Product Family = Nut

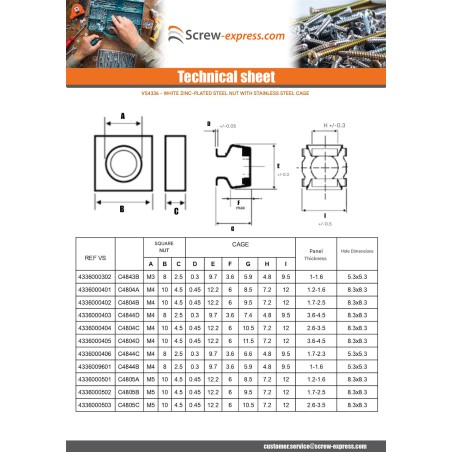

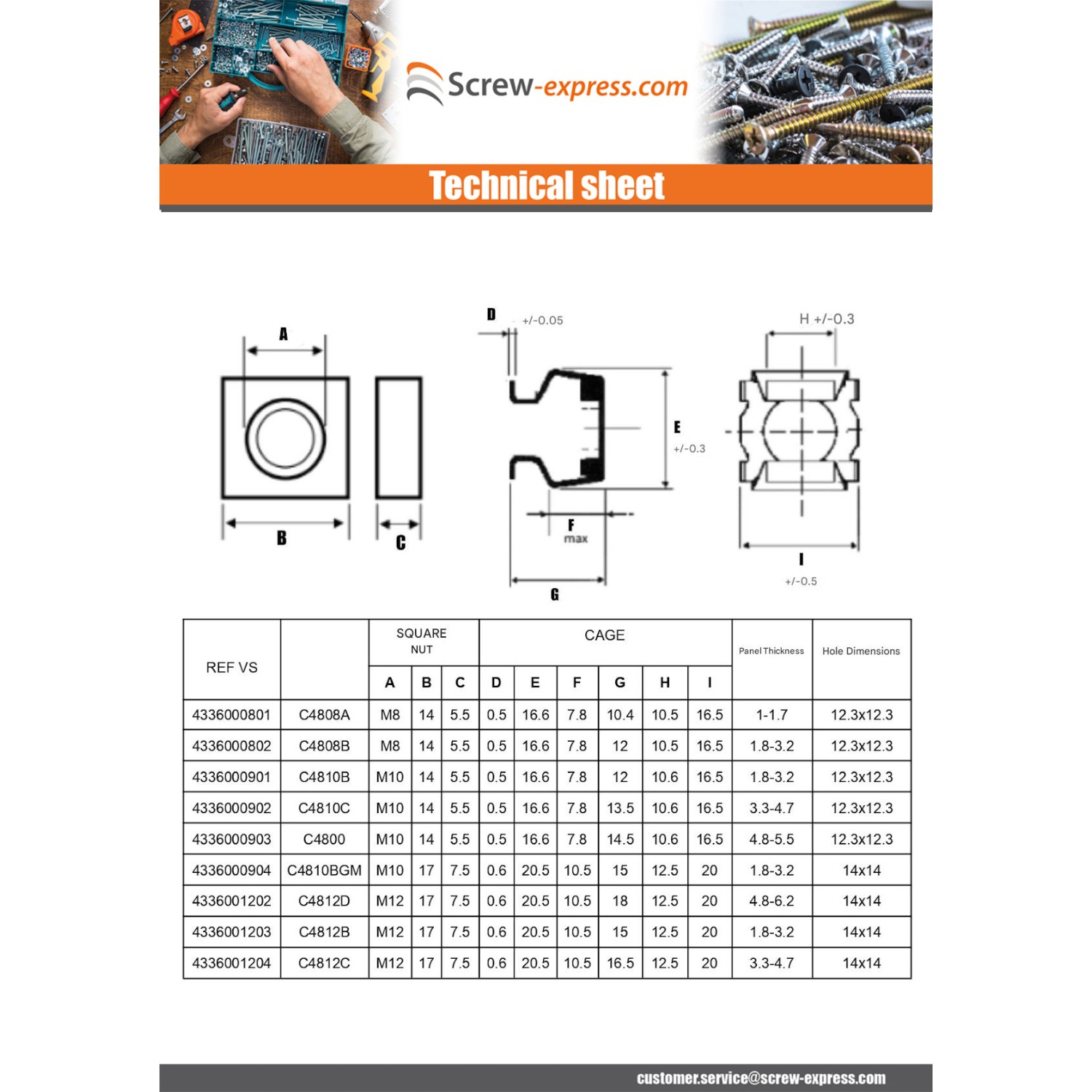

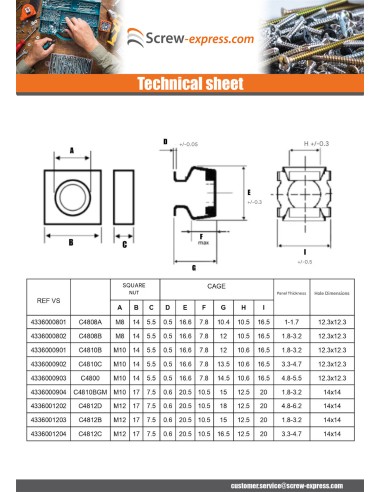

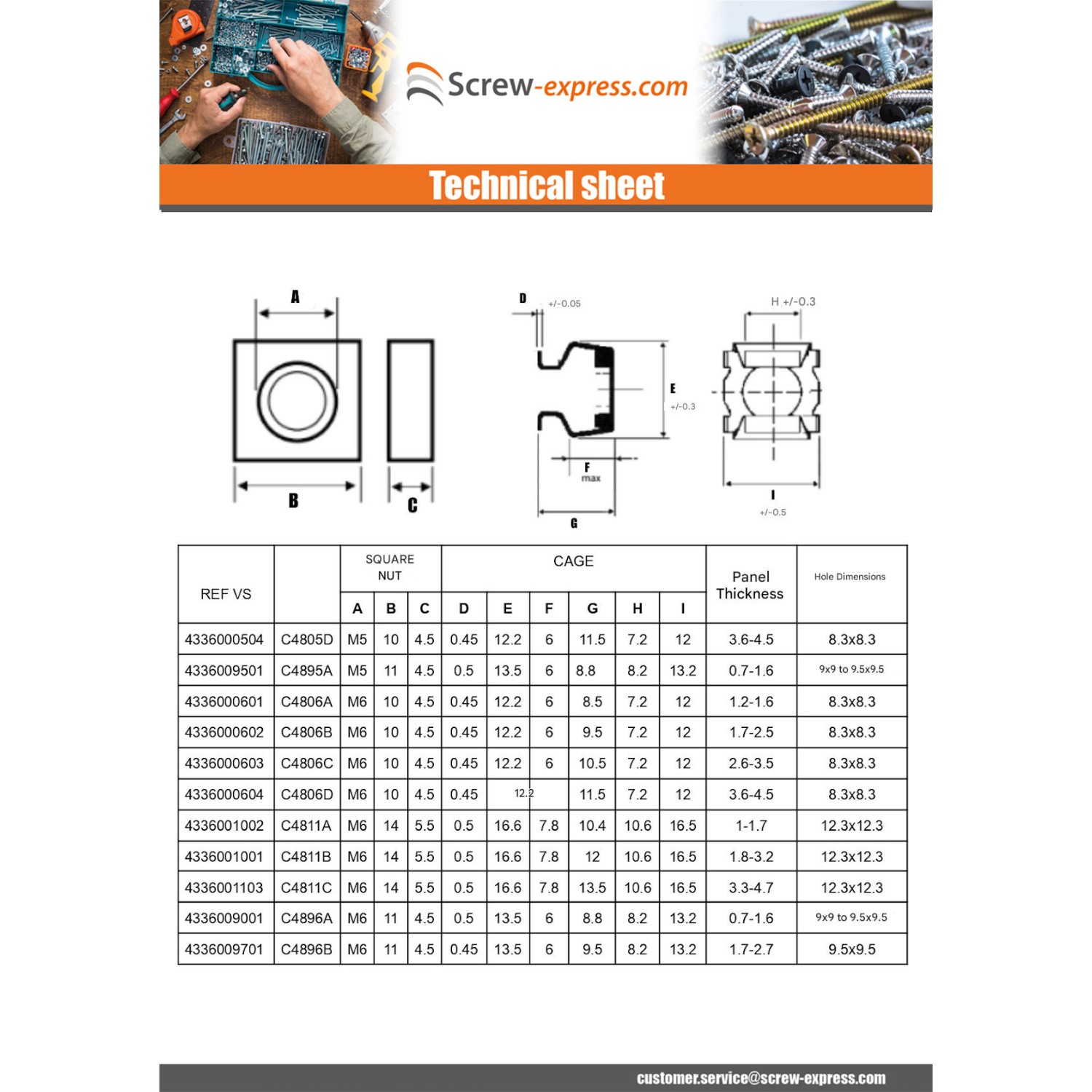

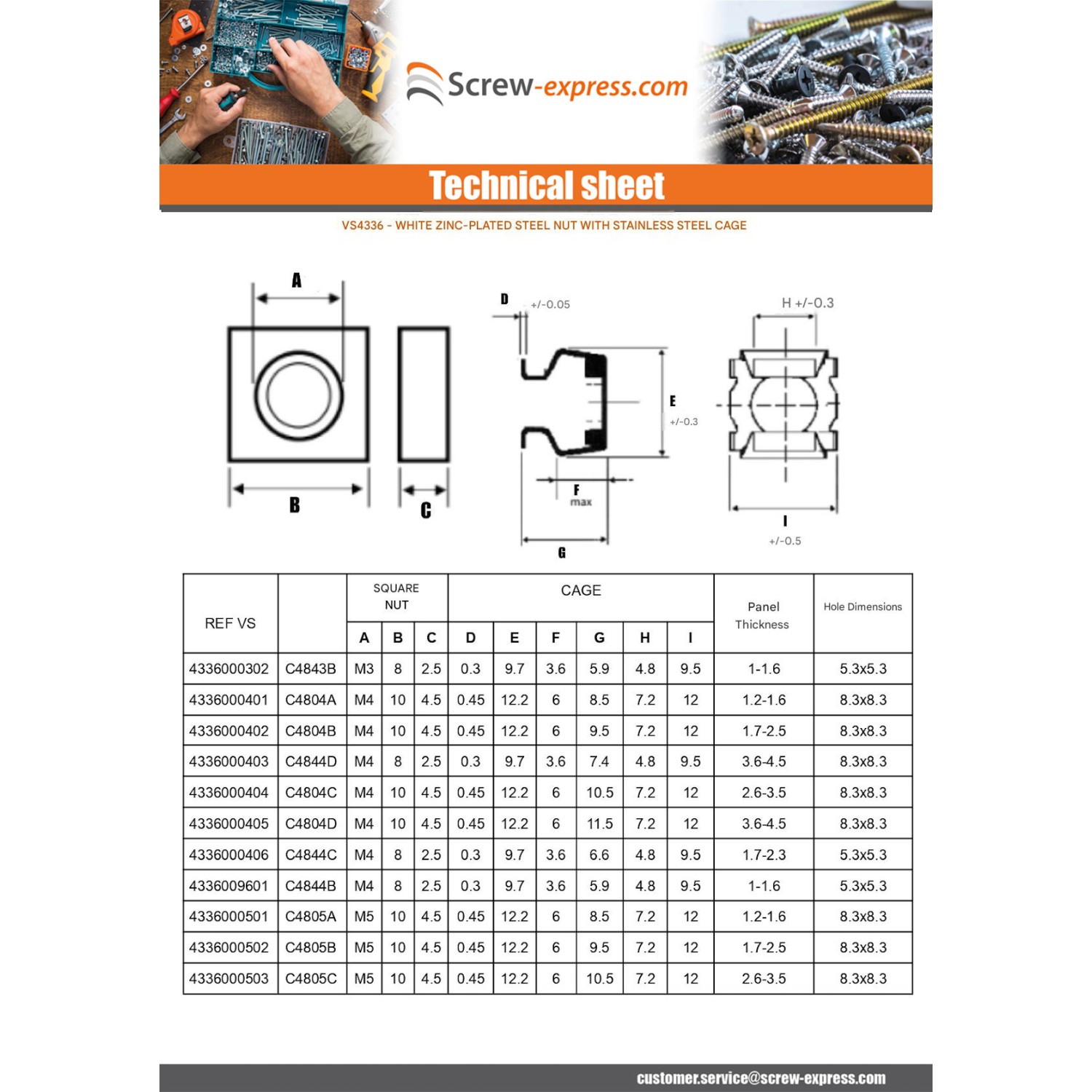

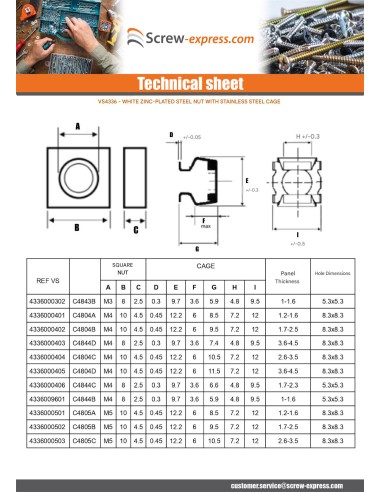

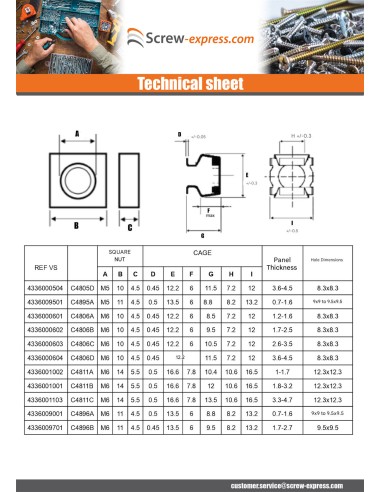

dimensional guide (mm)
Diameter M3 M4 M4 M4 M4 M5 M5 M5 M5 M5 M6 M6 M6 M6 M6 M6 M6 M6 M6 M10 M12 M12 M12
EPAISEUR PANNEAU 1A1.6 1A1.6 2.4A3.1 1.2A1.6 1.7A2.5 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 0.7A1.6 1.2A1.6 1.7A2.5 2.6A3.5 3.6A4.5 1A1.7 1.8A3.2 3.3A4.7 0.7A1.6 1.7A2.7 3.3A4.7 1.8A3.2 3.3A4.7 4.8A6.2
REF. C4843B C4844B C4844D C4804A C4804B C4805A C4805B C4805C C4805D C4895A C4806A C4806B C4806C C4806D C4811A C4811B C4811C C4896A C4896B C4810C C4812B C4812C C4812D
DIMENSION CARRE 9.3 9.3 9.3 12 12 12 12 12 12 13 12 12 12 12 16 16 16 13 13 16 20 20 20
HAUTEUR 5.9 5.9 7.4 8.5 9.5 8.5 9.5 10.5 11.5 8.8 8.5 9.5 10.5 11.5 10.4 11.9 13.4 8.8 10 13.4 14.7 16.2 17.7

Other Reference : 3617500950055 ECROUCAM12Z8 OC72340000 BAECRO530X ECROUCAGEM12 FO72BA11 PMM1946 141126 EC 0037 A 121204000 141126 EC 0037 A 121204000 OC72340000 OC72340000 3663072090996
