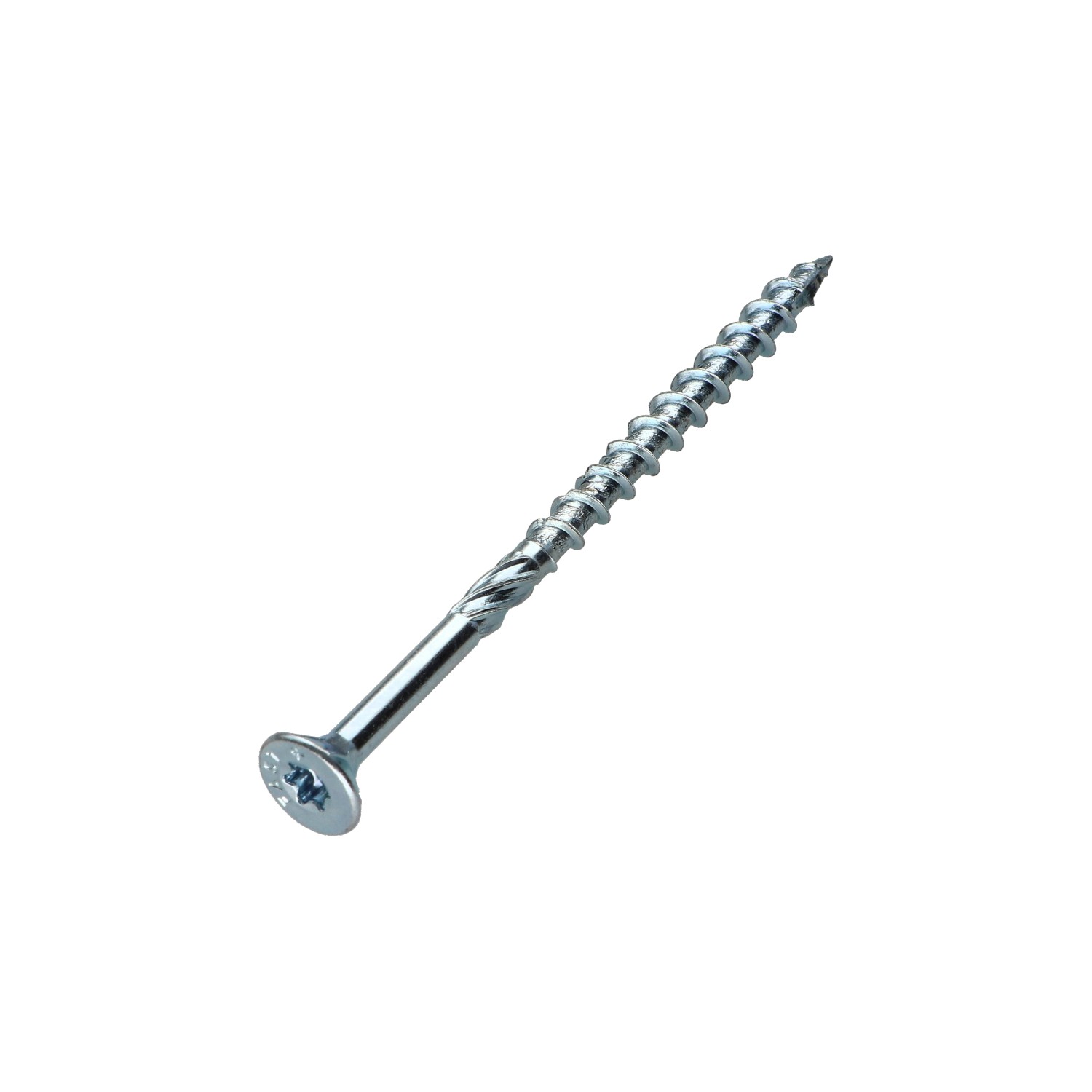

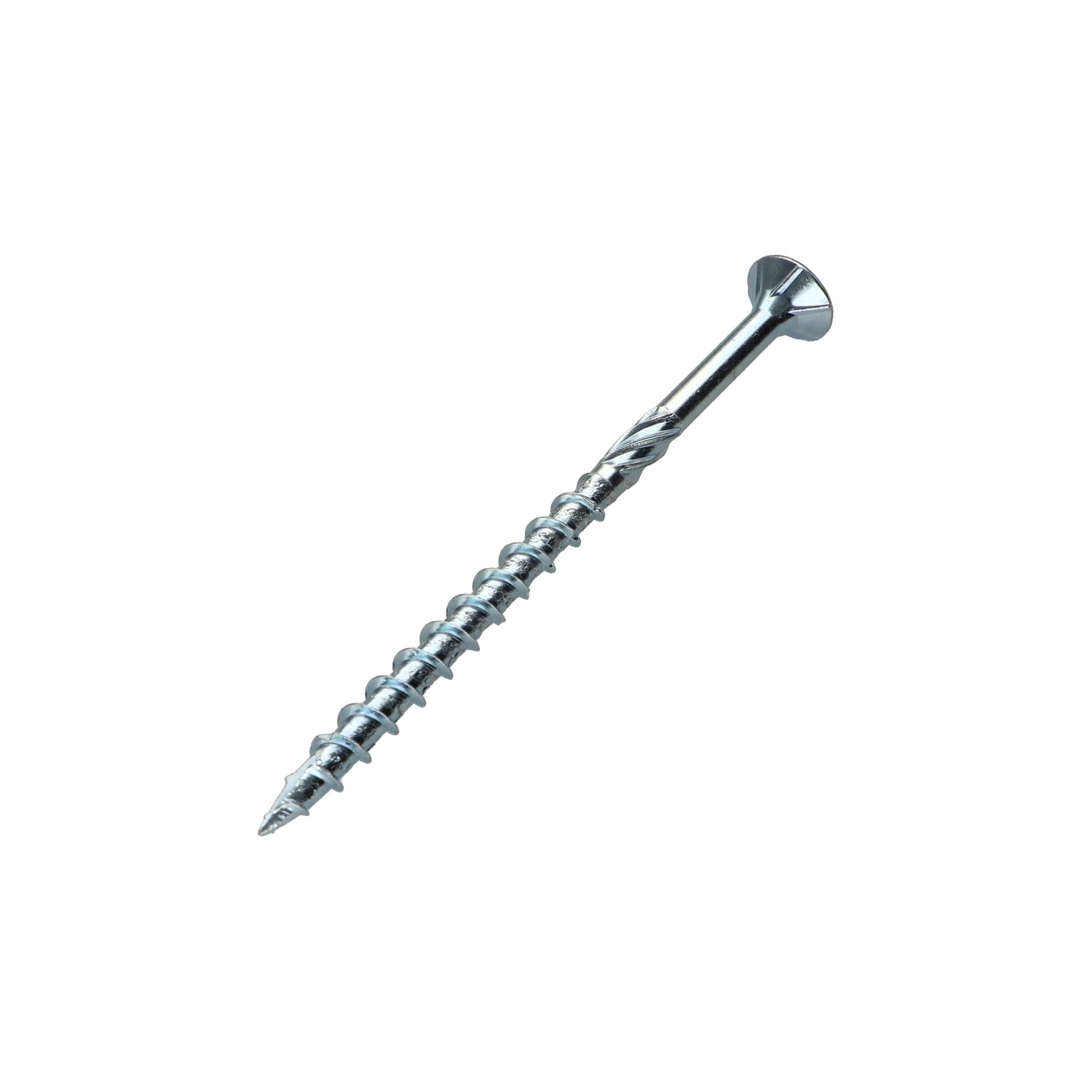

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X100 Thread Length: 60 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X100 Thread Length: 60 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T40 8X100 Thread Length: 60 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040810002
Price: 0.5 EUR
Availability: InStock

Reference 2040810002_1

In stock 105112 Pièces

€0.50 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	€0.50	€1.45	€4.35	€14.60	€50.40

Framing screws TEKOR Countersunk Head With Serration T40 8X100 Thread Length: 60 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
10 units
30 units
100 units
400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

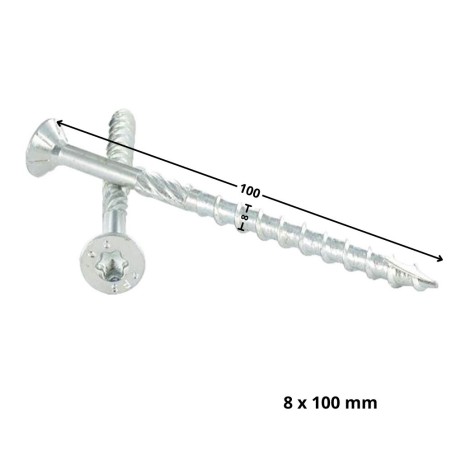

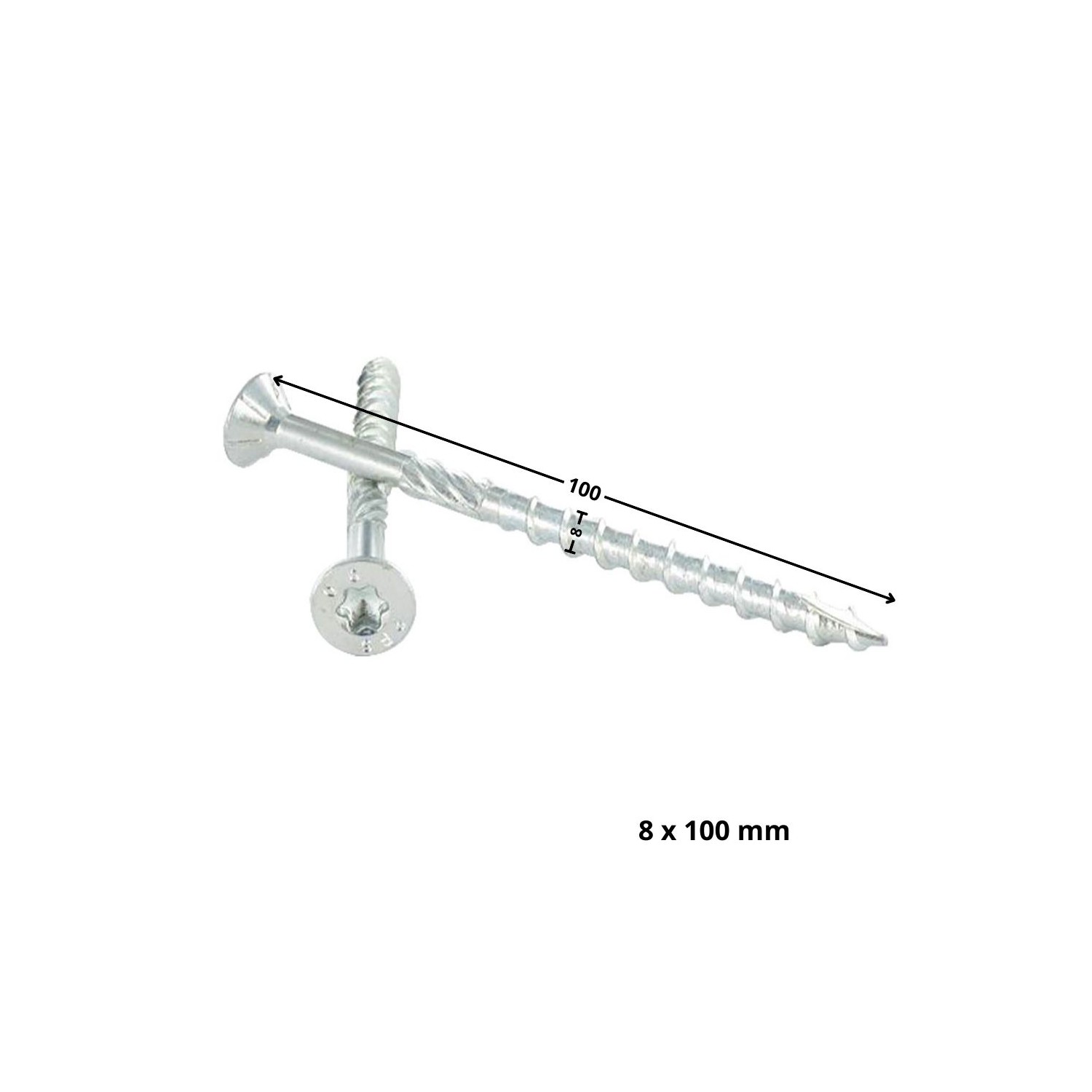

Diameter: 8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 100

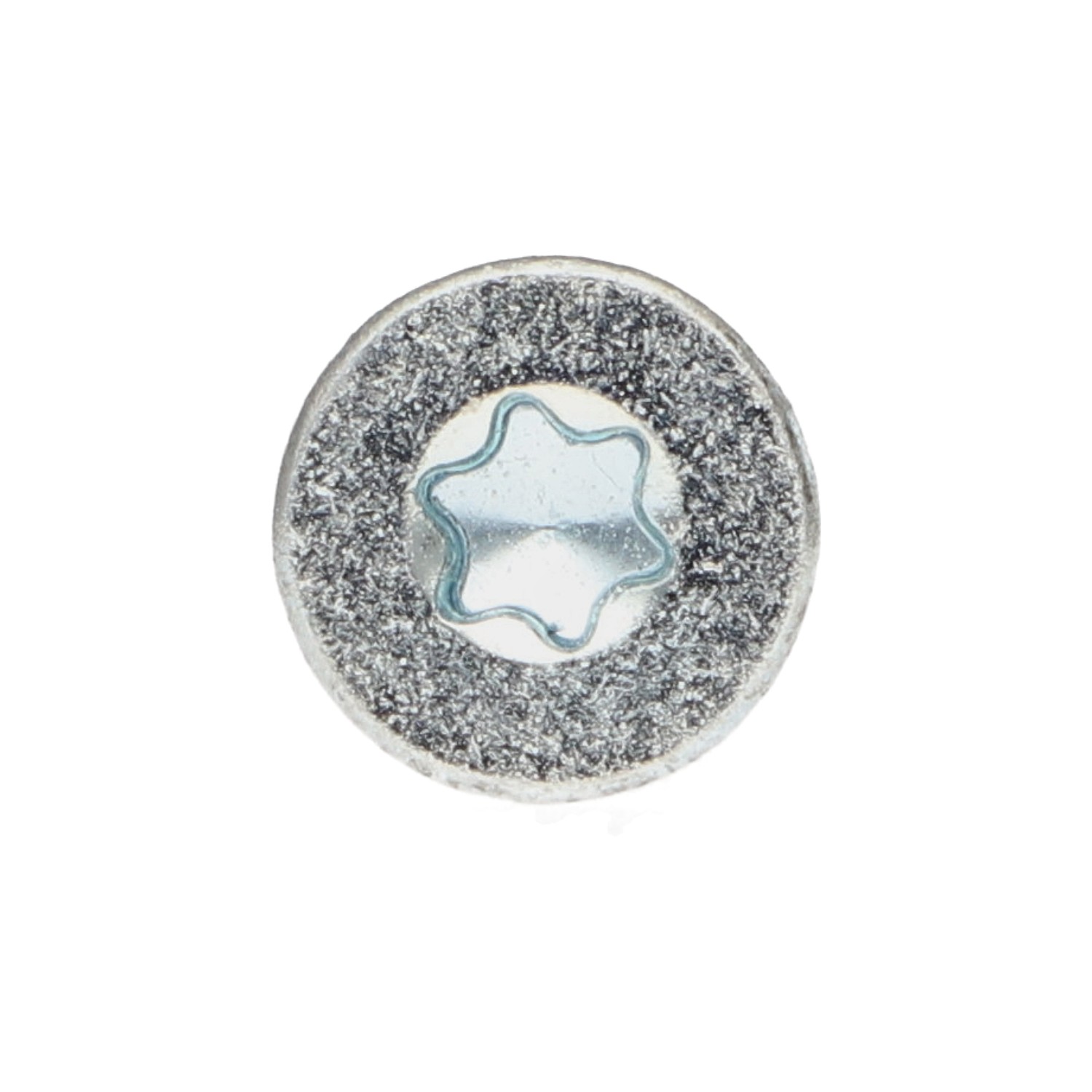

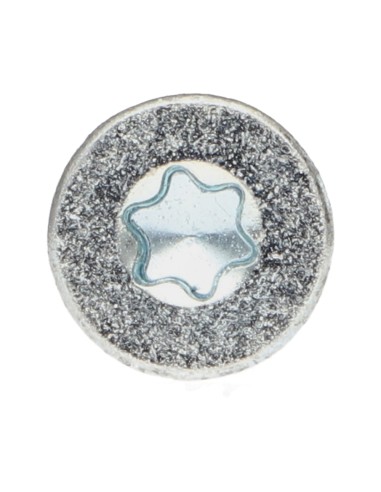

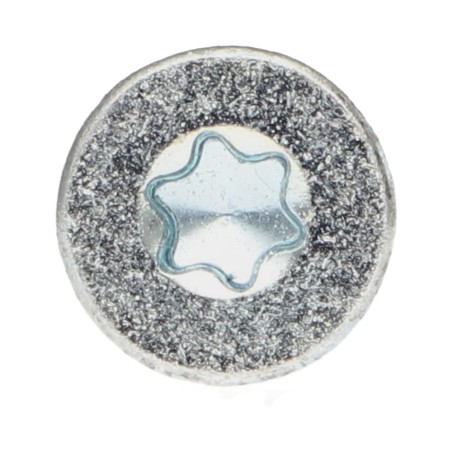

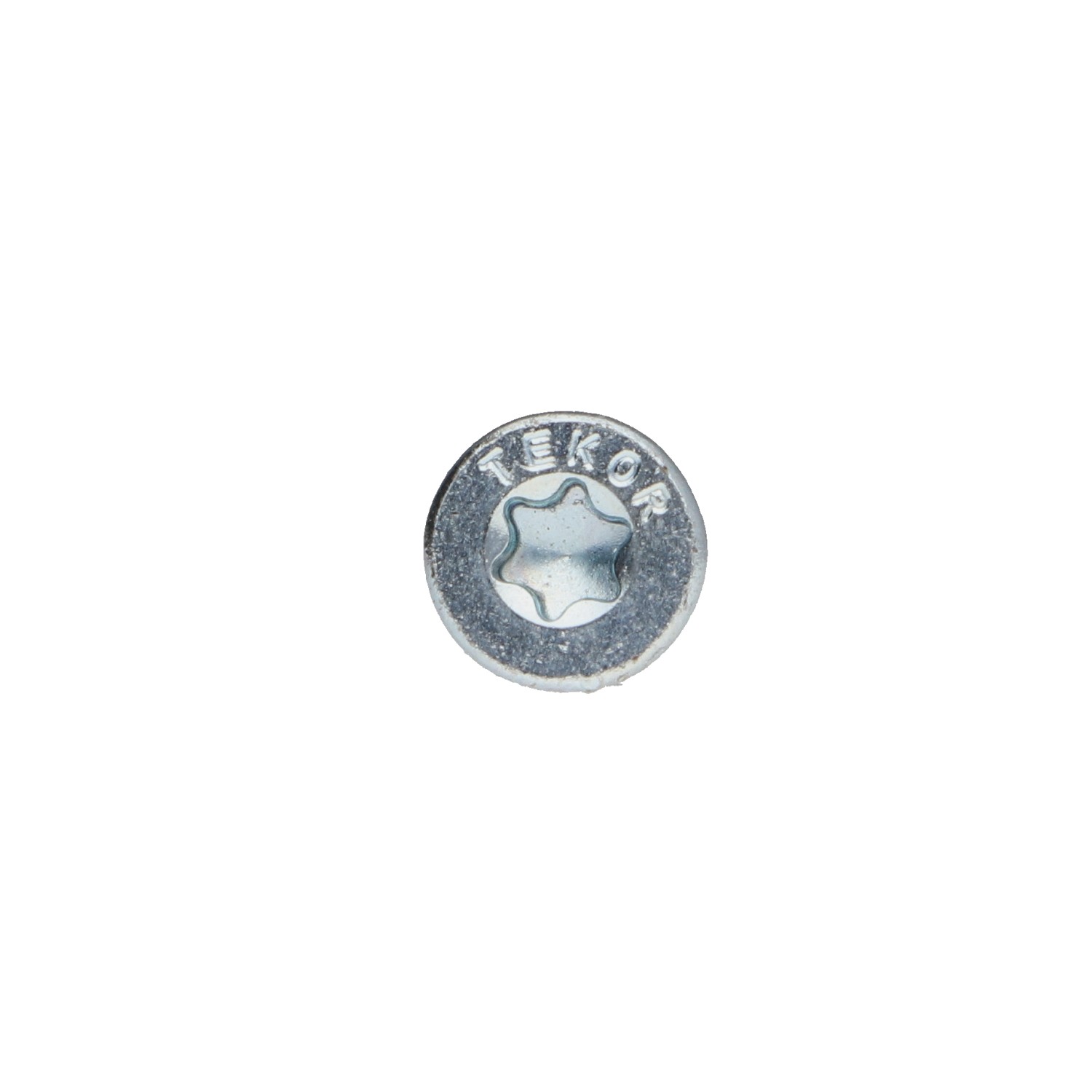

Drive Type: Torx
Size Drive Type: T40
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws

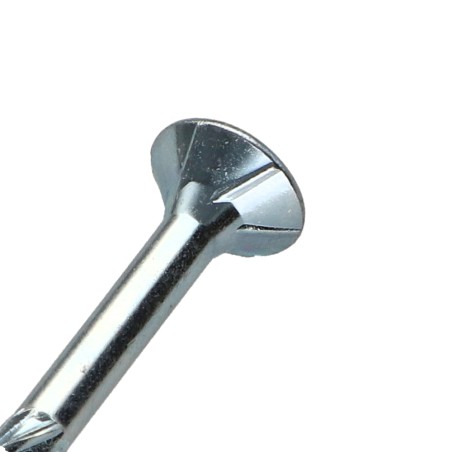

Sub product family: Countersunk Head

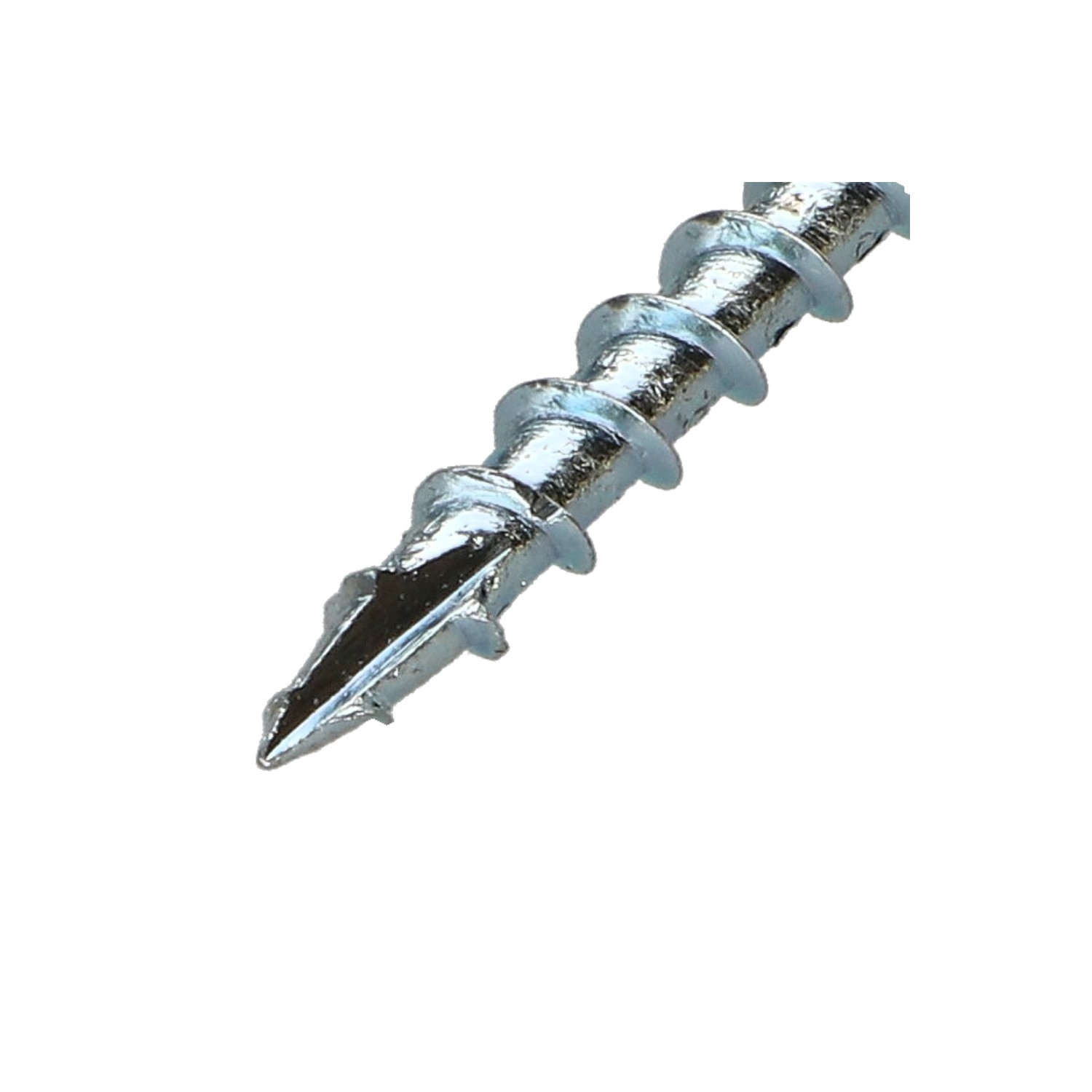

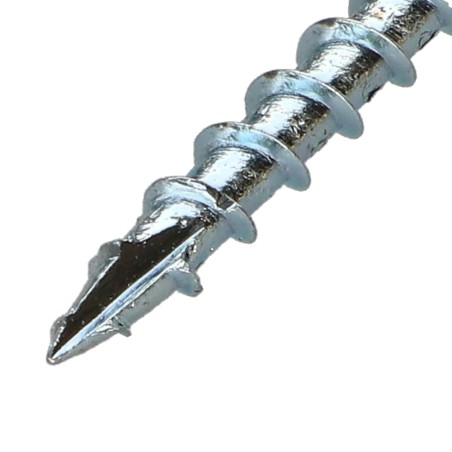

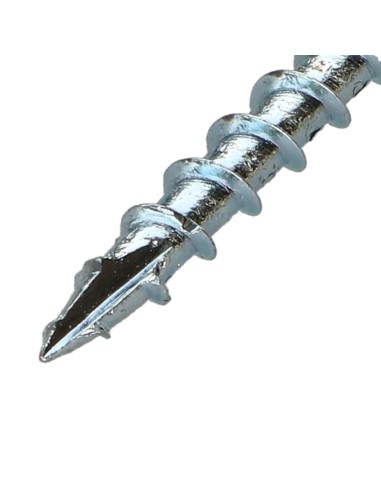

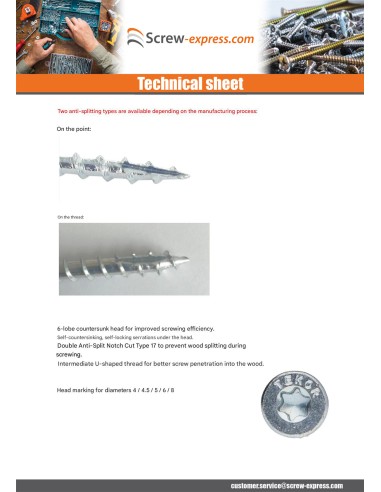

Tip: Drilling Point Type 17
Unit weight: 22.2 GR

In stock 105112 Items

ean13 3663072195851

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T40 8X100 Thread Length: 60 cut Type 17 Drilling Point Zinc Plated
Diameter = 8, Length = 100, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor

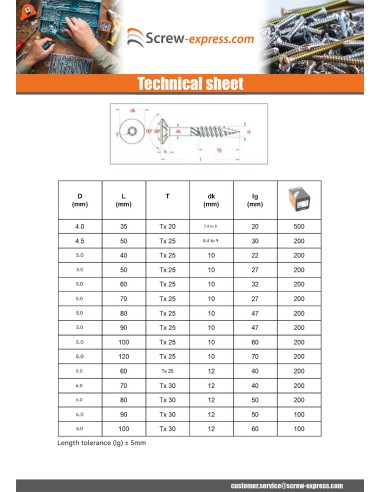

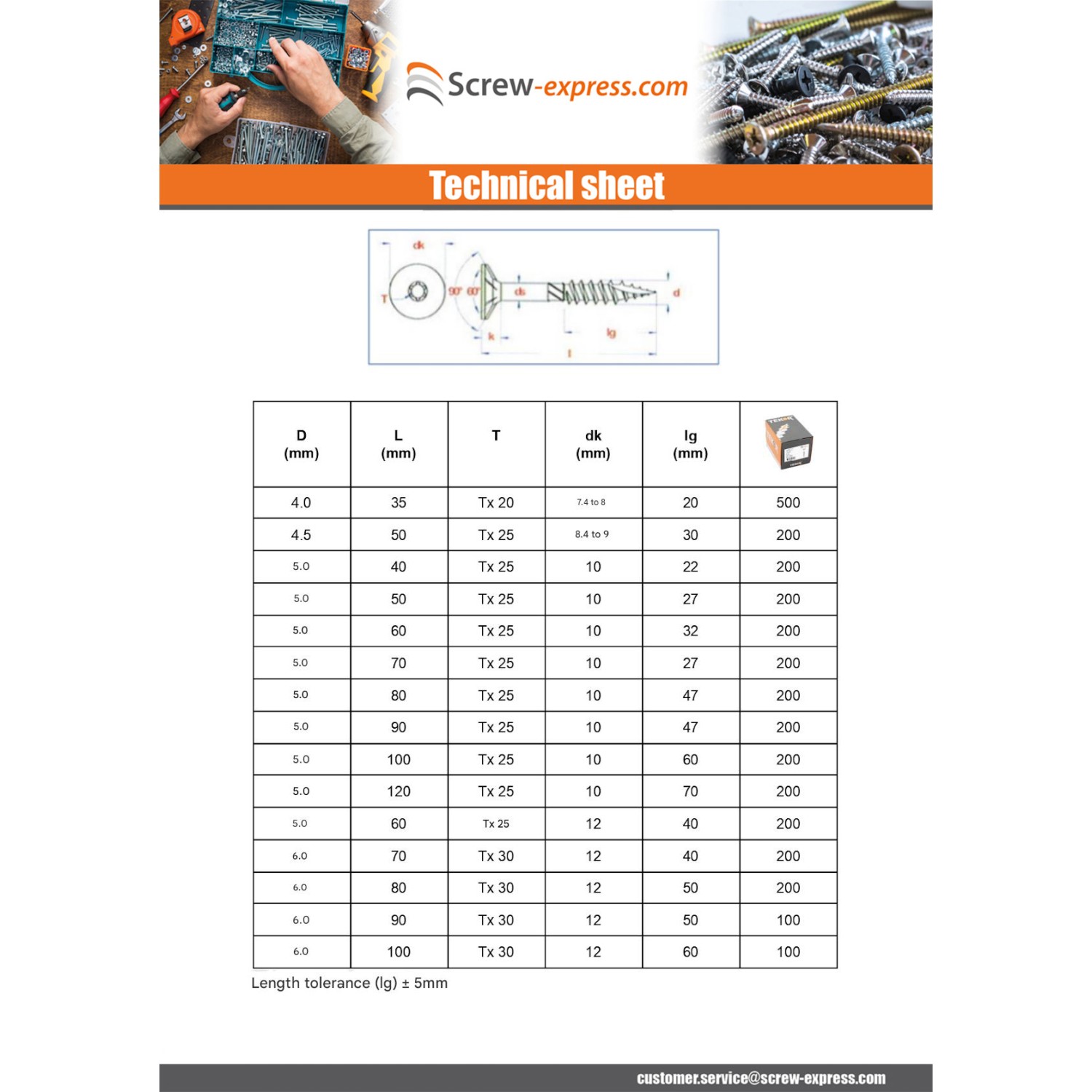

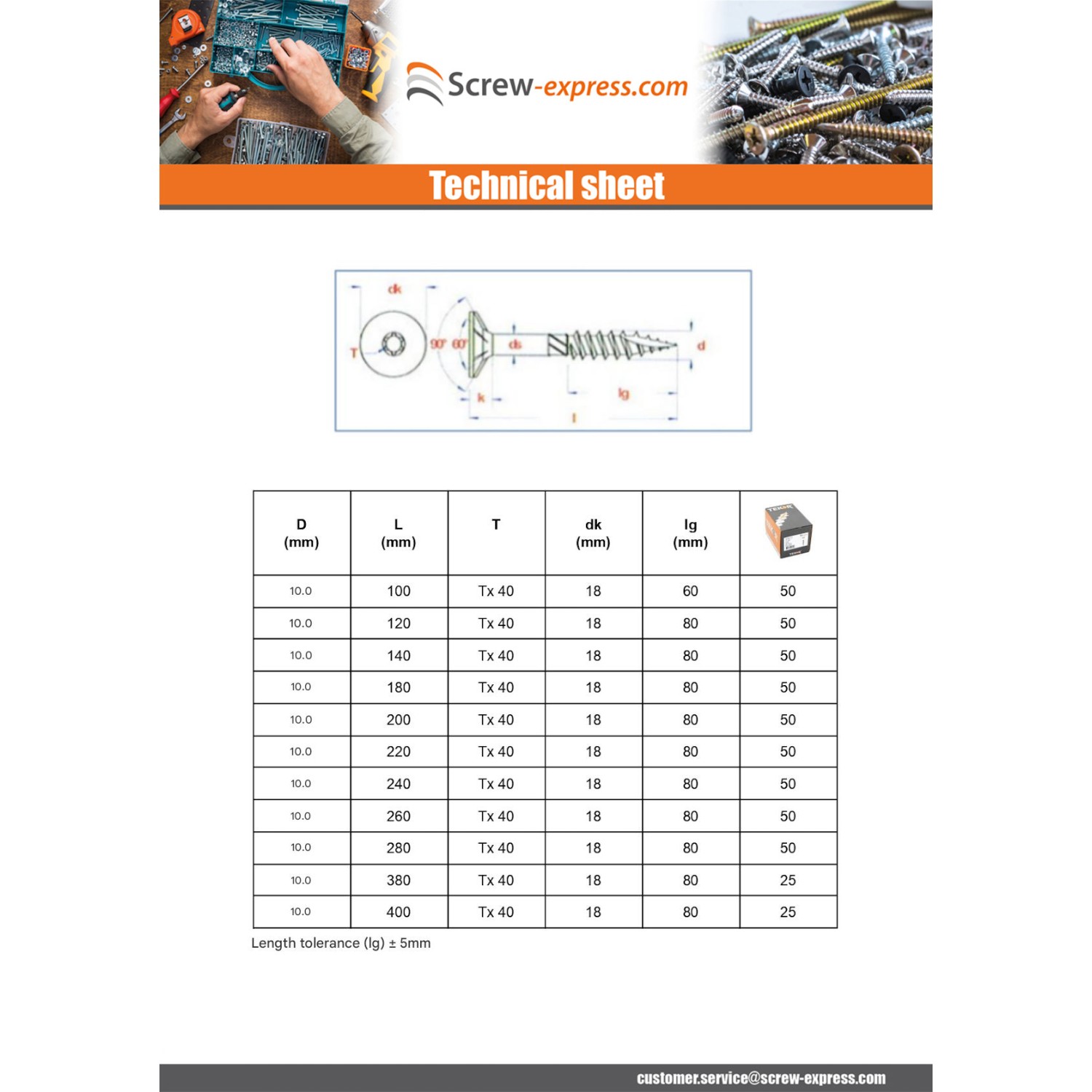

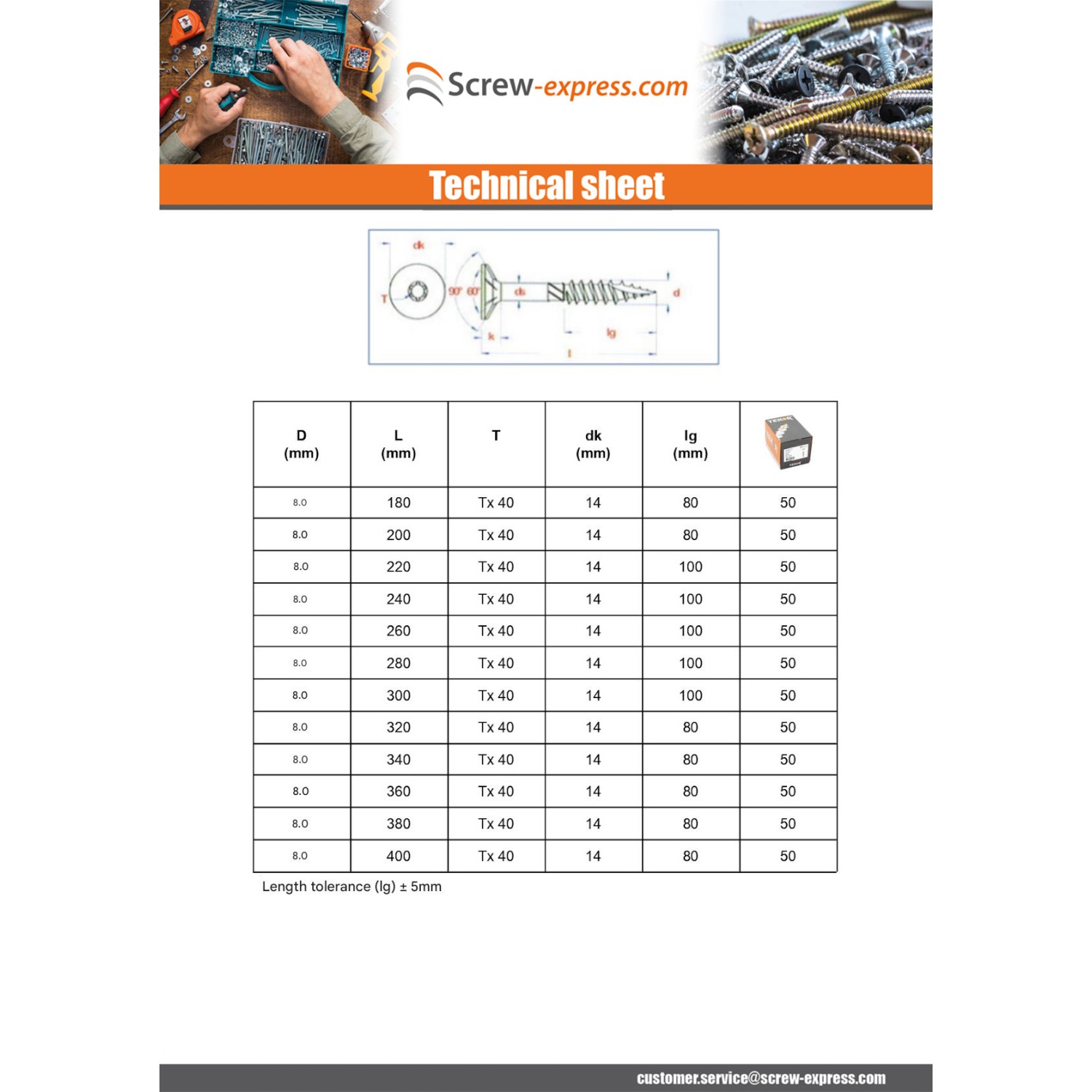

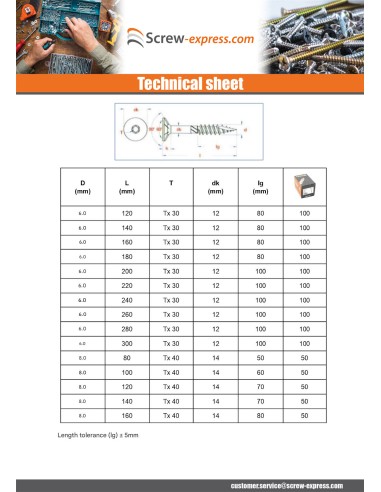

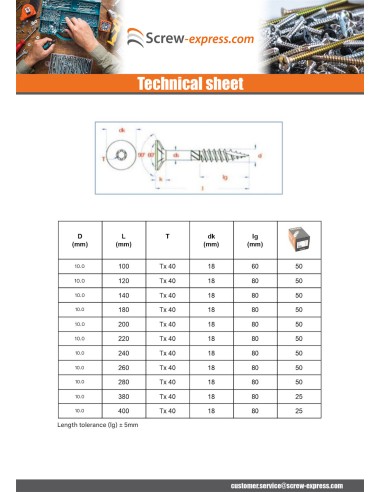

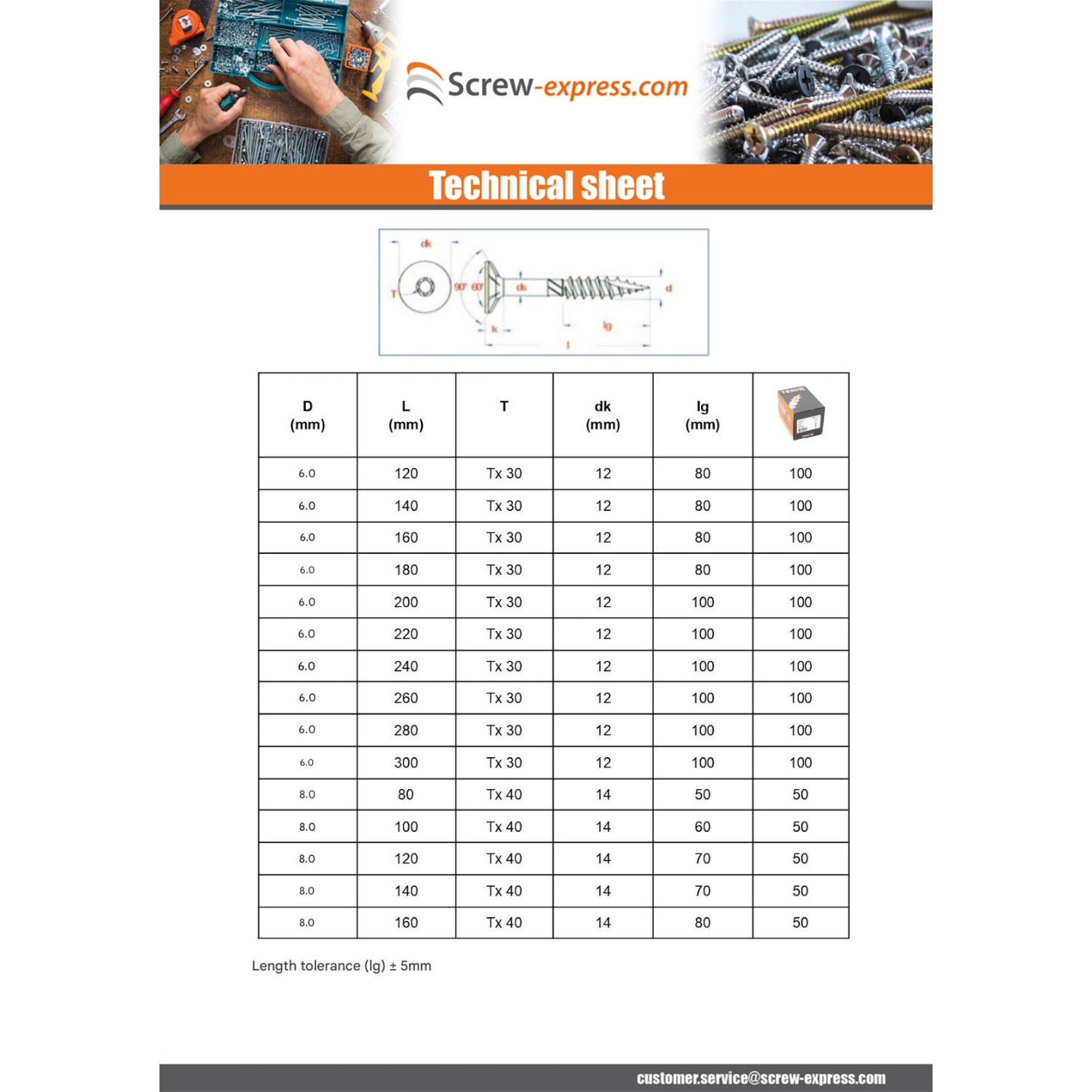

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500599353 3663072195851

Use Cases

Jérôme P. (vis-express.fr)
2026-05-17

Je refais la charpente d'un local. Il me faut des vis antifendage pour poser les liteaux sur les chevrons. Le liteau fait 15 mm d'épaisseur, le chevron 70 mm, des vis de 100 mm permettent d'assujettir correctement les uns sur les autres

Sabine T. (vis-express.fr)
2026-04-26

construction abri pour animaux artisanale

Nicolas D. (vis-express.fr)
2026-04-05

6/4" roofing screws For Douglas fir

Dreamsea f. (vis-express.fr)
2026-04-05

PARA CONSTRUIR UNOS DECKS

Dreamsea f. (vis-express.fr)
2026-04-05

TO BUILD UNOS DECEKS
