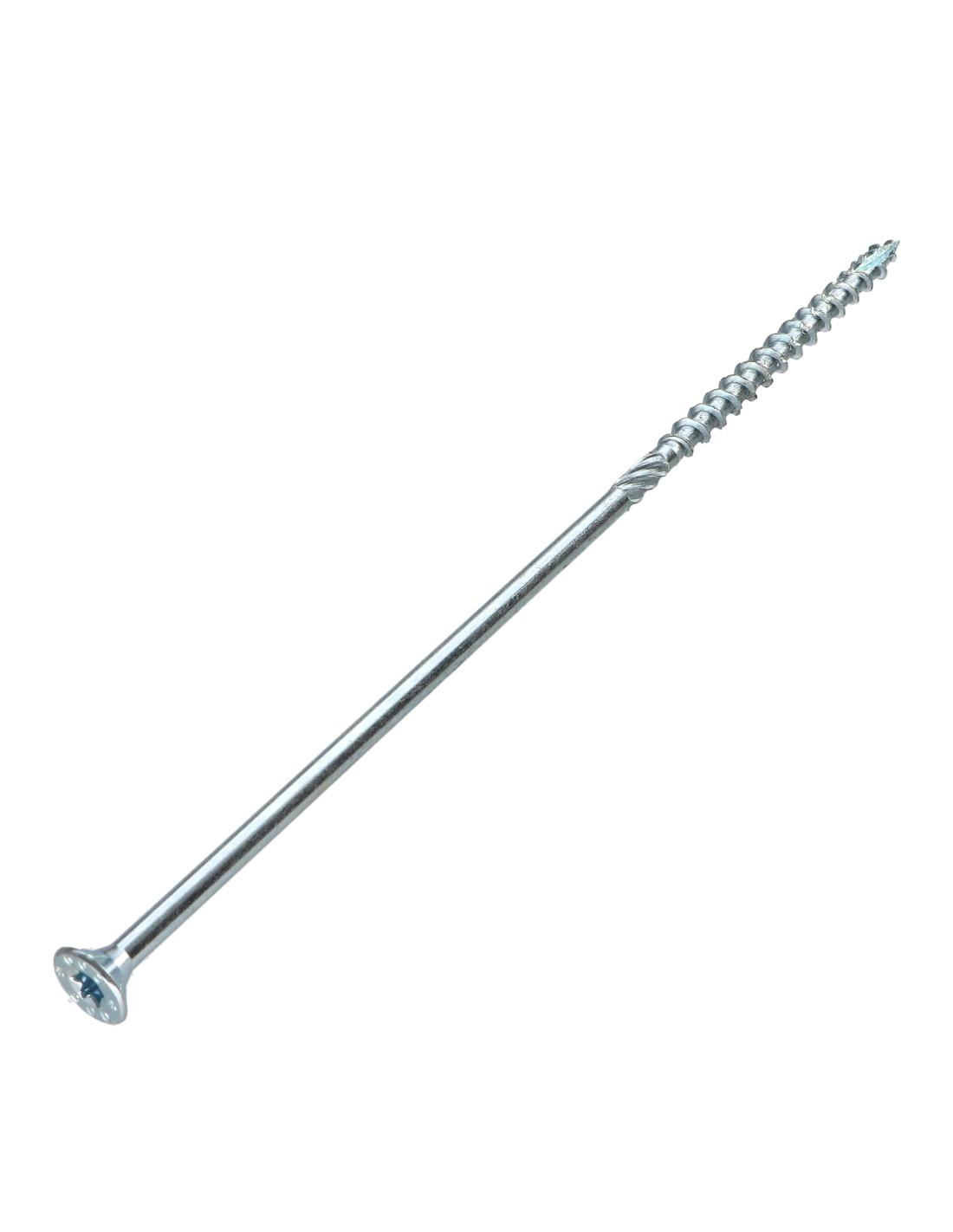

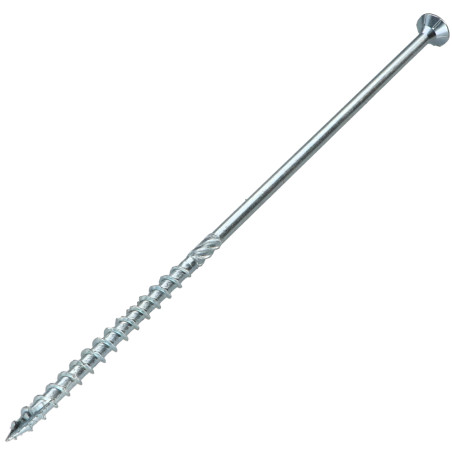

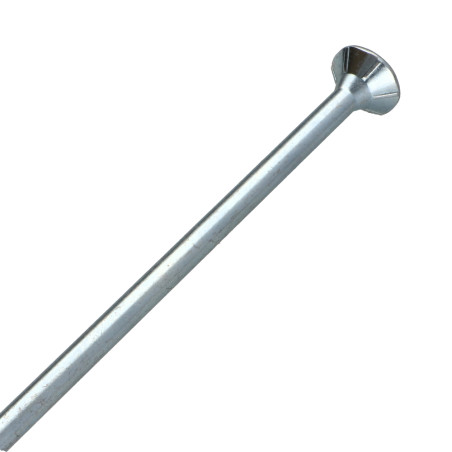

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X240 Thread Length: 100 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

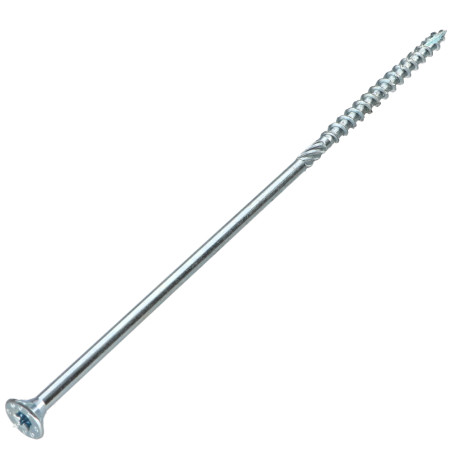

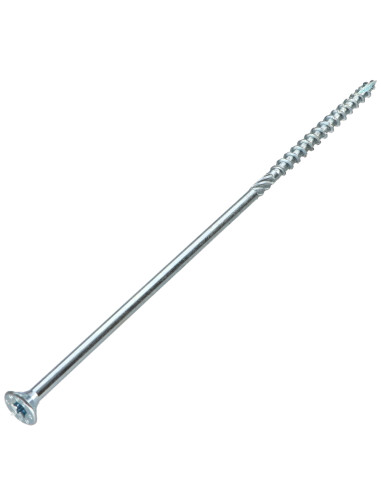

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X240 Thread Length: 100 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T40 8X240 Thread Length: 100 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040824002
Price: 1.48 GBP
Availability: InStock

Reference 2040824002_1

In stock 265 Pièces

£1.48 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50	200
Lot price VAT included	£1.48	£2.95	£11.28	£25.69	£102.83

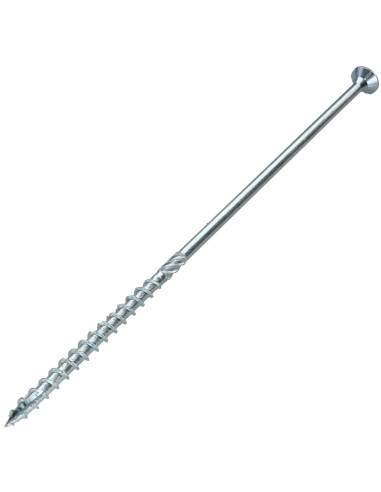

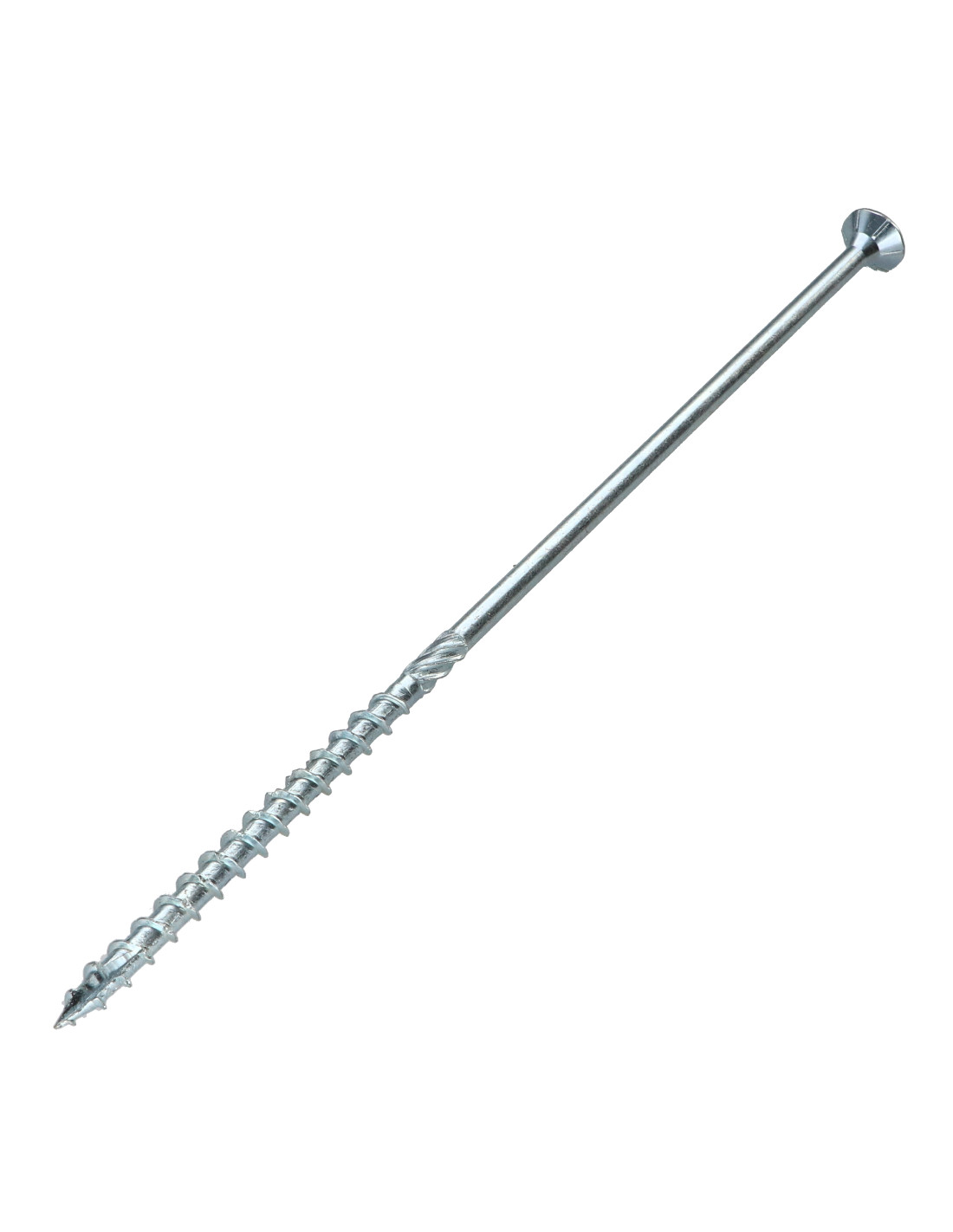

Framing screws TEKOR Countersunk Head With Serration T40 8X240 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
5 units
20 units
50 units
200 units

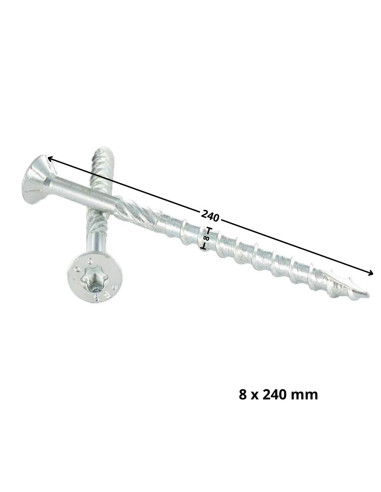

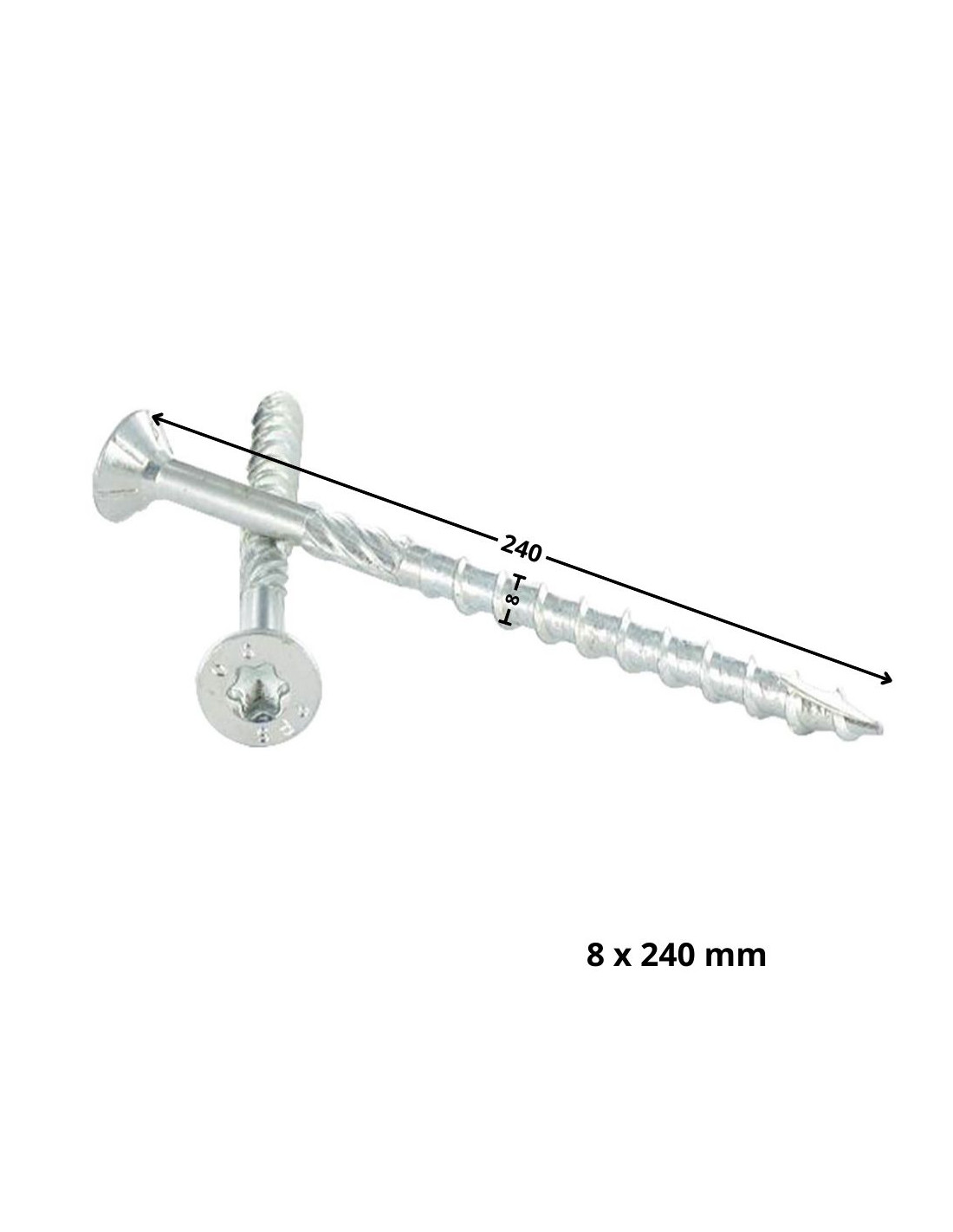

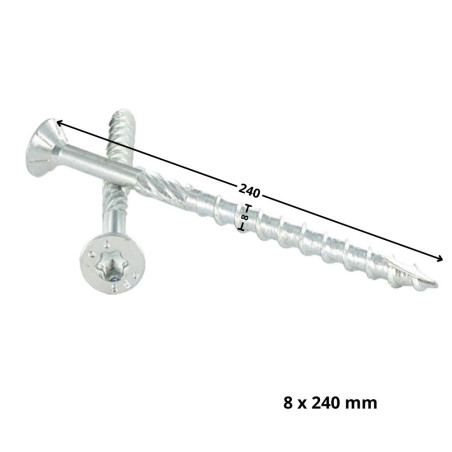

Dimensions shown in millimeters (mm)

Product Details

Diameter: 8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 240

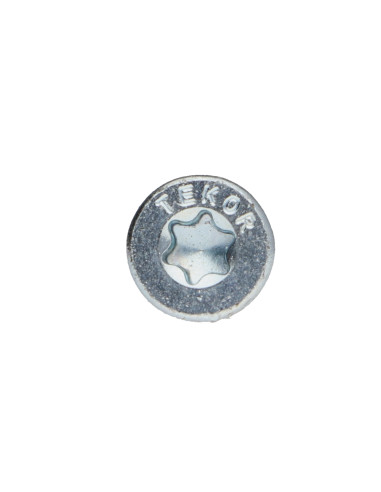

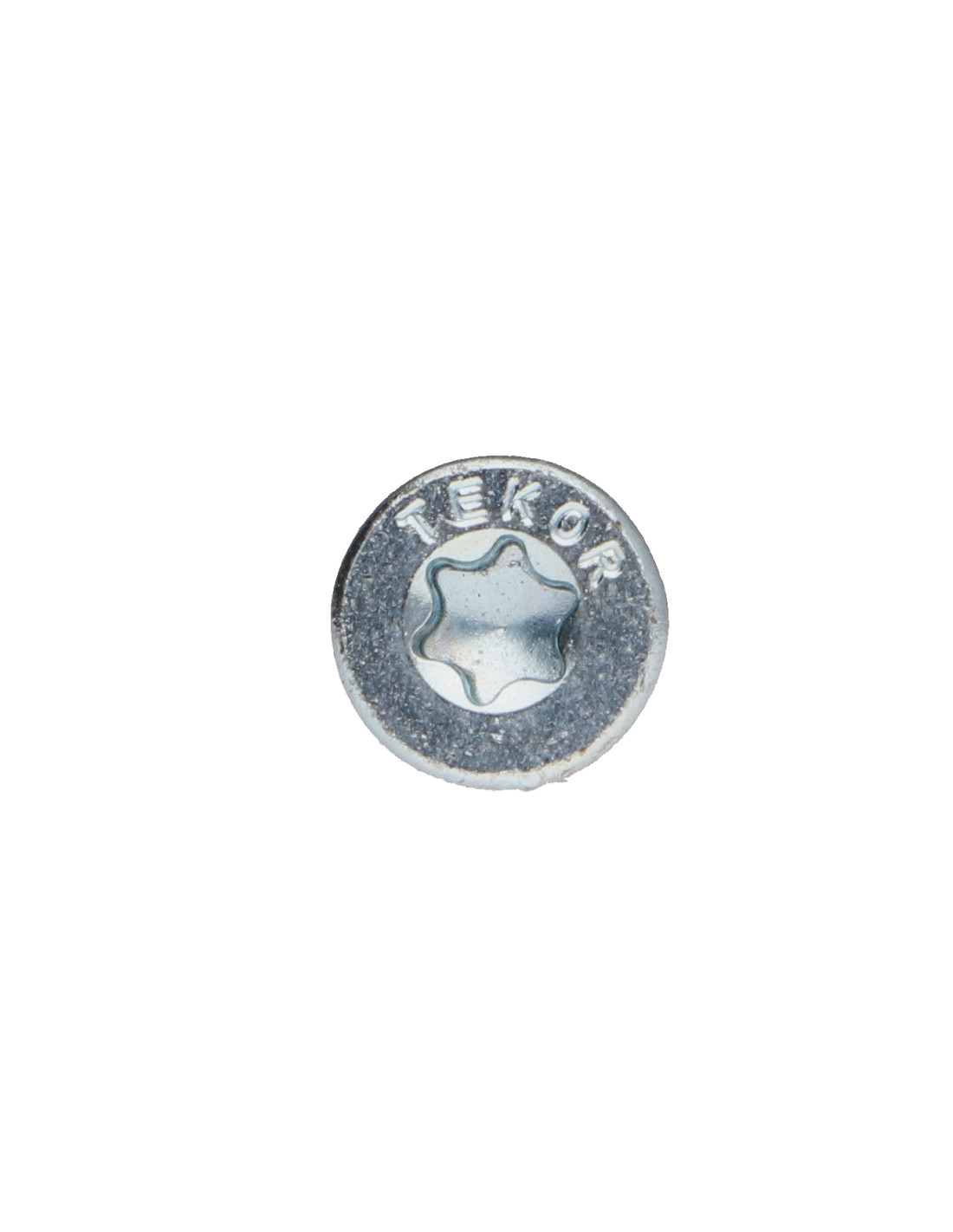

Drive Type: Torx
Size Drive Type: T40
Material: Steel
Coating: ZINGUE White
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head
Tip: Drilling Point Type 17
Unit weight: 51.6 GR

In stock 265 Items

ean13 3663072195905

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T40 8X240 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Diameter = 8, Length = 240, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor

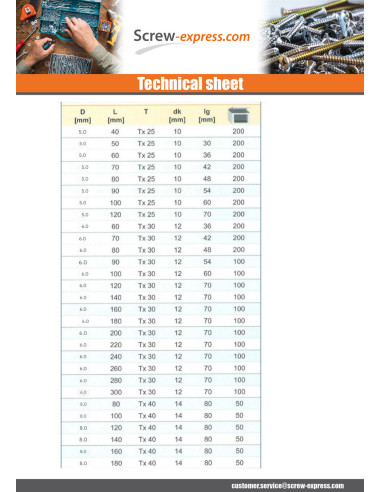

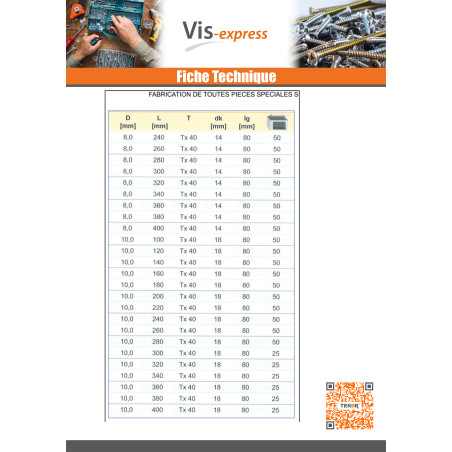

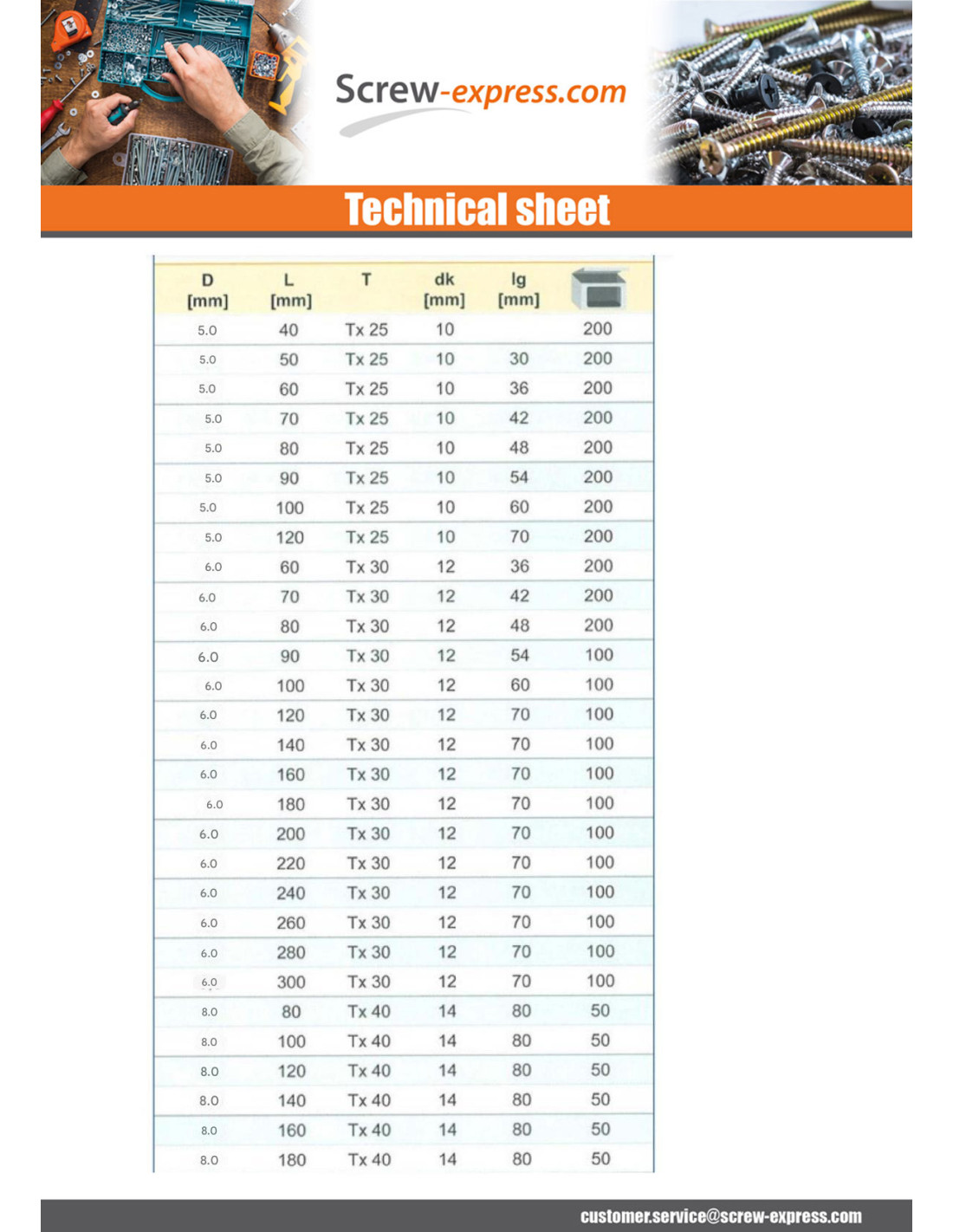

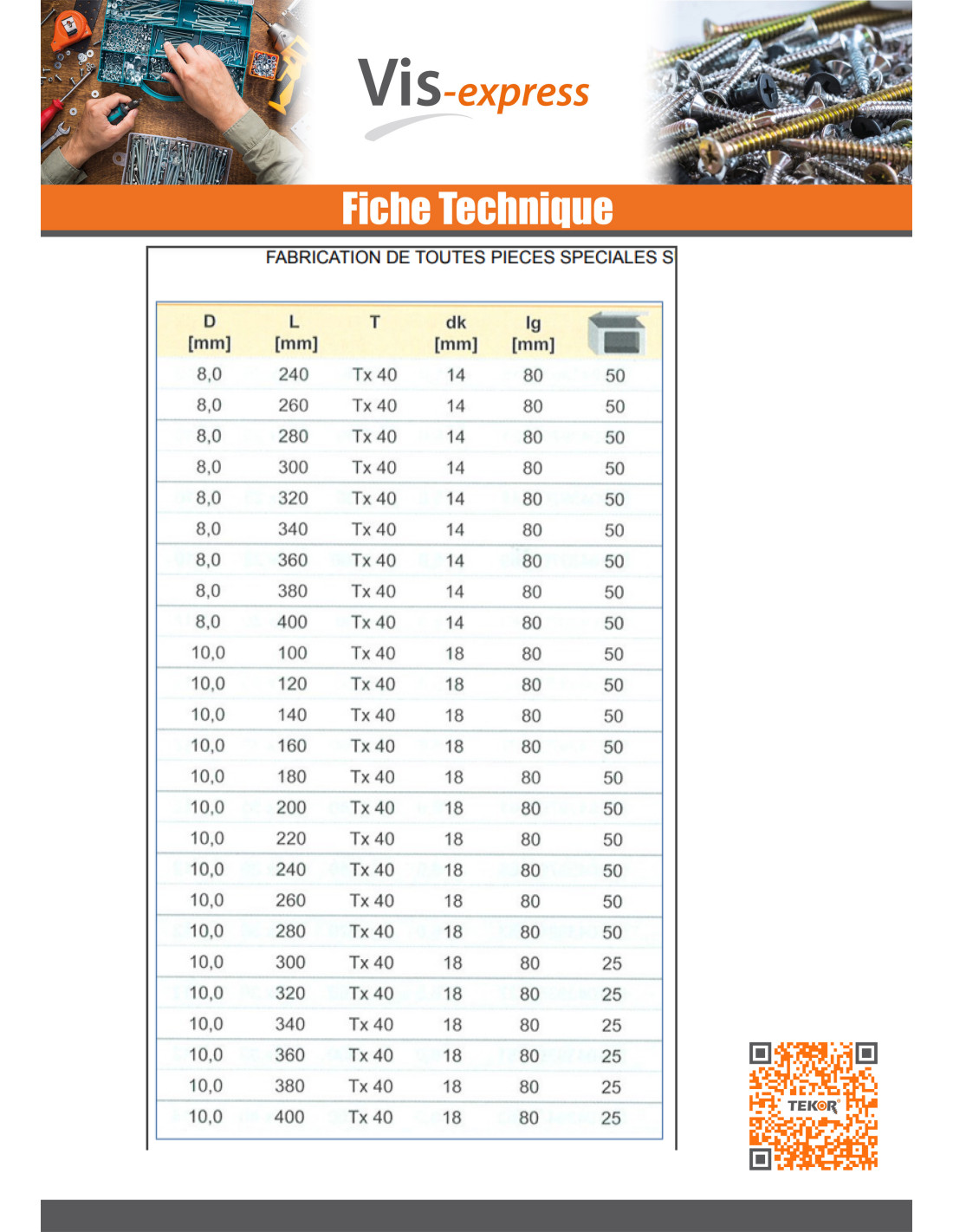

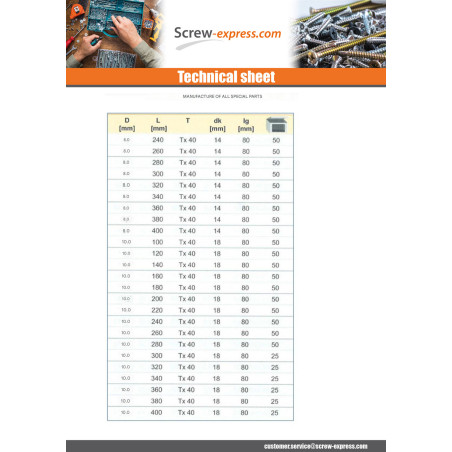

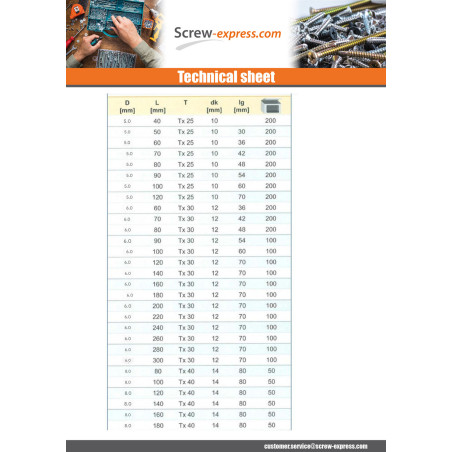

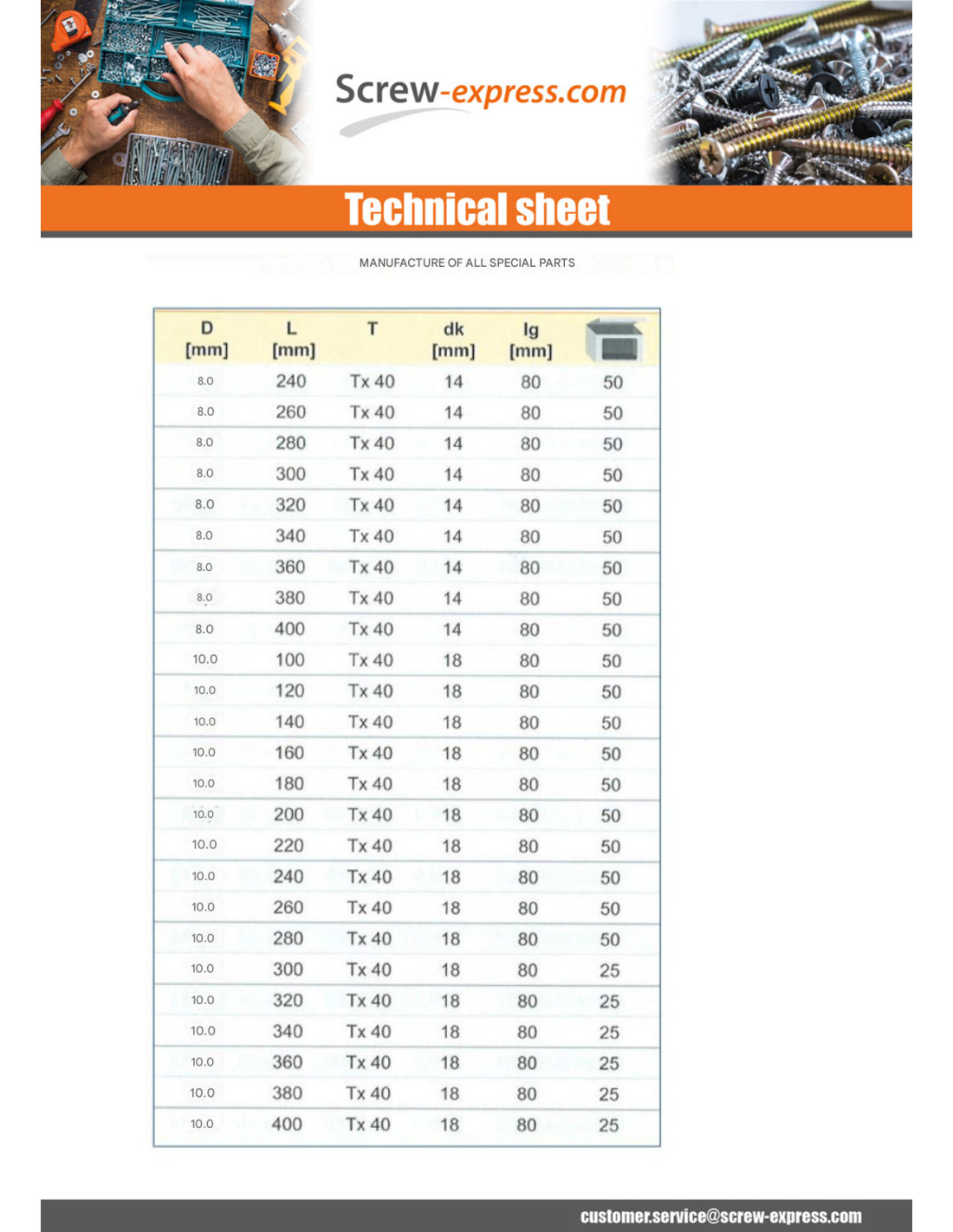

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500553027 FIX000653 FIX000653 08325 FIX000653 653 FIX000653 3663072195905

Use Cases

Vincent J. (vis-express.fr)
2026-03-22

Post and purlin fixing for pergola 145x145mm Douglas fir post and purlin fixing for pergola in timber construction

Julien T. (vis-express.fr)
2026-02-15

Rafter fixing TEKOR T te fresh e TF Crant TORX T40 8X240 Thread e on 80 Anti-splitting point type 17 Zinc-plated steel

Emilien L. (vis-express.fr)
2025-12-07

OSB board installation OSB board installation for 80m2

Romain C. (vis-express.fr)
2025-03-30

TEKOR Framing Screw Countersunk Head TF TORX Slot T40 8X240 Thread e on 80 Anti-splitting Point Cut Type 17 Steel TEKOR Framing Screw Countersunk Head TF TORX Slot T40 8X240 Thread e on 80 Anti-splitting Point Cut Type 17 Steel

Frédéric E. (vis-express.fr)
2025-02-09

For a pergola To fix the joists to the posts

Efflam B. (vis-express.fr)
2024-10-13

Counter-joisting Making a counter-joist with shims

Jérôme . (vis-express.fr)
2024-08-04

Use for fixing joists Screws with diameter 8 and length 240 for 15cm joists

Jérôme . (vis-express.fr)
2024-08-04

These screws are used to assemble a joist on a wooden support I use these screws with a diameter of 8 and 24 cm long to fix my joists on a wooden terrace structure

Philippe A. (vis-express.fr)
2024-07-28

Fixing wood fiber insulating panels under the roof slopes of my garage. Wood fiber insulating panels 122x57.5cm Thickness 20cm, R=5.25 - SOPREMA

Nicolas S. (vis-express.fr)
2024-01-28

I use it to fix beams together With these screws I make my wooden frame. It is for fixing the vertical posts on the upper and lower rails of the structure
