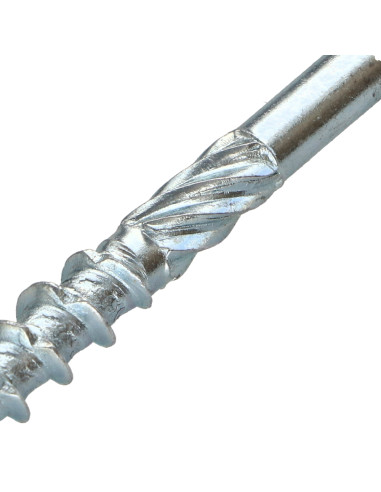

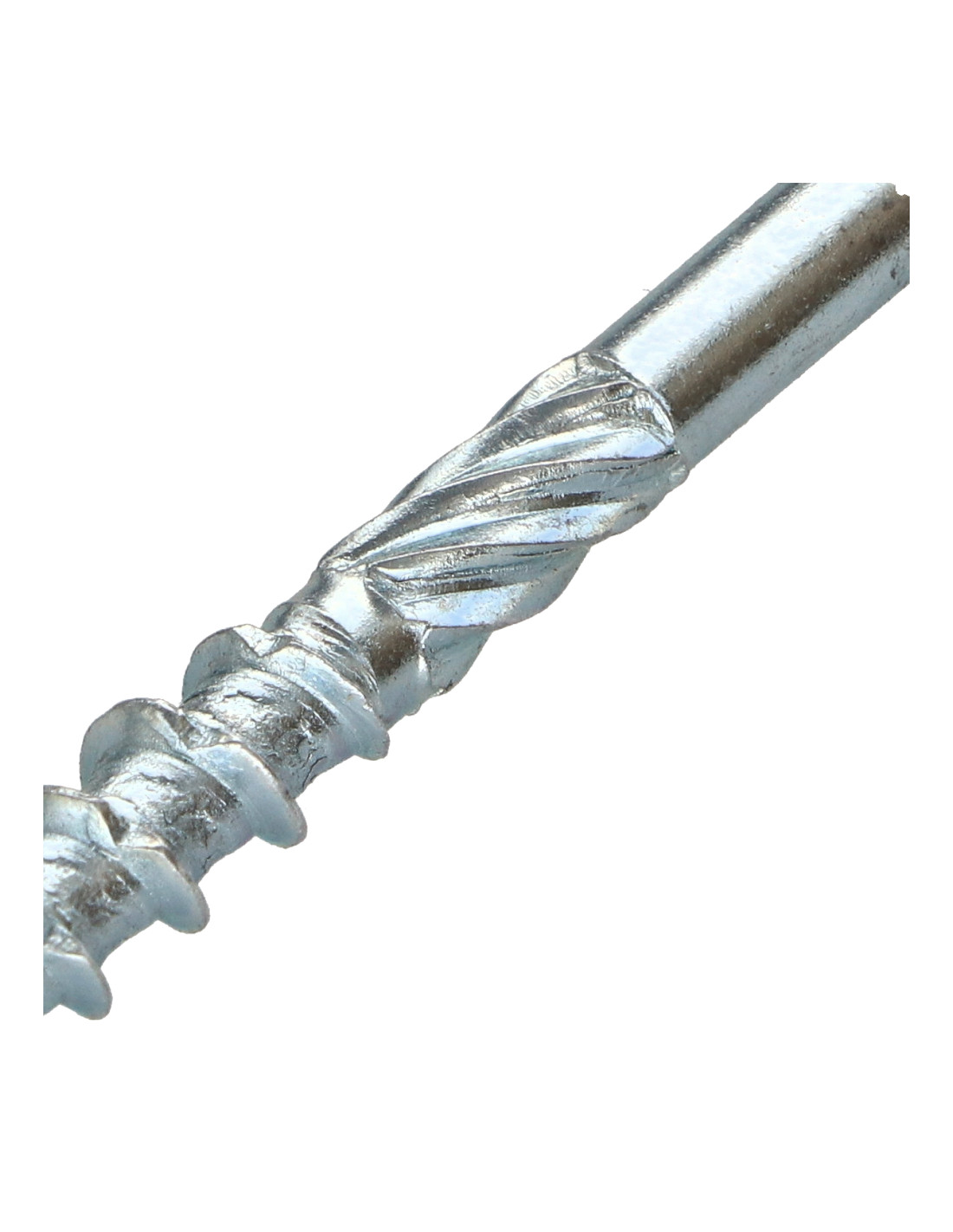

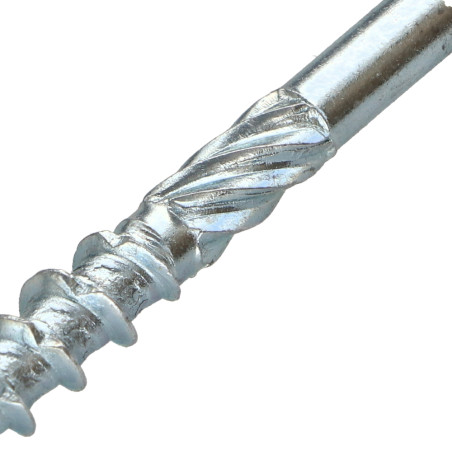

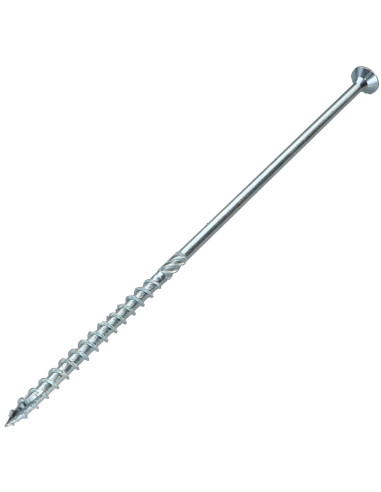

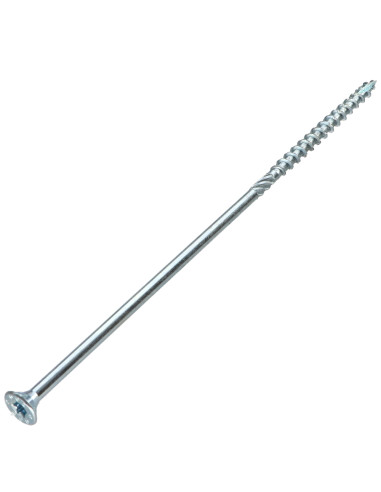

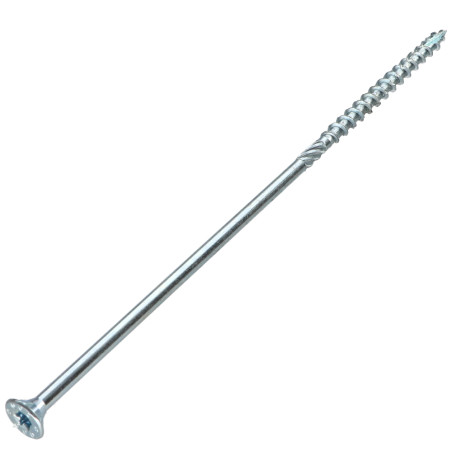

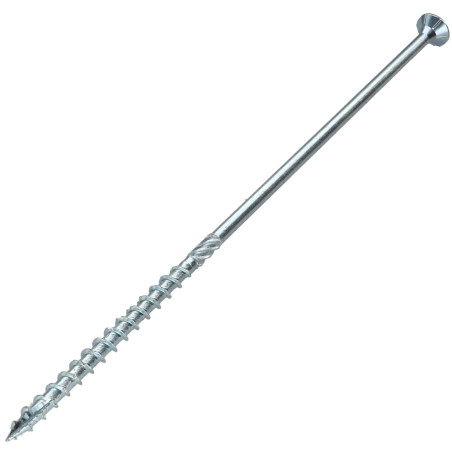

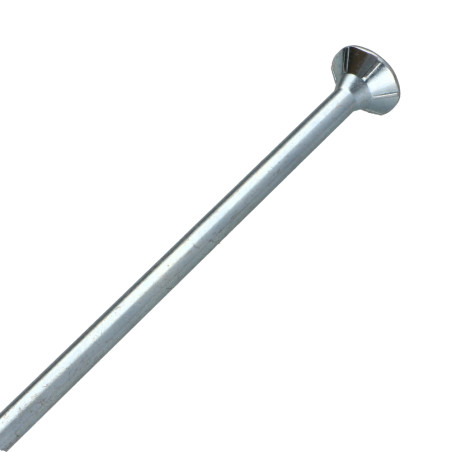

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X220 Thread Length: 100 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X220 Thread Length: 100 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T40 8X220 Thread Length: 100 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040822002
Price: 1.48 GBP
Availability: InStock

Reference 2040822002_1

In stock 13681 Pièces

£1.48 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50	200
Lot price VAT included	£1.48	£2.95	£11.19	£28.03	£112.20

Framing screws TEKOR Countersunk Head With Serration T40 8X220 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
5 units
20 units
50 units
200 units

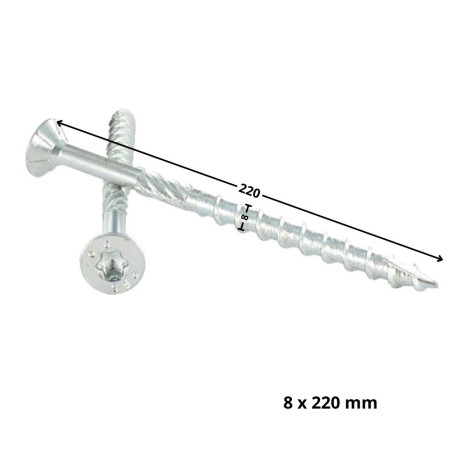

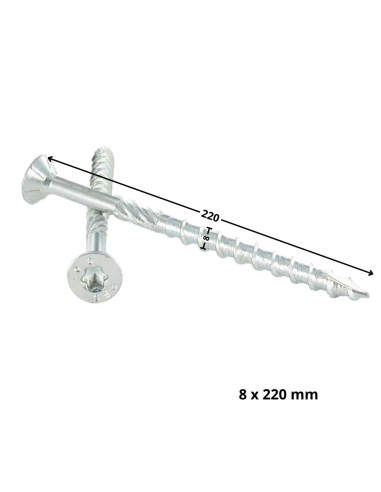

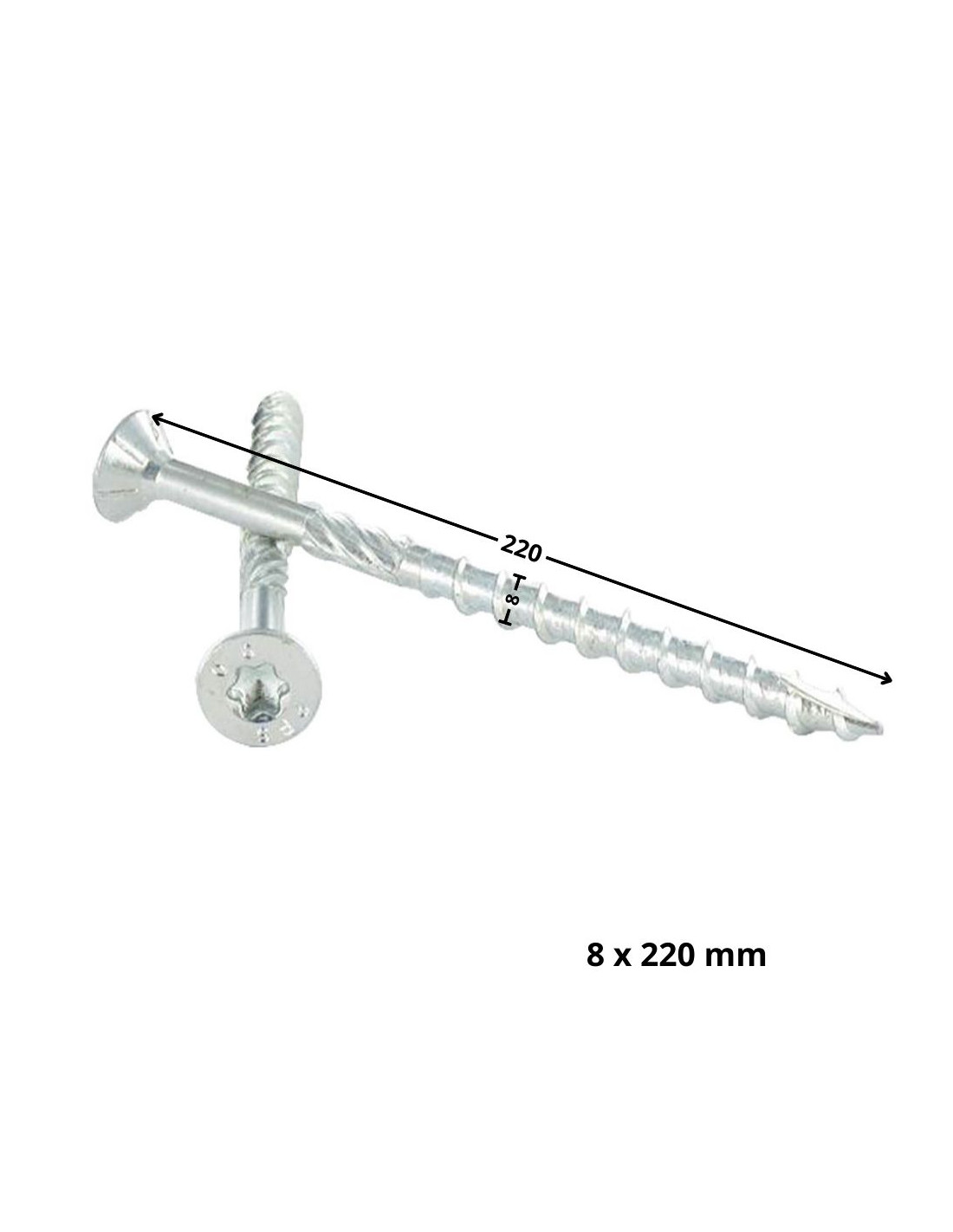

Dimensions shown in millimeters (mm)

Product Details

Diameter: 8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 220

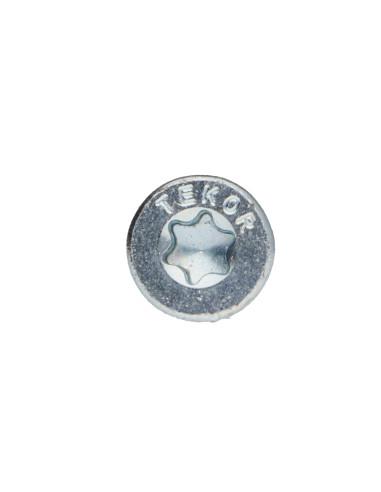

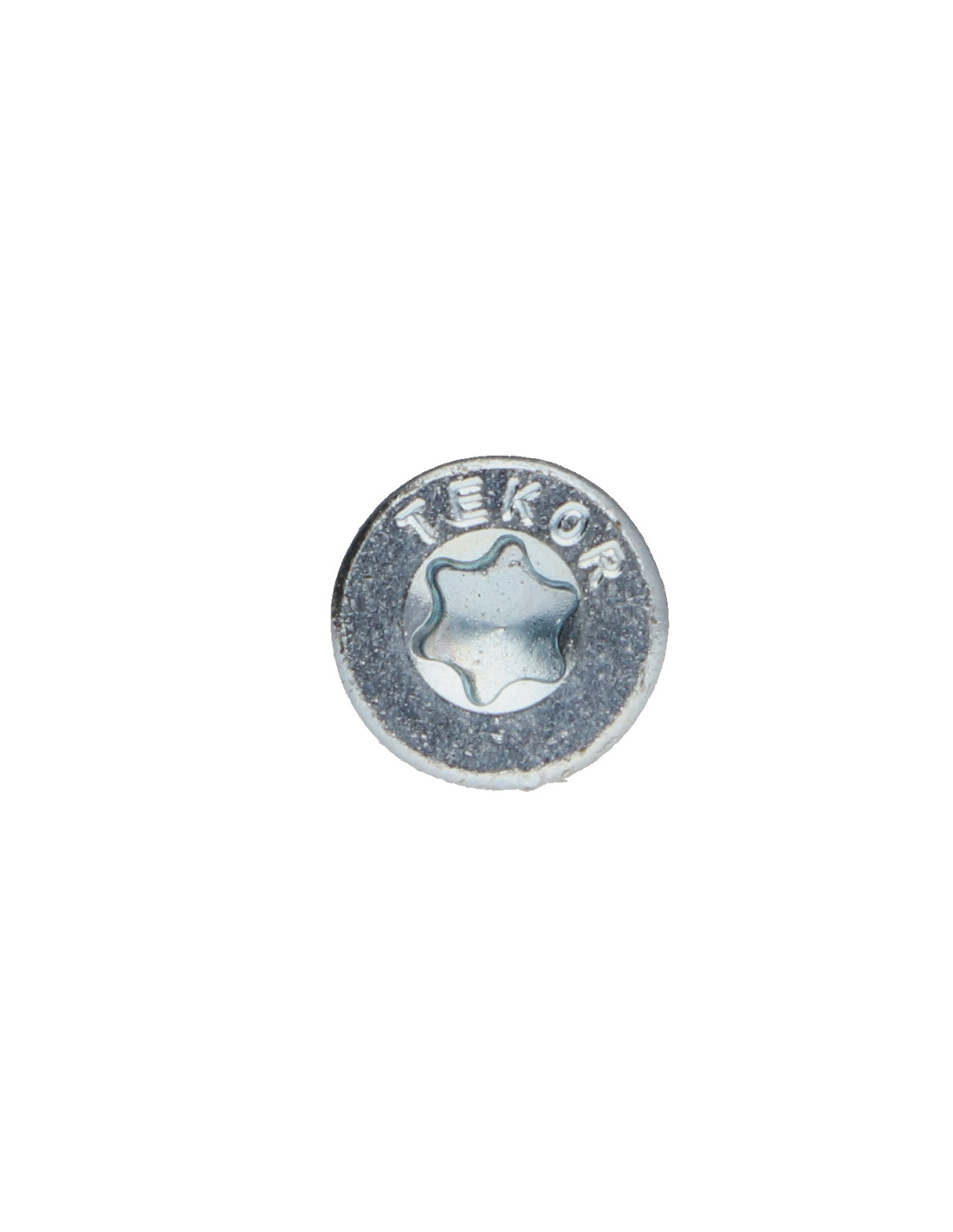

Drive Type: Torx
Size Drive Type: T40
Material: Steel
Coating: ZINGUE White
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head
Tip: Drilling Point Type 17
Unit weight: 58 GR

In stock 13681 Items

ean13 3663072244702

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T40 8X220 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Diameter = 8, Length = 220, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor

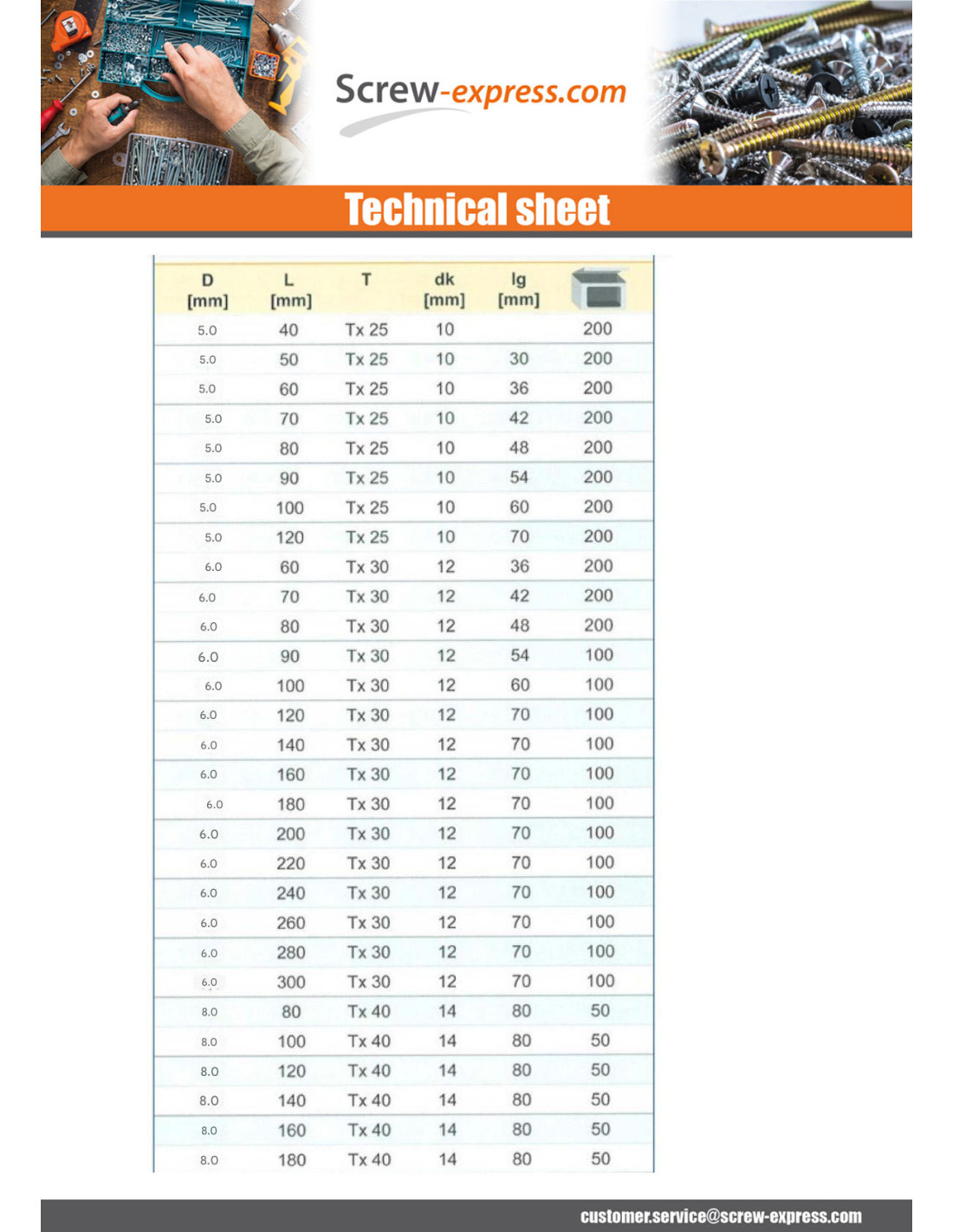

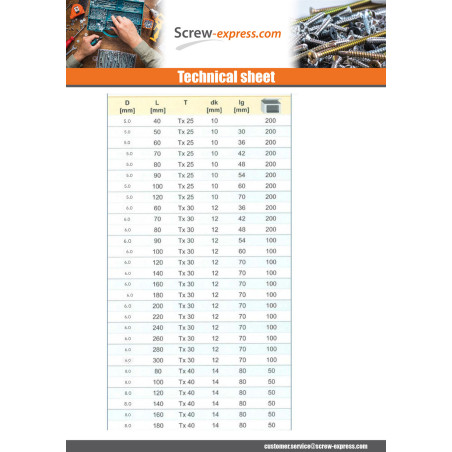

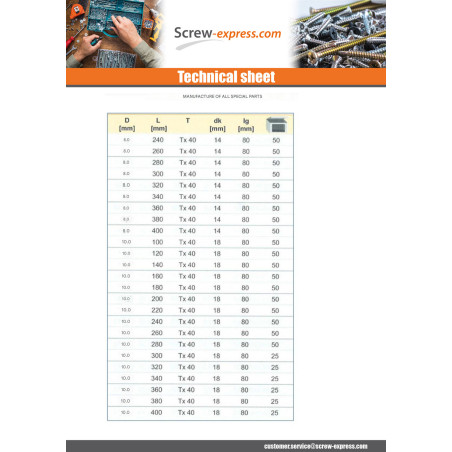

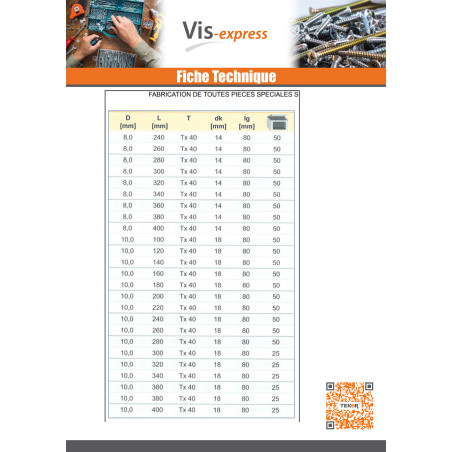

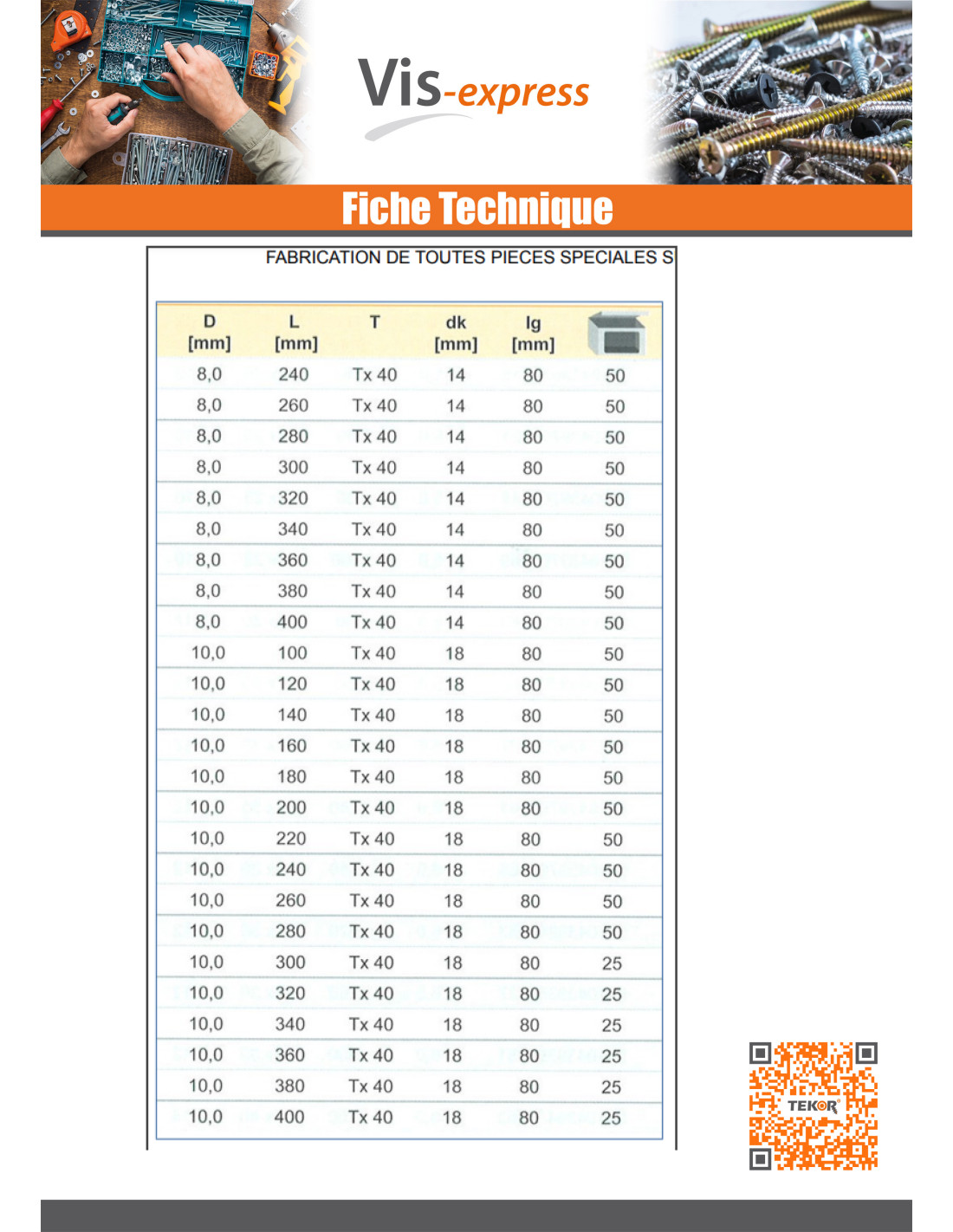

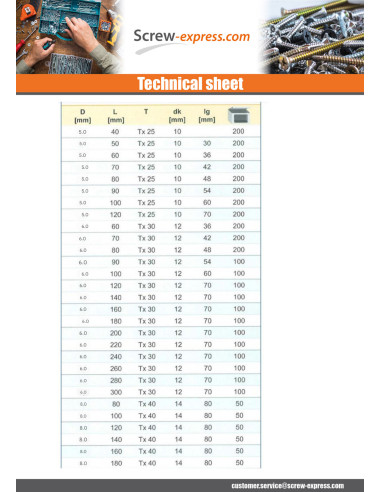

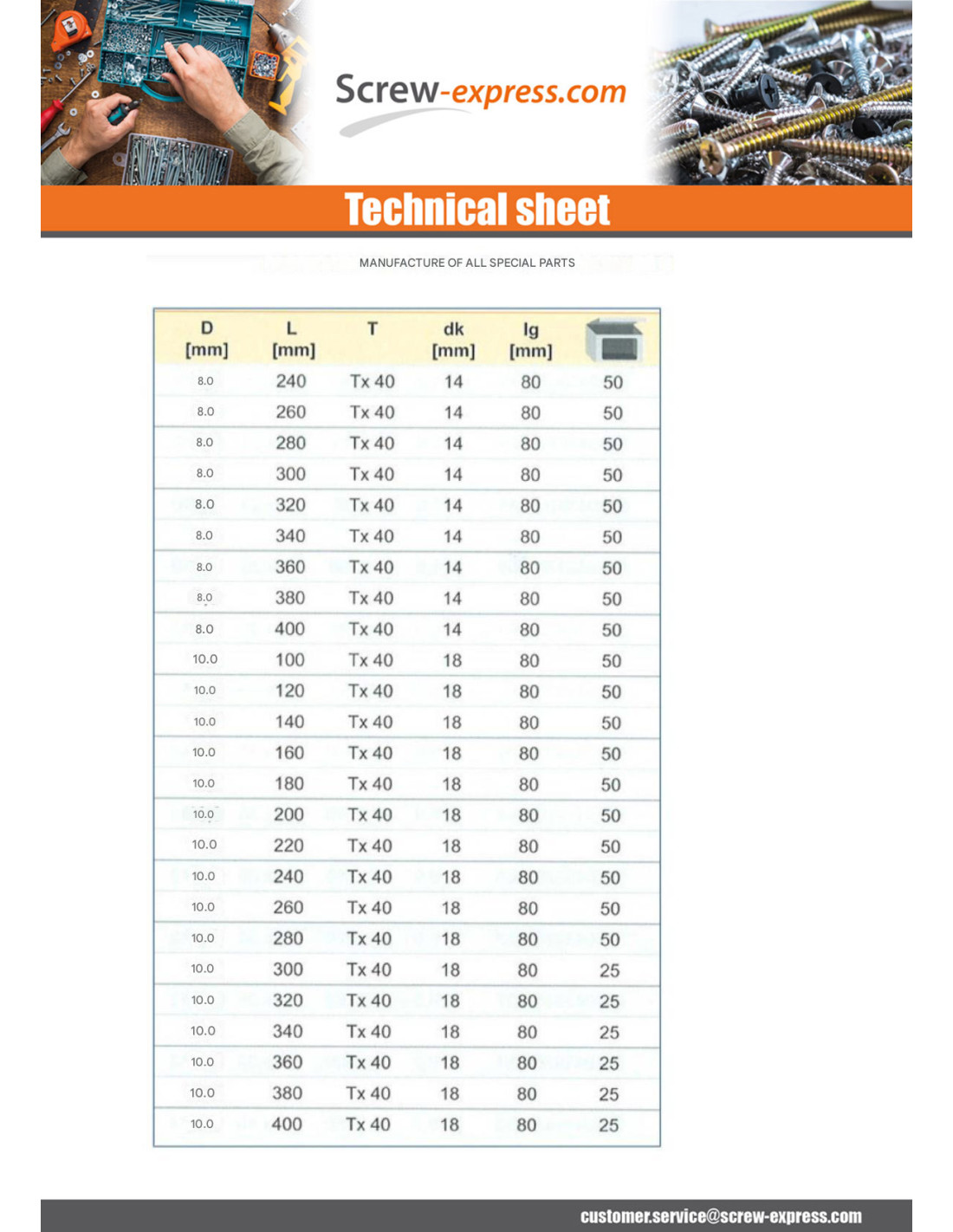

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500584069 AR08324 ART00815 MATDIV 3663072244702

Use Cases

Sylvain D. (vis-express.fr)
2025-11-09

Extension of a canopy on a bread oven SIMPSON TIE base and plate

Tristan E. (vis-express.fr)
2025-10-26

Fixing rafters to purlins I will be fixing 50/75 rafters to purlins for placo on a slope

stephane d. (vis-express.fr)
2025-06-01

Screwing joists onto beams Creation of an OSB workshop floor on 80x100 joists on a 150x280 beam

Schmidt C. (vis-express.fr)
2025-04-20

frame fixing 80x160 wood

Nicolas R. (vis-express.fr)
2025-03-30

To hold a specific glass wool insulation. The screws will be screwed into 40mm battens to hold a 200mm bare glass wool insulation between 2 synthetic vapor barriers.

Arnaud T. (vis-express.fr)
2025-01-26

Construction of a frame Wooden frame

Gauvain F. (vis-express.fr)
2025-01-12

Terrace frame Douglas joists

Jérôme C. (vis-express.fr)
2024-07-07

Wooden structure Ipe terrace

Vincent B. (vis-express.fr)
2024-06-30

I use these screws to fix the counter slats on a roof whose insulation is sarking. The screw must pass through the 27mm counter slat, the 100mm EFISARKING polyurethane insulation and take at least 80mm into the rafter as required the DTU

Olivier D. (vis-express.fr)
2024-05-05

Point for nailing deck board

Lionel P. (vis-express.fr)
2024-03-03

Reinforce wooden roof structure Bastaing 80 x 160 lg 6000
