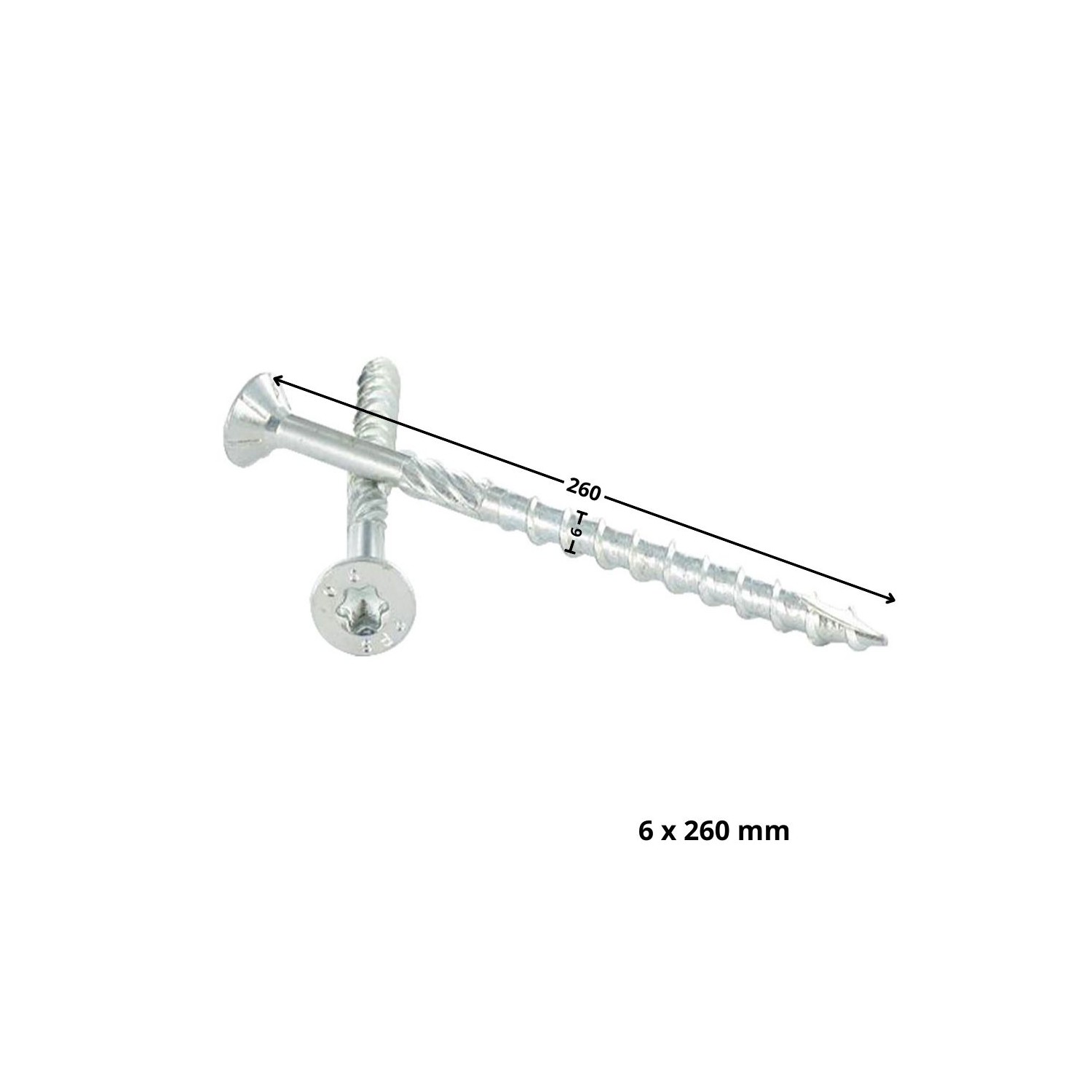

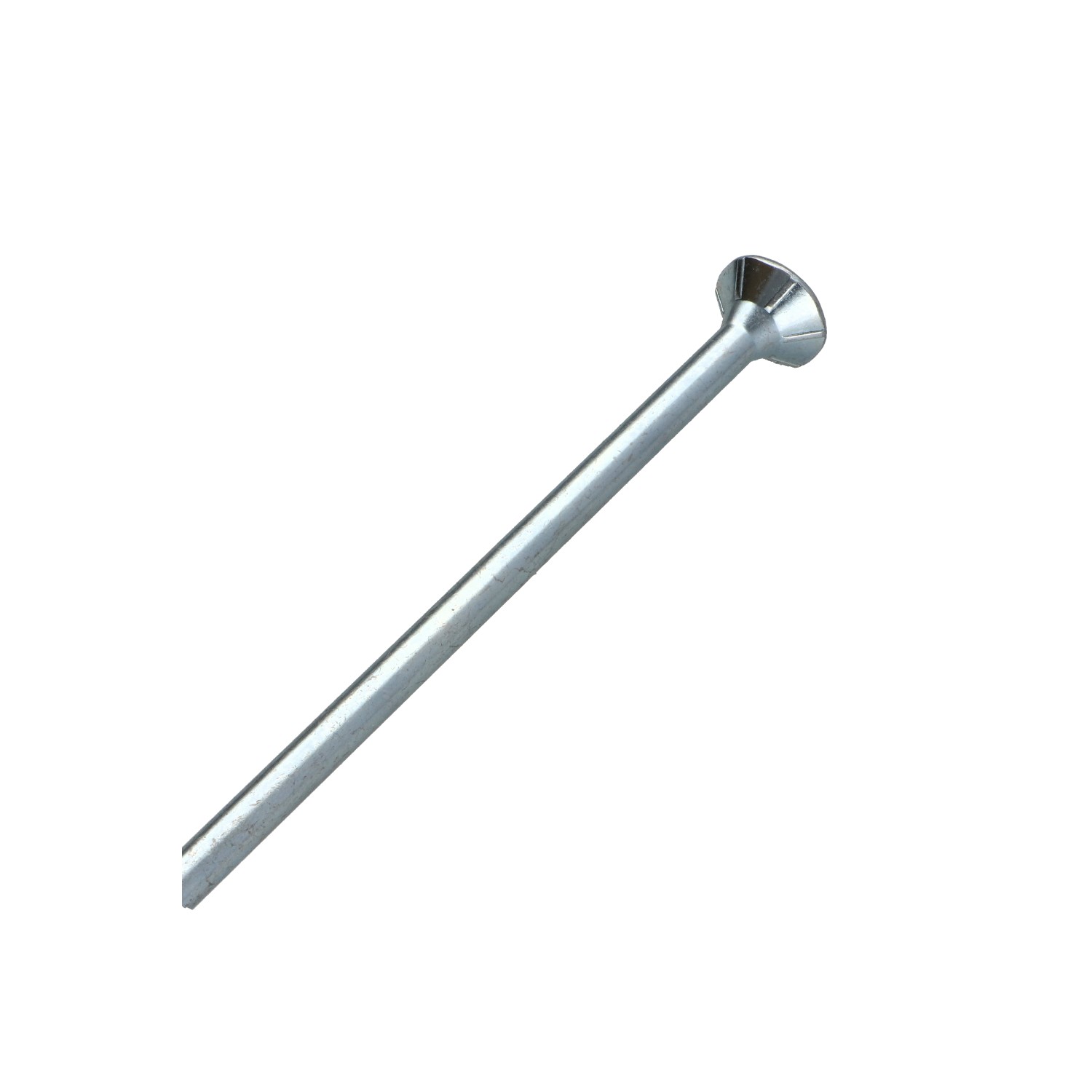

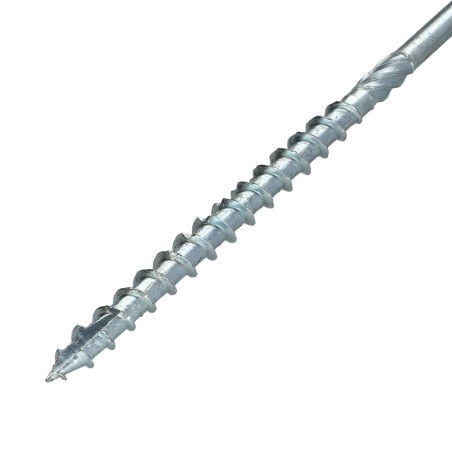

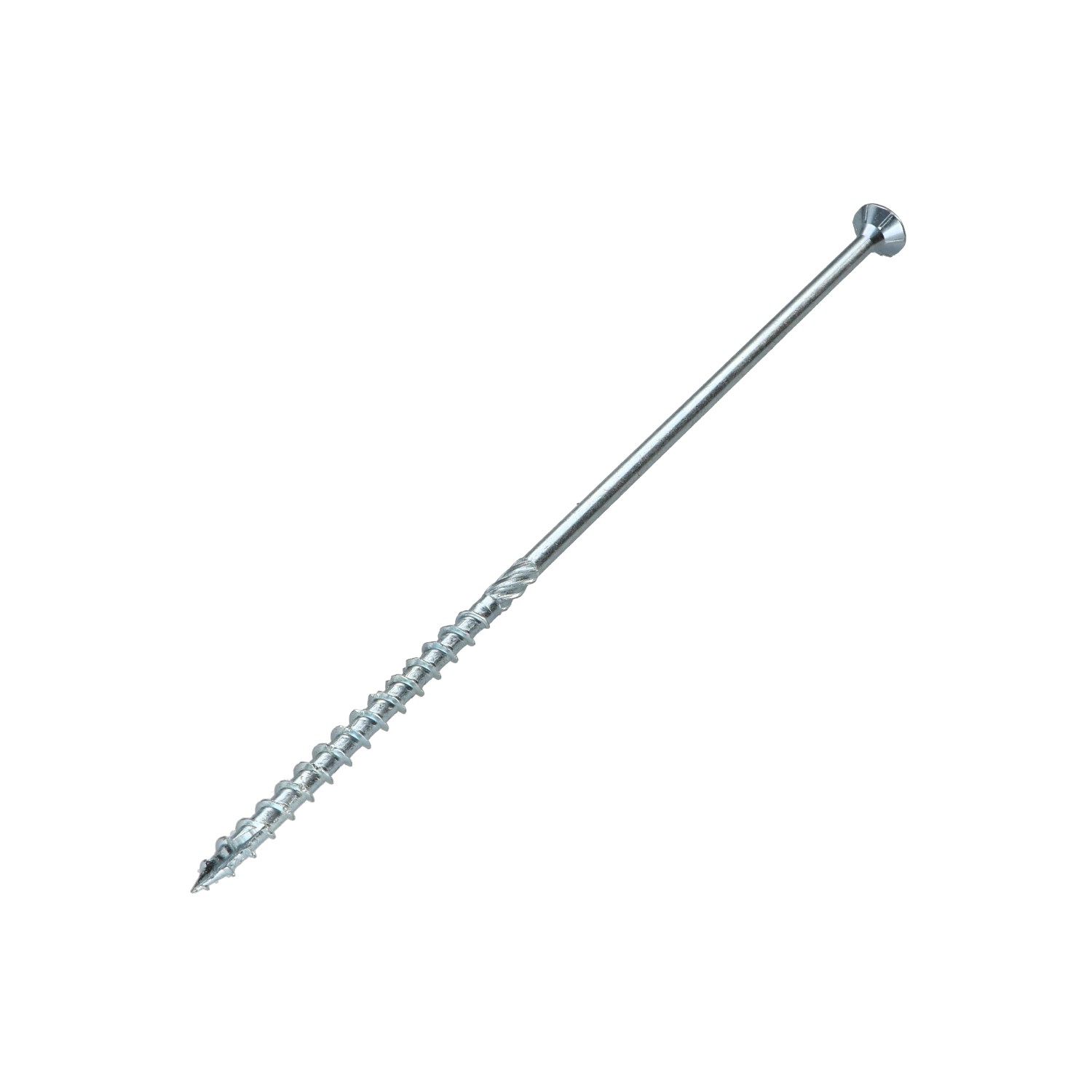

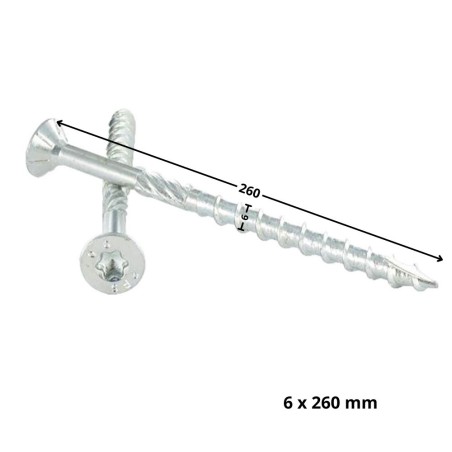

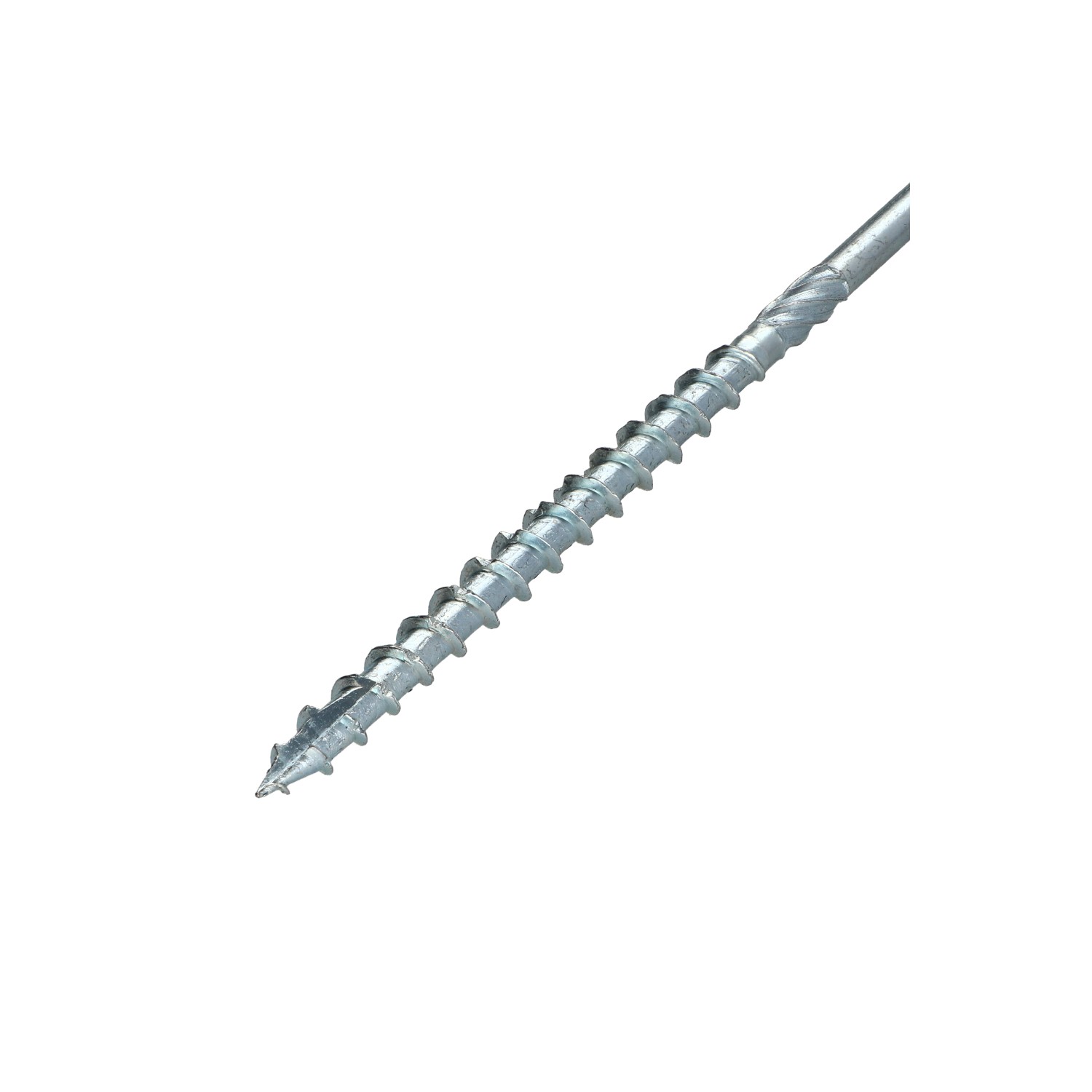

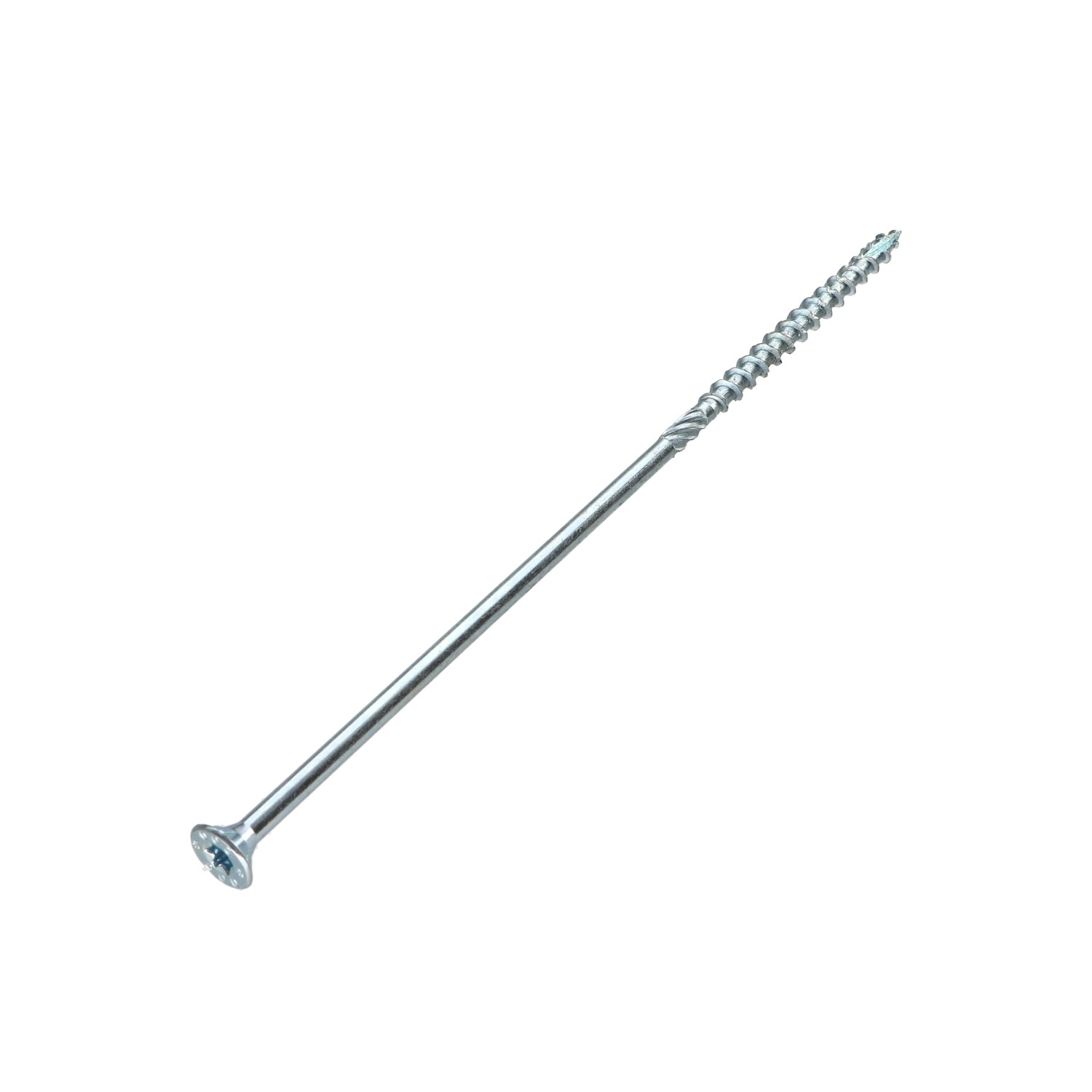

1 x Framing screws TEKOR Countersunk Head With Serration T30 6X260 Thread Length: 100 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T30 6X260 Thread Length: 100 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T30 6X260 Thread Length: 100 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040626002
Price: 1.61 GBP
Availability: InStock

Reference 2040626002_1

In stock 12917 Pièces

£1.61 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	£1.61	£4.25	£12.76	£38.88	£147.69

Framing screws TEKOR Countersunk Head With Serration T30 6X260 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
10 units
30 units
100 units
400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 6
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 260
Drive Type: Torx
Size Drive Type: T30
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head
Tip: Drilling Point Type 17
Unit weight: 32 GR

In stock 12917 Items

ean13 3663072195820

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T30 6X260 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Diameter = 6, Length = 260, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T30, Brand = Chipboard Screw Tekor

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500565426 3663072195820

Use Cases

Alexandre P. (vis-express.fr)
2026-09-20

Oak crossbeam 2m x 10x30

Arnaud R. (vis-express.fr)
2026-09-13

Large screws used in a wood assembly to build a pergola and a swing TEKOR countersunk head timber screws in 6x260

Olivier G. (vis-express.fr)
2026-08-09

Purlin fixing 150x220 Douglas fir

Olivier G. (vis-express.fr)
2026-08-09

Purlin fixing 150x220 Douglas fir

Jacques L. (vis-express.fr)
2026-07-26

Steel roof decking installation Replacing tiles with steel roof decking on rafters

Guillaume O. (vis-express.fr)
2025-10-05

I am going to fix a lathing I am going to fix a 45x145 field on a frame

Anthony r. (vis-express.fr)
2025-09-21

installation of rafters on 100mm of insulation under slate roof

Jean Louis M. (vis-express.fr)
2024-09-29

Hello, we use 6x260 frame screws for quick fixing of struts on split wooden stakes outdoors. They often have large uneven sections. The anti-splitting tip finish limits splitting and promotes the longevity of the assemblies Our stakes are raw in chestnut or acacia of variable and coarse sections between 100 and 200mm. The biased fixing was previously carried out with galvanized wire. It is much faster now.

Audrey M. (vis-express.fr)
2024-08-11

Fixing wood wool insulation under the roof slope PAVATEX wool in 145 mm
