3702400812_1
In stock 157252 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.85 €3.70 €4.45 €15.05 €52.60

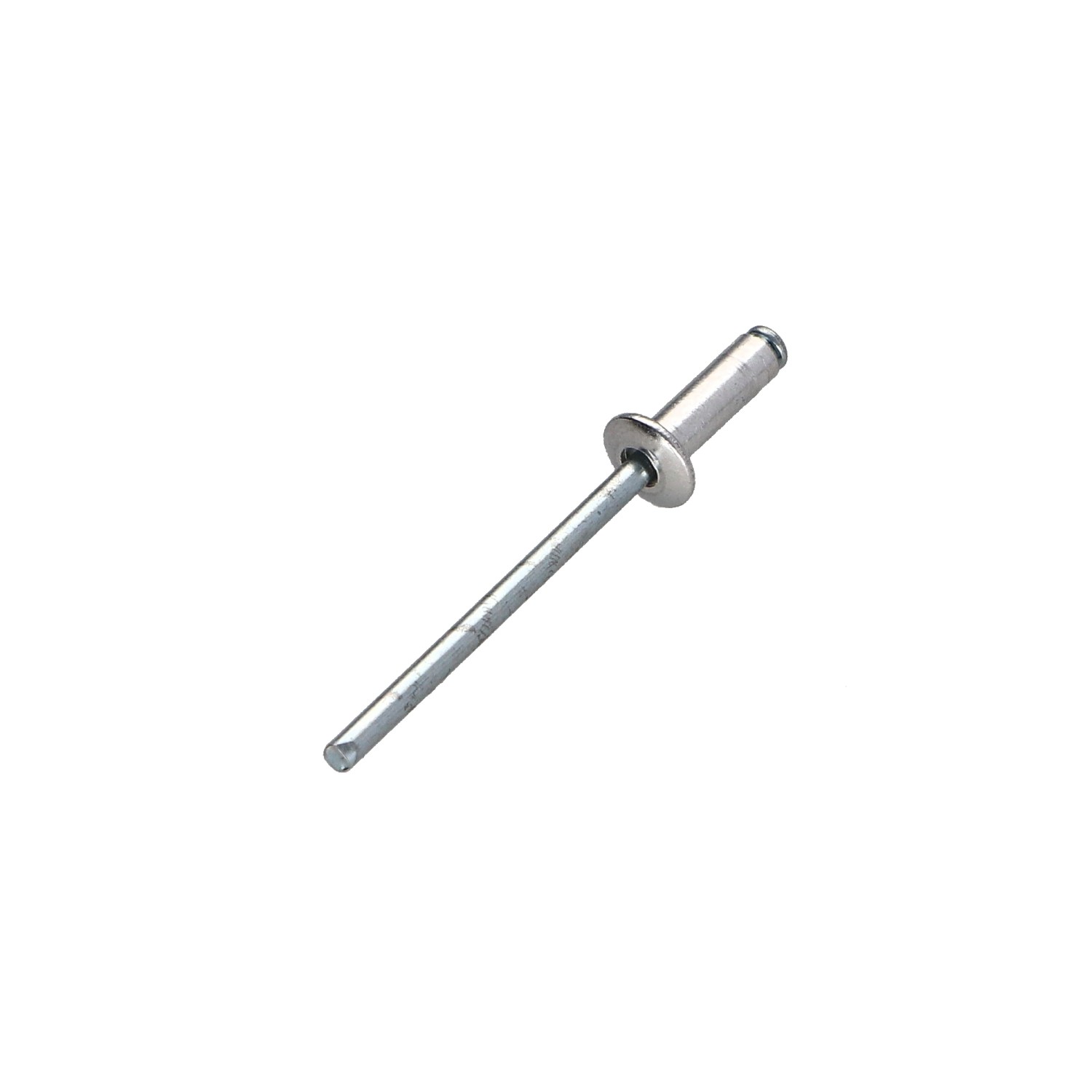

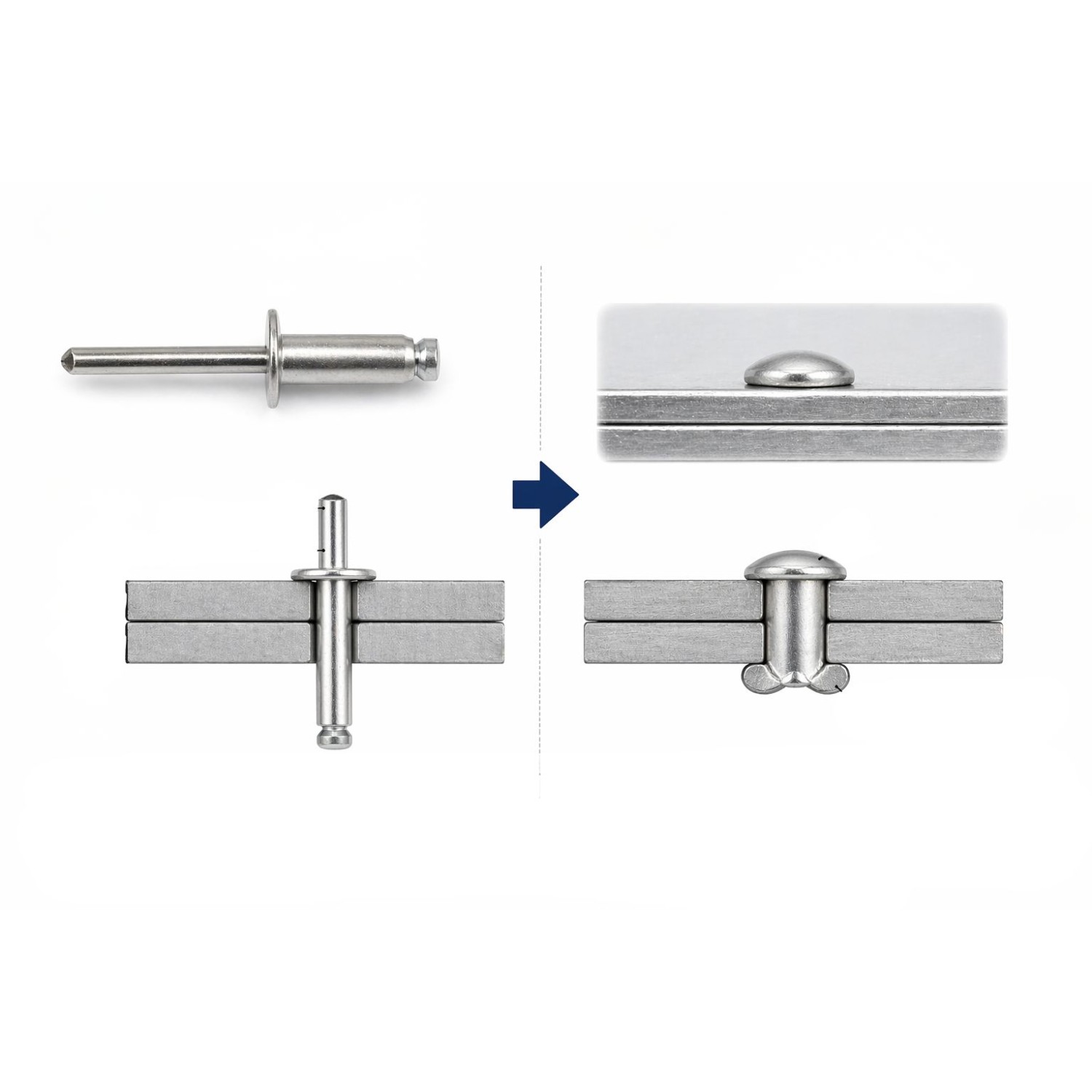

Blind rivets Aluminium Stahlgewinde 4X8 Thickness Of Panel 2 to 4 Standard round head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

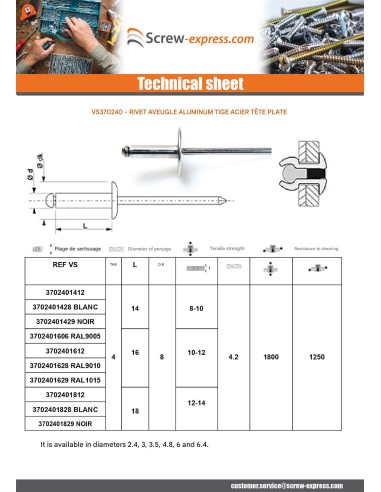

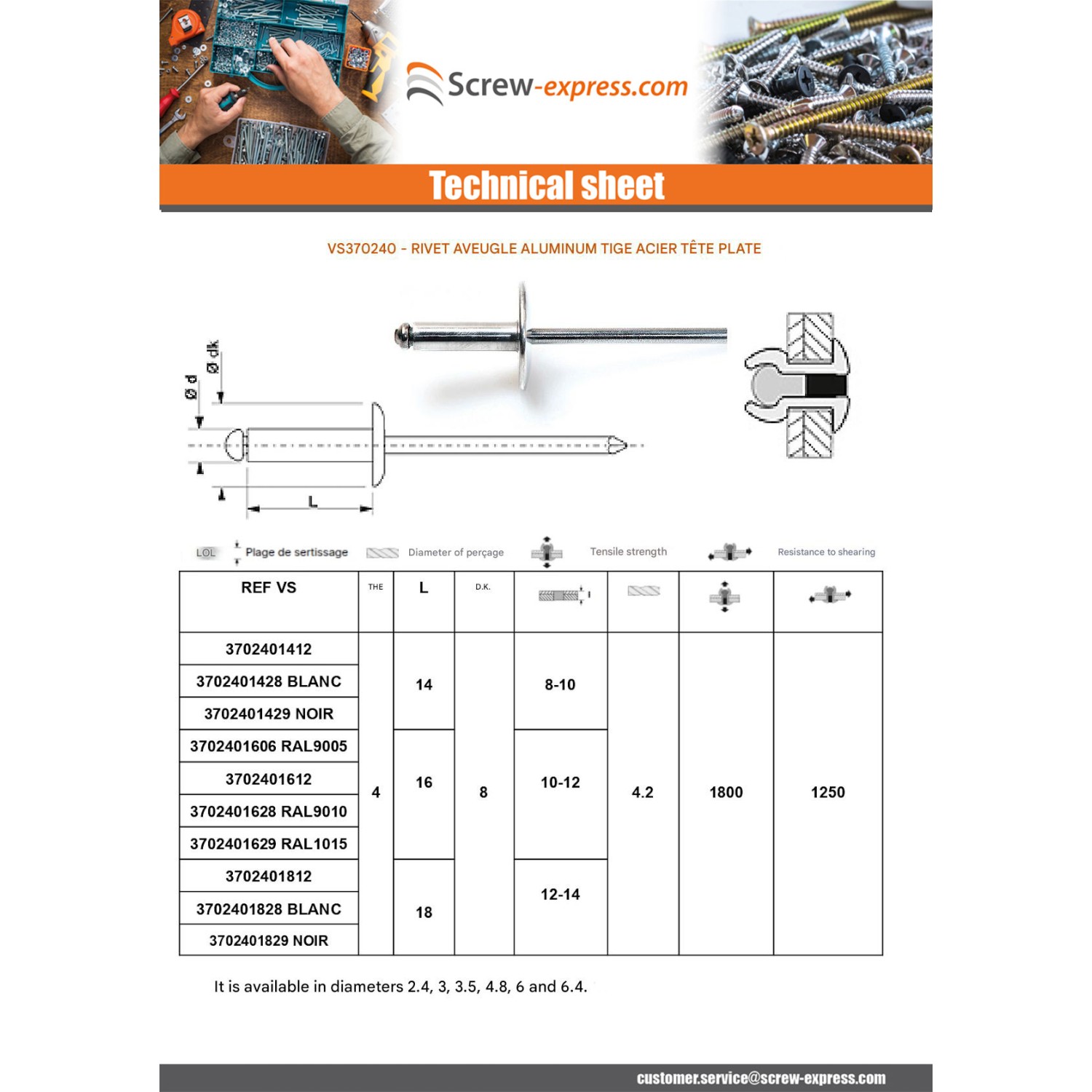

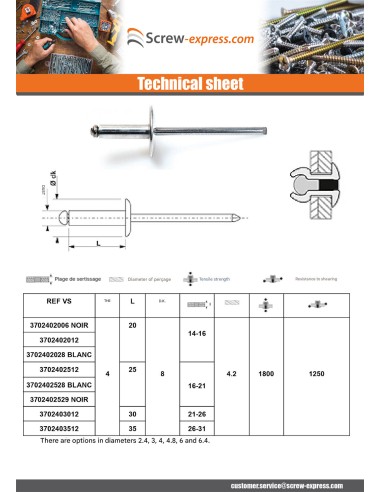

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
2 a 4 mm
Rivet body length
8
Unit weight
1.6 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1800
157252 Items
3663072063921

Application

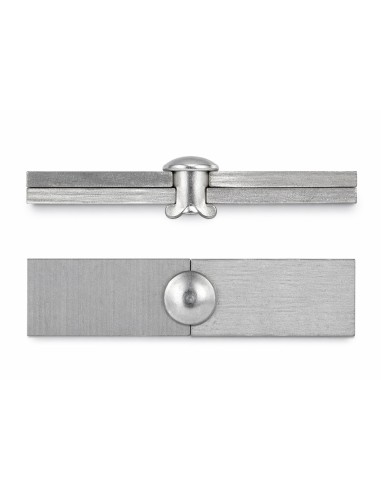

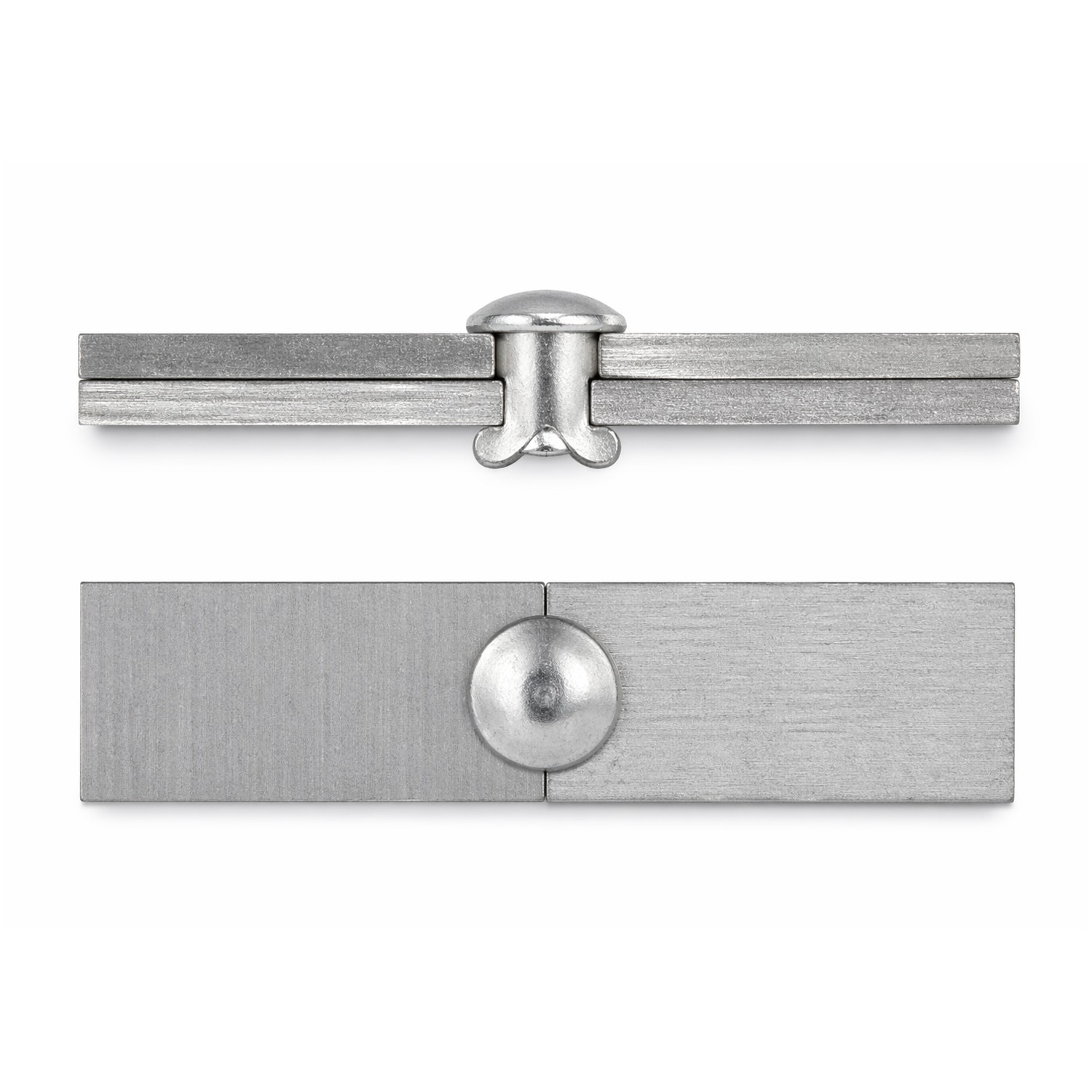

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X8 Thickness Of Panel 2 to 4 Standard round head ALX
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8

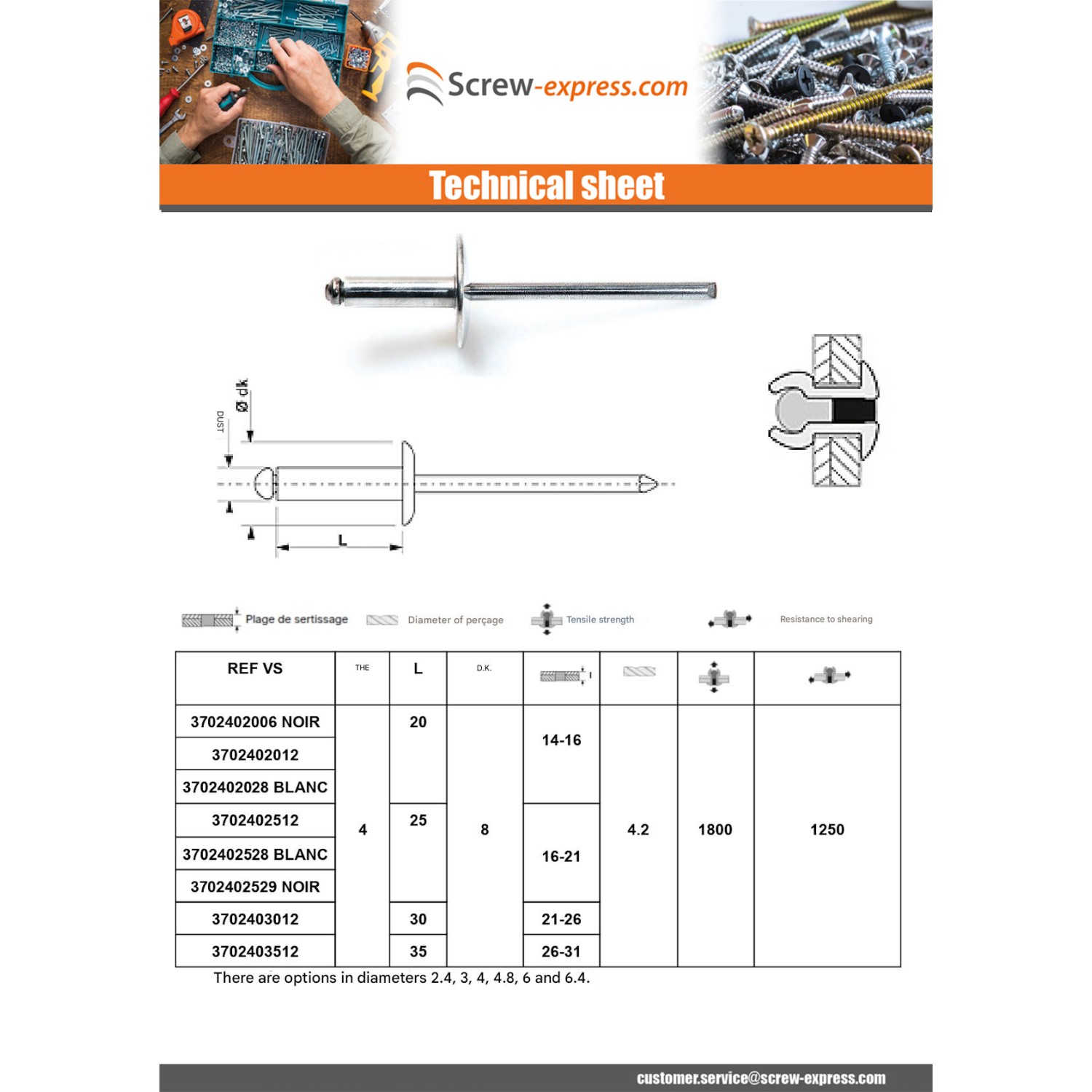

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 3396940312257 104140081 15618 YRIVAL408 RIVETALU4X8 1350 RIV-ALU-4X8 MP1350 / CDE POPAL4X8TS FIO1441 121342 070C000141 125924 RIVETALU4X8 RIVET4X8 RIVET4X8 30311 3031004 3VARI4008 LC35180 9A-1508032 RIVETPOP4X8 47600408 VI2100 RA/AL/AC4*08 1212103 602125 WUR0937.4.8 0600000 POPAL4X8TS 23804008 041085 RIVETTP4X08A QRIV4008PL01 6300448 VI2100 VI2100 VI2100 30520371 RIVPOP4X8TP G0012410 PVR00 34701.040.00 MV3000 942930 942930 WRT040008 512131 LD0221 MP1350 POPALAC4*8 VIS0007 39769 1814 093748 PD0205 39769 39769 RIV11 551698 990729 A04262-00-A 170691 93748 lc35180 RIVATP4X8ALU 643899 093748 11198 RI024104 WFI01441 212013 025204 093748 985201000 RV4X8N01 RIV0409 QU0003616 CV-05-0019 URIV10408 0847/0408 2410001 RIV0115 123002000 1324015 19RA4008 V001179 104140080 Z025 3VR4X8 166567 V001179 CO220025 CO220001 VIS15 18101752 171017520000 DMRIV0009 S076800800 AN 724100 M00538 19966000800 1814 942930 3663072063921
Ennio A. (vis-express.fr)
2026-05-17

Rivetage tole acier sur portail Rivet pop 4x8 tout aluminium tête ronde


Arnaud B. (vis-express.fr)
2025-10-26

Crimping Ball bearing drawer slides


Pierre S. (vis-express.fr)
2025-07-13

side sheet for brazier I use these rivets for 4mm holes to position the side sheets of my trailer brazier
