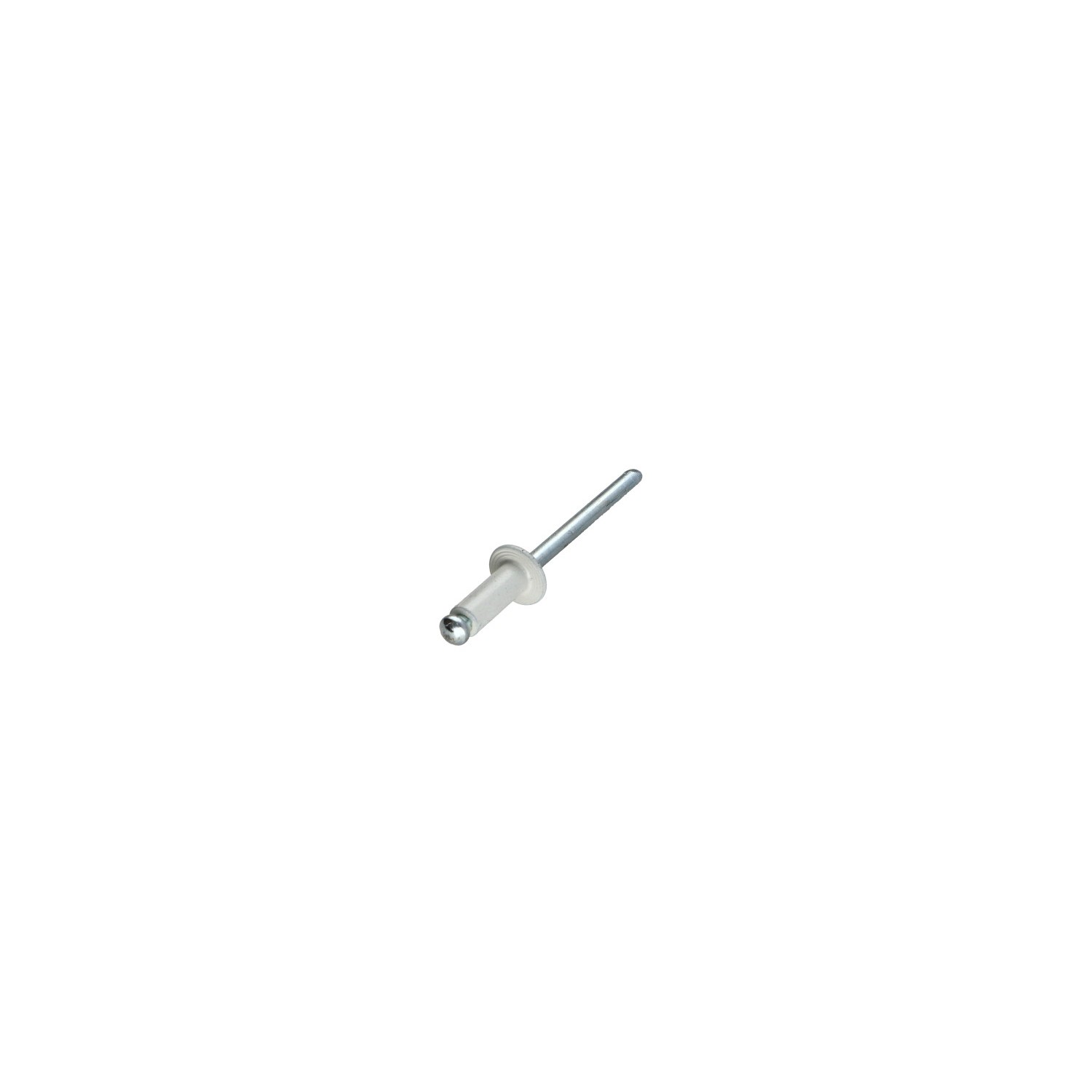

1 x Blind rivets Aluminium Stahlgewinde 4X8 Thickness Of Panel 2 to 4 Standard round head Ral9010/Pure White

3702400828_1
In stock 42718 Pièces
£1.61 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included £1.61 £3.21 £3.86 £12.80 £46.86
Blind rivets Aluminium Stahlgewinde 4X8 Thickness Of Panel 2 to 4 Standard round head Ral9010/Pure White
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
COLOR
Ral9010/Pure White
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
2 a 4 mm
Rivet body length
8
Unit weight
1.6 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1800
42718 Items
3663072063945

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X8 Thickness Of Panel 2 to 4 Standard round head Ral9010/Pure White
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8

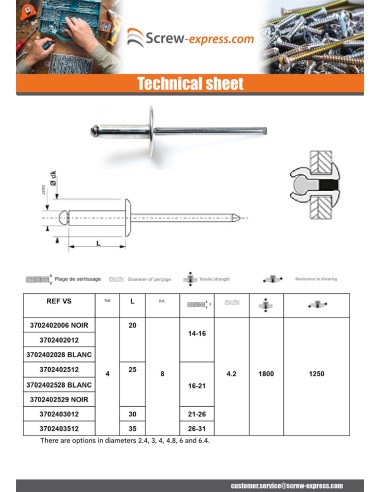

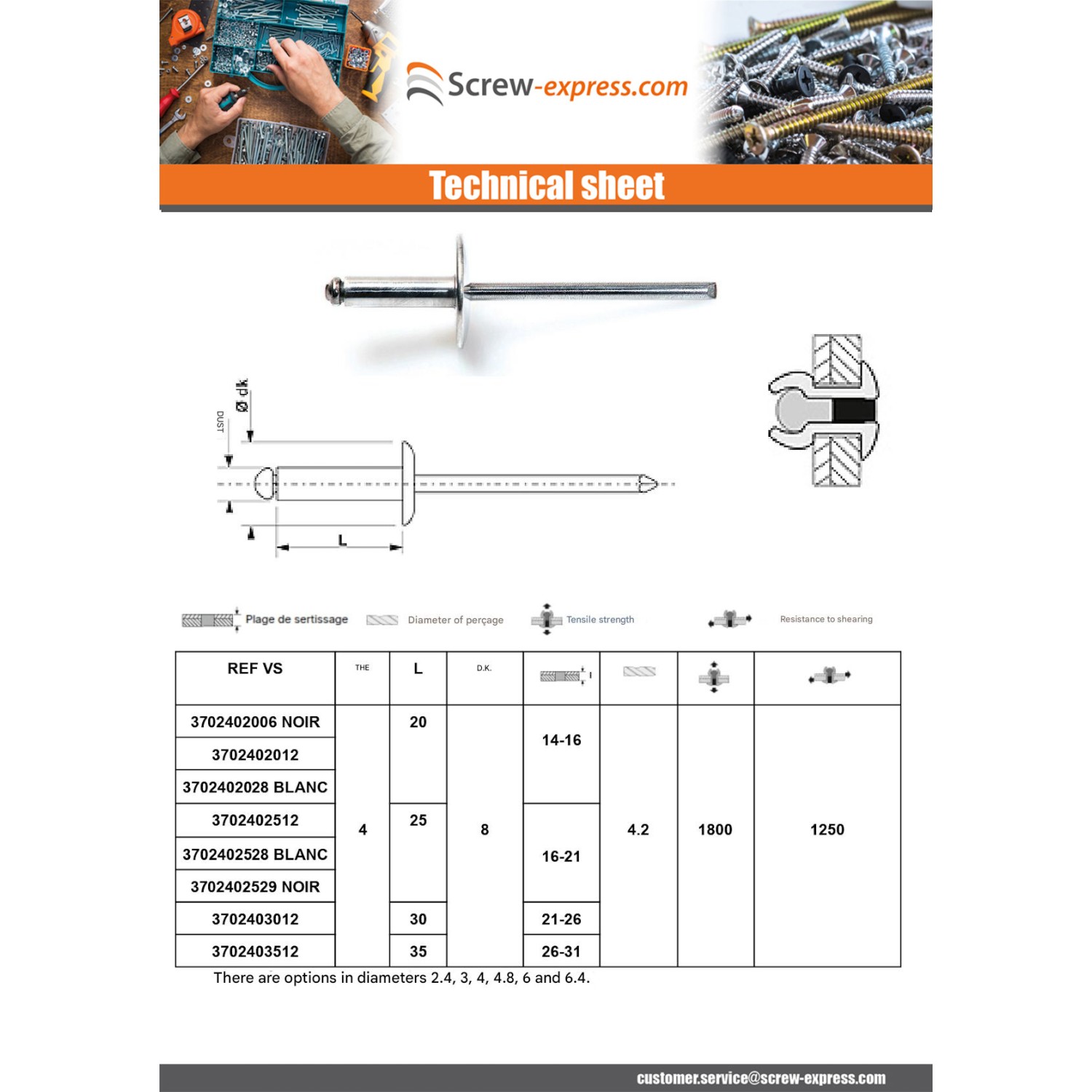

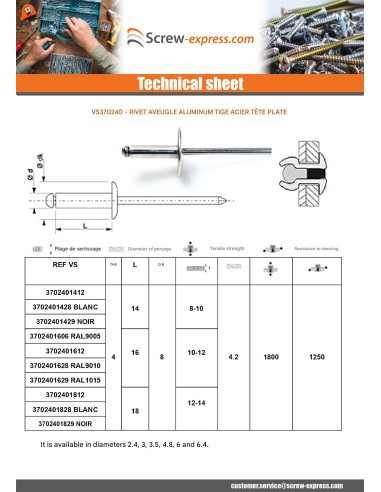

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 3617501899551 RIV-ALU-4*8_ 101406 RIV9010 VP030013 FRIACALTPA04 3663072063945
