3702403012_1
In stock 22655 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £8.81 £26.81
Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Standard round head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
21 a 26 mm
Rivet body length
30
Unit weight
2.65 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1800
22655 Items
3663072064102

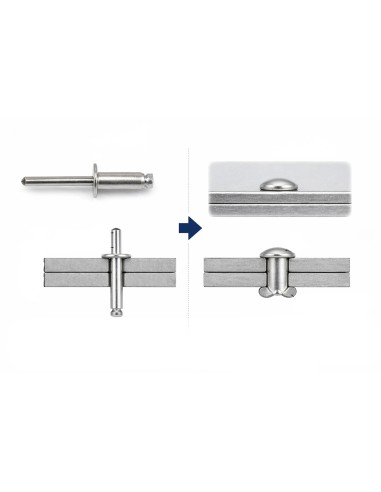

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X30 Thickness Of Panel 21 to 26 Standard round head ALX
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8

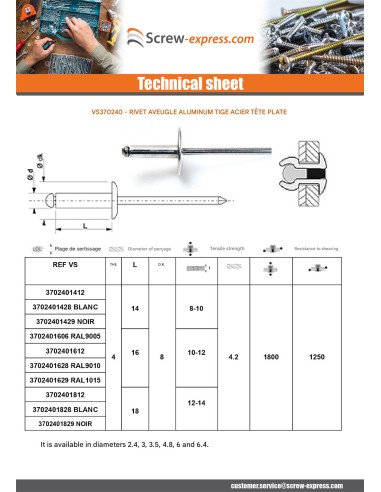

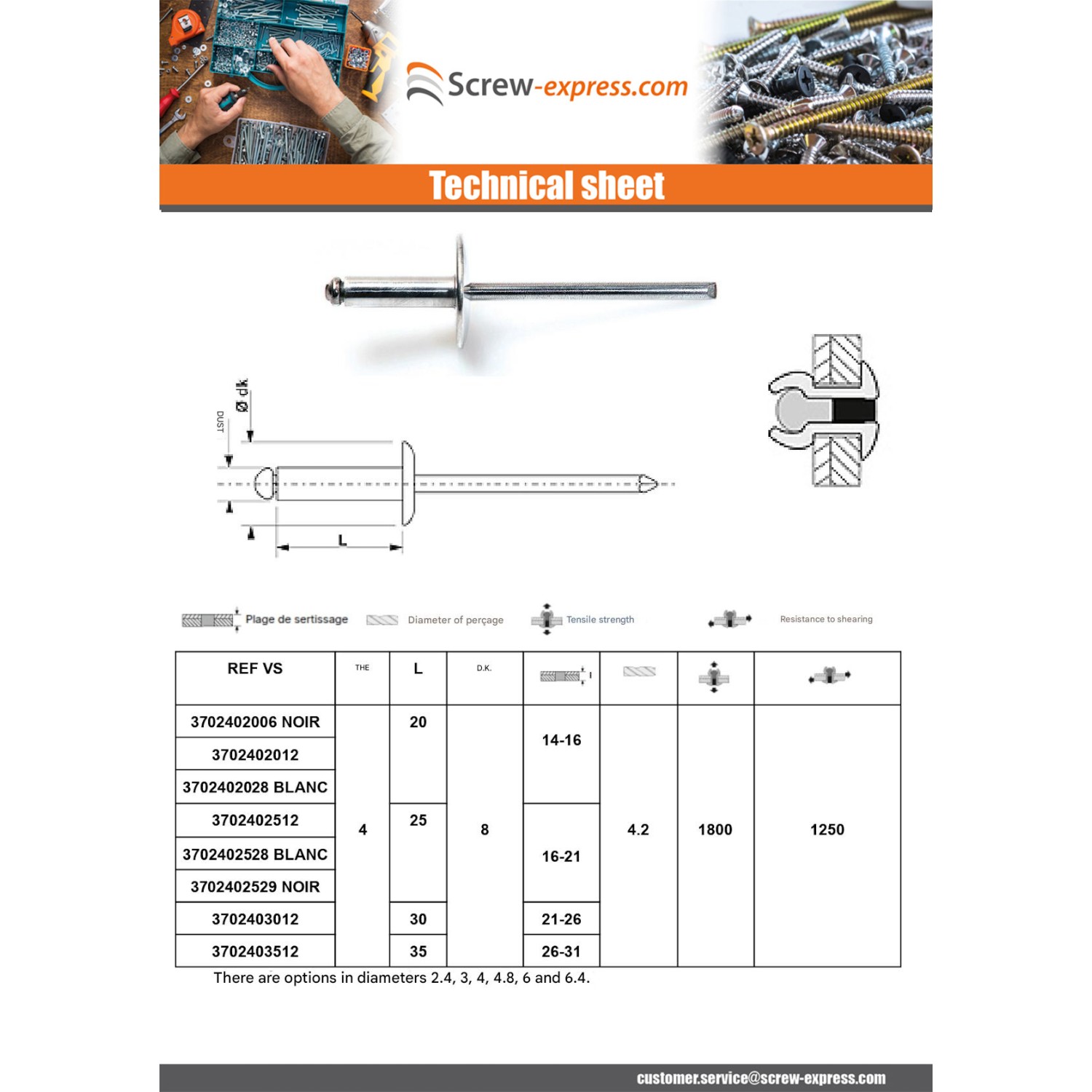

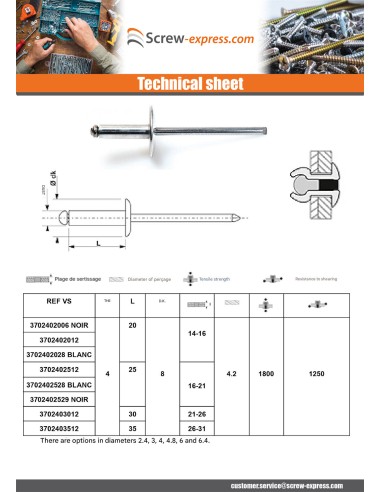

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140301 YRIVALACTP43 103140301 VU042 V14R-0430 AN 78725269 48344 3663072064102
Christophe C. (vis-express.fr)
2025-06-29

Carpenter fixing Douglas fir cladding boards (board width 140mm, thickness 18mm, laid in a slatted position) on T-shaped cladding
