1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...
1 x Blind rivets Aluminium Stahlgewinde 4.8X16...

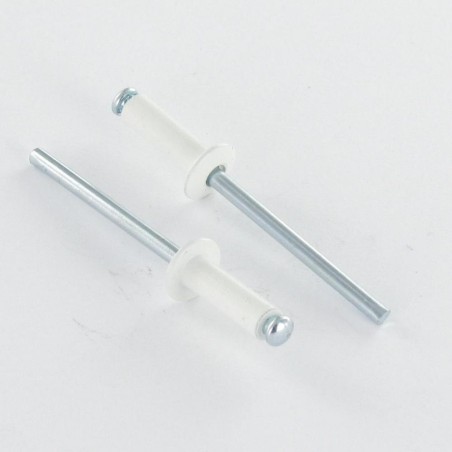

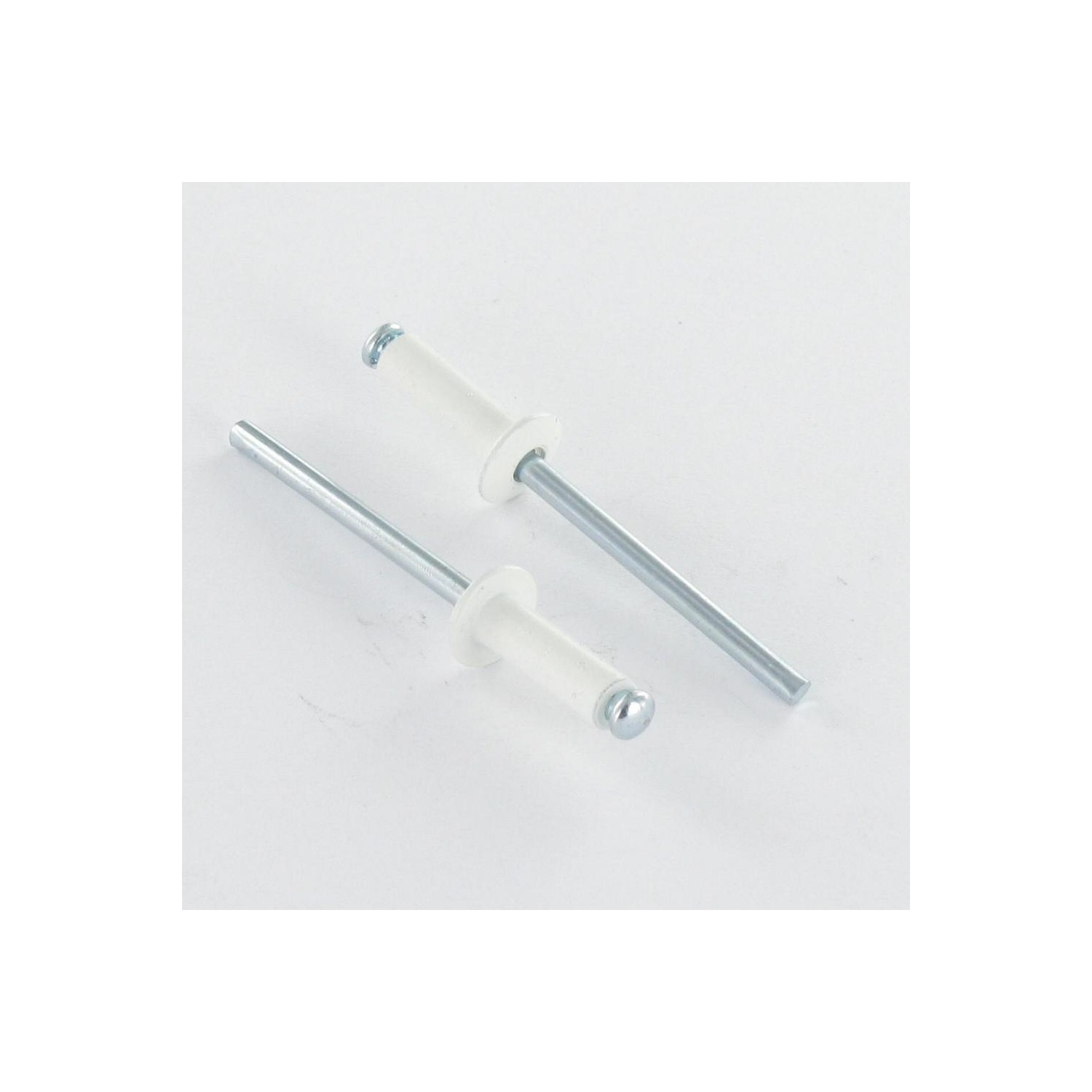

1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white

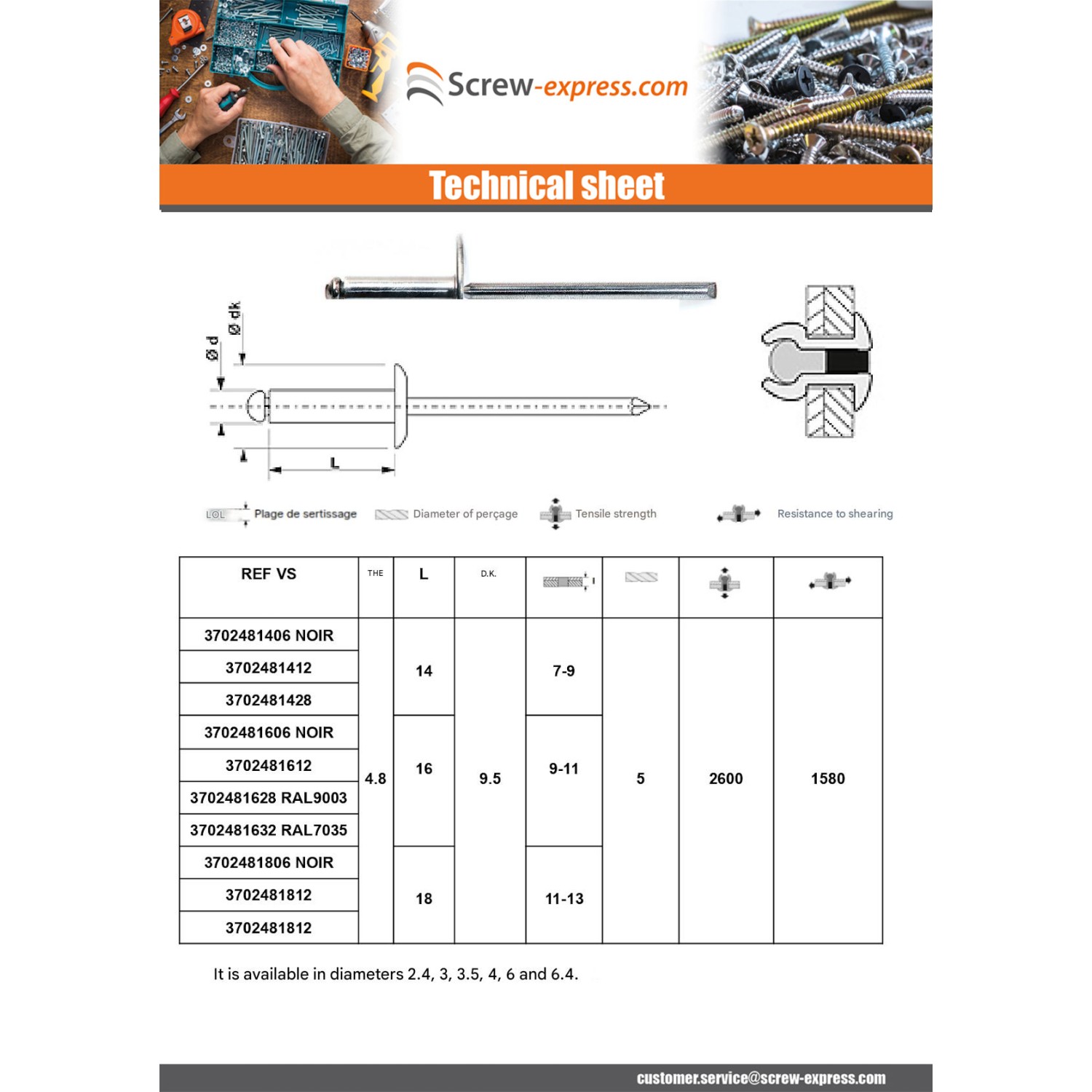

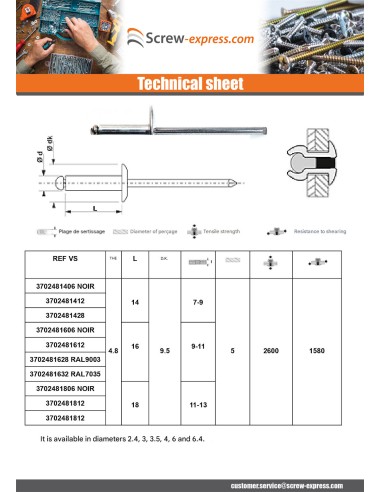

3702481628_1
In stock 5495 Pièces
£1.48 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included £1.48 £2.95 £4.17 £18.14 £72.54

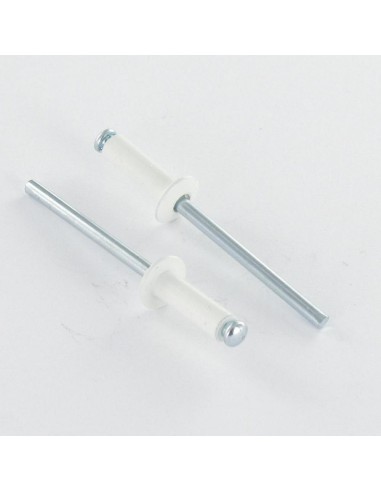

Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Steel
COLOR
RAL9003 signal white
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Rivet body length
16
Unit weight
2.95 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2600
5495 Items
3663072064225

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4.8X16 Standard round head ALX RAL9003 signal white
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 116148161 5807 1896 RATPB4.816 AN Q00152M 5807 M323 125743 125473 VP030004 3663072064225
