3702401606_1
In stock 18118 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €5.20 €21.55 €86.20

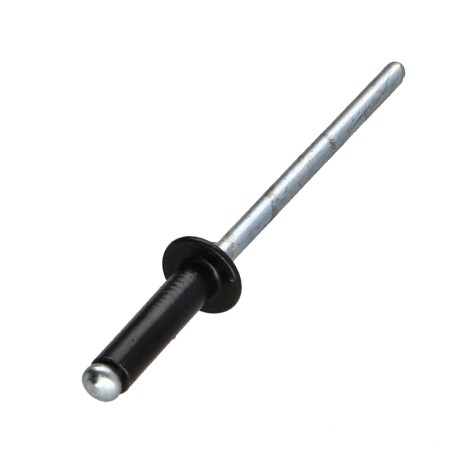

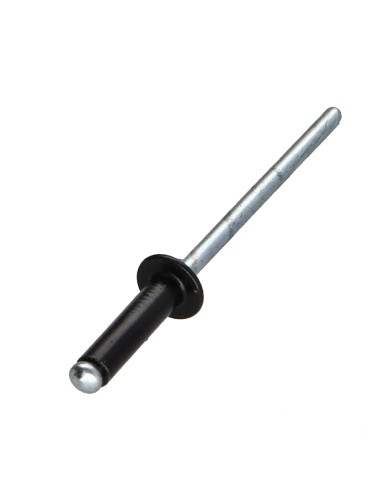

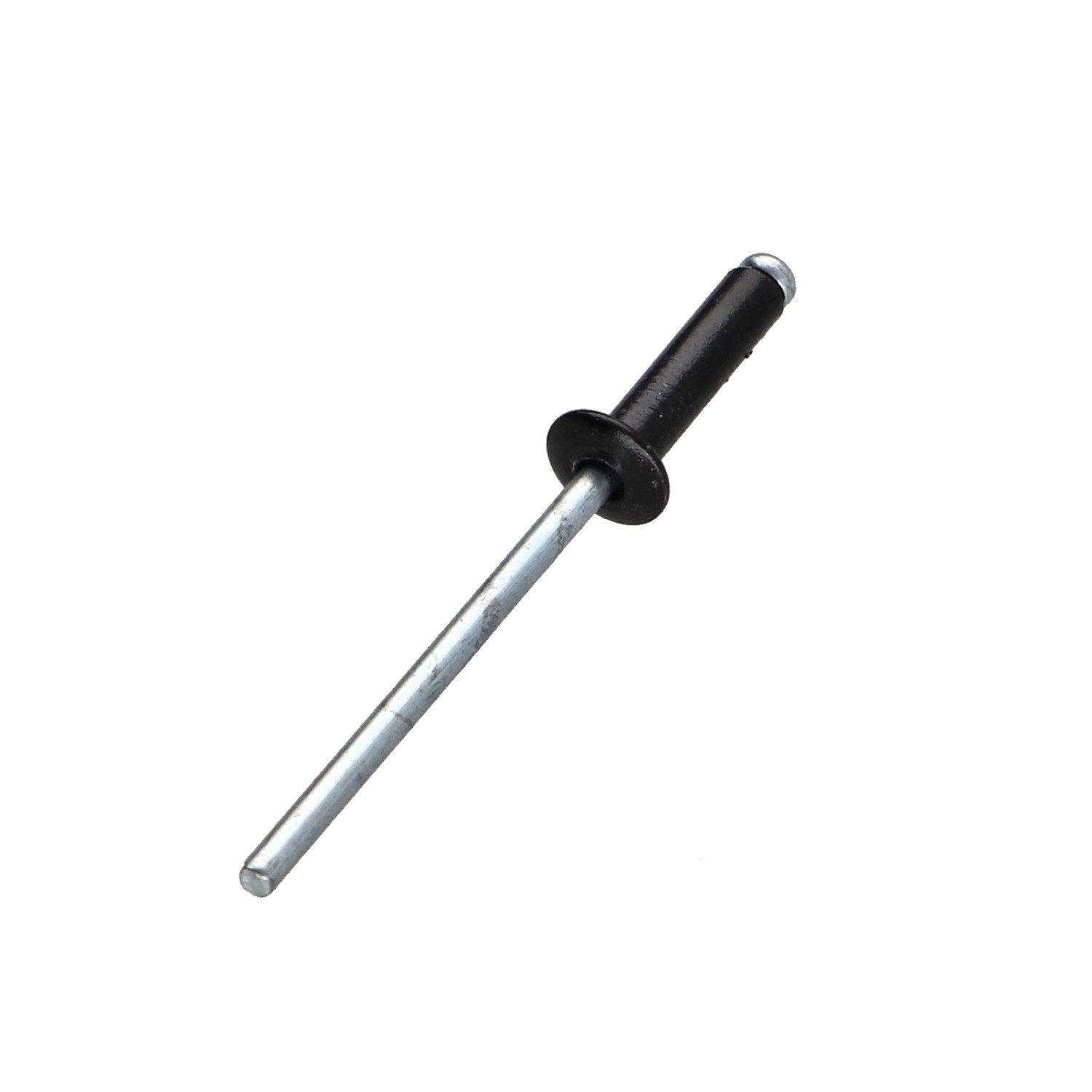

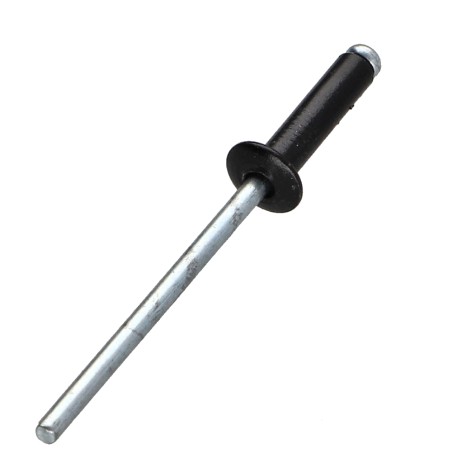

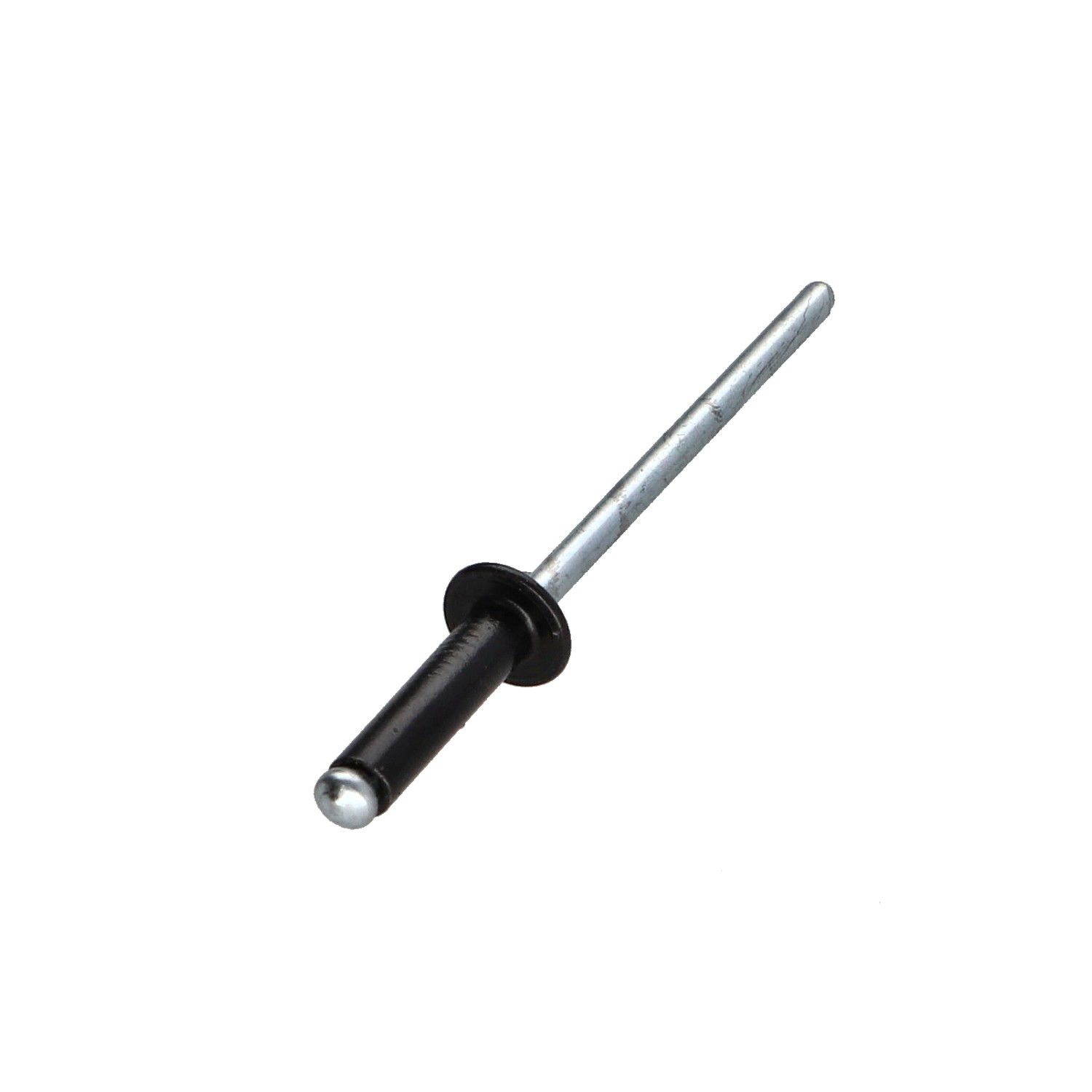

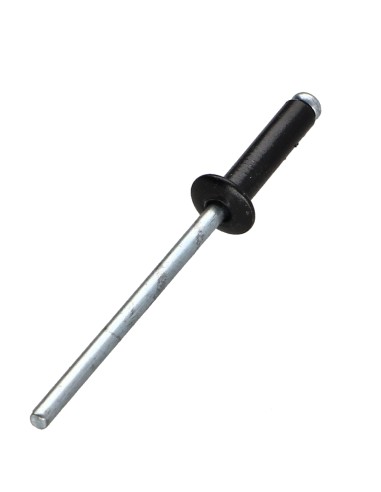

Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9005/Jet Black
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
COLOR
Ral9005/Jet Black
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
10 a 12 mm
Rivet body length
16
Unit weight
2.94 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1800
18118 Items
3663072186484

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Standard round head Ral9005/Jet Black
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8

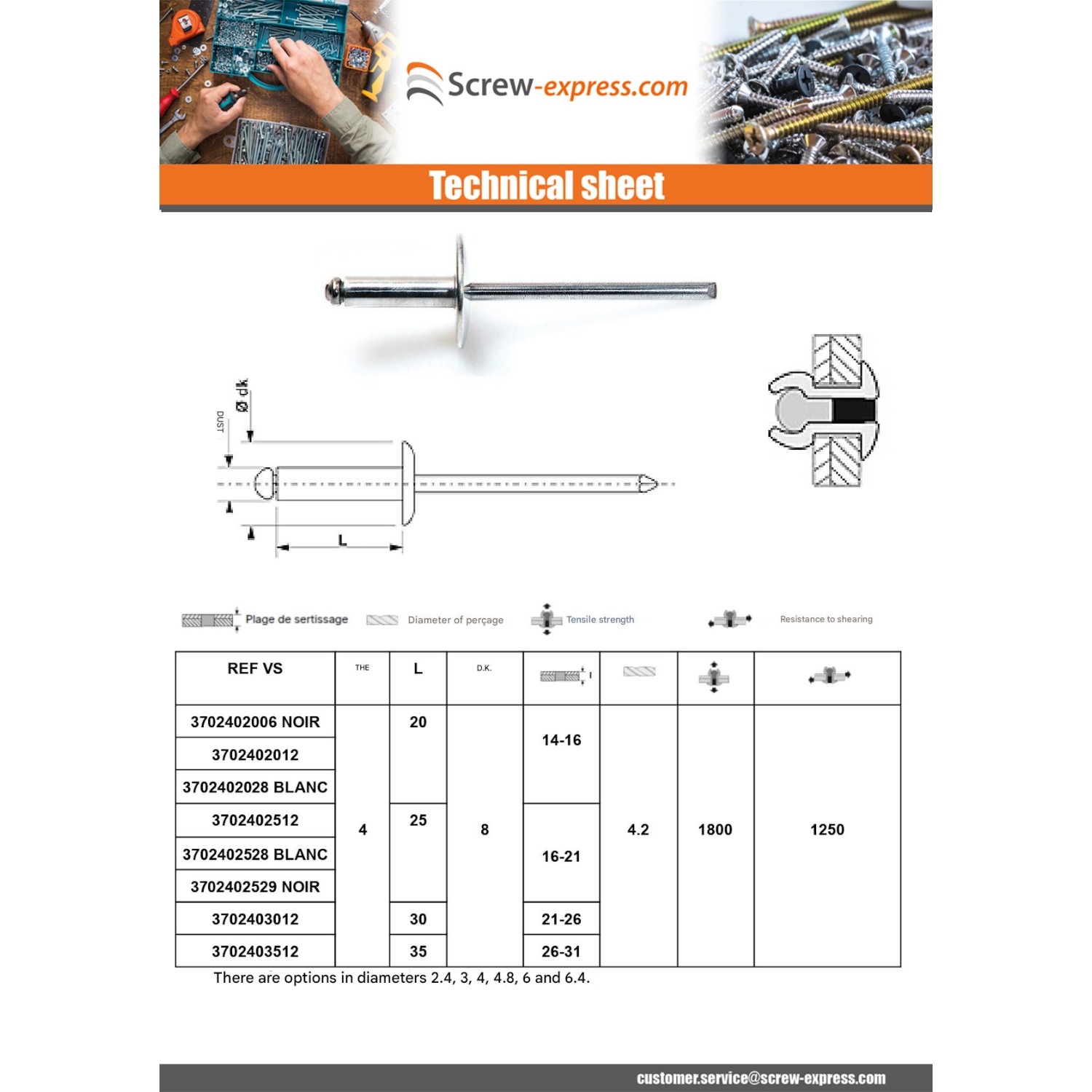

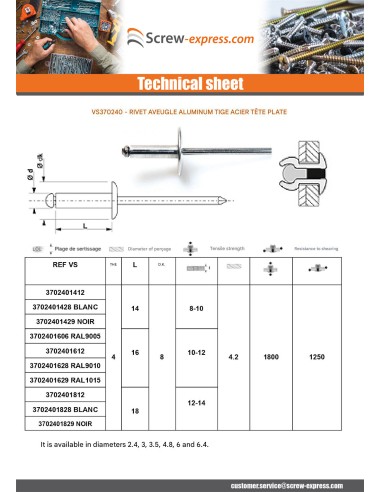

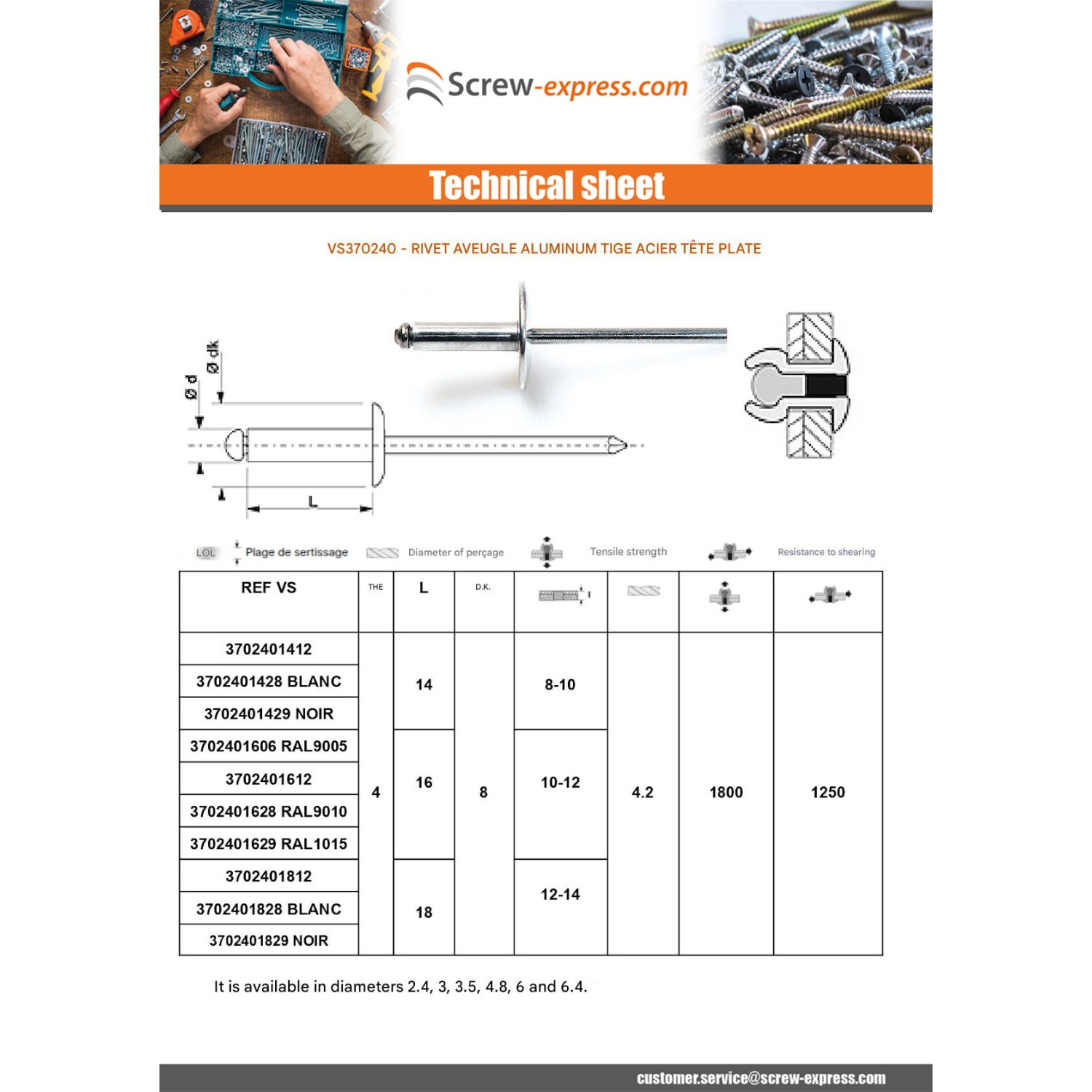

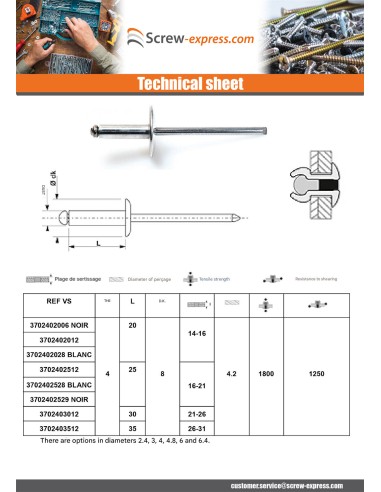

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 115140161 153270 0930509900 115140161 MT459 RAMRIVTP40X0 MT459 40100090 3663072186484
Mathieu R. (vis-express.fr)
2026-05-03

Je souhaites fixer une extension de garde boue Sur une Honda Africa Twin.


Jean baptiste S. (vis-express.fr)
2026-01-18

It will be used to fix the T-shaped brackets to a gate. The T-shaped brackets are made of 3 mm thick steel.
