3702402512_1
In stock 19925 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £8.81 £35.40

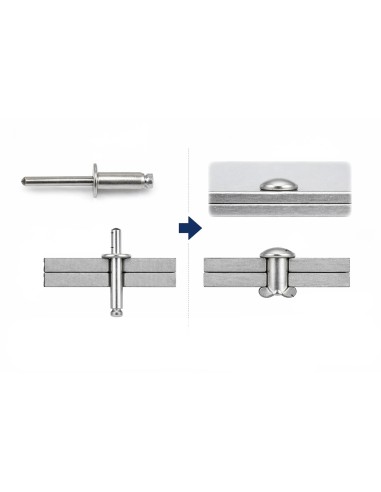

Blind rivets Aluminium Stahlgewinde 4X25 Thickness Of Panel 16 to 21 Standard round head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
16 a 21 mm
Rivet body length
25
Unit weight
2.6 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1800
19925 Items
3663072064096

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X25 Thickness Of Panel 16 to 21 Standard round head ALX
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8

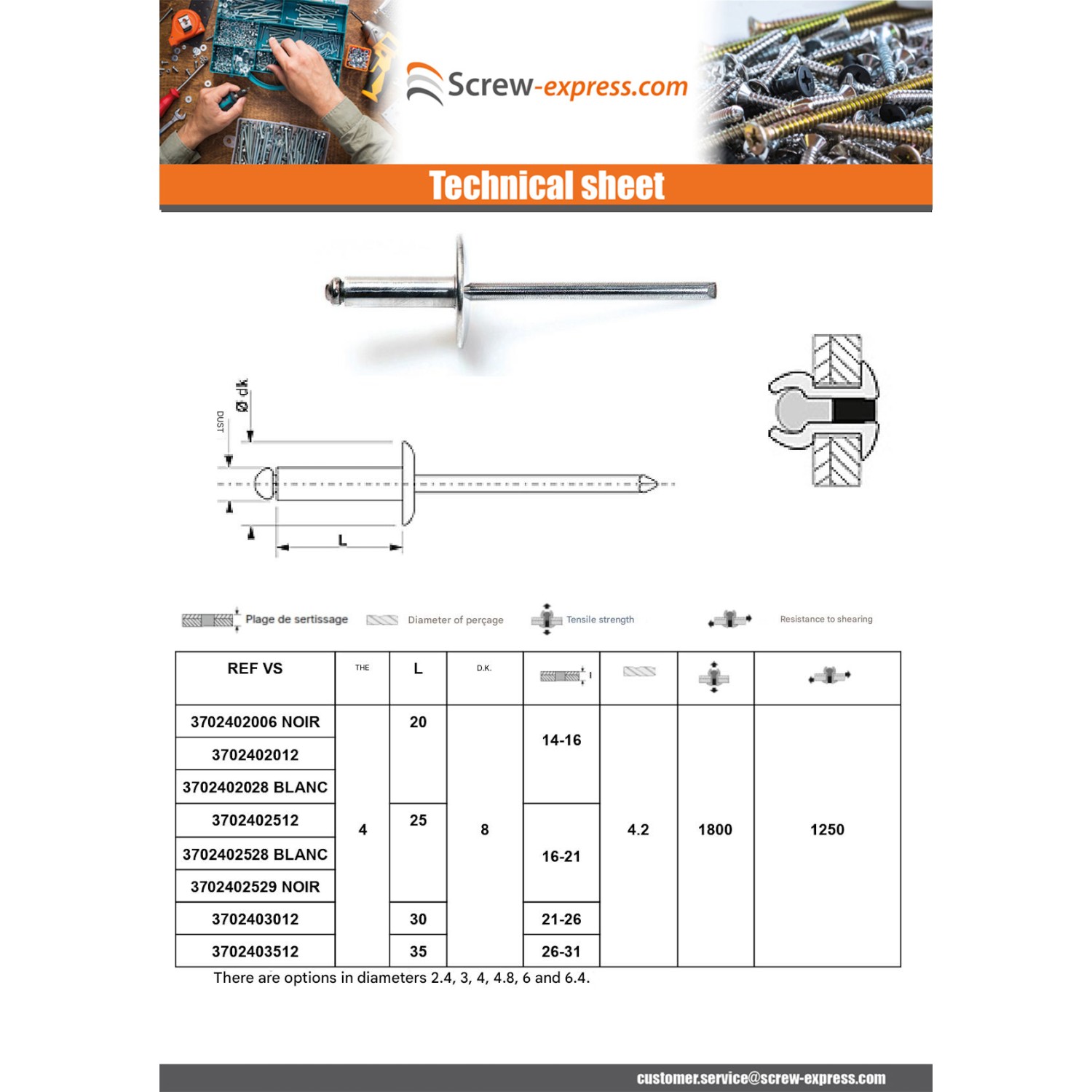

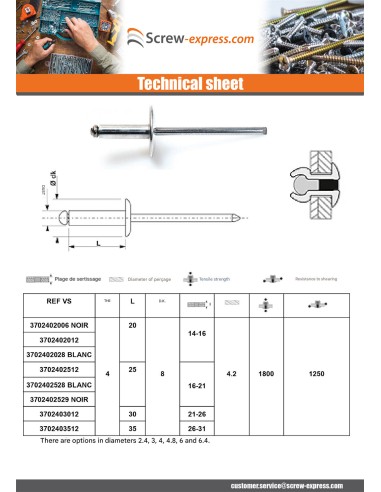

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140251 62121 121343 10351404 7001-0077-A RIV425 23804025 MV3015 M392 RIV/4.25 123001030 10351404 0977AC/4*25 3663072064096
paul s. (vis-express.fr)
2025-02-09

Installation of flight case parts Installation of flight case parts (Adam Hall brand latches and handles) on 16mm OSB3 panels to build custom flight cases.
