3702488512_1
Available within 15 business days
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 150
Lot price VAT included €3.85 €7.70 €15.00 €75.15
Blind rivets Aluminium Stahlgewinde 4.8X85 Thickness Of Panel 75 to 80 Standard round head
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 150 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Clamping thickness
75 a 80 mm
Rivet body length
85
Unit weight
5 GR
Head shape
Round Head standard
3663072041967

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4.8X85 Thickness Of Panel 75 to 80 Standard round head
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel

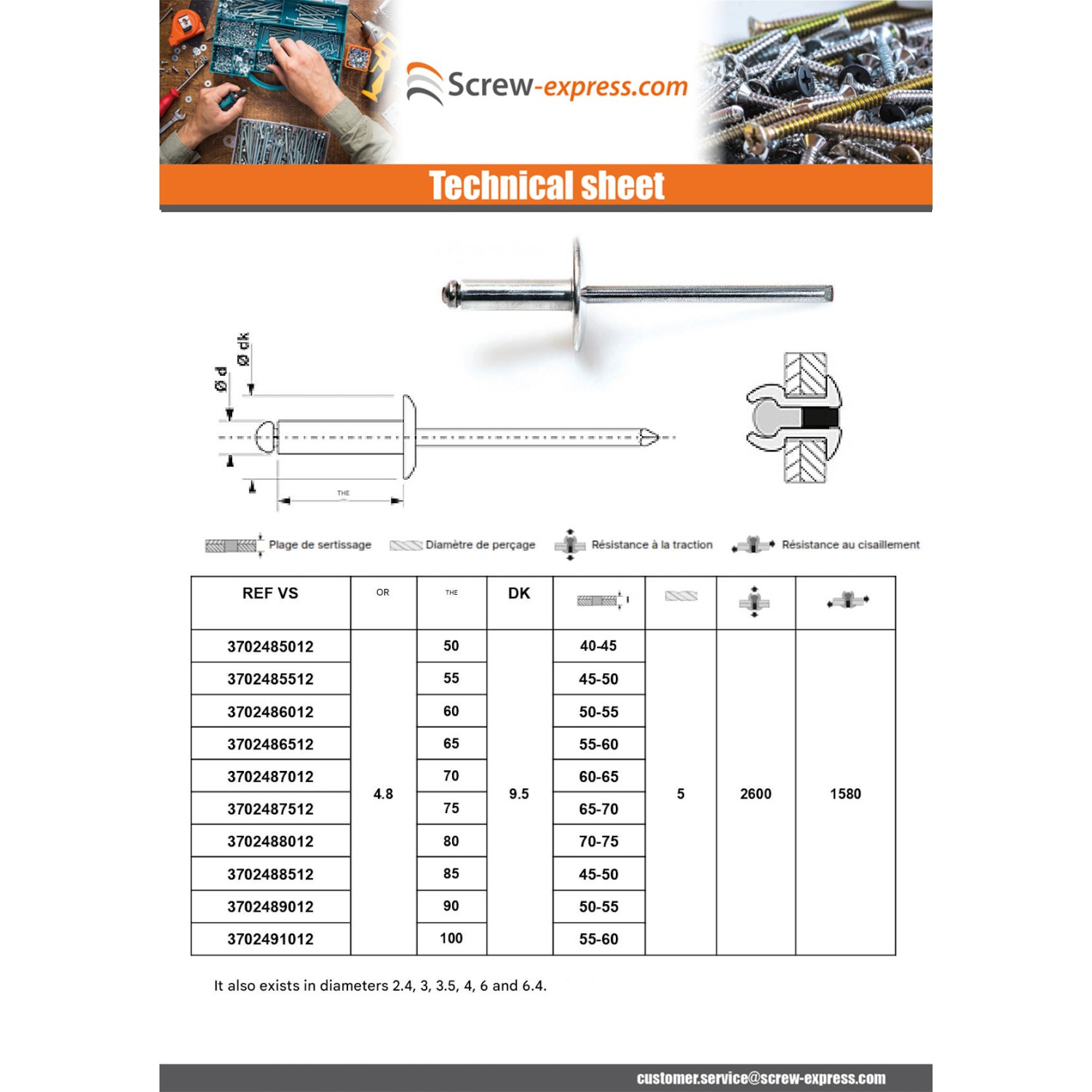

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 101 148 851 3663072041967
