3702482506_1
In stock 3220 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €3.85 €7.70 €9.30 €30.15

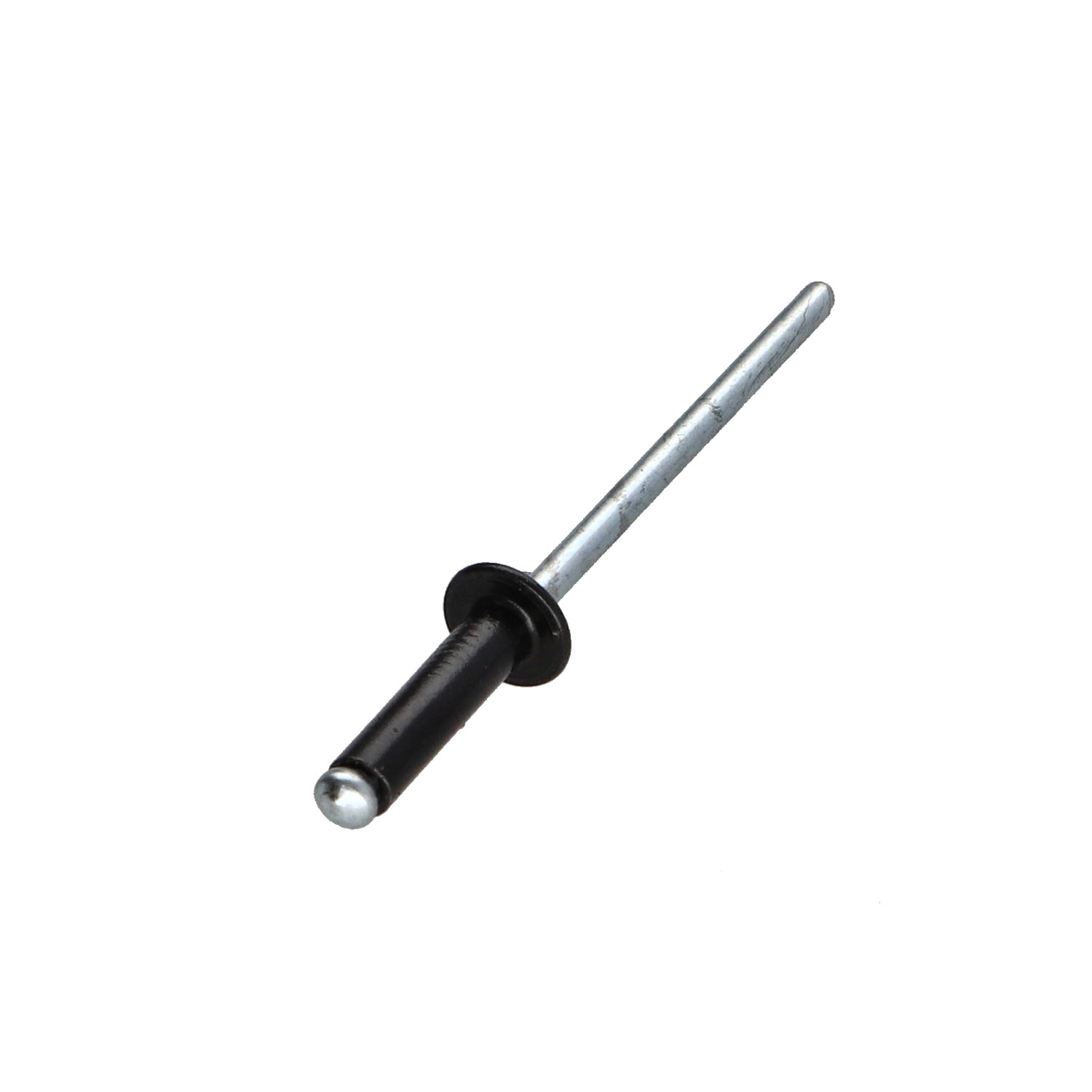

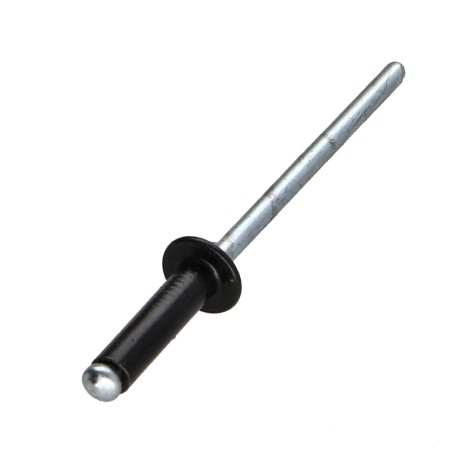

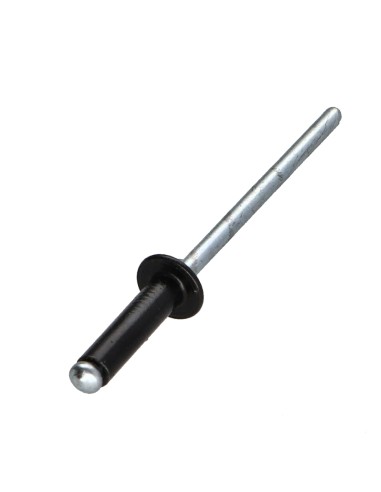

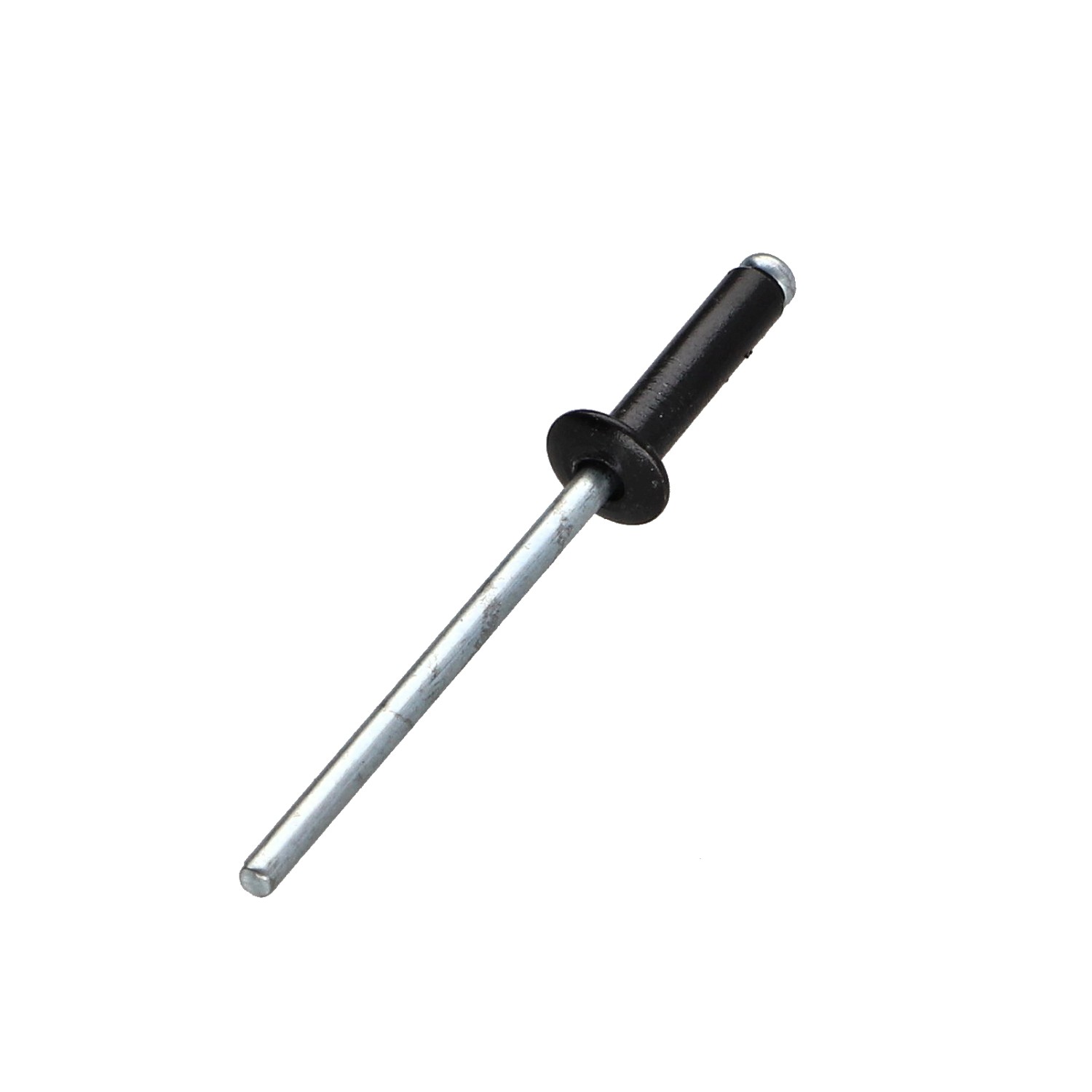

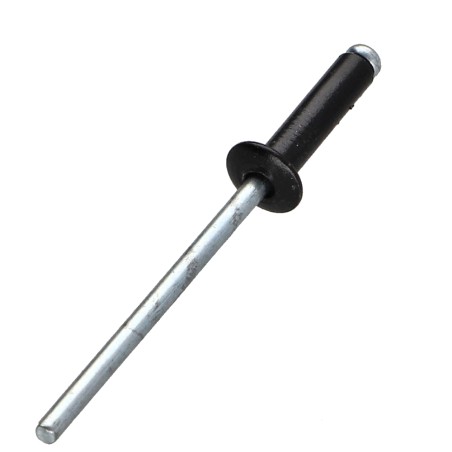

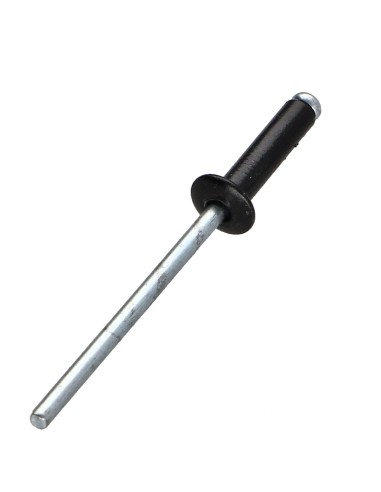

Blind rivets Aluminium Stahlgewinde 4.8X25 Thickness Of Panel 17 to 20 Standard round head Black
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

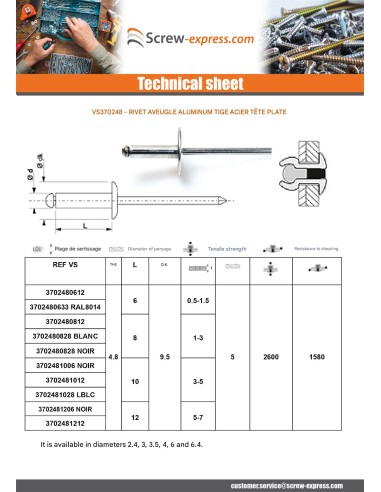

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Steel
COLOR
Black
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
17 a 20 mm
Rivet body length
25
Unit weight
3.6 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2600
3220 Items
3663072302143

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4.8X25 Thickness Of Panel 17 to 20 Standard round head Black
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

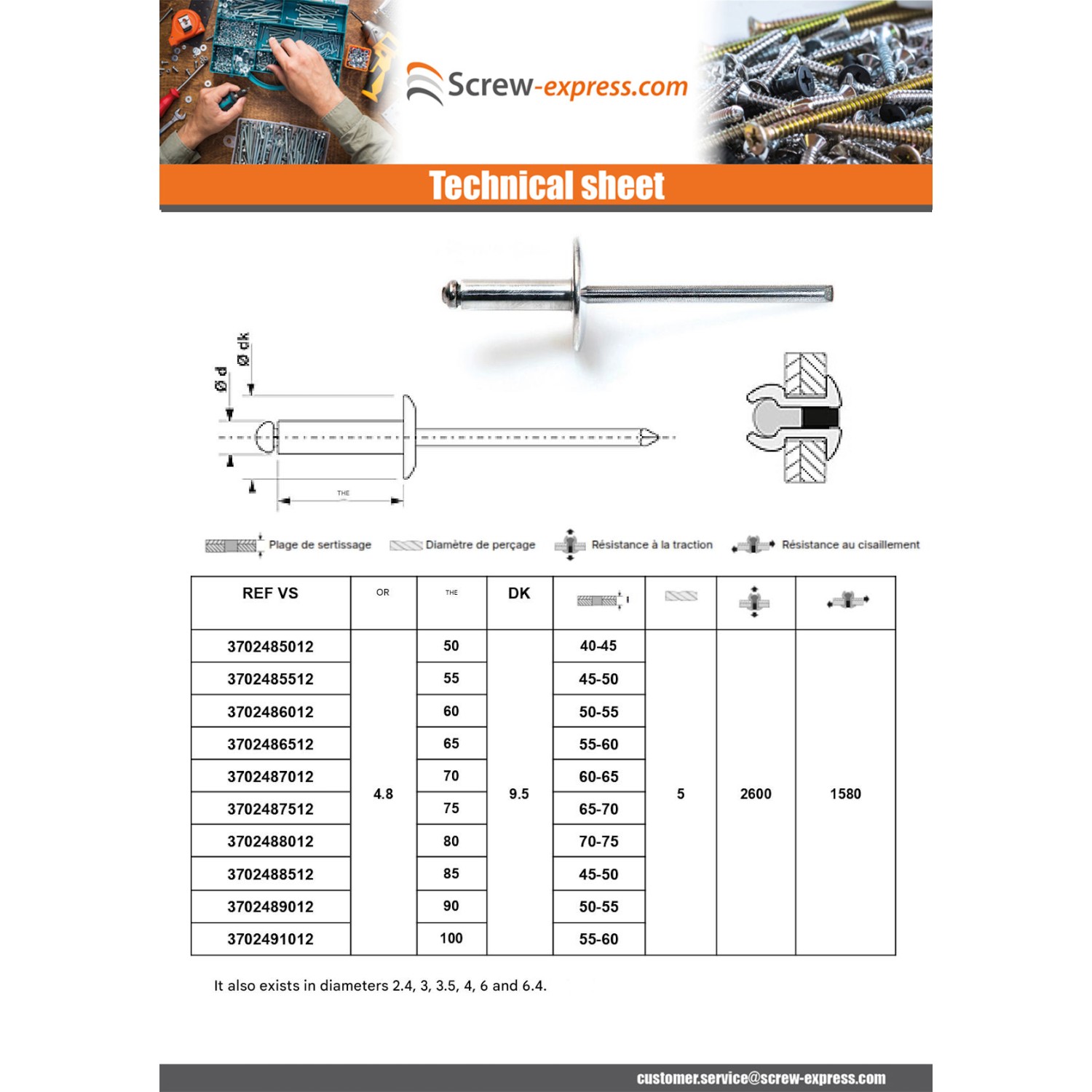

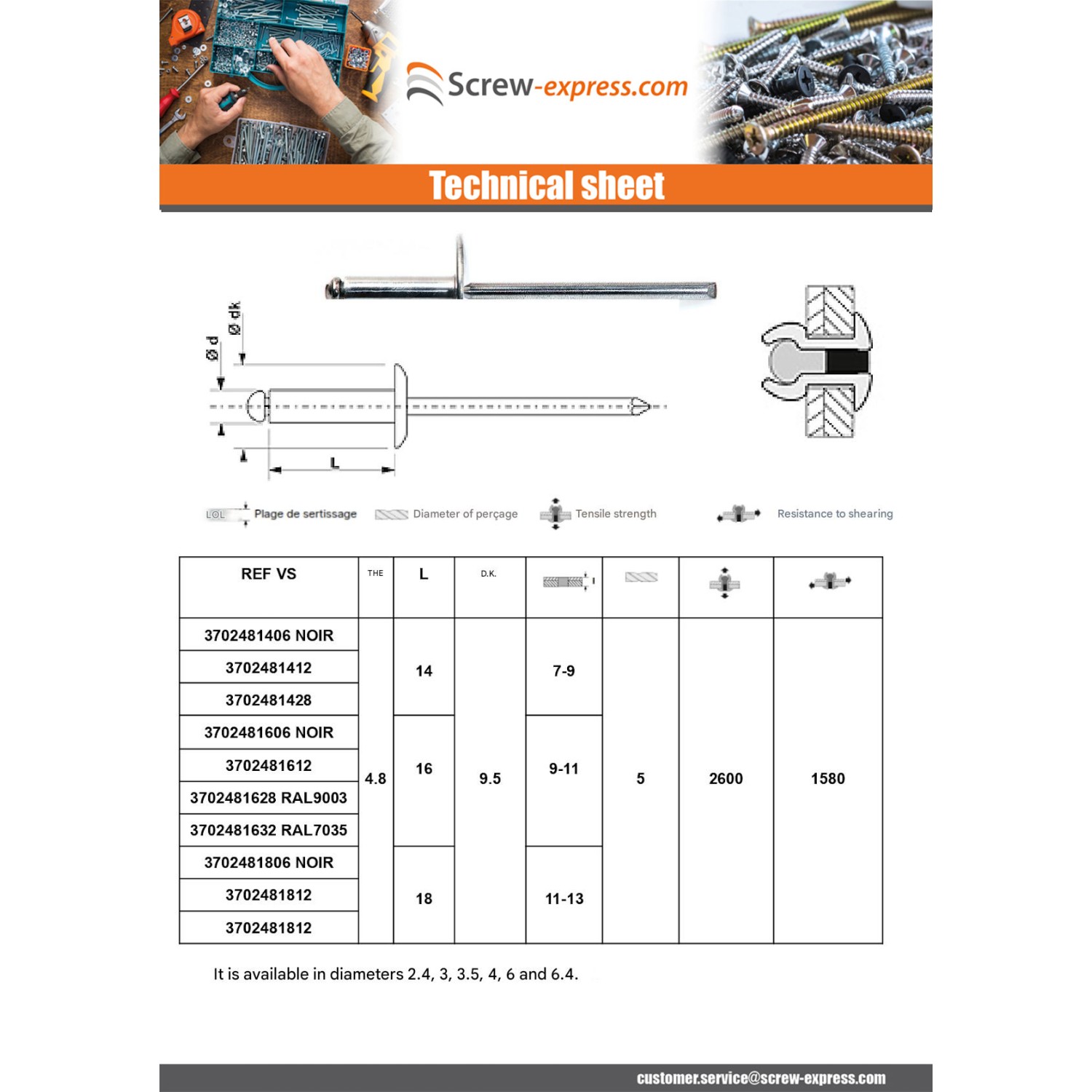

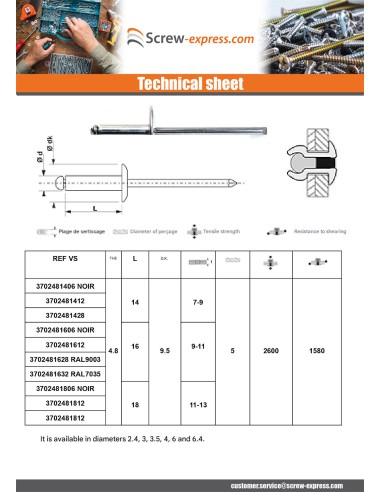

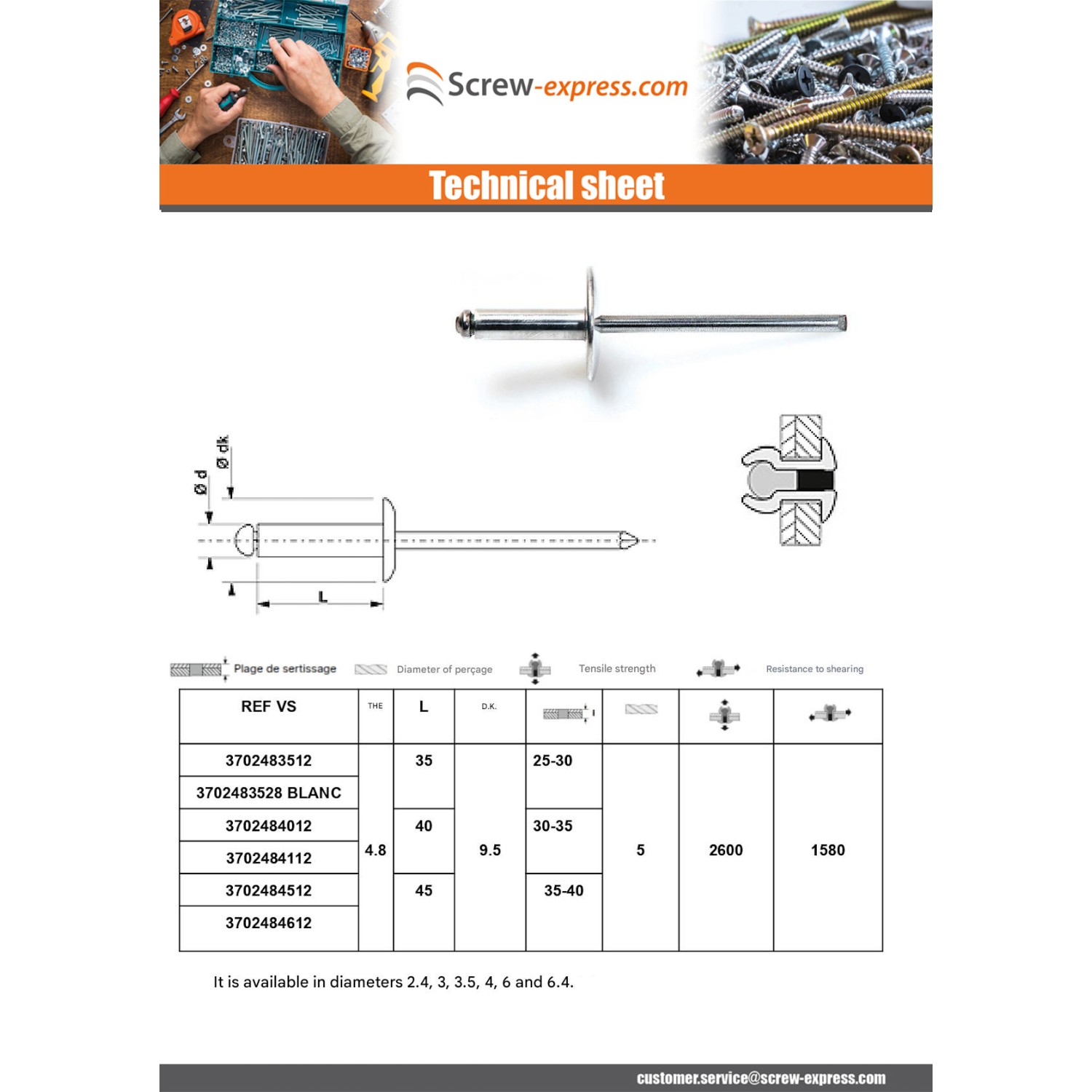

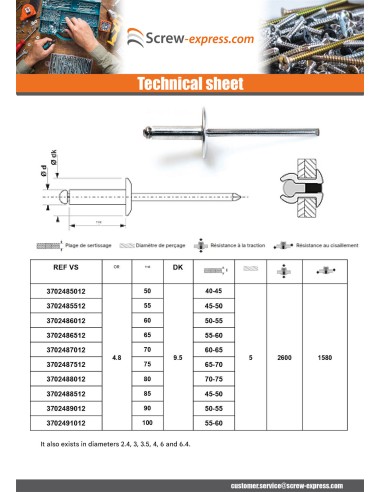

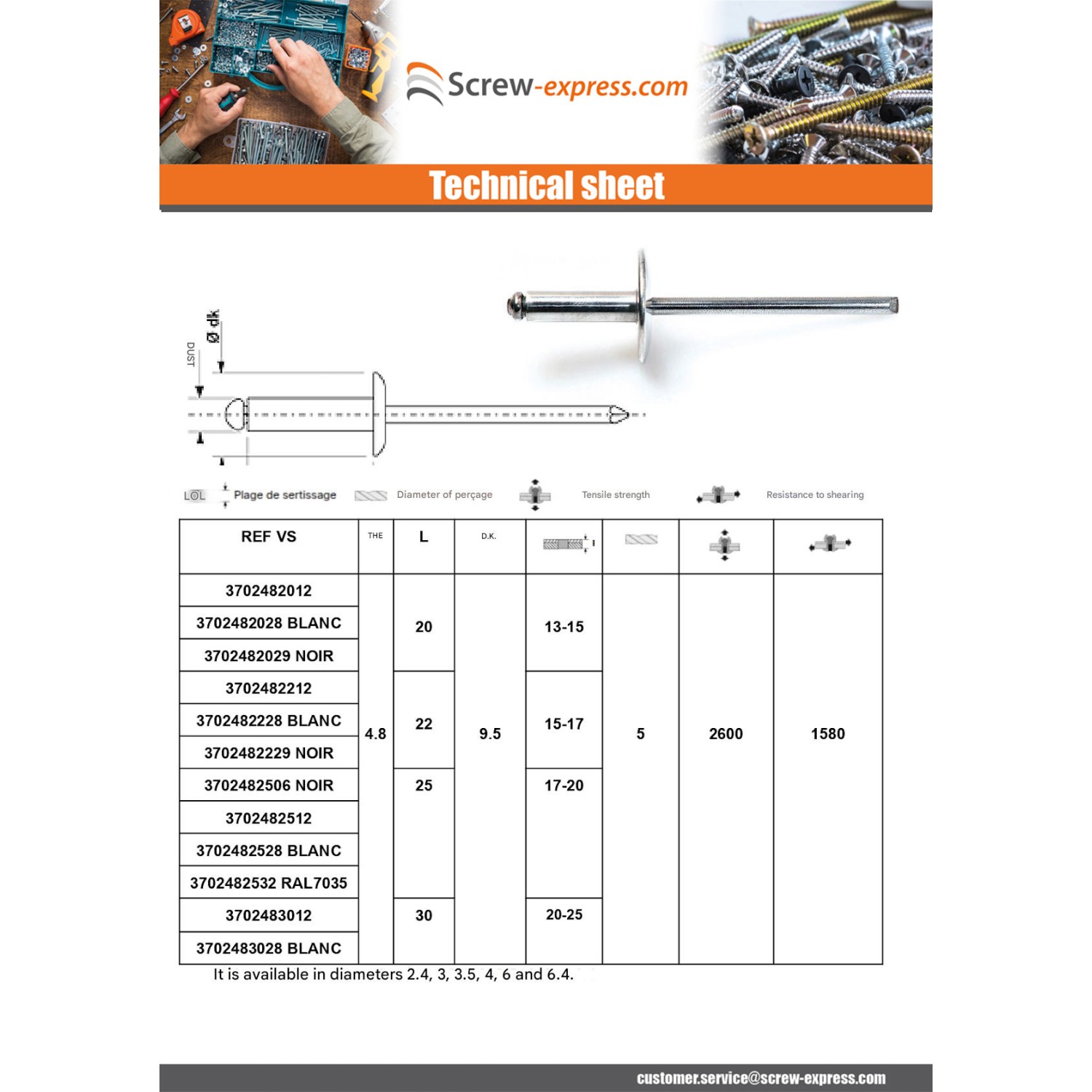

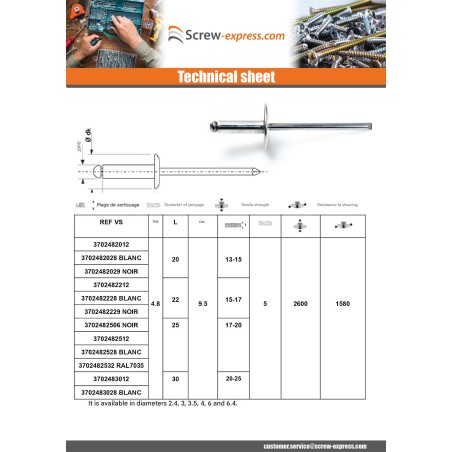

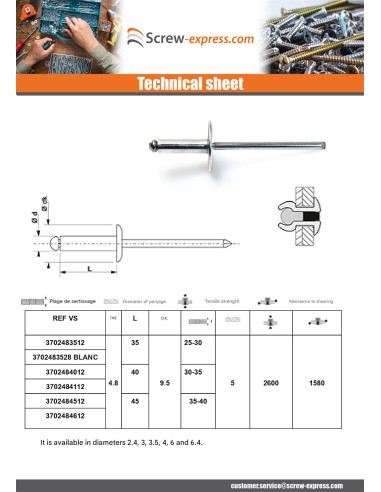

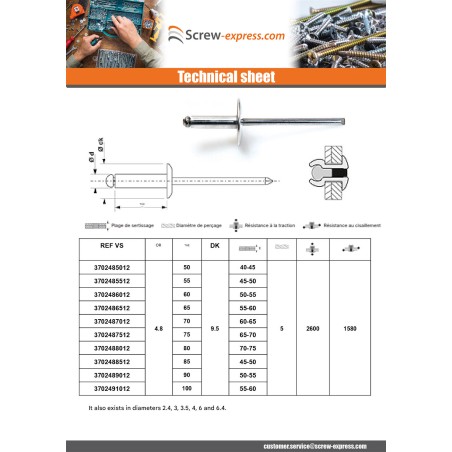

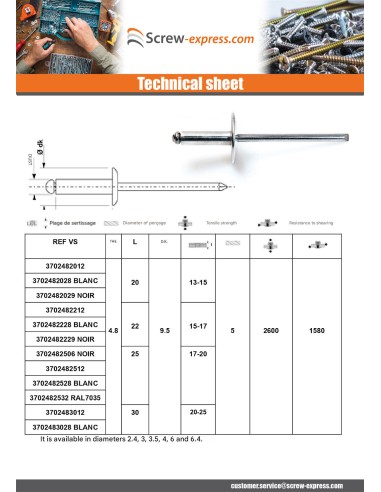

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 115148251 3663072302143
