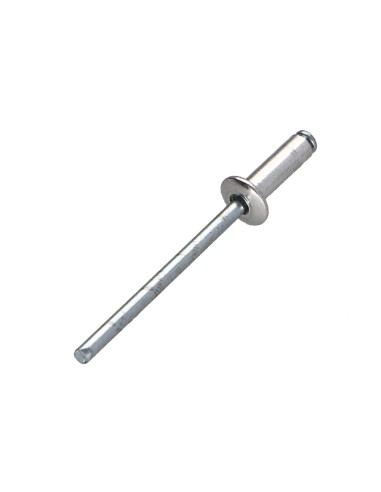

1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Standard round head ALX

1 x Blind rivets Aluminium Stahlgewinde 4.8X16...

1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Standard round head ALX

Name: 1 x Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Standard round head ALX
Brand: Vis-Express
SKU: 3702481612
Price: 1.7 EUR
Availability: InStock

Reference 3702481612_1

In stock 116820 Pièces

€1.70 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500	2000
Lot price VAT included	€1.70	€3.40	€5.30	€21.95	€87.80

Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Standard round head ALX

Packaging

1 unit
10 units
100 units
500 Units
2000 Units

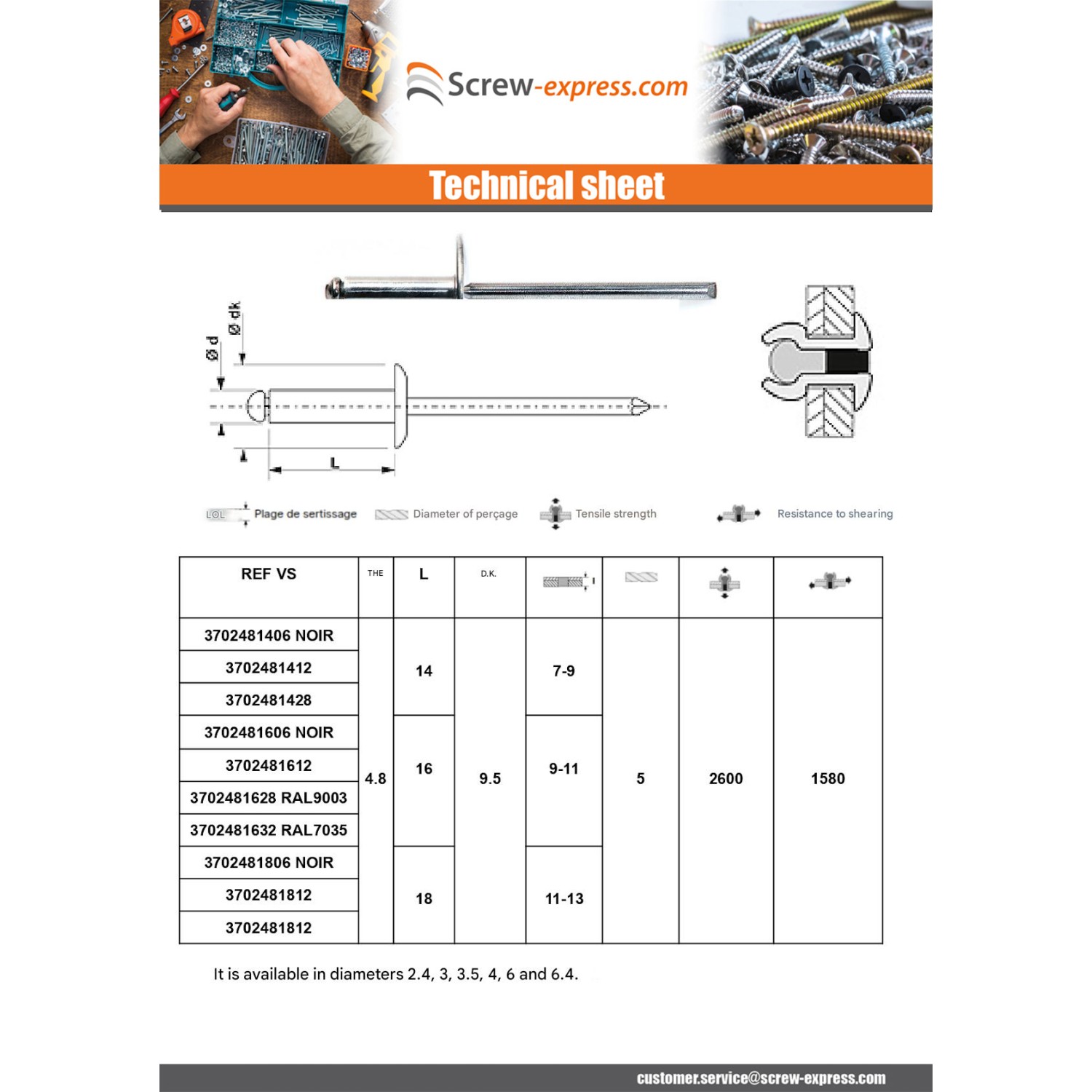

Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 9.5
Material: BODY Aluminium / rod Steel
Sub product family: Rivets BLIND STANDARDS (USE GENERAL)
Shear (N): 1580
Clamping thickness: 9 a 11 mm
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 16
Unit weight: 2.81 GR
Head shape: Round Head standard
Hole diameter: 5
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 2600

In stock 116820 Items

ean13 3663072064218

Application

Securing thin sheets (steel, aluminum)
Assembly of panels, plates or profiles
Aluminium joinery work
Installation of ventilation ducts
DIY, light bodywork

Description

Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Standard round head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

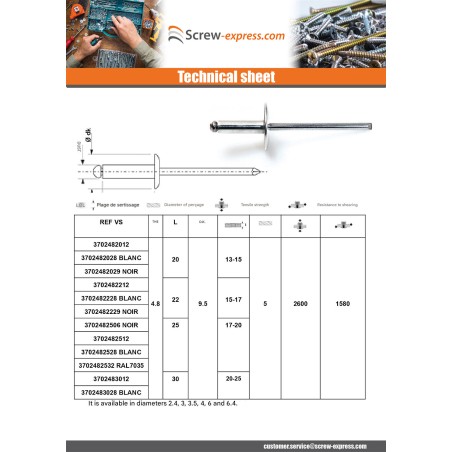

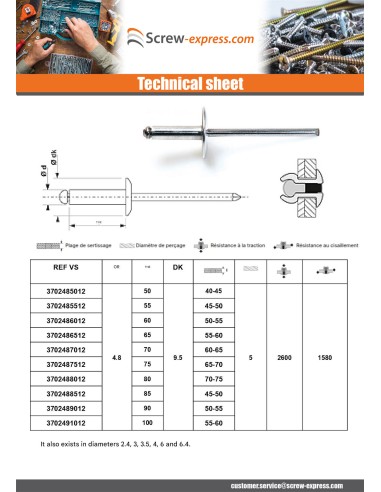

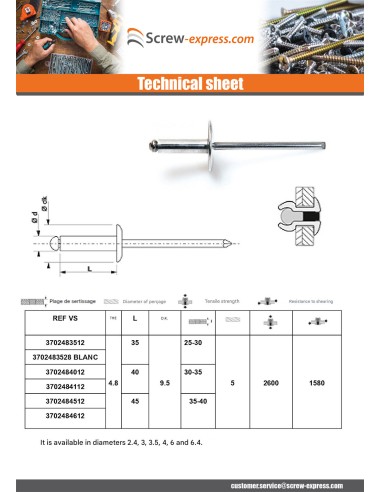

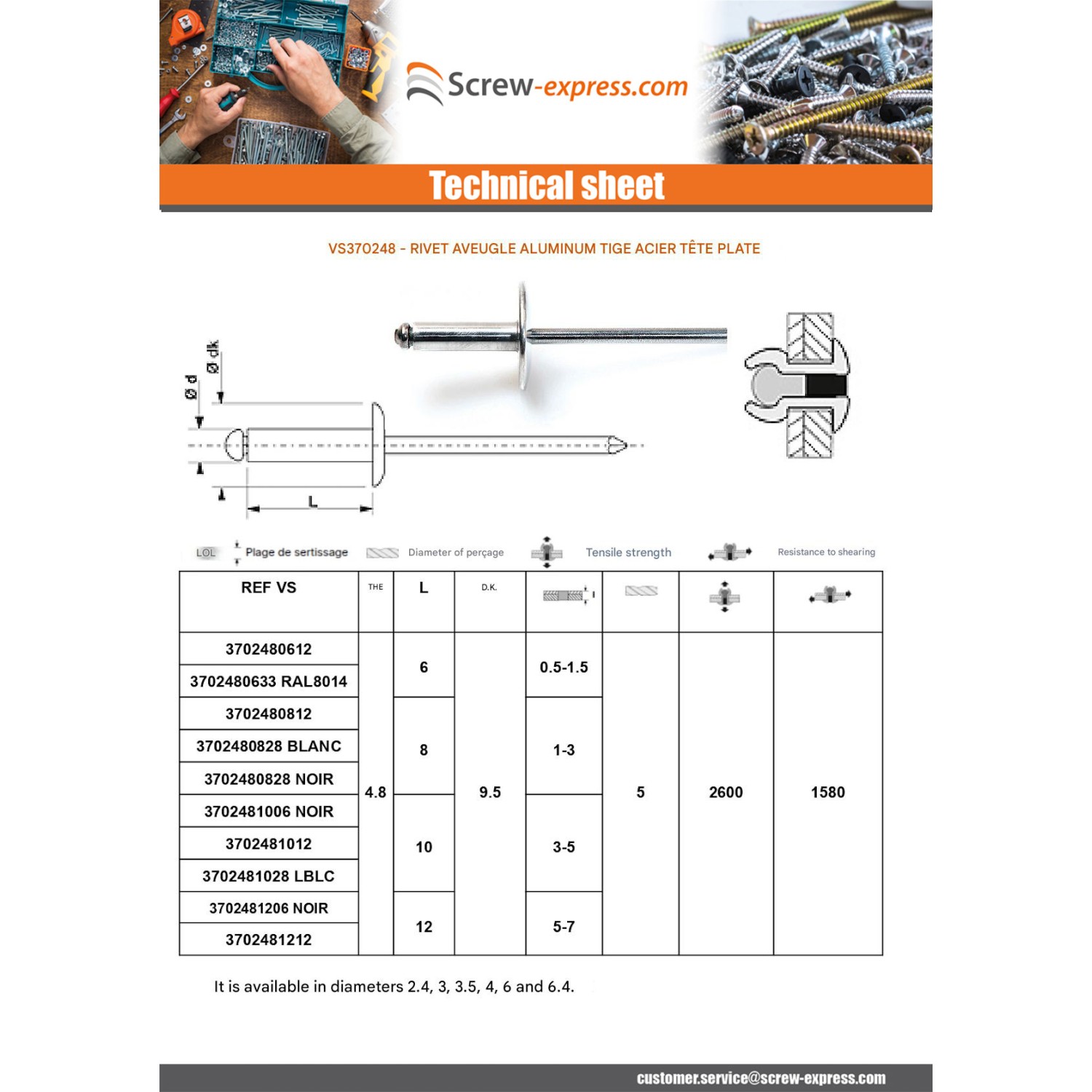

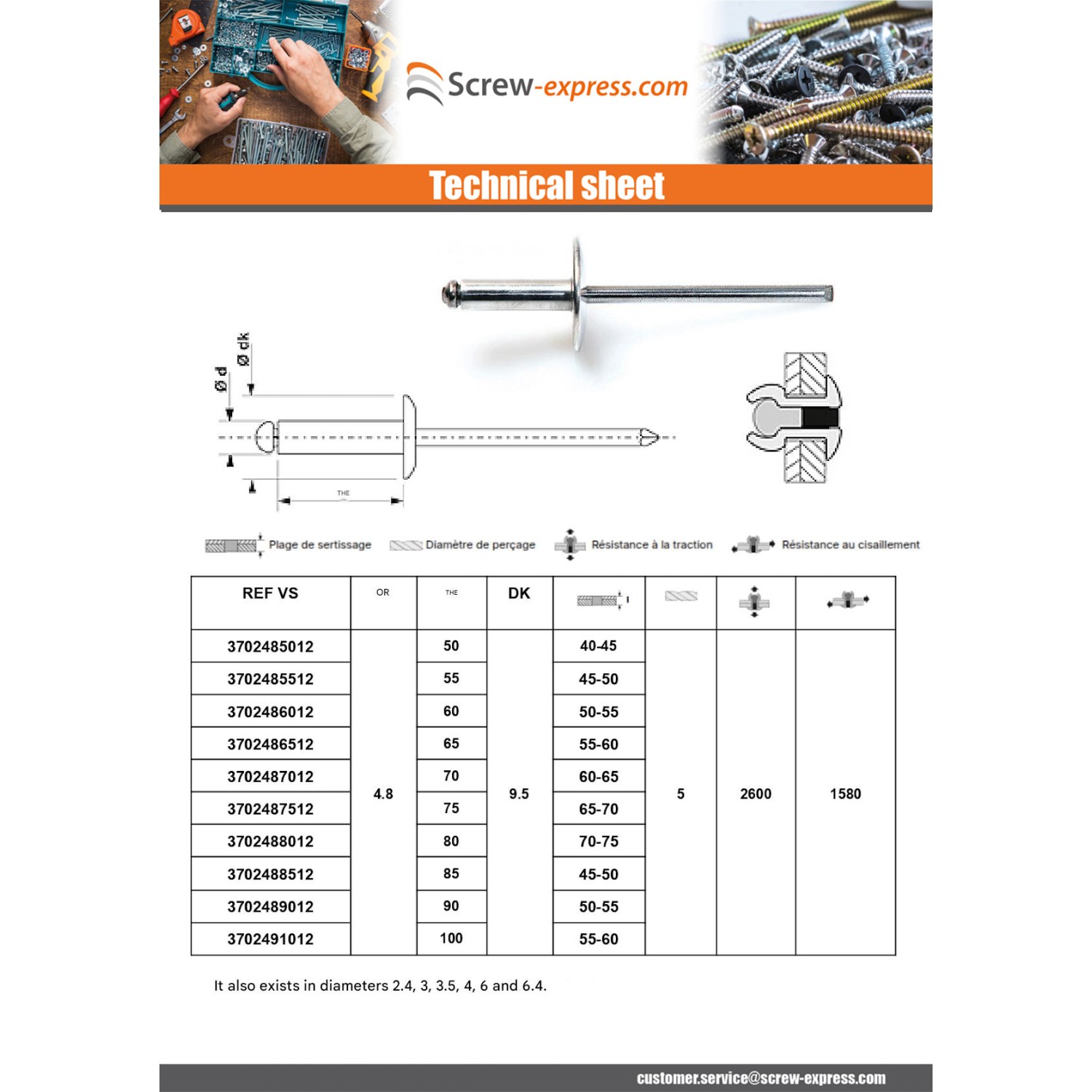

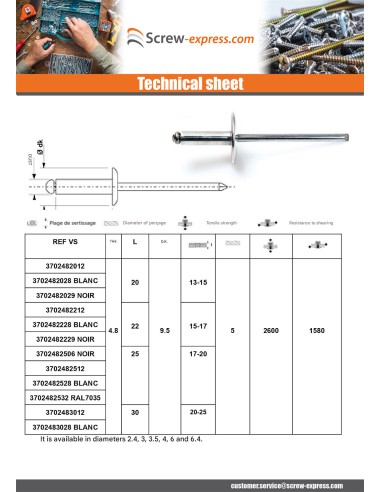

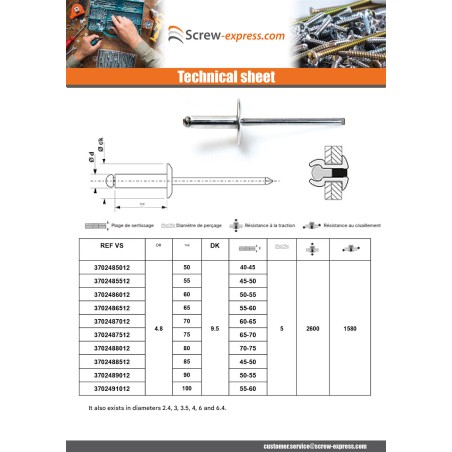

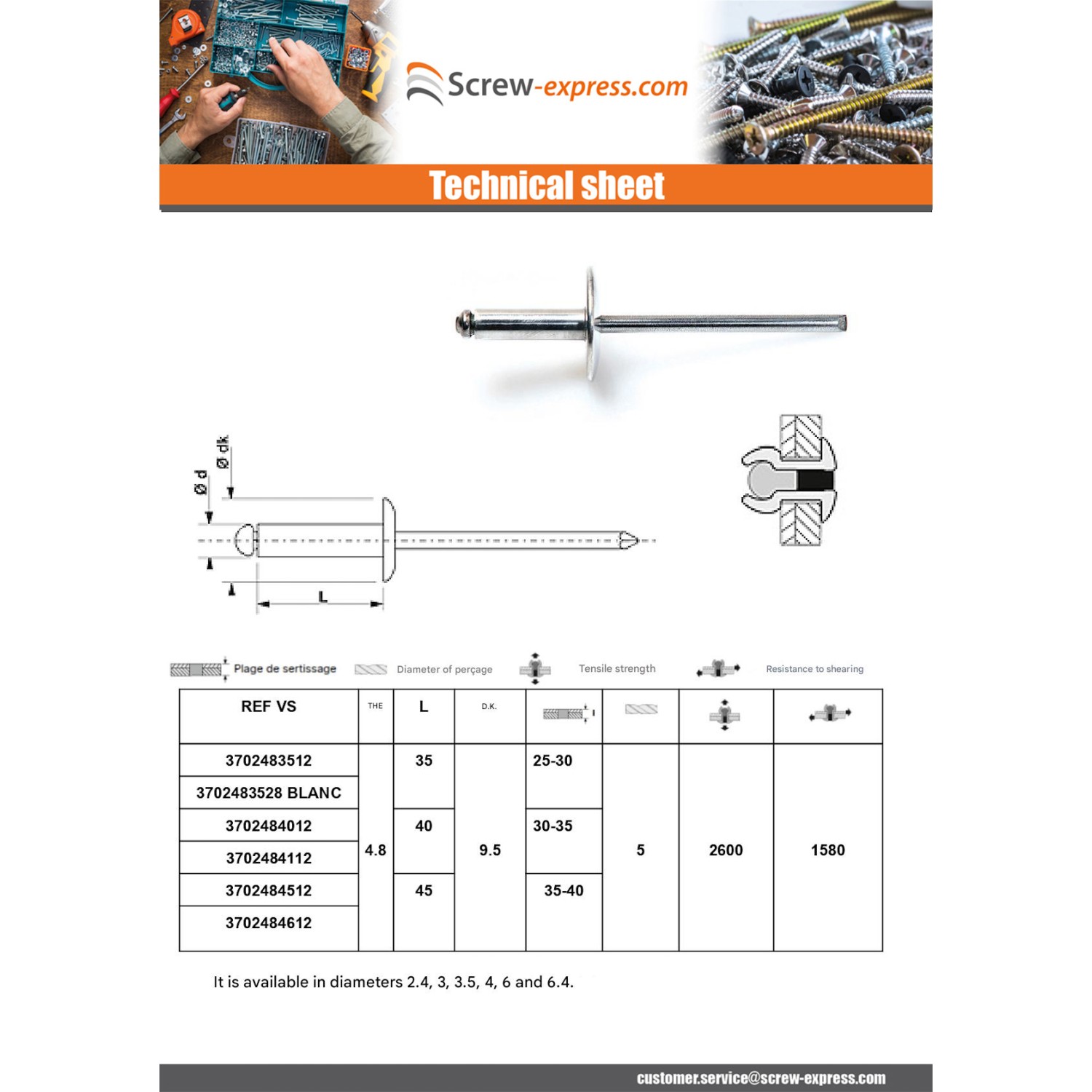

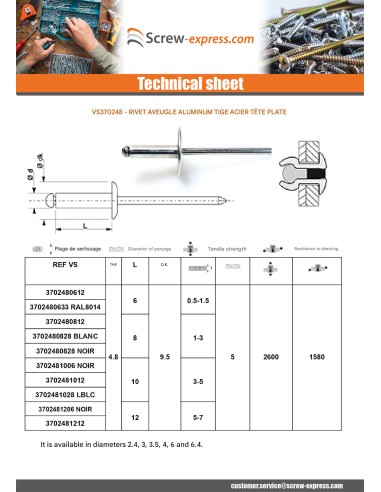

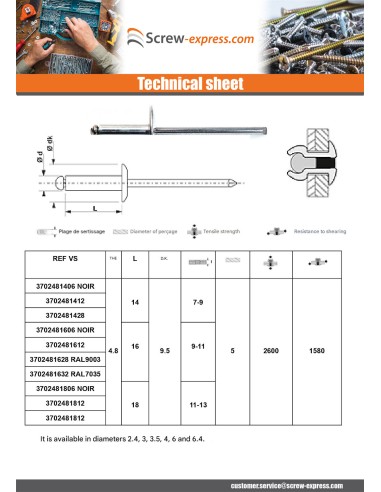

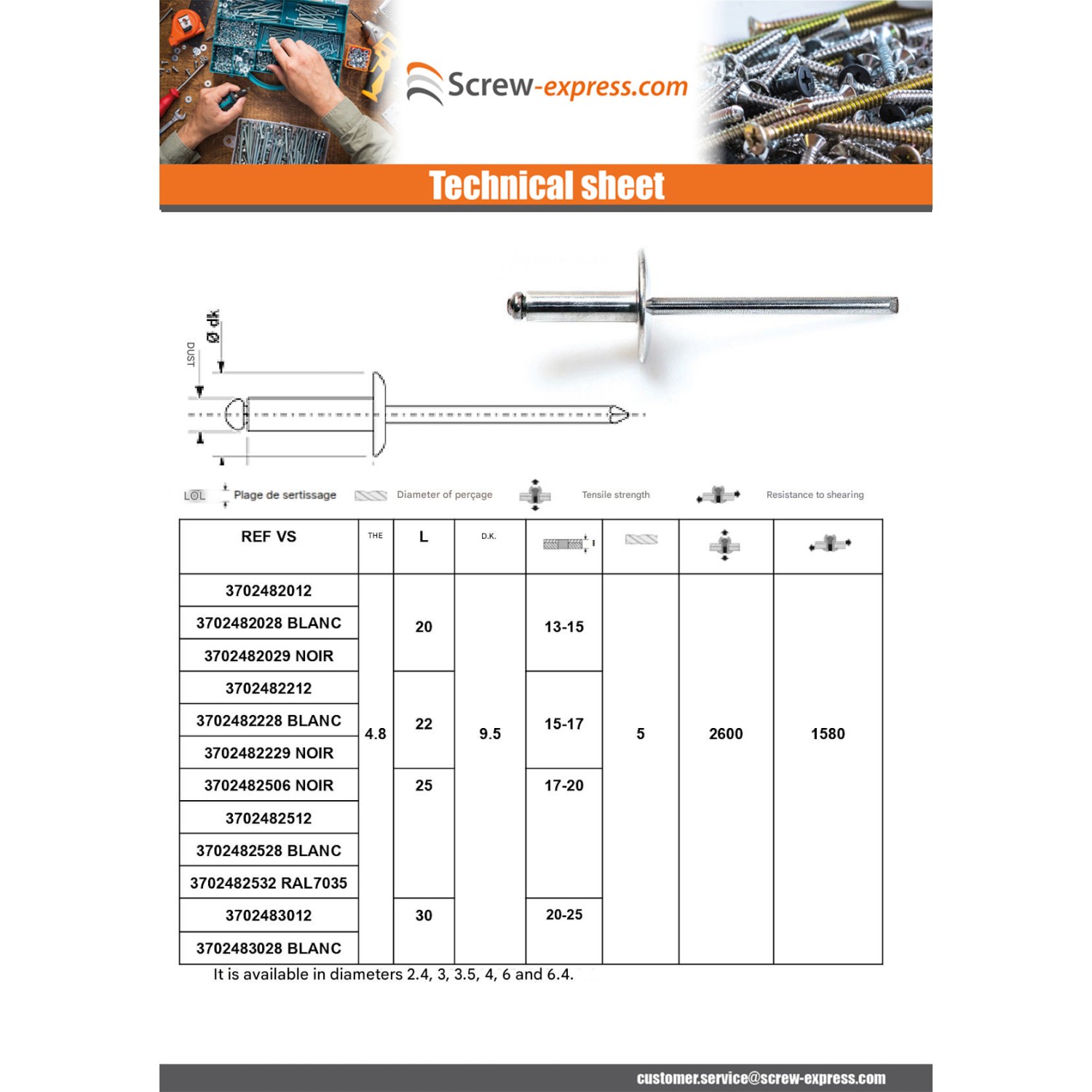

dimensional guide (mm)

Body diameter	2.4	3	3.2	4	4.8	6	6.4
Head diameter	5	6	6.5	8	9.5	11.5	12
Drilling diameter	2.6	3.2	3.4	4.2	5	6.2	6.6
resistance a la traction	500	800	1000	1600	2600	3800	4600
Shear strength	400	650	850	1300	2100	3000	3500
longueur tige	25	25	25	27	27	27	27	27

Other Reference : 103148161 164816 RIVETDIAM 4. AN 803500 RIVALS416 N/A002 ZLABO0002 ZLABO0002 ZLABO0002 ZLABO0002 RIV4.8X16ALA 04194817 5170002 RIVALS416 /AN 00970042 RIVET4.8 957 32RI516 944331 RATP4.816 7100761 260066 VRIV4.8X15TP 23804816 518008 QRIV4816PL01 RIVETAC4.8X1 RIVPOP4.8X16 VIS0482 0647 01127512 ANS BVRVB48X16AF 05773 1 100557 AERIVET17 39753 39753 FRIV160 RIPO048 16AL 06725 VP030006 AN 803500 803500 640300148465 RIVETALU/AC4 164816 212039 5000 000852 AN 100557 RIV4816 9000616 ZRIVETALU4X1 POP4-16 BAH00008 DTR000918337 / CDE RIV4816 FP0004 RIVET4816 FP0004 164816 20012740 RIV_TN_48_16 VP030006 0977AC/48*16 EMB_VIS_0178 RIVET4816 0775 A001016 DMRIV0036 2933 QRI10030 080516 GGGV4061 093744816 803500 803500 803500 803500 3663072064218

Use Cases

Joris P. (vis-express.fr)
2024-06-30

Hello, the rivets are used for the manufacture of flight cases (assembly of profiles and angles). The dimensions of 16mm are ideal for the production of flight cases because it corresponds to the standard of thicknesses that can be encountered ( 8mm 9mm wooden panel).
