1 x Washer Split Lock Linch Pin Screw M18 Steel
1 x Washer Split Lock Linch Pin Screw M18 Steel
1 x Washer Split Lock Linch Pin Screw M18 Steel
1 x Washer Split Lock Linch Pin Screw M18 Steel
1 x Washer Split Lock Linch Pin Screw M18 Steel
1 x Washer Split Lock Linch Pin Screw M18 Steel

1 x Washer Split Lock Linch Pin Screw M18 Steel

3550001801_1
In stock 980 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €4.25 €8.45 €10.20 €28.05

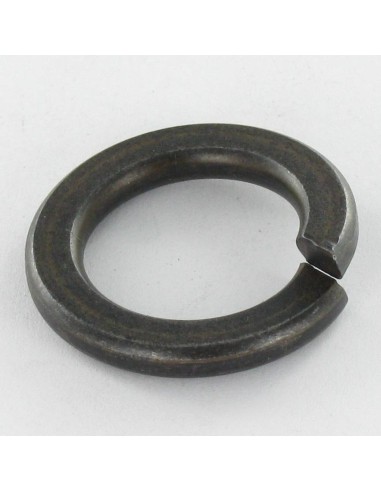

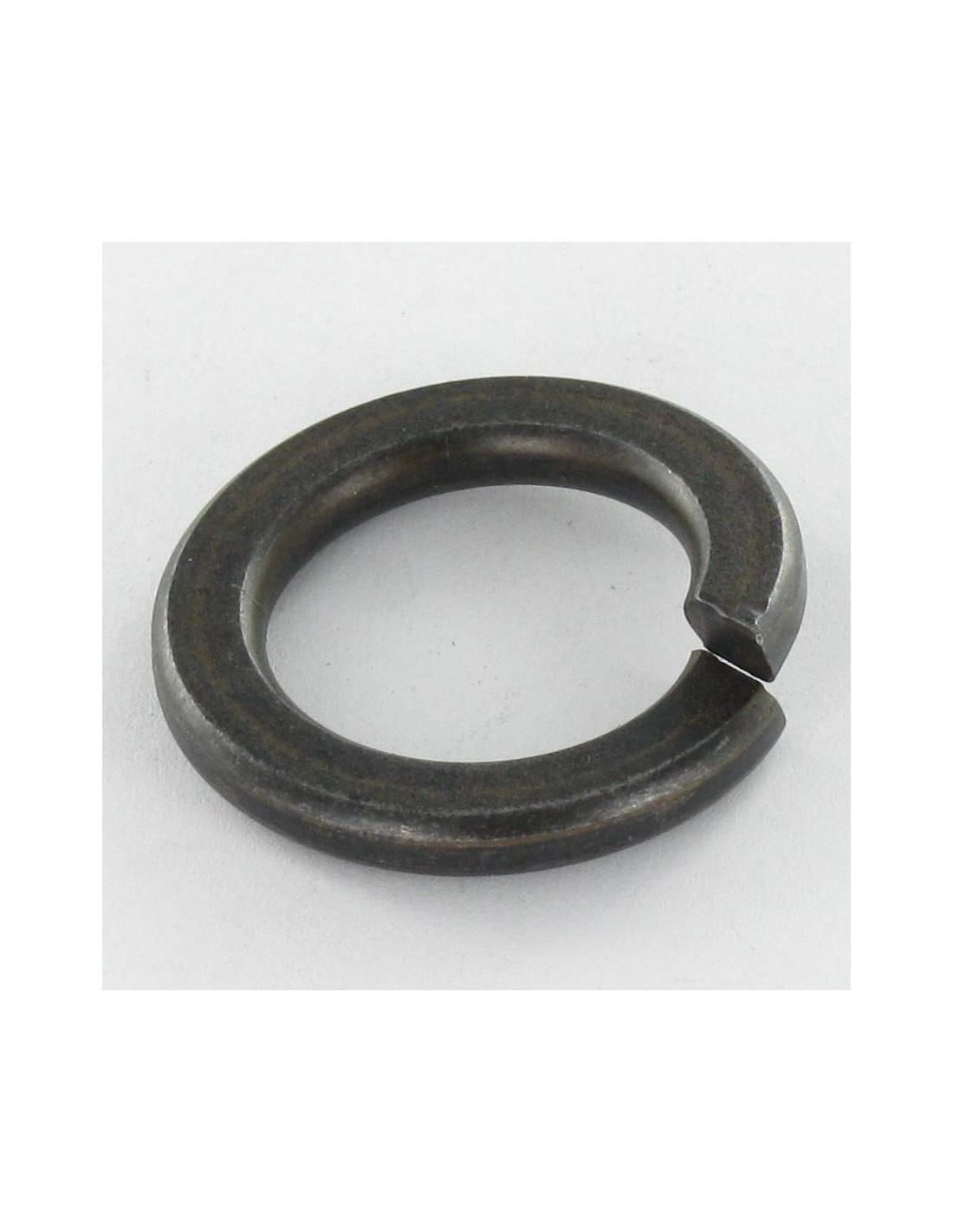

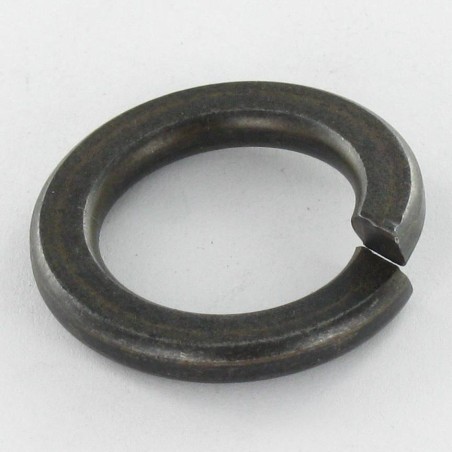

DIN 127 B - Washer Split Lock Linch Pin Screw M18 Steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M18
Thickness
mm
Linch Pin Screw
M18
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 127 B
Unit weight
Class 12.9 GR
980 Items
3663072060616
Washer Split Lock Linch Pin Screw M18 Steel
Diameter = M18, Thickness = MM, Material = Steel, Norm = DIN 127 B

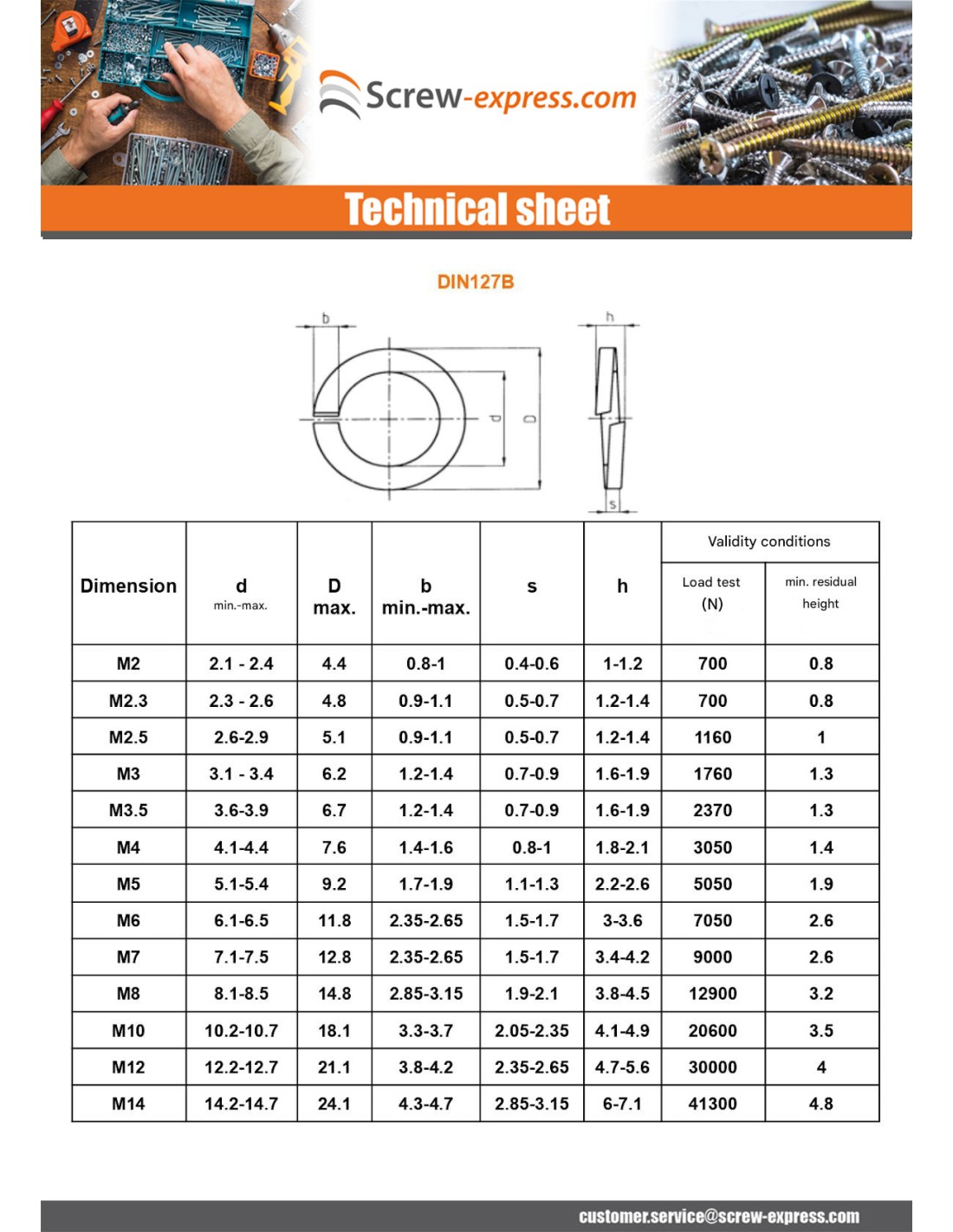

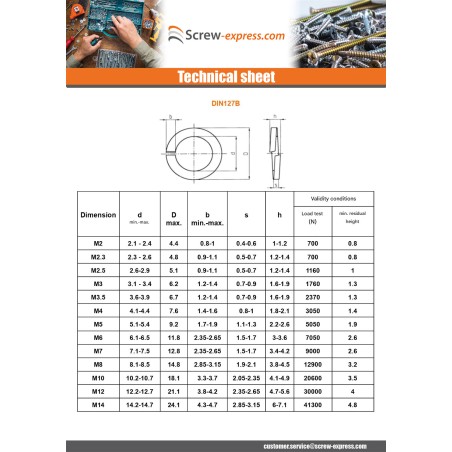

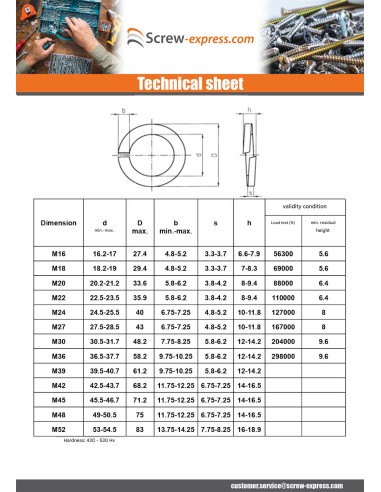

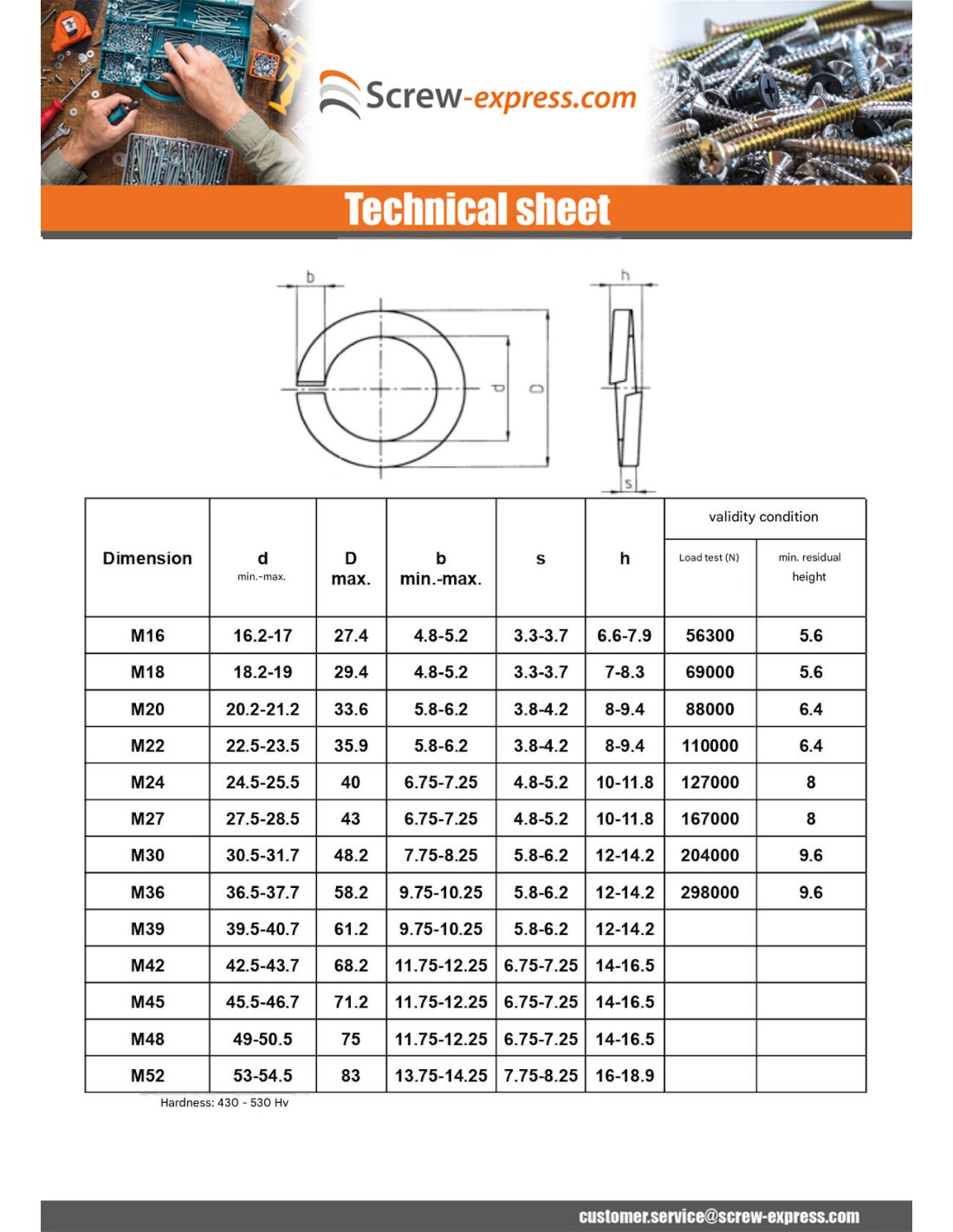

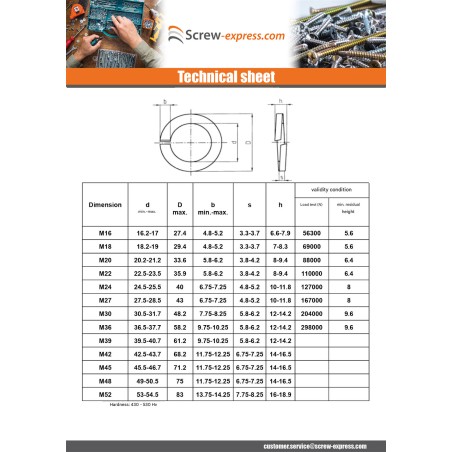

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M24 M27 M30 M36 M39 M42 M45 M48
Interior diameter 3.1 4.1 5.1 6.1 7.1 8.1 10.2 12.2 14.2 16.2 18.2 20.2 24.5 27.5 30.5 36.5 39.5 42.5 45.5 49
Exterior diameter 6.2 7.6 9.2 11.8 12.8 14.8 18.1 21.1 24.1 27.4 29.4 33.6 40 43 48.2 58.2 61.2 68.2 71.2 75
Tickness 0.8 0.9 1.2 1.6 1.6 2 2.2 2.5 3 3.5 3.5 4 5 5 6 6 6 7 7 7

Other Reference : 0180000018141 VBOROG 130925 65075107 130925 044018 3663072060616
Fulvio I. (vis-express.fr)
2025-08-10

Savibg nuts from turning in an optical stand
