1 x Washer Split Lock Linch Pin Screw M14 Zinc Plated

1 x Washer Split Lock Linch Pin Screw M14 Zinc...

1 x Washer Split Lock Linch Pin Screw M14 Zinc Plated

Name: 1 x Washer Split Lock Linch Pin Screw M14 Zinc Plated
Brand: Screw Express
SKU: 3550001402
Price: 1.85 EUR
Availability: InStock

Reference 3550001402_1

In stock 25688 Pièces

€1.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500	2000
Lot price VAT included	€1.85	€3.70	€7.35	€34.90	€139.60

DIN 127 B - Washer Split Lock Linch Pin Screw M14 Zinc Plated

Packaging

1 unit
10 units
100 units
500 Units
2000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: M14
Material: Steel
Coating: ZINC PLATED White

ZINC PLATED White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Norm: DIN 127 B
Jobs: AGRICULTURAL
WEIGHT For THERE unit: 6.5 GR

In stock 25688 Items

ean13 3663072060562

Description

Washer Split Lock Linch Pin Screw M14 Zinc Plated
Diameter = M14, Thickness = MM, Coating = Zinc Plated, Material = Steel, Norm = DIN 127 B, Jobs = Agricultural

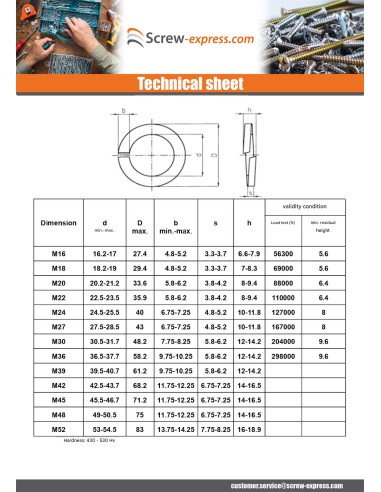

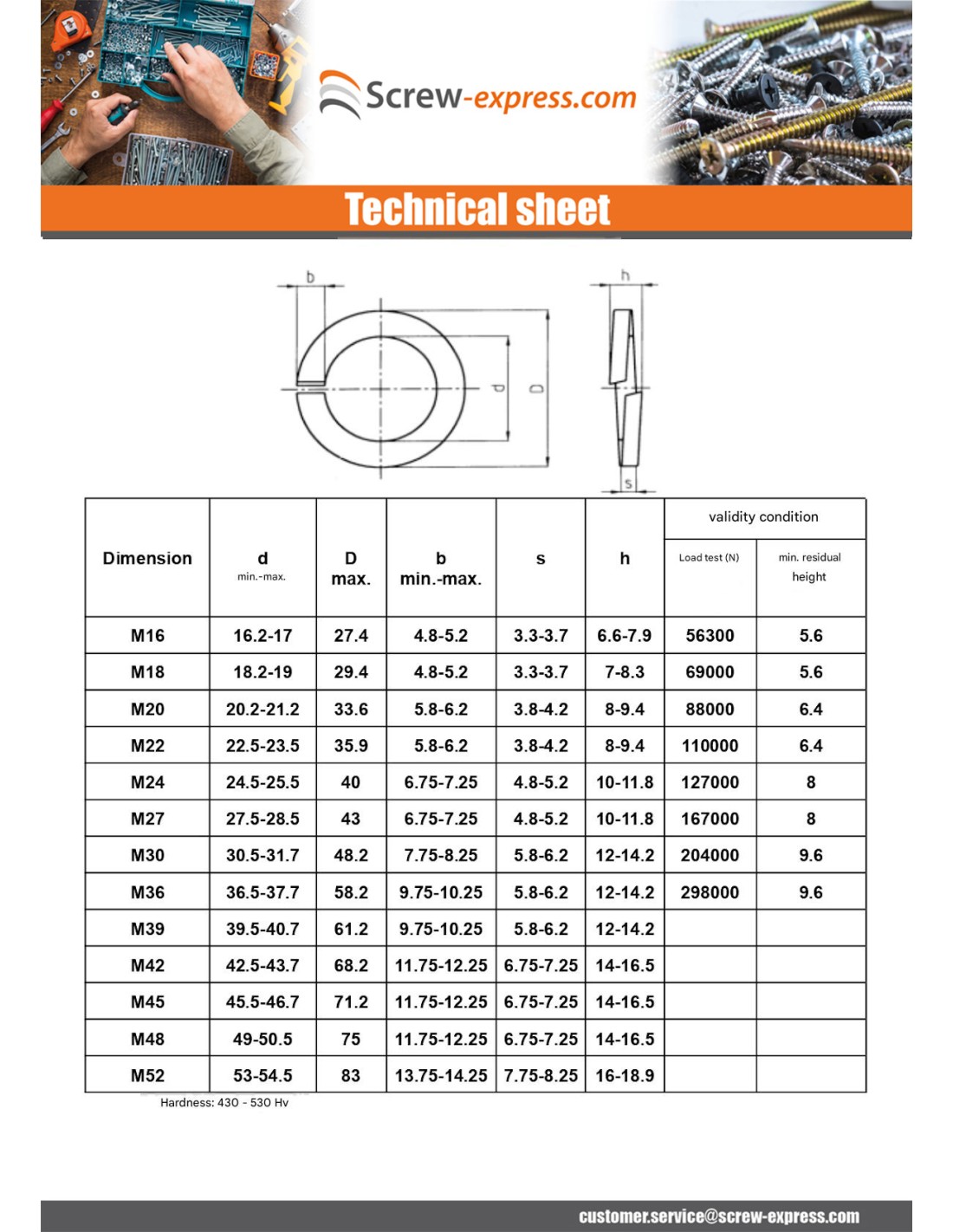

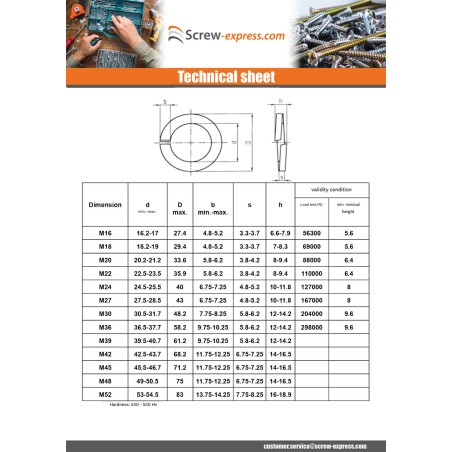

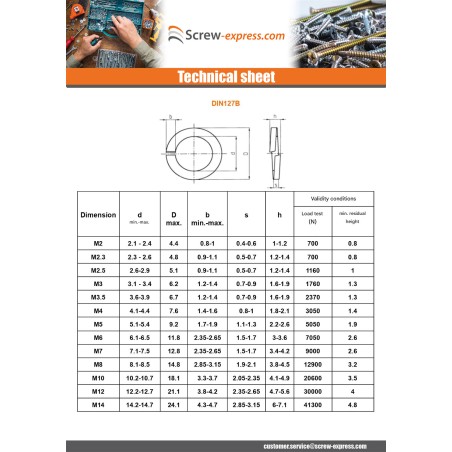

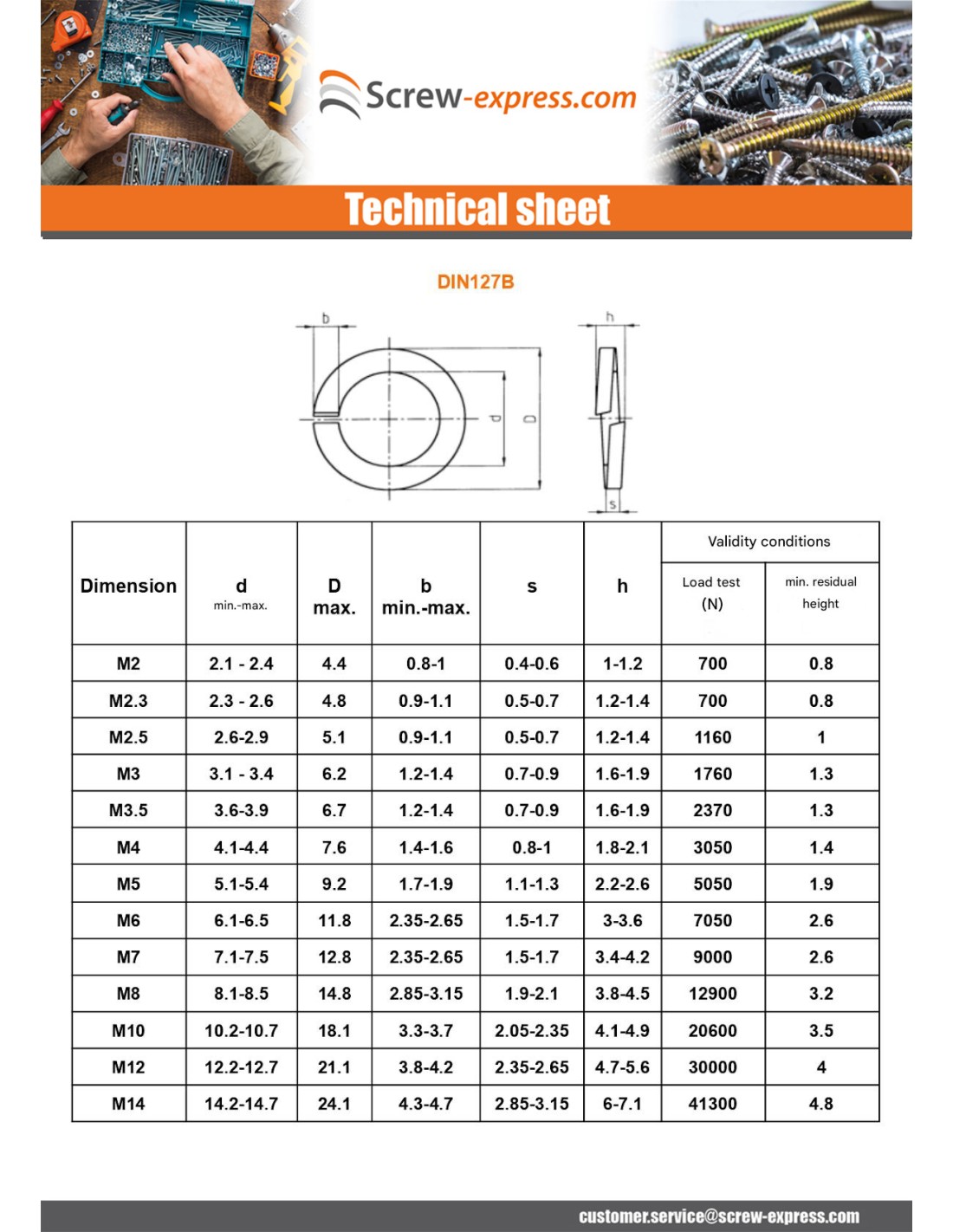

dimensional guide (mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Interior diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Exterior diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tickness	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7

Other Reference : 0180000114140 RONDGRM14Z8 C0800057 3-0207 90010014 22030007 RONWSCB14J 0QR14WCAD BL9314 4120004 04189600 7.800408 002068.014 22724 002289 3005007 1807014 A3013737 9A-1507054 A17.10F0002 944305 6000-0396 5680038 14022428 1460101140 5680038 267950 1408000032 01833 401356009900 2g005988 1020020002 308140040 5456 5456 W14 101955 RZGROWER14 0066 0066 1807014 7518 KGO1277861 01127533 R140590 3-0207 AN V012001400 9908072 MP022081 RZG14 PMM0429 0603014 6620036 LN03 21 2201937 5680038 2204-172 P004012 RGG14 162314 5680038 4105085 22215 03T009 201539 FR0004 081411 W14 A3013737 RZW14 270042 V012001400 207 B5005814 51356 VISRONGR014 V012001400 519-034-6 SY12714 BL22014 132222 1001131 270042 01C17062 FR0004 11715608 FR0004 RON14G 1-001-02-85 01833 NFE25516.001 044114 9401588 22.083.651 ROND GROW14 A11015 5456 T1904014 V03-015 RONGRO14 1460101140 92590014 044114 225760 044114 V012001400 3663072060562

Use Cases

Bruno D. (vis-express.fr)
2026-05-10

Fixation d'un carter de protection sur un broyeur végétaux, de largeur 2m sur prise de force de tracteur.. La rondelle élastique empêche l'écrou de se desserrer car les vibrations sont assez conséquentes !

Christophe B. (vis-express.fr)
2026-05-10

Fixation de deux 1/2 essieux de remorque sur un chassis en auto construction
