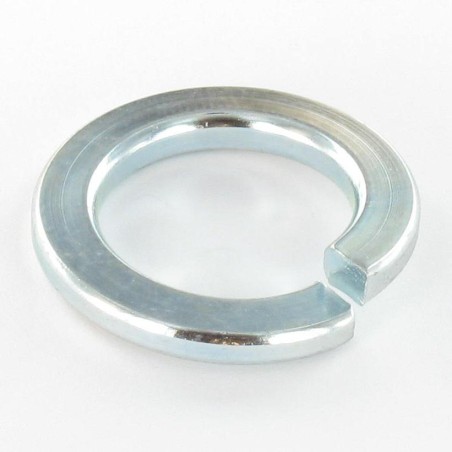

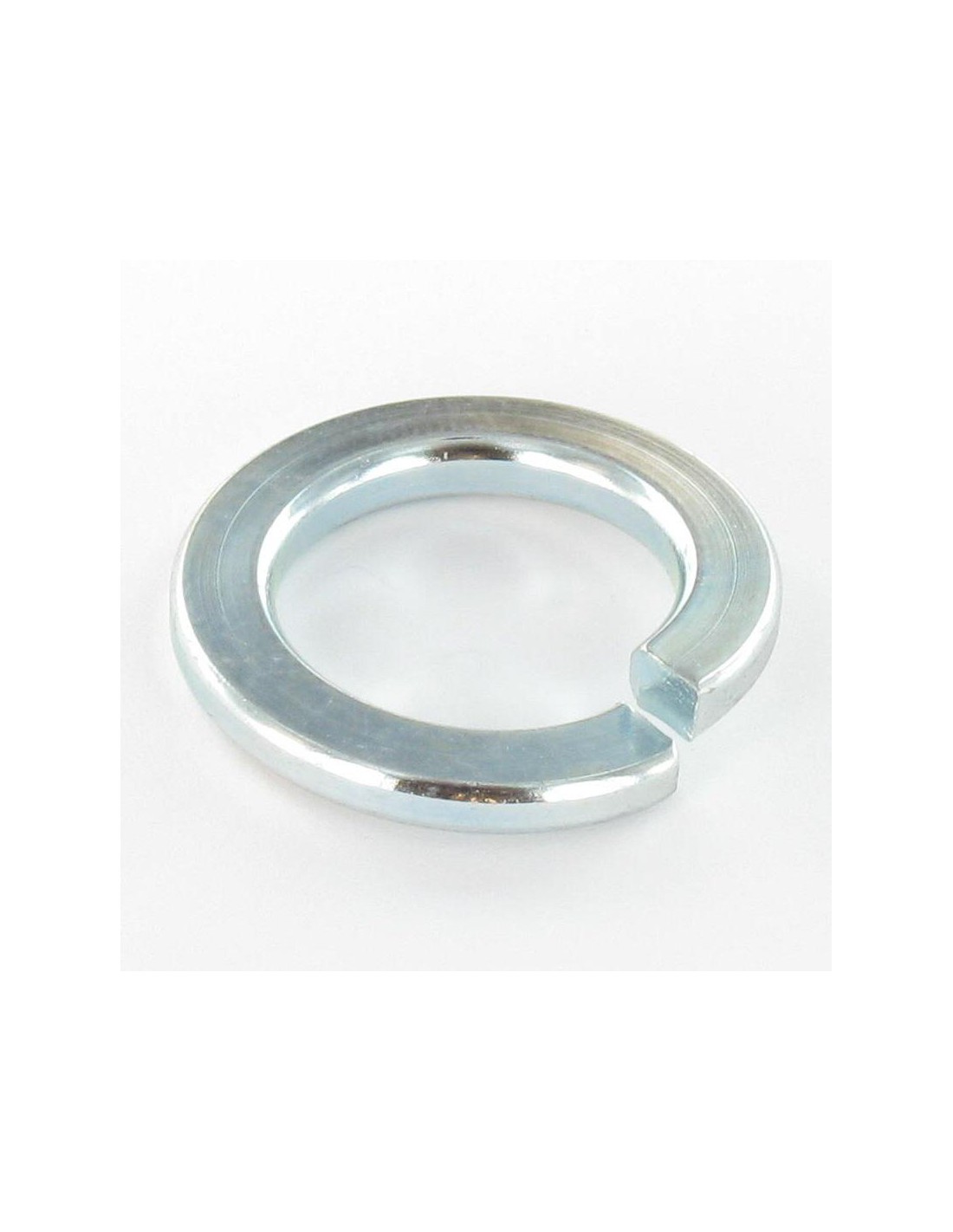

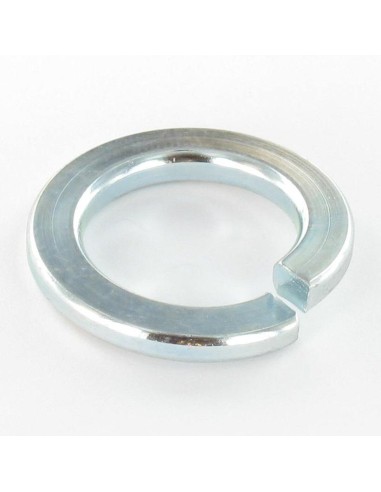

1 x Washer Split Lock Linch Pin Screw M5 Zinc Plated

Washer Split Lock Linch Pin Screw M5 Zinc Plated
Diameter = M5, Thickness = MM, Coating = Zinc Plated, Material = Steel, Norm = DIN 127 B

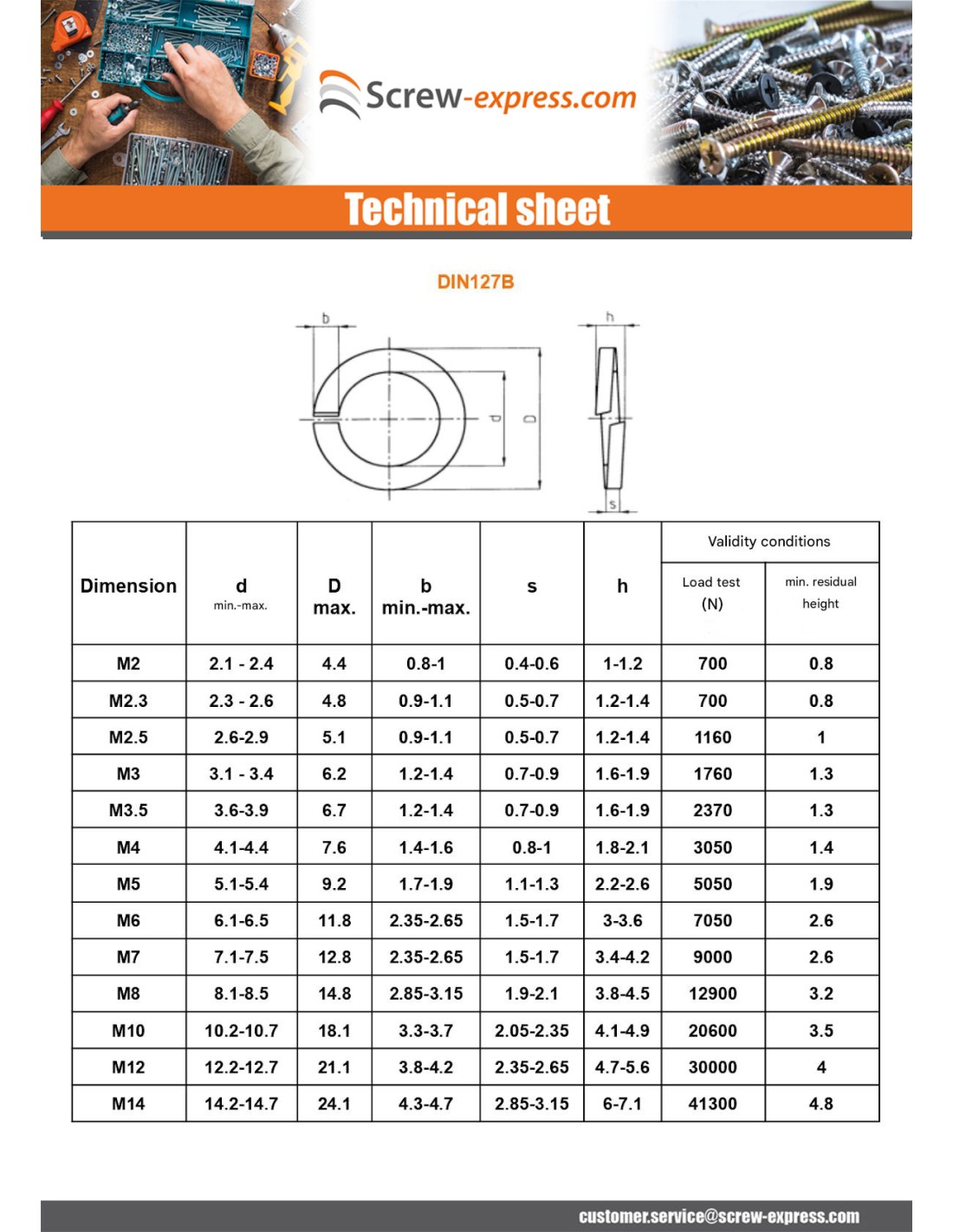

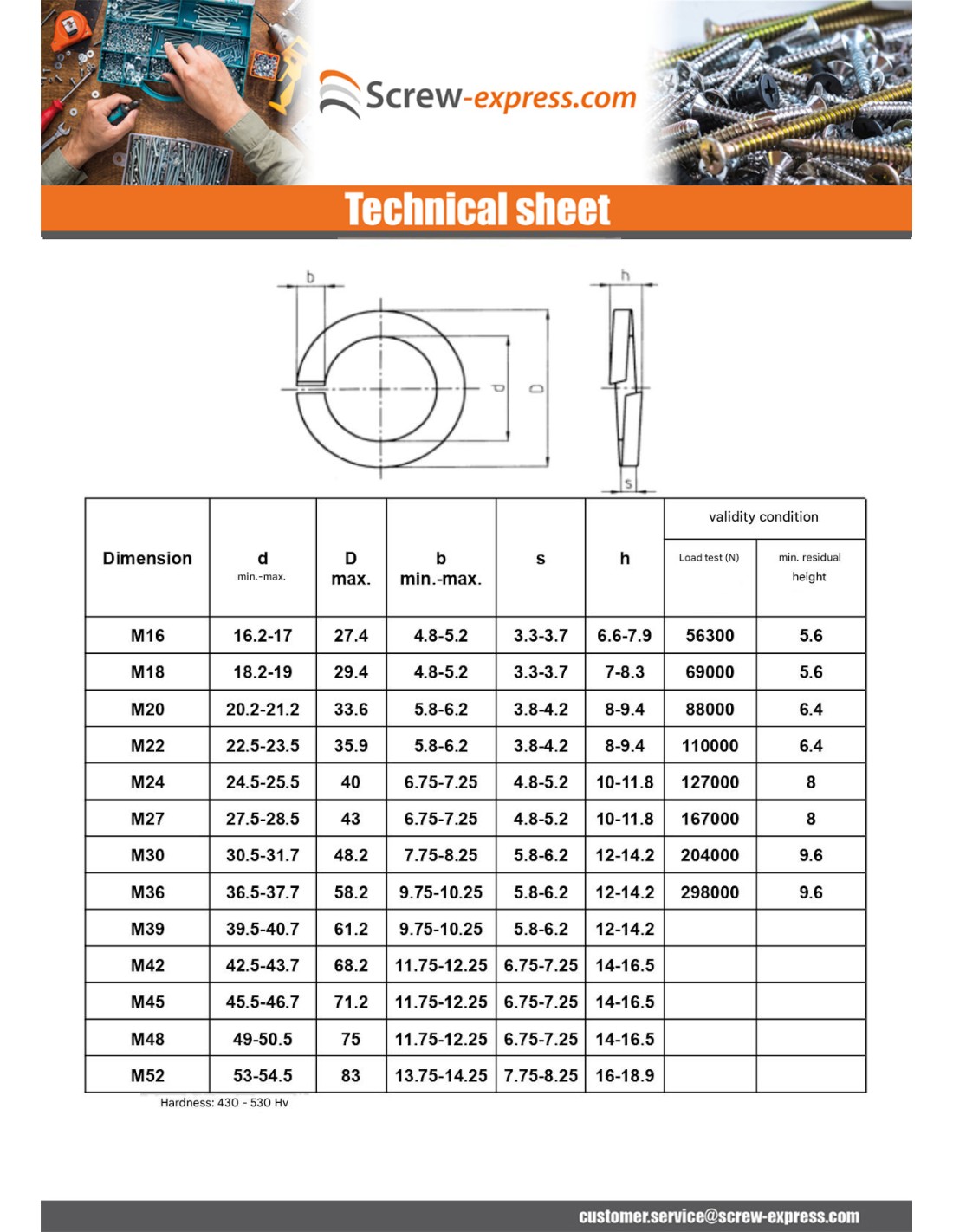

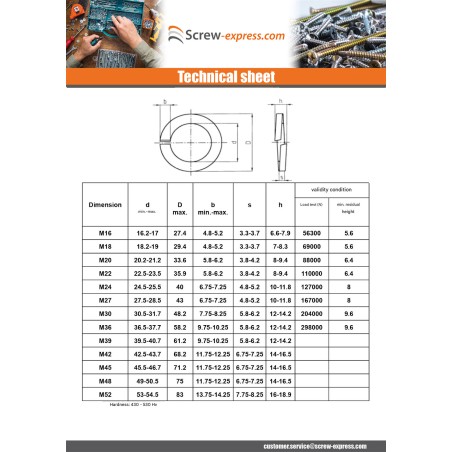

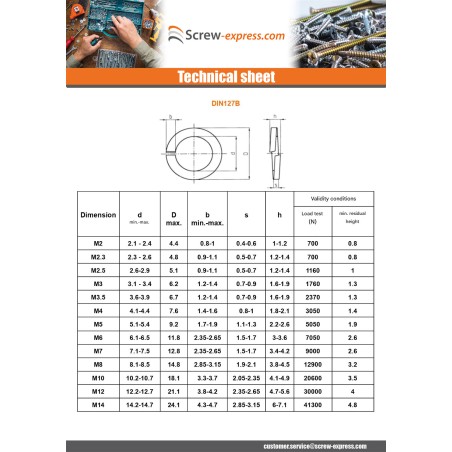

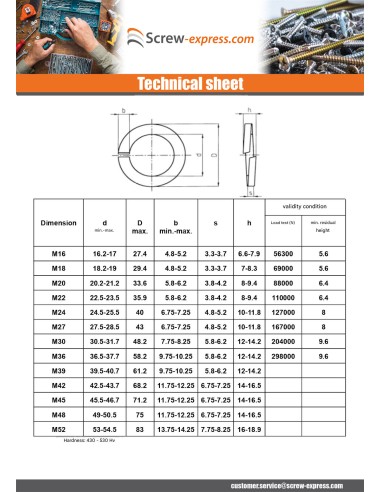

dimensional guide (mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Interior diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Exterior diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tickness	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7

Other Reference : 0180000105346 0200 RW5Z 22030002 1807005 3V 08300595 08300595 1002103 ACH3922 103485 5s0501045 03187 E100001678 2826205 6000-0390 1460101050 401351009900 43268 KGO1277361 5451 5451 RG5 RG5 RG5 200 1807005 KGO1277361 12682 RG5 0200 236849 010-03-03-00 AN 2334001 MP022085 RON-GWW5-A M01210 ARLLAC153 71IROND019 300004 VB201 1002103 12682 2201932 2204.060 12682 M3312 4105080 157168 03T004 0103-9399 VB201 W5 0S2704R A3013144 270056 200 B500585 2260520 MPVIS00045 200 MVRG5 MPVIS00045 01C17057 225302 52402 11715607 2V2110705002 04415 BT757040005 RONGROD05AZ 500 22.083.644 44105 ROND GROW05 963210014 0441 05 103485 103485 020.0170 1460101050 04415 225755 CA10-00236 RD000972 3663072060432
