1 x Machine Screw Set Screw Slotted to Tip M6X30 Stainless Steel A2
1 x Machine Screw Set Screw Slotted to Tip M6X30 Stainless Steel A2
1 x Machine Screw Set Screw Slotted to Tip M6X30 Stainless Steel A2
1 x Machine Screw Set Screw Slotted to Tip...
1 x Machine Screw Set Screw Slotted to Tip...
1 x Machine Screw Set Screw Slotted to Tip...

1 x Machine Screw Set Screw Slotted to Tip M6X30 Stainless Steel A2

8151603018_1
In stock 387 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.34 £6.68 £11.19 £74.37
DIN553,VS8151 - Machine Screw Set Screw Slotted to Tip M6X30 Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M6
Length
30
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 100
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN553, VS8151
Product Family
Tip
Diameter in mm
5.974 - 5,794
Unit weight
5.4 GR
387 Items
3663072473188
Machine Screw Set Screw Slotted to Tip M6X30 Stainless Steel A2
Diameter = M6, Length = 30, Material = Stainless Steel A2, Pitch = Standard pitch 100, Drive Type = Slotted, Norm = DIN553, VS8151, Product Family = Tip

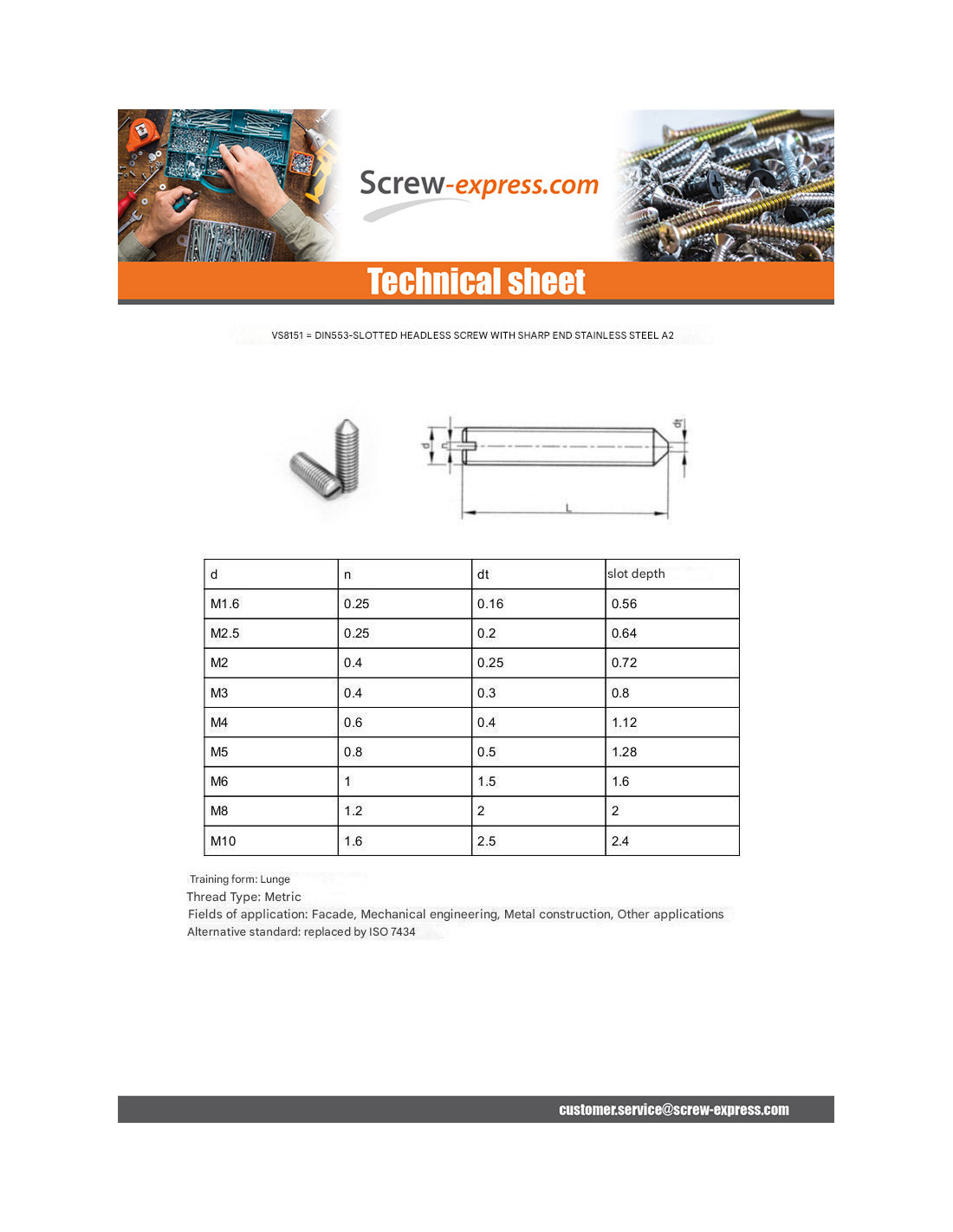

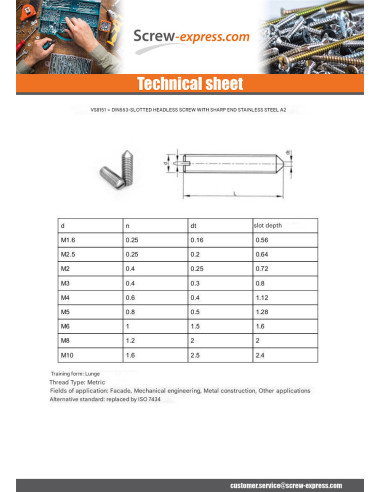

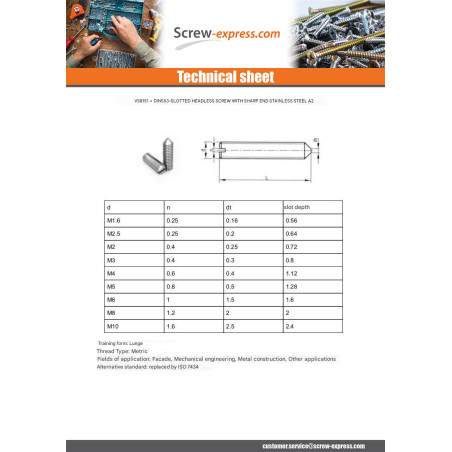

dimensional guide (mm)
Diameter M1 M1.2 M1.4 M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10 M12
PAS 0.25 0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75
diametre pointeau 0.1 0.12 0.14 0.16 0.2 0.25 0.3 0.35 0.4 0.5 1.5 2 2.5 3
largeur fente 0.26a0.4 0.26a0.4 0.26a0.4 0.31a0.45 0.31a0.45 0.46a0.6 0.46a0.6 0.56a0.7 0.66a0.8 0.86a1 1.06a1.2 1.26a1.51 1.66a1.91 2.06a2.31
profondeur fente 0.4a0.52 0.4a0.52 0.48a0.63 0.56a0.74 0.64a0.84 0.72a0.95 0.8a1.05 0.96a1.21 1.12a1.42 1.28a1.63 1.6a2 2a2.5 2.4a3 2.8a3.6

Other Reference : 05532630 3663072473188
Fleur G. (vis-express.fr)
2026-04-26

assembler des pièces metalliques
