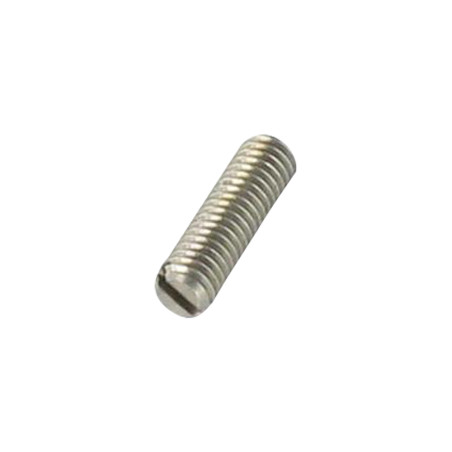

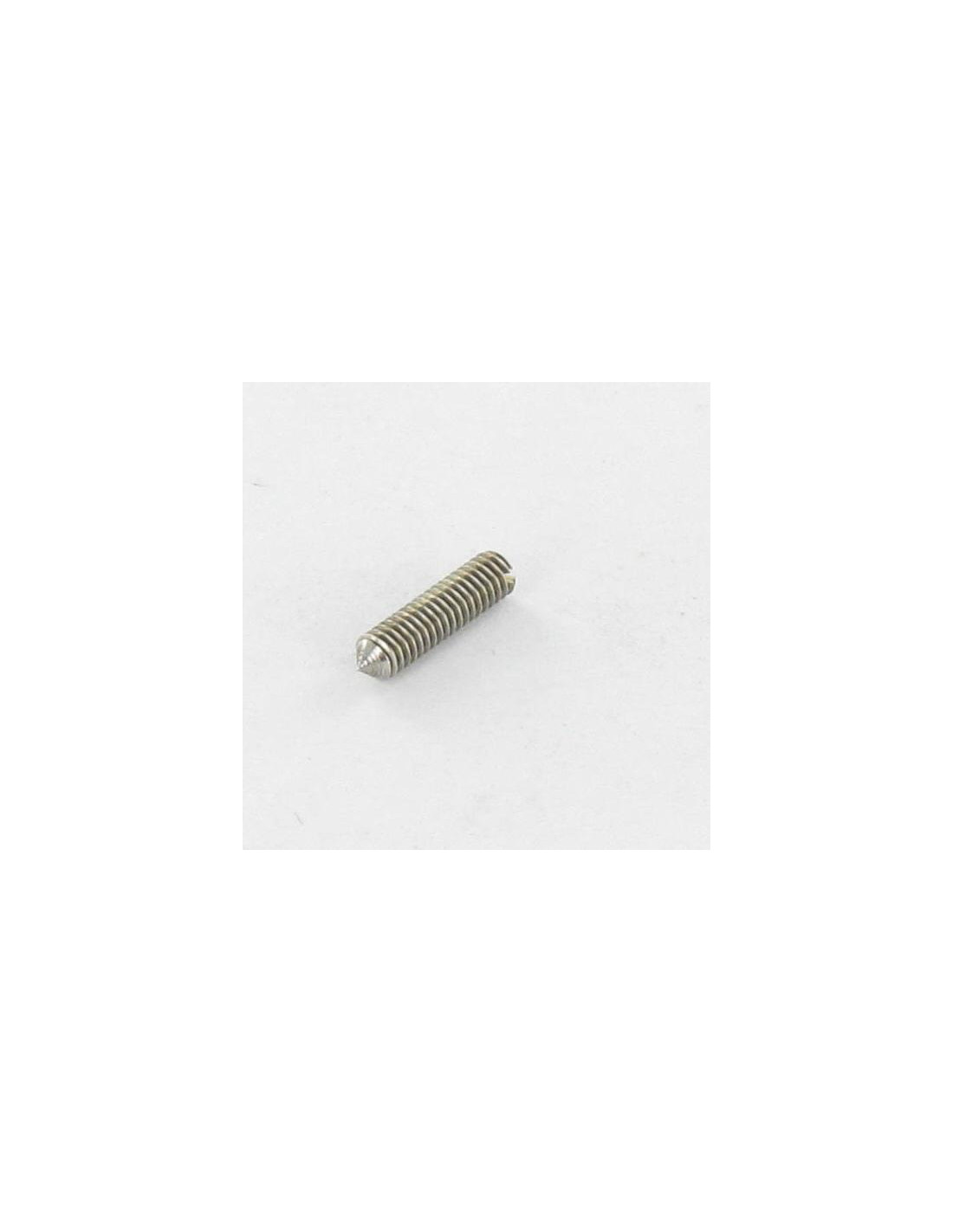

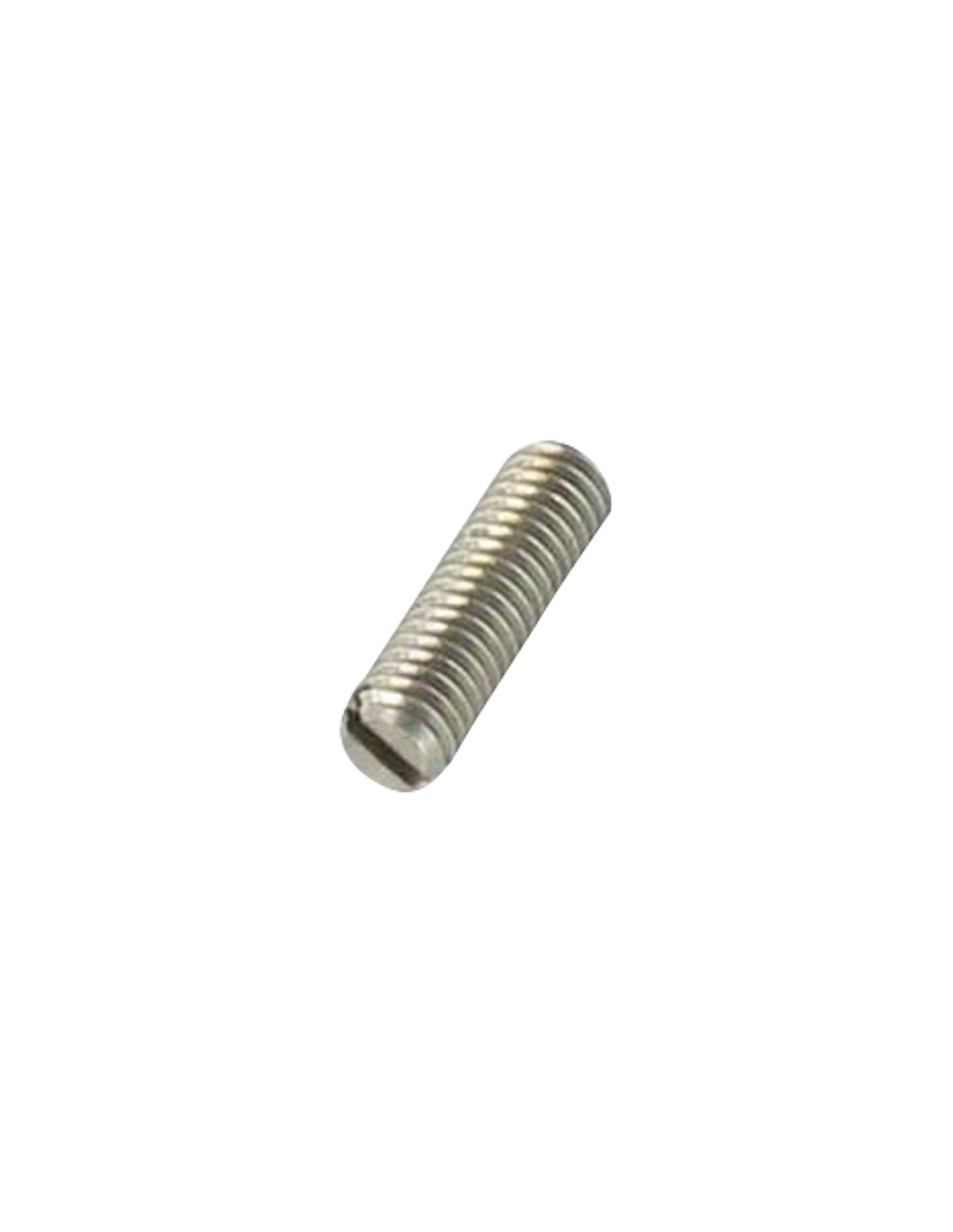

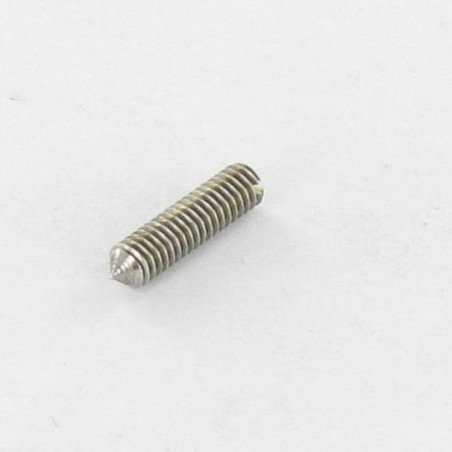

1 x Machine Screw Set Screw Slotted to Tip M4X25 Stainless Steel A2
1 x Machine Screw Set Screw Slotted to Tip M4X25 Stainless Steel A2
1 x Machine Screw Set Screw Slotted to Tip M4X25 Stainless Steel A2
1 x Machine Screw Set Screw Slotted to Tip...
1 x Machine Screw Set Screw Slotted to Tip...
1 x Machine Screw Set Screw Slotted to Tip...

1 x Machine Screw Set Screw Slotted to Tip M4X25 Stainless Steel A2

8151402518_1
In stock 279 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.34 £6.68 £8.07 £51.89
DIN553,VS8151 - Machine Screw Set Screw Slotted to Tip M4X25 Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M4
Length
25
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 70
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN553, VS8151
Product Family
Tip
Diameter in mm
3.976 - 3.835
Unit weight
1.8 GR
279 Items
3663072473003
Machine Screw Set Screw Slotted to Tip M4X25 Stainless Steel A2
Diameter = M4, Length = 25, Material = Stainless Steel A2, Pitch = Standard pitch 70, Drive Type = Slotted, Norm = DIN553, VS8151, Product Family = Tip

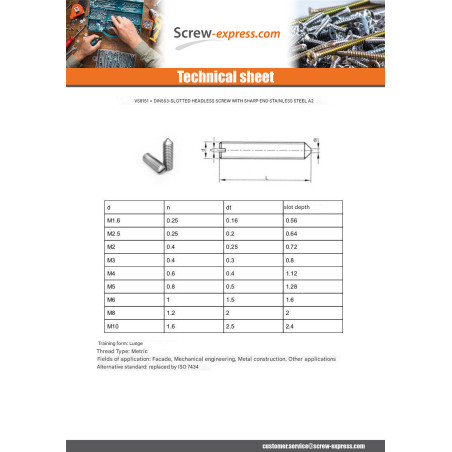

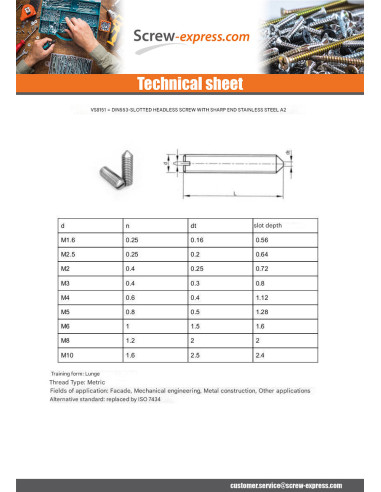

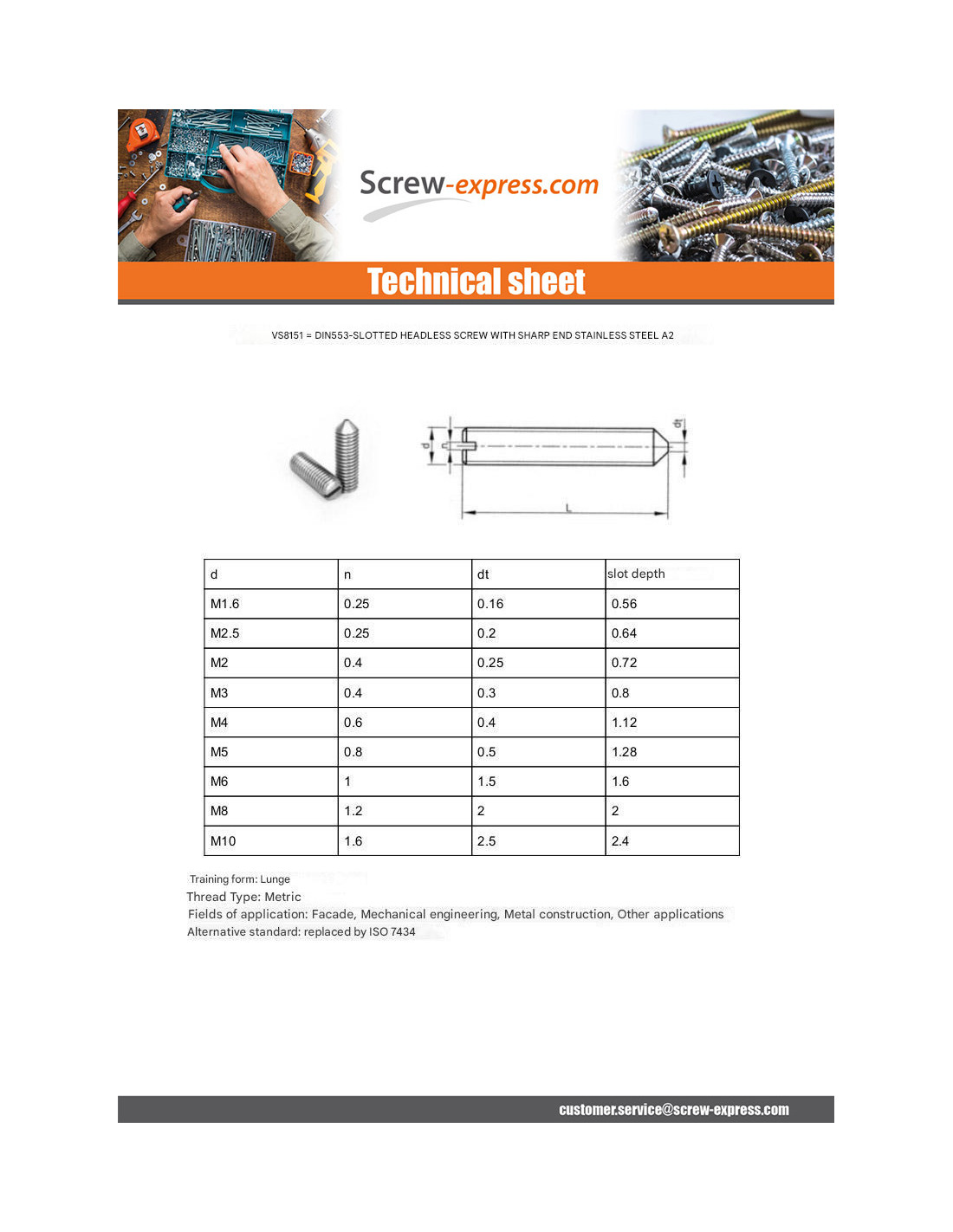

dimensional guide (mm)
DiameterM1M1.2M1.4M1.6M2M2.5M3M3.5M4M5M6M8M10M12
PAS0.250.250.30.350.40.450.50.60.70.811.251.51.75
diametre pointeau0.10.120.140.160.20.250.30.350.40.51.522.53
largeur fente0.26a0.40.26a0.40.26a0.40.31a0.450.31a0.450.46a0.60.46a0.60.56a0.70.66a0.80.86a11.06a1.21.26a1.511.66a1.912.06a2.31
profondeur fente0.4a0.520.4a0.520.48a0.630.56a0.740.64a0.840.72a0.950.8a1.050.96a1.211.12a1.421.28a1.631.6a22a2.52.4a32.8a3.6

Other Reference : 05532425 3663072473003
