8151501218_1
In stock 179 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €43.80
DIN553,VS8151 - Machine Screw Set Screw Slotted to Tip M5X12 Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M5
Length
12
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 80
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN553, VS8151
Product Family
Tip
Diameter in mm
4.976 - 4.826
Unit weight
1.3 GR
179 Items
3663072473065
Machine Screw Set Screw Slotted to Tip M5X12 Stainless Steel A2
Diameter = M5, Length = 12, Material = Stainless Steel A2, Pitch = Standard pitch 80, Drive Type = Slotted, Norm = DIN553, VS8151, Product Family = Tip

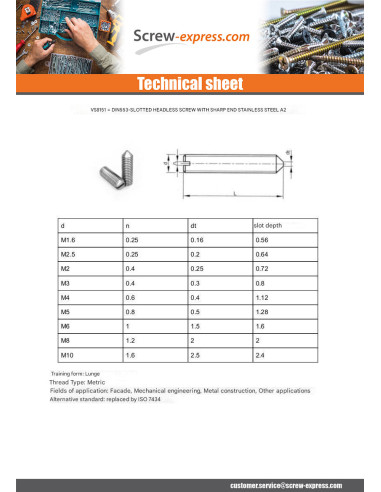

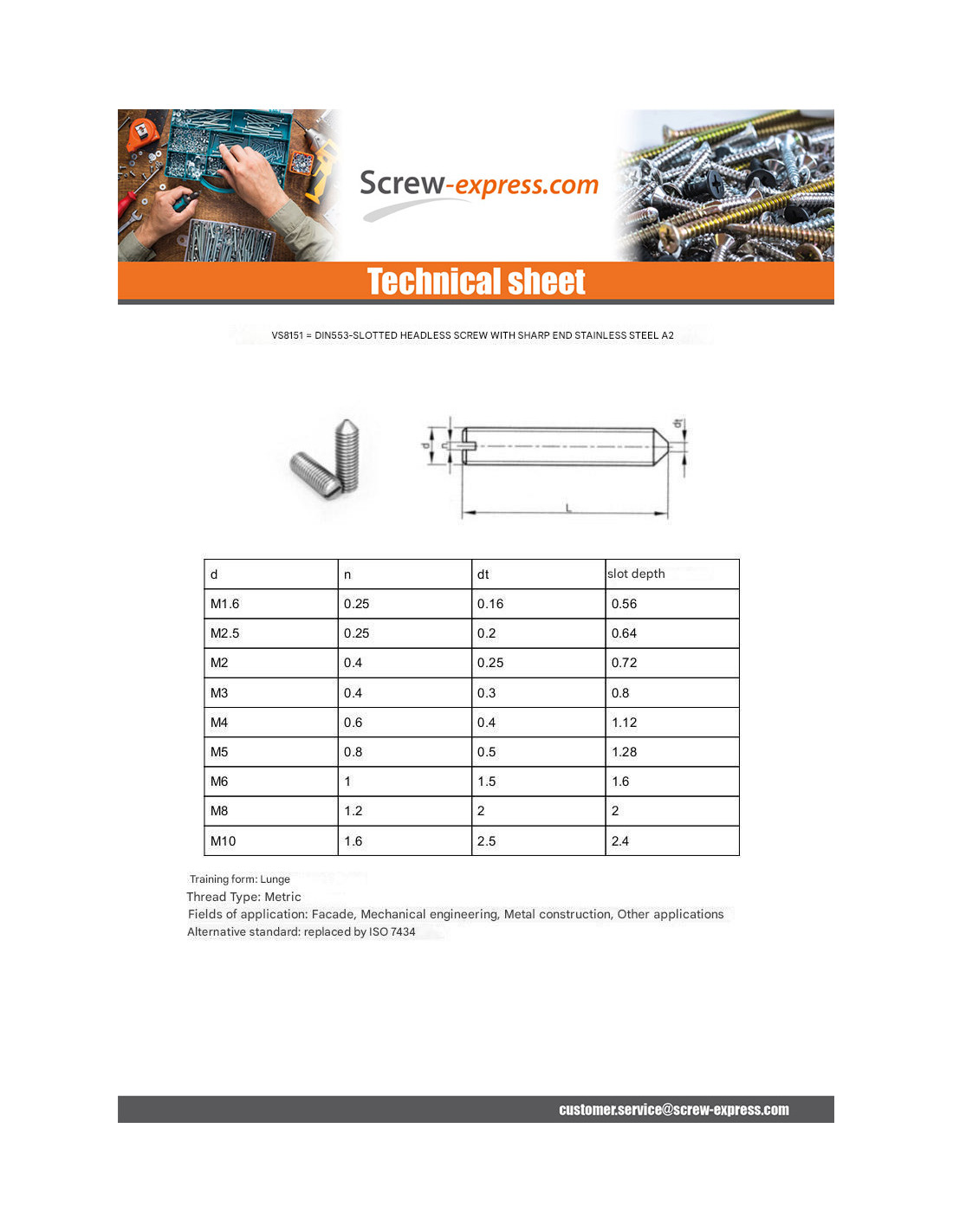

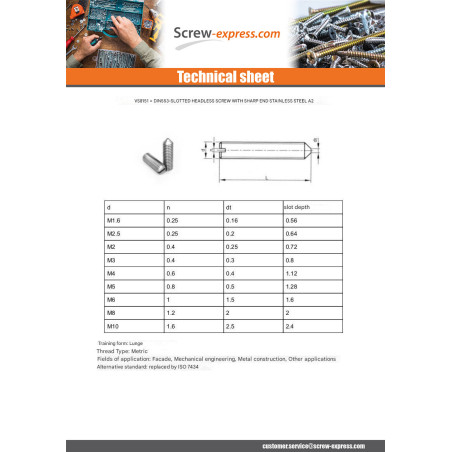

dimensional guide (mm)
DiameterM1M1.2M1.4M1.6M2M2.5M3M3.5M4M5M6M8M10M12
PAS0.250.250.30.350.40.450.50.60.70.811.251.51.75
diametre pointeau0.10.120.140.160.20.250.30.350.40.51.522.53
largeur fente0.26a0.40.26a0.40.26a0.40.31a0.450.31a0.450.46a0.60.46a0.60.56a0.70.66a0.80.86a11.06a1.21.26a1.511.66a1.912.06a2.31
profondeur fente0.4a0.520.4a0.520.48a0.630.56a0.740.64a0.840.72a0.950.8a1.050.96a1.211.12a1.421.28a1.631.6a22a2.52.4a32.8a3.6

Other Reference : 05532512 3663072473065
