1 x Self Tapping Screw Countersunk Head T25...

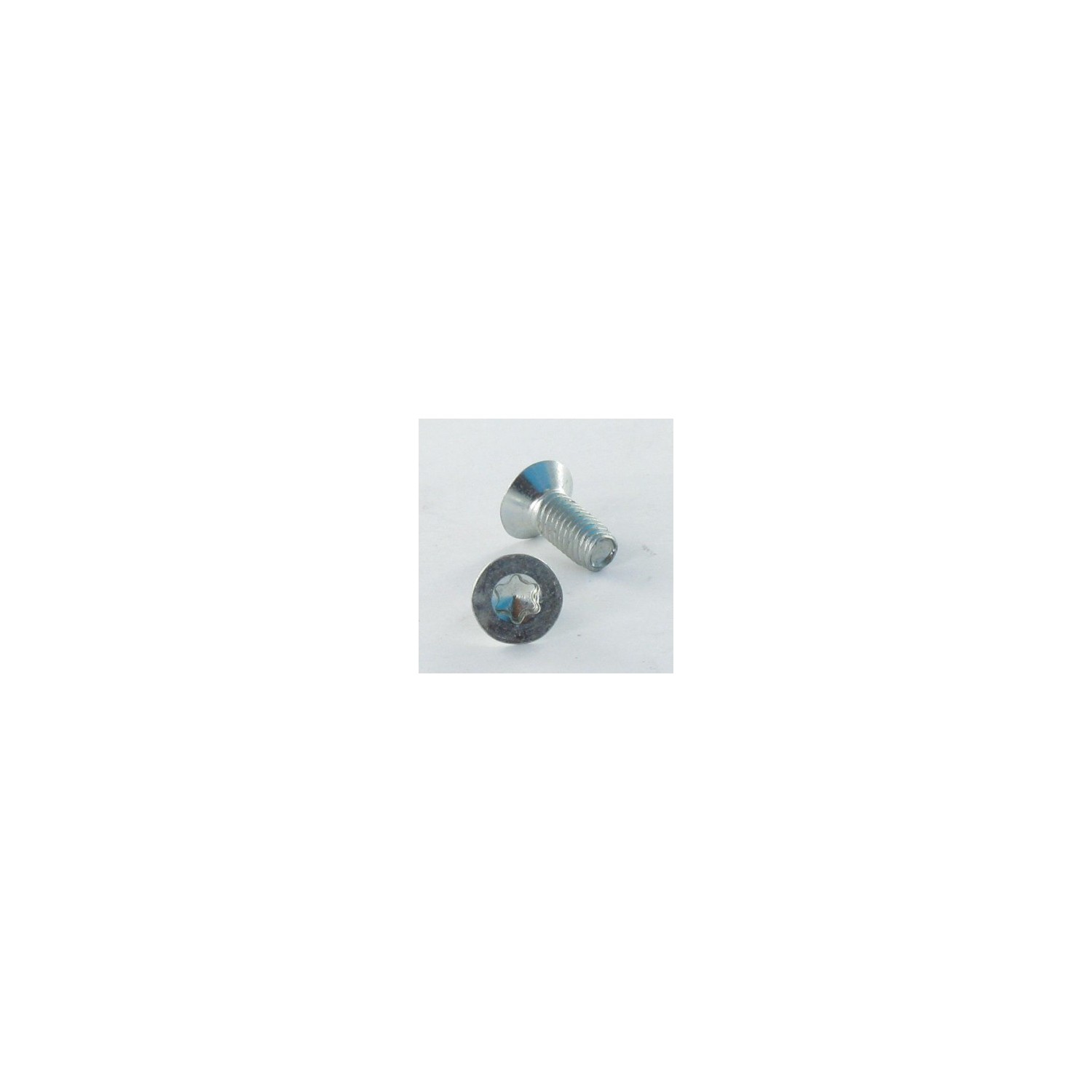

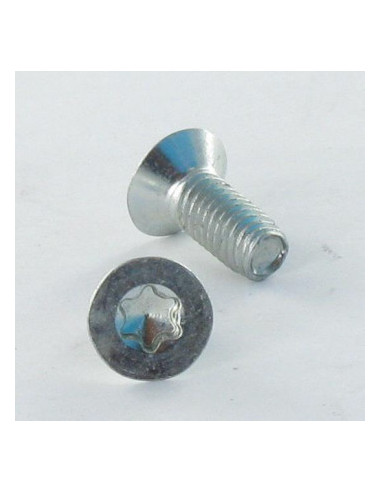

1 x Self Tapping Screw Countersunk Head T25 M5X16 Stainless Steel A2

8338501618_1
In stock 90 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included £3.69 £7.33 £8.81 £59.61
DIN7500M - Self Tapping Screw Countersunk Head T25 M5X16 Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M5
Length
16
Thread
Metric thread-forming thread
Drive Type
Torx
Pitch
80
Diameter Head
8,84 - 9,20 mm
Material
Stainless Steel A2
COLOR
Grey
Norm
DIN7500M Torx
Head thickness
2,50 mm max.
Unit weight
2.44 GR
Material to be drilled
Steel Or Aluminium
Head shape
Countersunk Head
Pre-drilling
YES
90 Items
3663072506275
Self Tapping Screw Countersunk Head T25 M5X16 Stainless Steel A2
Diameter = M5, Length = 16, Material = Stainless Steel A2, Drive Type = Torx, Norm = DIN7500M, Size Drive Type = T25


dimensional guide (mm)
Diameter M2.5 M3 M4 M5 M6
Head diameter 4.4 5.2 8.04 8.94 10.9
Head Tickness 1.5 1.65 2.7 2.7 3.3
TORX T8 T10 T20 T25 T30

Other Reference : 75002MT5 16 A003415 3663072506275
