1 x Self Tapping Screw Countersunk Head T10...

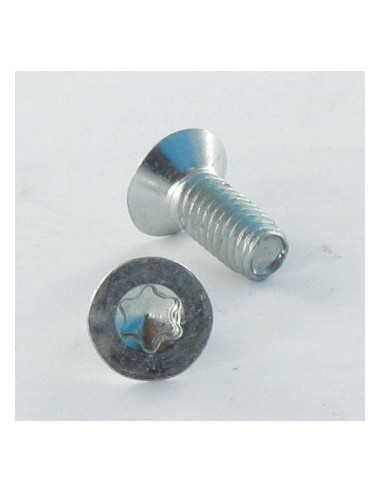

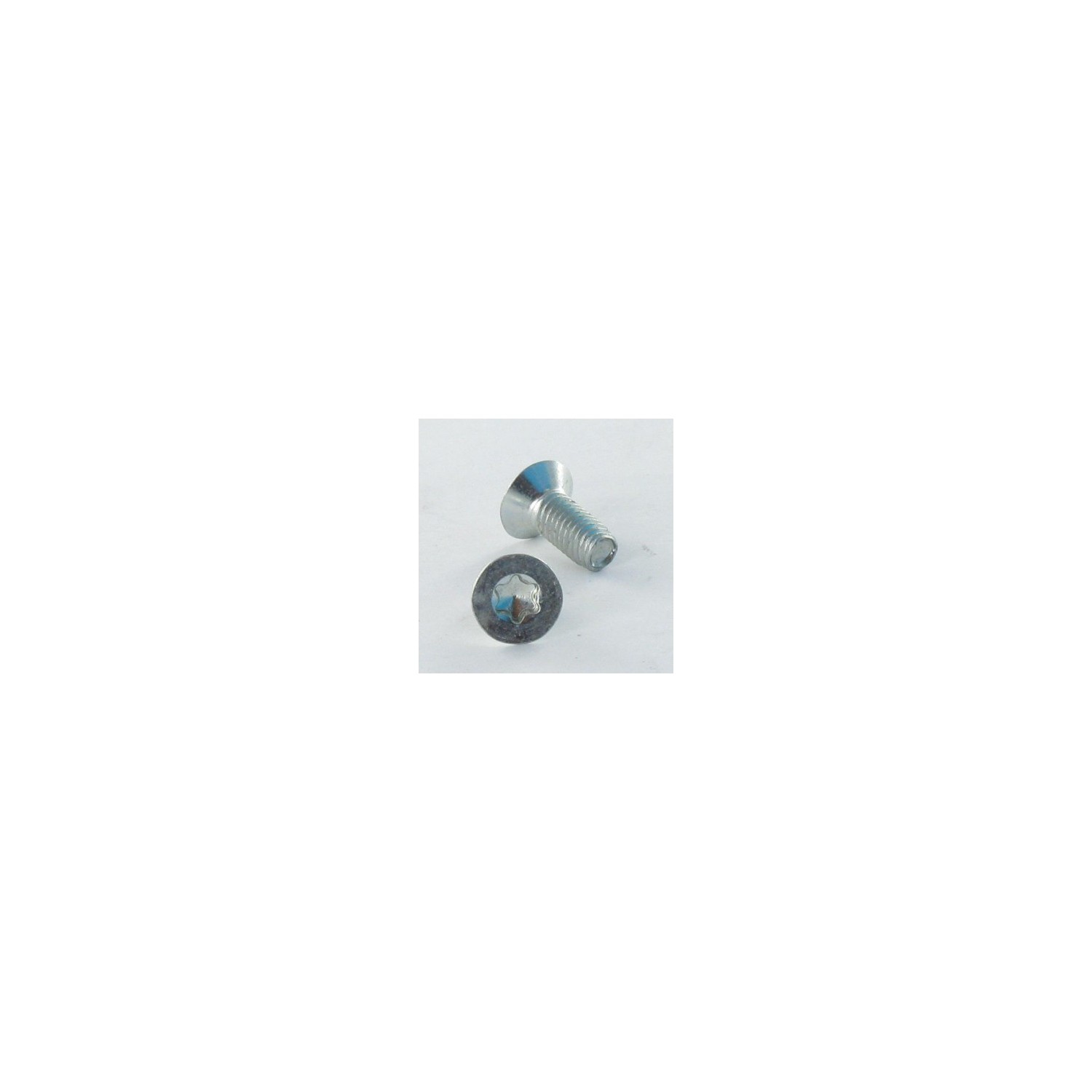

1 x Self Tapping Screw Countersunk Head T10 M3X10 Stainless Steel A2 micro screw

8338301018_1
In stock 900 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included £3.69 £7.33 £8.81 £27.77
DIN7500M - Self Tapping Screw Countersunk Head T10 M3X10 Stainless Steel A2 micro screw
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M3
Length
10
Thread
Metric thread-forming thread
Drive Type
Torx
Pitch
50
Diameter Head
5,30 - 5,50 mm
Material
Stainless Steel A2
COLOR
Grey
Norm
DIN7500M Torx
Sub product family
Micro screw
Head thickness
1,65 mm max.
Unit weight
0.56 GR
Material to be drilled
Steel Or Aluminium
Head shape
Countersunk Head
Pre-drilling
YES
900 Items
3663072317048
Self Tapping Screw Countersunk Head T10 M3X10 Stainless Steel A2 micro screw
Diameter = M3, Length = 10, Sub Product Family = MICROVIS, Material = Stainless Steel A2, Drive Type = Torx, Norm = DIN7500M, Size Drive Type = T10


dimensional guide (mm)
Diameter M2.5 M3 M4 M5 M6
Head diameter 4.4 5.2 8.04 8.94 10.9
Head Tickness 1.5 1.65 2.7 2.7 3.3
TORX T8 T10 T20 T25 T30

Other Reference : 75002MT3 10 3663072317048
