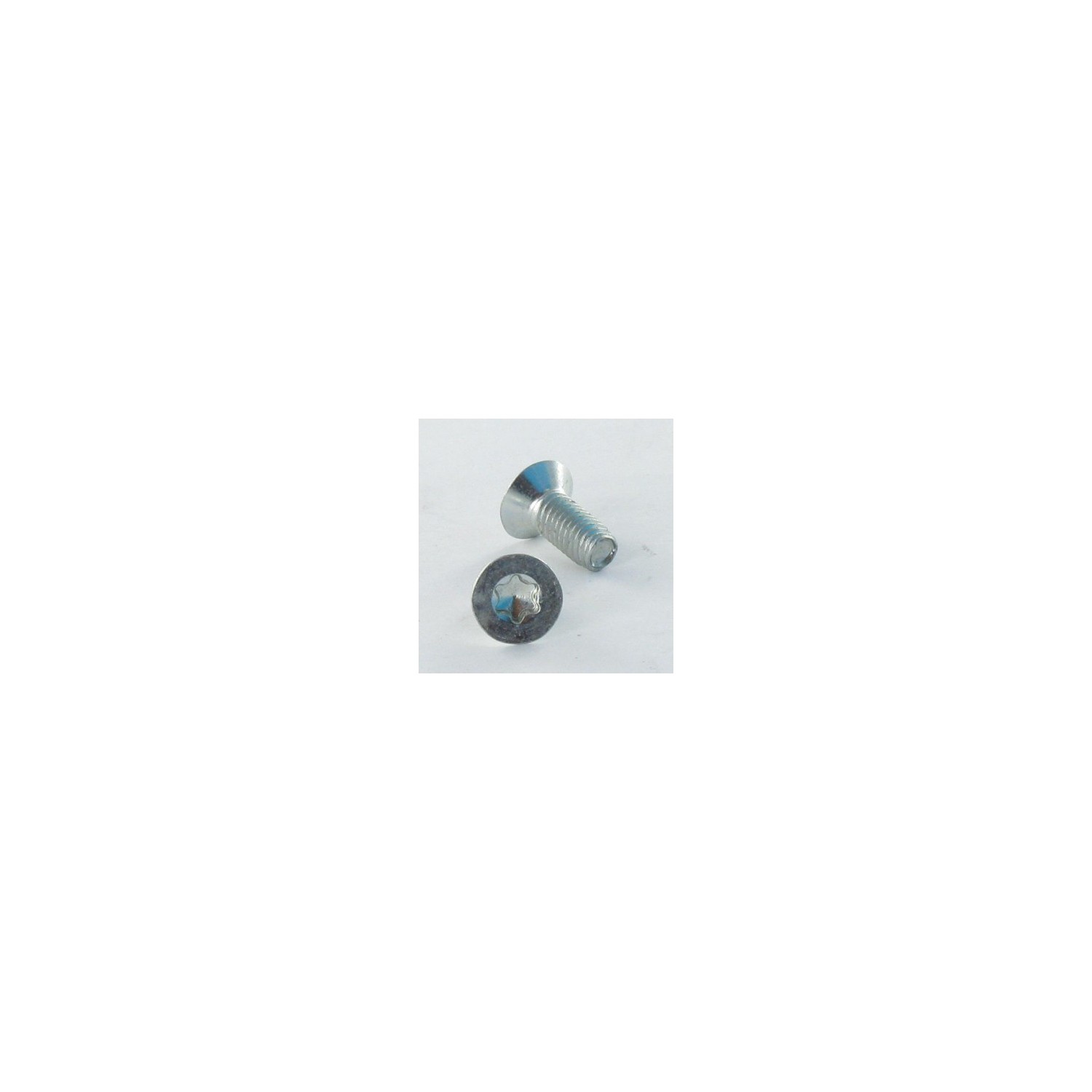

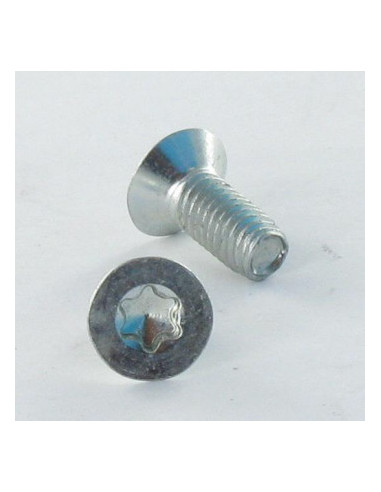

1 x Self Tapping Screw Countersunk Head T25...

1 x Self Tapping Screw Countersunk Head T25 M5X20 Stainless Steel A2

8338502018_1
In stock 1223 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included £3.69 £7.33 £8.81 £63.26
DIN7500M - Self Tapping Screw Countersunk Head T25 M5X20 Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M5
Length
20
Thread
Metric thread-forming thread
Drive Type
Torx
Pitch
80
Diameter Head
8,84 - 9,20 mm
Material
Stainless Steel A2
COLOR
Grey
Norm
DIN7500M Torx
Head thickness
2,50 mm max.
Unit weight
2.94 GR
Material to be drilled
Steel Or Aluminium
Head shape
Countersunk Head
Pre-drilling
YES
1223 Items
3663072057418
Self Tapping Screw Countersunk Head T25 M5X20 Stainless Steel A2
Diameter = M5, Length = 20, Material = Stainless Steel A2, Drive Type = Torx, Norm = DIN7500M, Size Drive Type = T25


dimensional guide (mm)
Diameter M2.5 M3 M4 M5 M6
Head diameter 4.4 5.2 8.04 8.94 10.9
Head Tickness 1.5 1.65 2.7 2.7 3.3
TORX T8 T10 T20 T25 T30

Other Reference : 75002MT5 20 3663072057418
Jean-François L. (vis-express.fr)
2025-04-06

Screwing aluminum profiles onto a metal frame Construction of a glass roof
