1 x Self Drilling Pan Head EMPR Square 4.2X16...

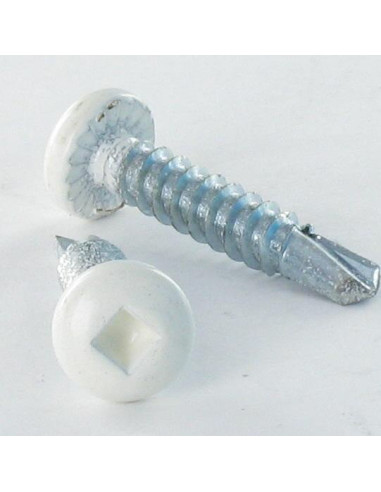

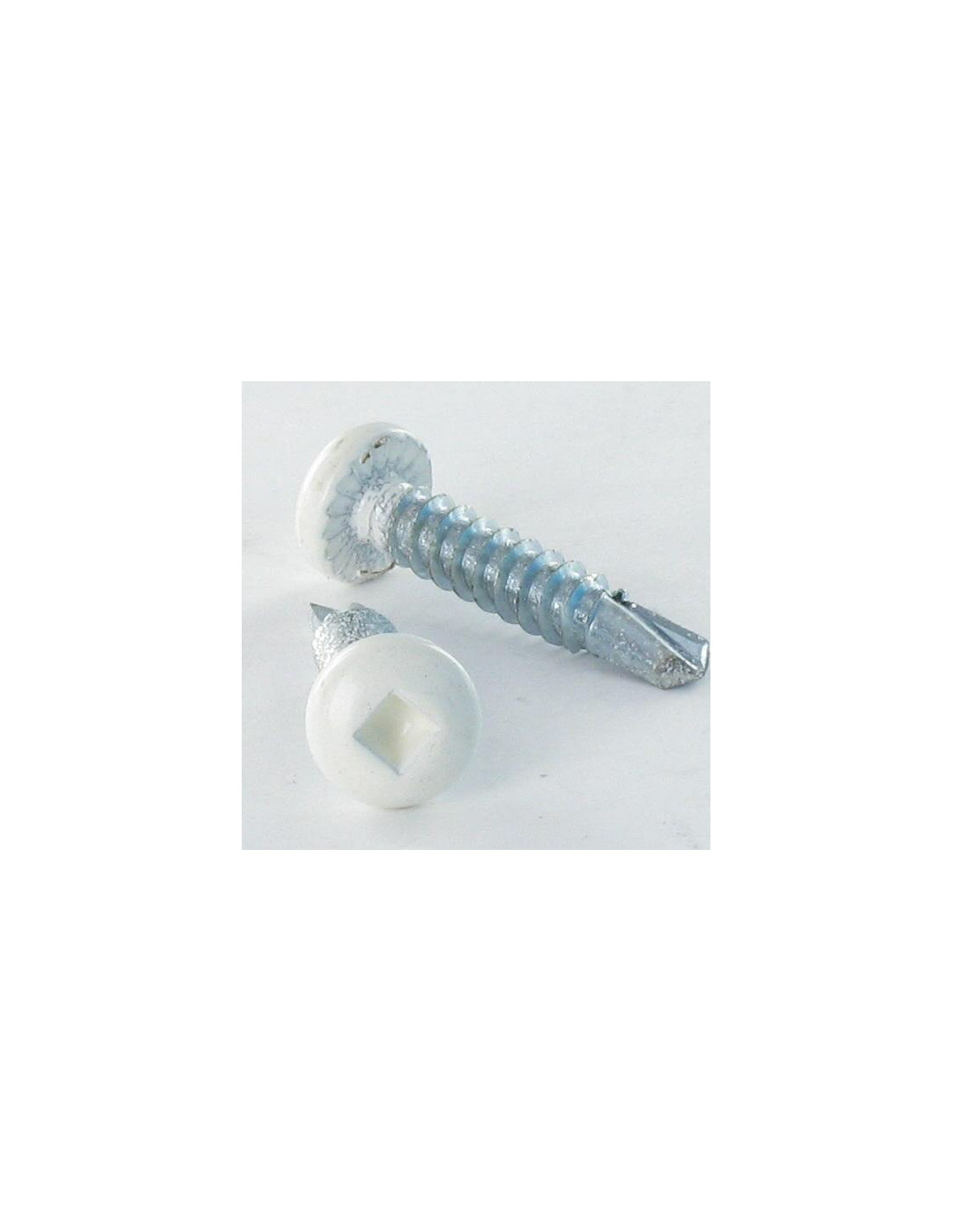

1 x Self Drilling Pan Head EMPR Square 4.2X16 Zinc Plated Painted White 9010

3137801648_1
In stock 144805 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000 4000
Lot price VAT included €1.70 €3.40 €4.05 €16.20 €59.20
DIN 7504N+CRANT+SQ,VS3124 - Self Drilling Pan Head EMPR Square 4.2X16 Zinc Plated Painted White 9010
"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units
  • 4000 units

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
16
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504N+CRANT+SQ,VS3124
Sub product family
Cylindrical Head
WEIGHT For THERE unit
1.6 GR
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
7.3
144805 Items
3663072041486
Self Drilling Pan Head EMPR Square 4.2X16 Zinc Plated Painted White 9010
Diameter = 4.2, Length = 16, Coating = Zinc Plated, Material = Steel, Norm = DIN 7504N+CRANT+SQ,VS3124, Size Drive Type = Spanner 7


dimensional guide (mm)
Jauge number67810
Diameter3.53.94.24.8
Head diameter6.97.58.29.5
Head Tickness2.62.83.53.55
SQ1222

Other Reference : TCQW42016 2231 01G0501650 7504MCAZ4.21 410416 12000 3305L FVIALBBCARA0 VIS-309 2231 3663072041486
