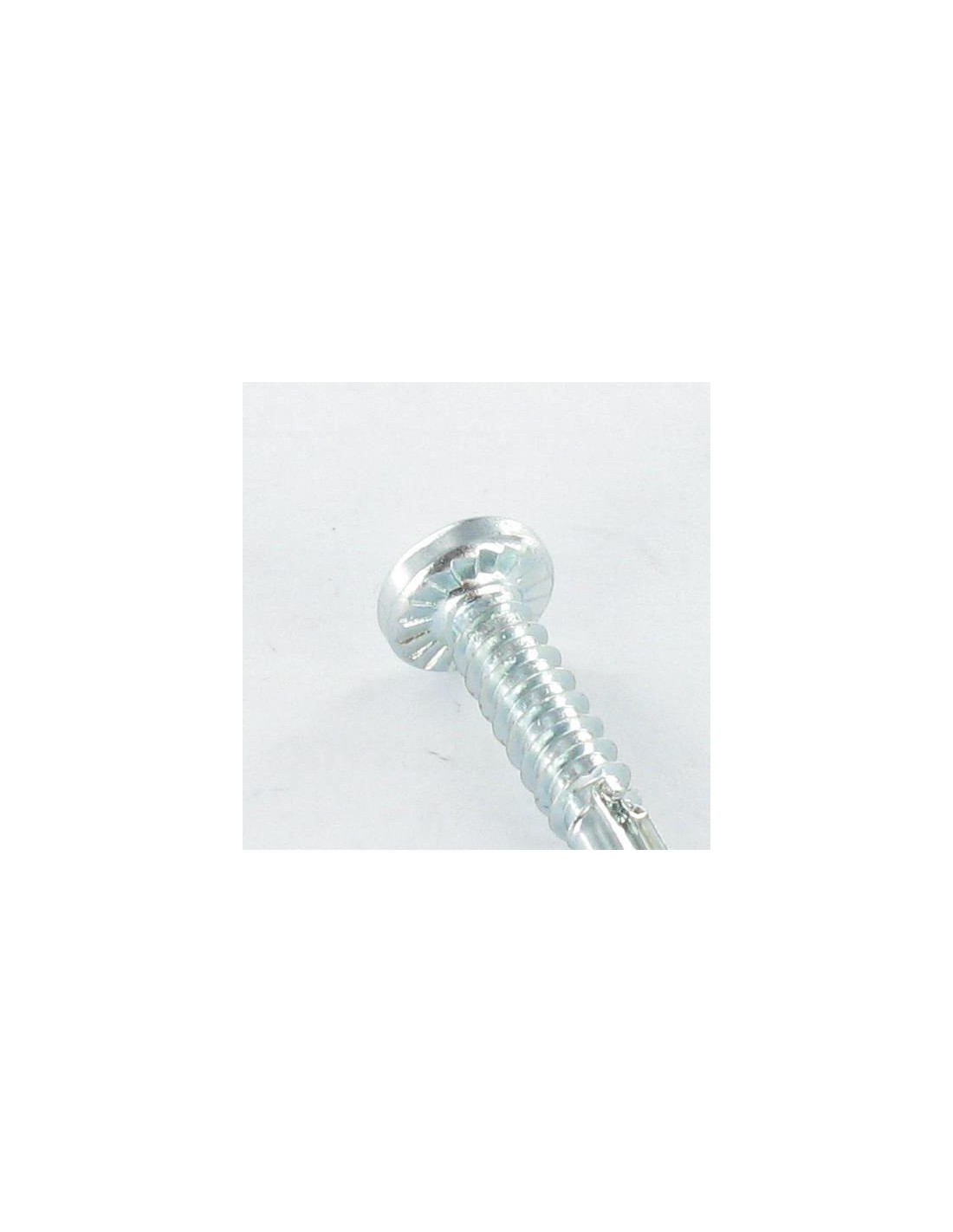

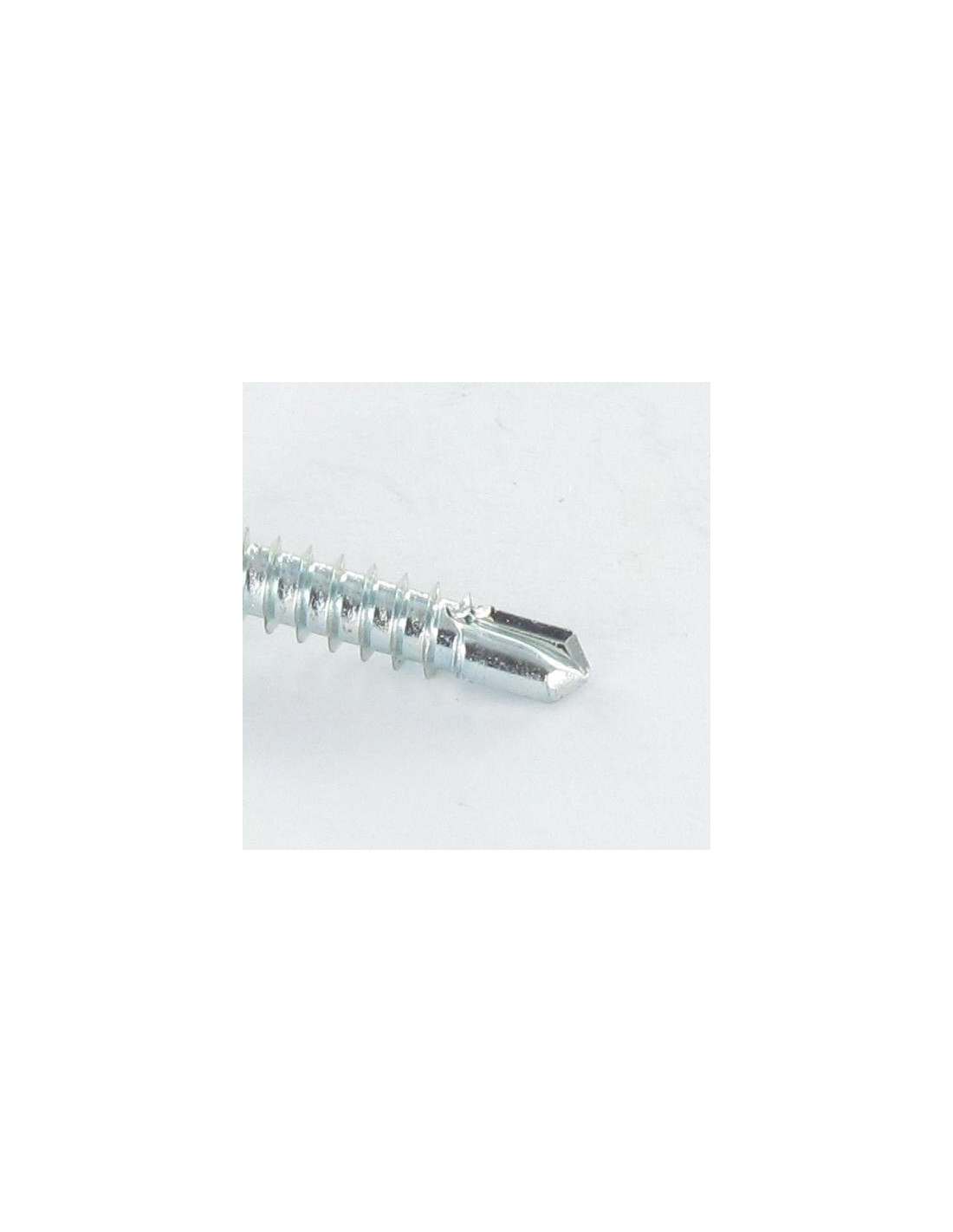

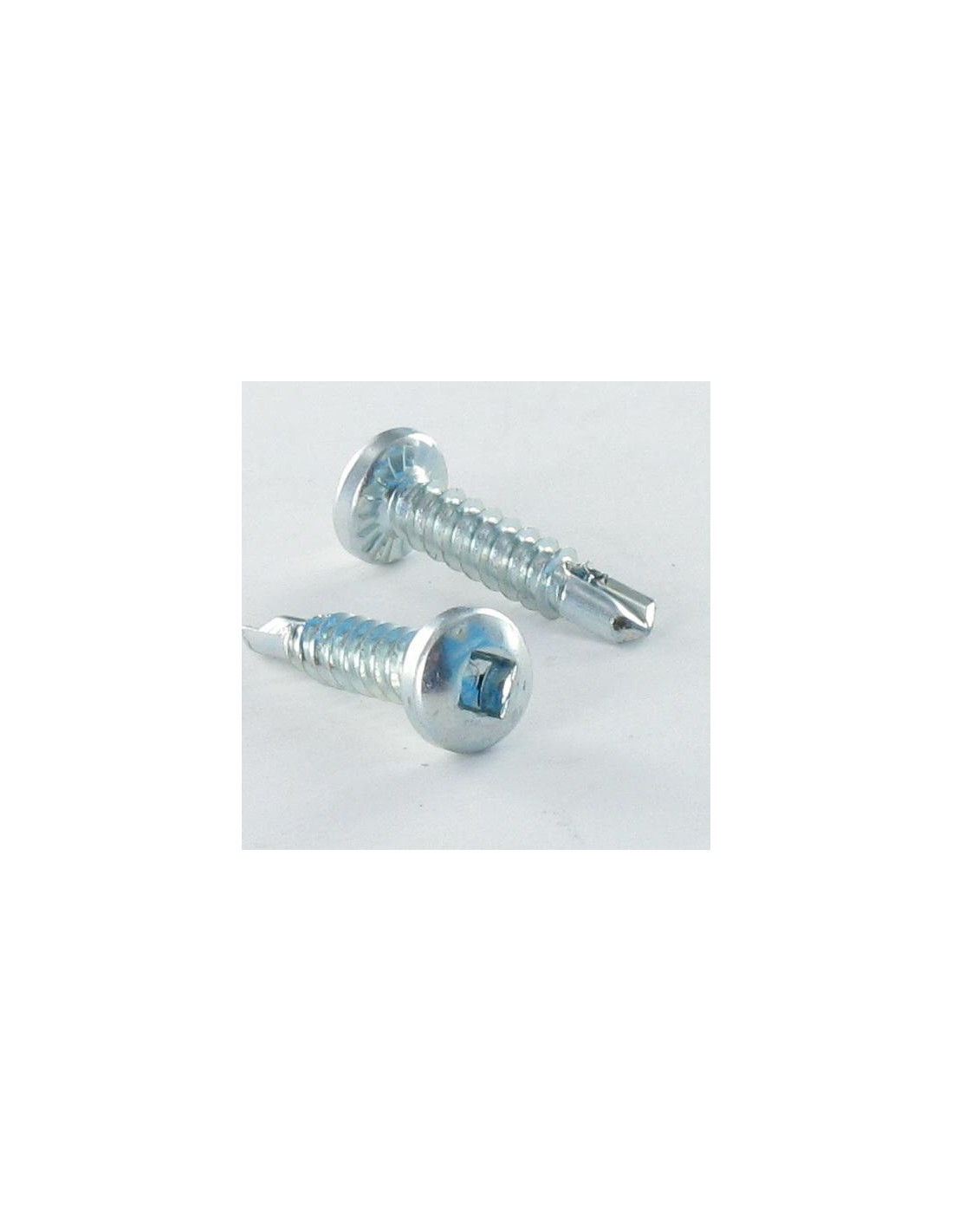

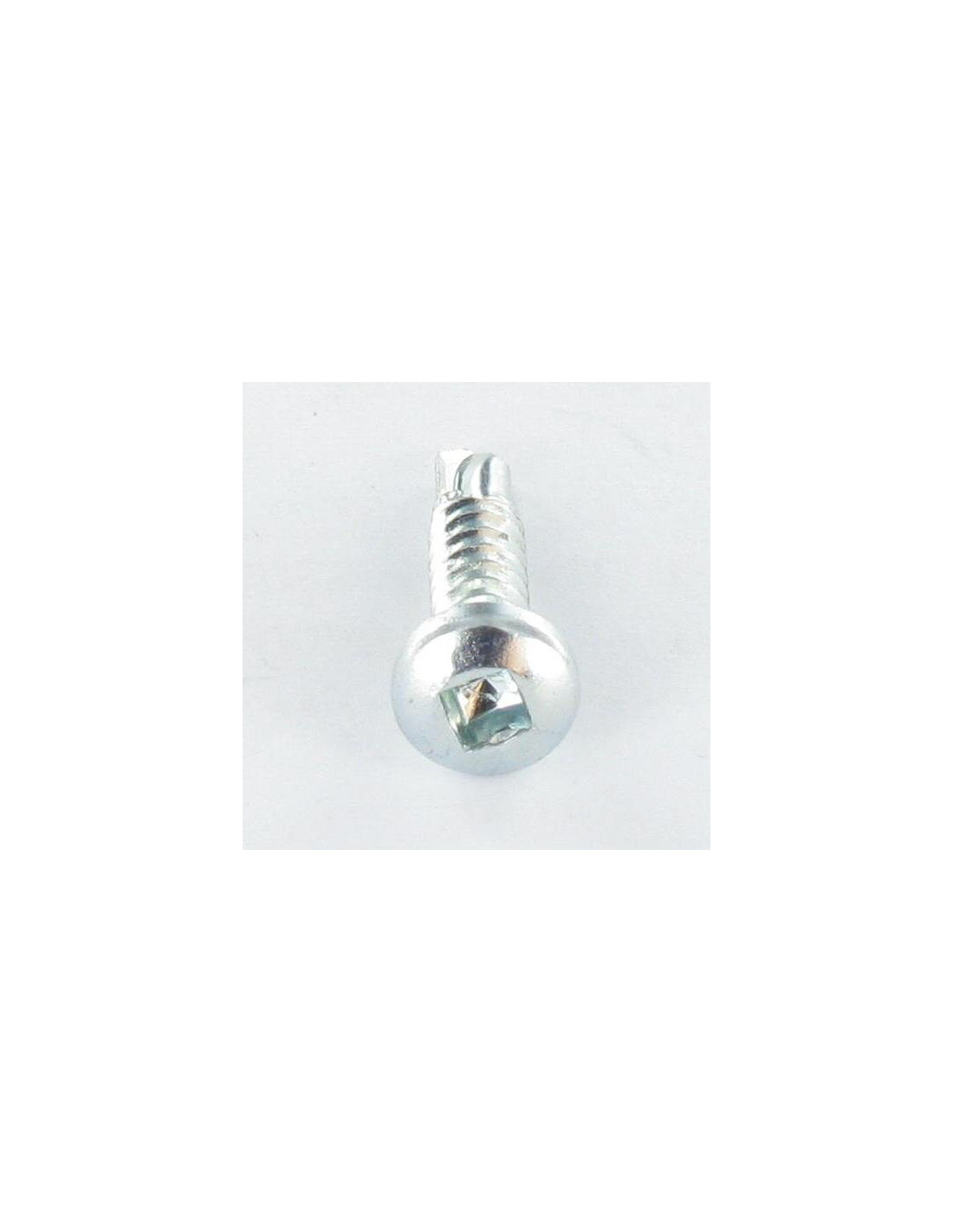

1 x Self Drilling Pan Head EMP Square Square 2 4.2X32 Zinc Plated
1 x Self Drilling Pan Head EMP Square Square 2 4.2X32 Zinc Plated
1 x Self Drilling Pan Head EMP Square Square 2 4.2X32 Zinc Plated
1 x Self Drilling Pan Head EMP Square Square 2 4.2X32 Zinc Plated

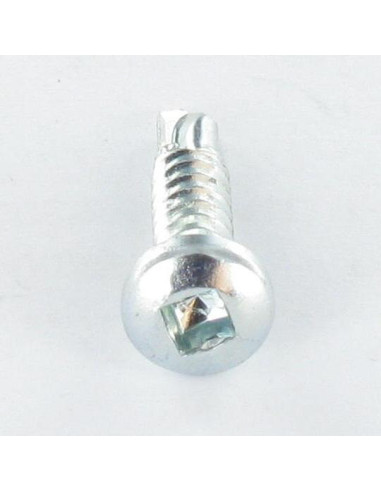

1 x Self Drilling Pan Head EMP Square Square 2...

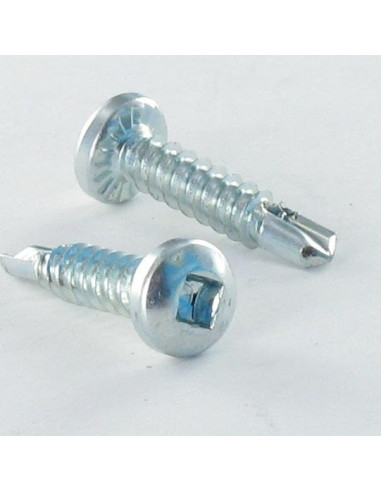

1 x Self Drilling Pan Head EMP Square Square 2...

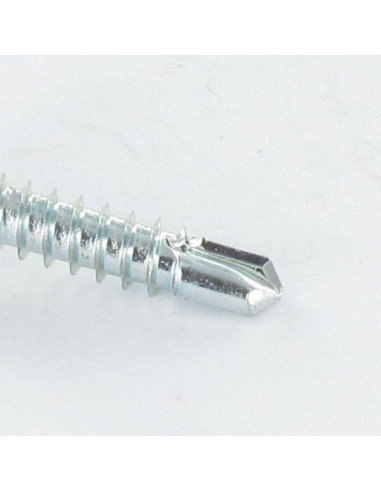

1 x Self Drilling Pan Head EMP Square Square 2...

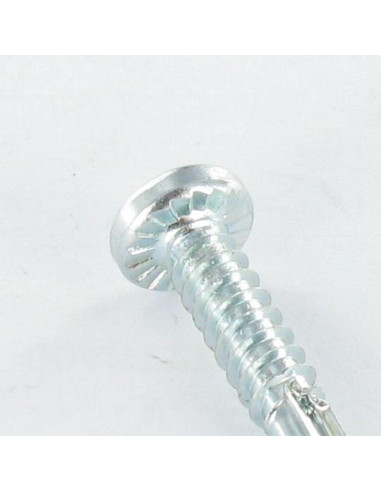

1 x Self Drilling Pan Head EMP Square Square 2...

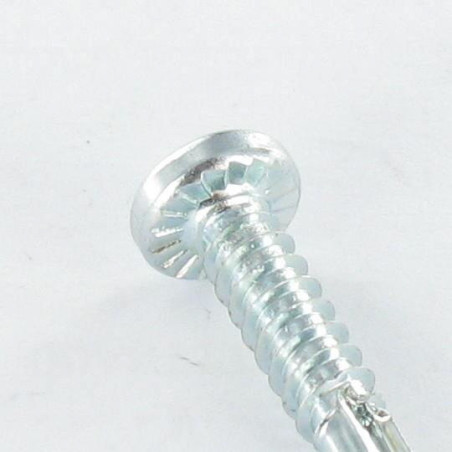

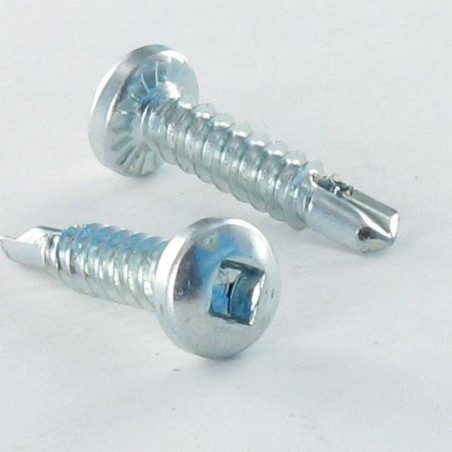

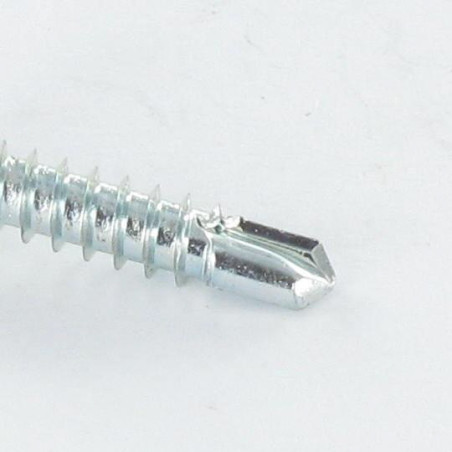

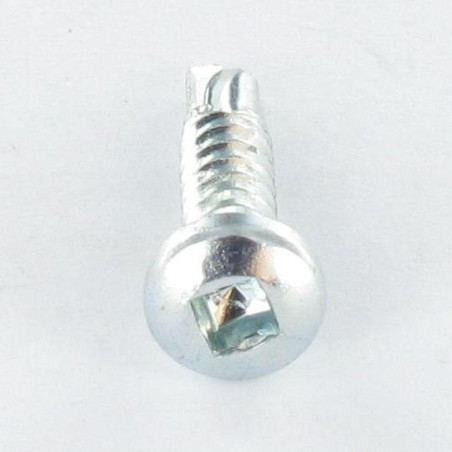

1 x Self Drilling Pan Head EMP Square Square 2 4.2X32 Zinc Plated

3137803202_1
In stock 62000 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €10.00
DIN 7504N+CRANT+SQ,VS3124 - Self Drilling Pan Head EMP Square Square 2 4.2X32 Zinc Plated
"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
32
Drive Type
Square
Size Drive Type
Square 2
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504N+CRANT+SQ,VS3124
Sub product family
Cylindrical Head
WEIGHT For THERE unit
3.2 GR
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
23
62000 Items
3663072204324
Self Drilling Pan Head EMP Square Square 2 4.2X32 Zinc Plated
Diameter = 4.2, Length = 32, Coating = Zinc Plated, Material = Steel, Drive Type = Square, Norm = DIN 7504N+CRANT+SQ,VS3124, Size Drive Type = Square 2


dimensional guide (mm)
Jauge number67810
Diameter3.53.94.24.8
Head diameter6.97.58.29.5
Head Tickness2.62.83.53.55
SQ1222

Other Reference : 3617501903203 FVIAZBBCARA0 FVIAZBBCARA0 000792 VB147 3663072204324
