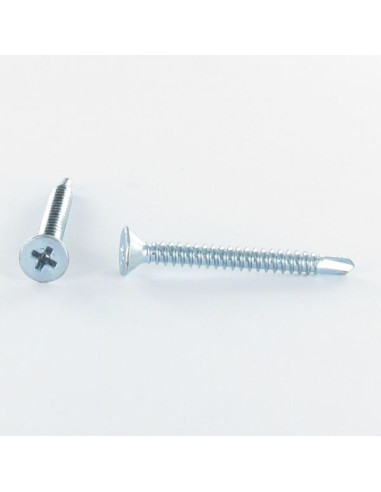

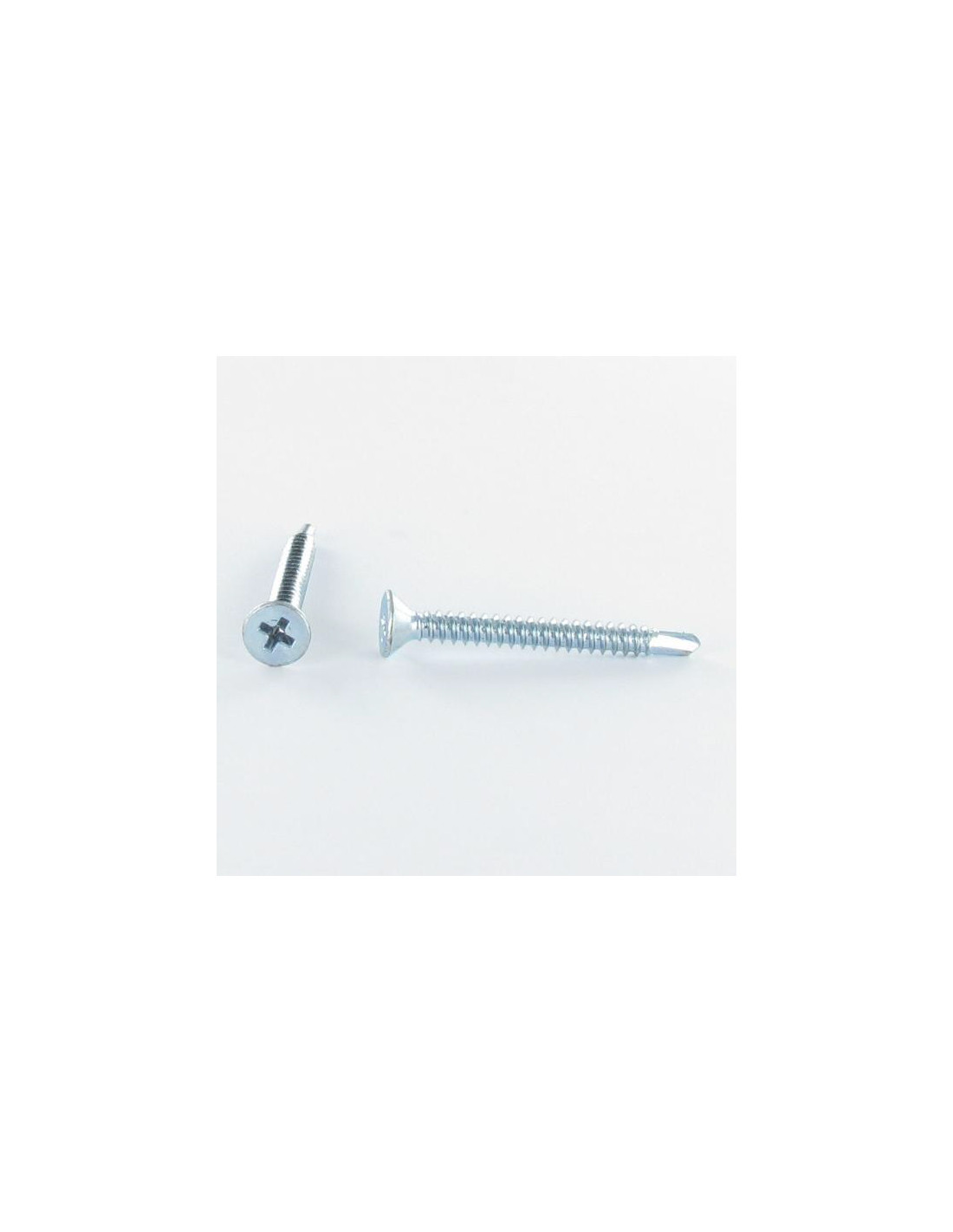

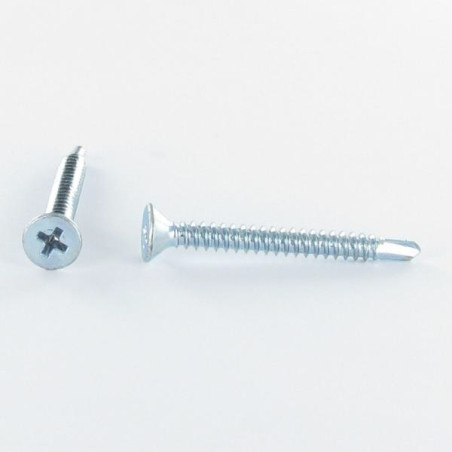

1 x Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Countersunk Head Phillips...
1 x Self Drilling Countersunk Head Phillips...
1 x Self Drilling Countersunk Head Phillips...
1 x Self Drilling Countersunk Head Phillips...
1 x Self Drilling Countersunk Head Phillips...

1 x Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated

3124701602_1
In stock 333456 Pièces
£2.65 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £2.65 £6.38 £6.94 £7.55

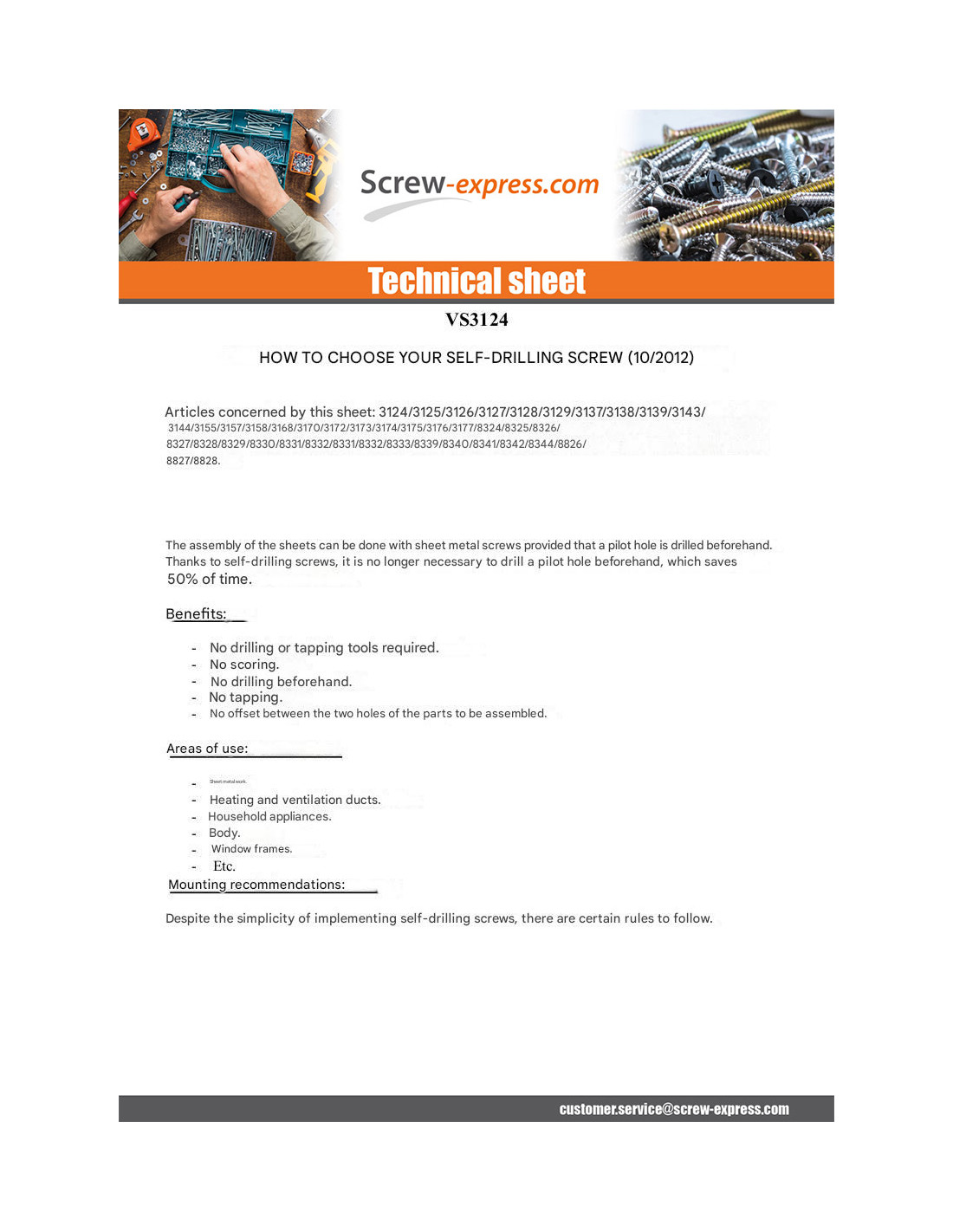

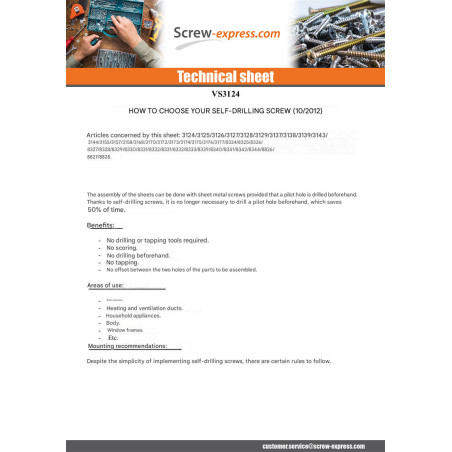

DIN 7504P + VS3124 - Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
3.9
Length
16
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504P + VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
1.09 GR
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
Class 8.8
333456 Items
3663072038226
Self Drilling Countersunk Head Phillips 3.9X16 Sheet Metal Thread Zinc Plated Other Reference : TFC39016 V021131600 V021131600 VAATFP39159 V021131600 957600 957600 300138 2VIS1VT002 1302568LV 502533 4QE15712 QUI1178 VIS136 ZQV8D3.916AZ 120000222 A0022648 14624E QUVI120260 A0022648 61VT3917.0 1009 6401002 504719900 957600 9VATF139016 957600 300138 957600 300138 957600 4QE15712 V021131600 VIS136 MP015109 VA/21921 957600 957600 FVIAZIFPHIA0 09478 4QE15712 VTAPTFPH39X1 02123916 20014870000 265000 CG11461 000056M 250862 V021131600 AN V021131600 250862 1302568LV 9835 VISAUTOP3.9X AN V000002 A0022648 V021131600 3663072038226
