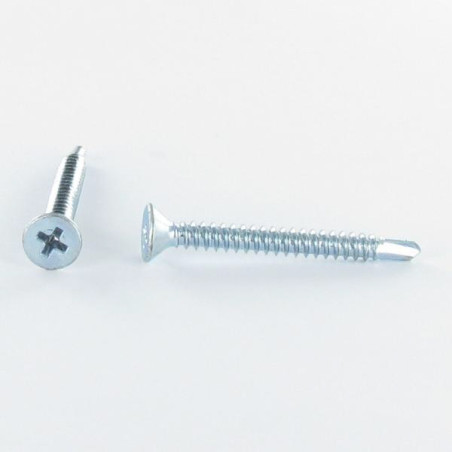

1 x Self Drilling Countersunk Head Phillips 3.5X16 Sheet Metal Thread Zinc Plated

3124601602_1
In stock 91532 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €4.20 €7.60

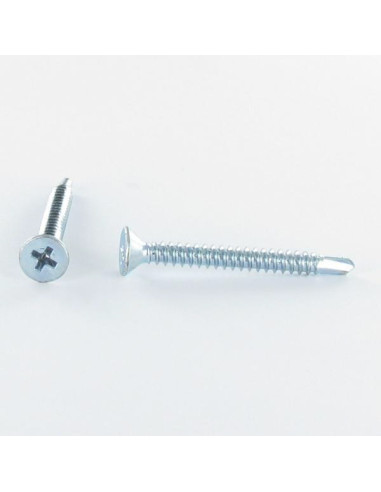

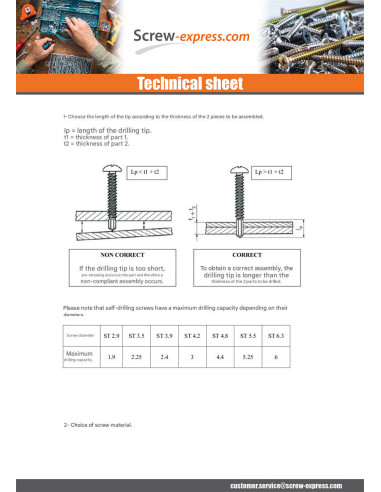

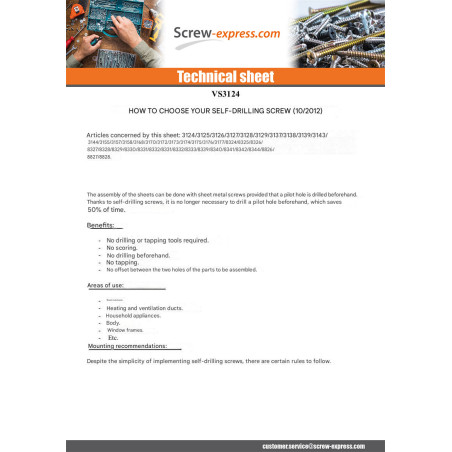

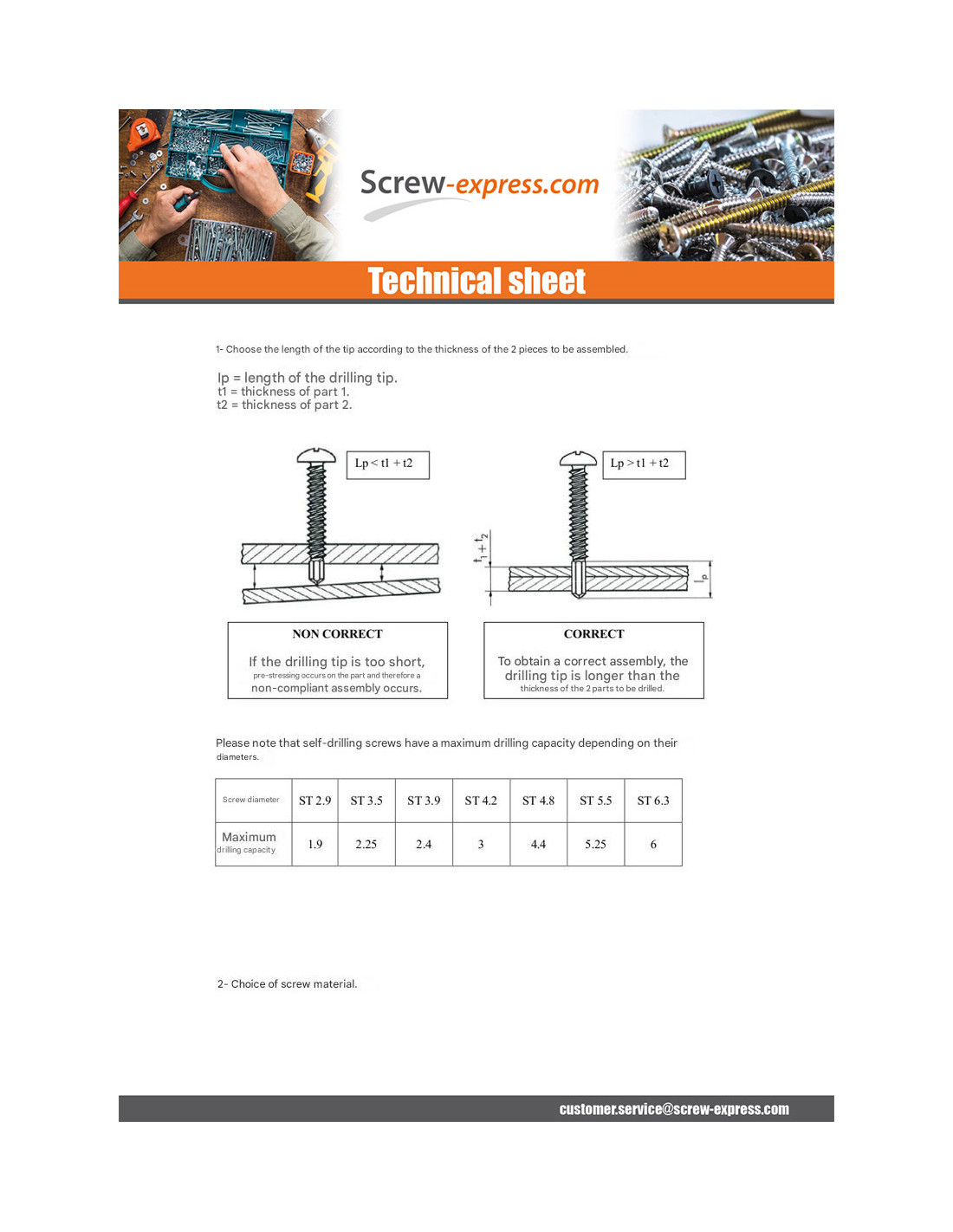

DIN 7504P + VS3124 - Self Drilling Countersunk Head Phillips 3.5X16 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
16
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504P + VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
0.87 GR
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
9.2
91532 Items
3663072038189
Self Drilling Countersunk Head Phillips 3.5X16 Sheet Metal Thread Zinc Plated Other Reference : TFC35016 CA8000000049 VISAUTOTF3.5 103651 CA8000000049 300128 1304615LV 118315 841040 P710088 103651 VIS265 020573516 1915199 300128 300128 300128 300128 TFPZN3.5X16 300128 355009 MP015019 1004409 42500010 VTAPTFPH35X1 02123516 103651 AQU1258 12014699 5622 1304615LV 32300110 021235 16 BAL101 3663072038189
