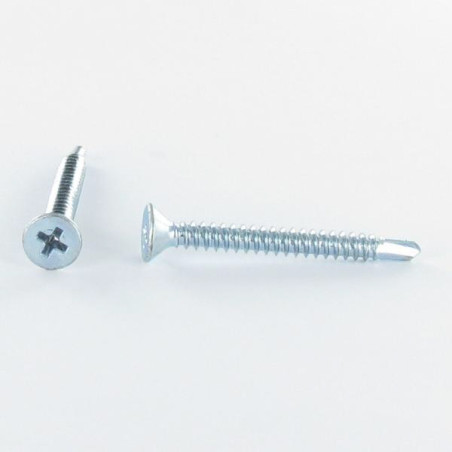

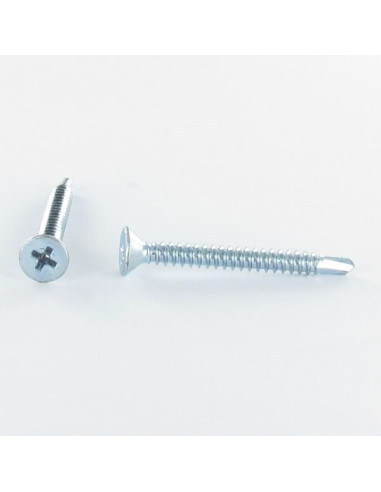

1 x Self Drilling Countersunk Head Phillips 6.3X32 Sheet Metal Thread Zinc Plated

3124143202_1
In stock 28233 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £3.04 £7.33 £7.98 £14.49

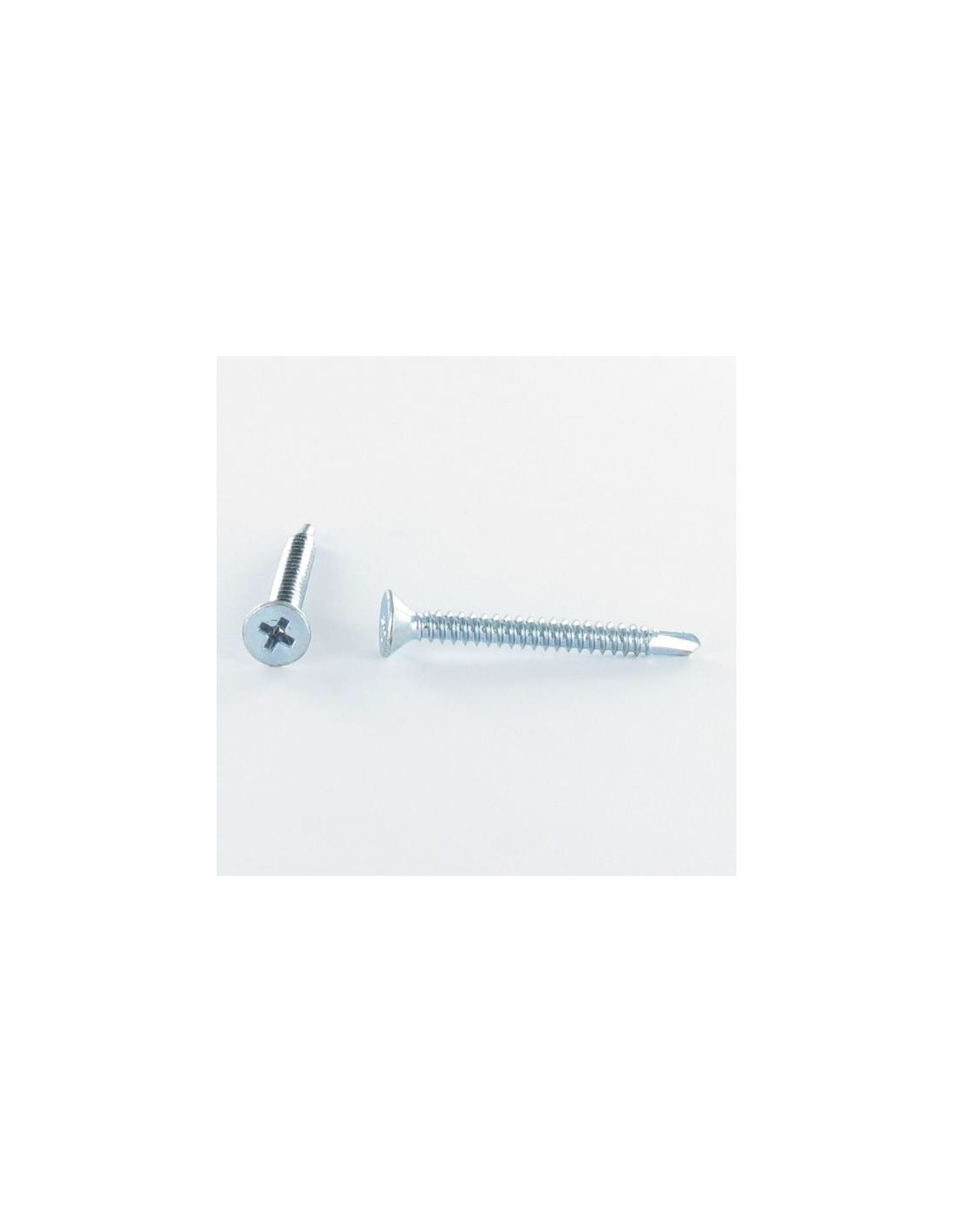

DIN 7504P + VS3124 - Self Drilling Countersunk Head Phillips 6.3X32 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
32
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm

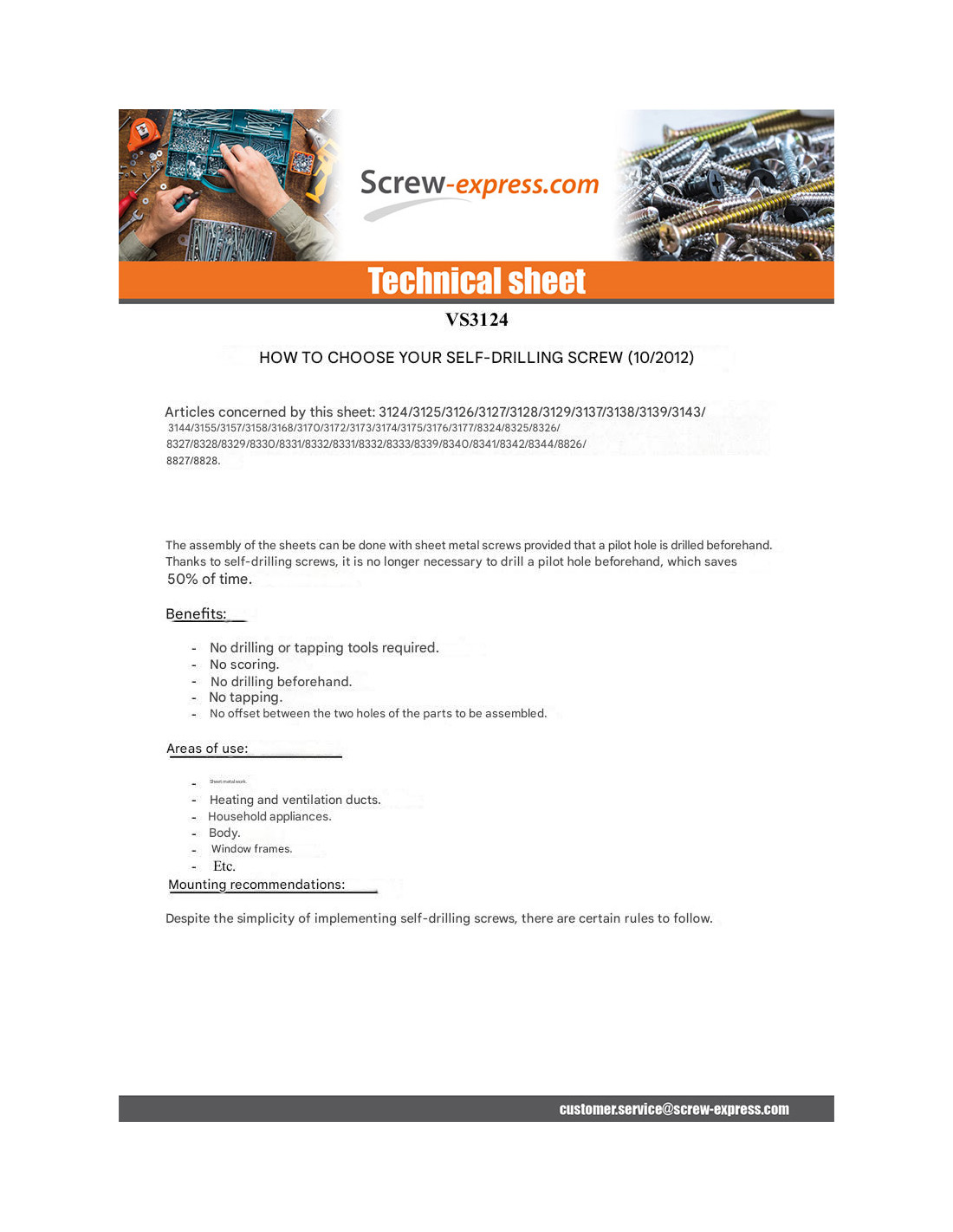

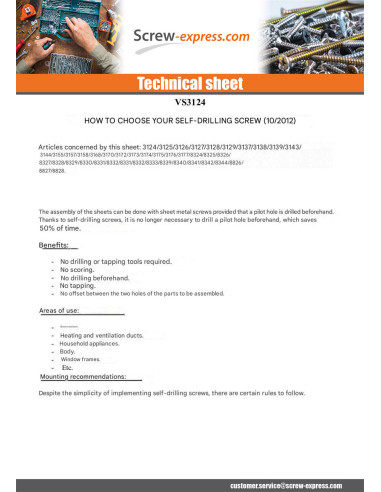

DIN 7504P + VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
5.67 GR
Mounting pressure (N)
350

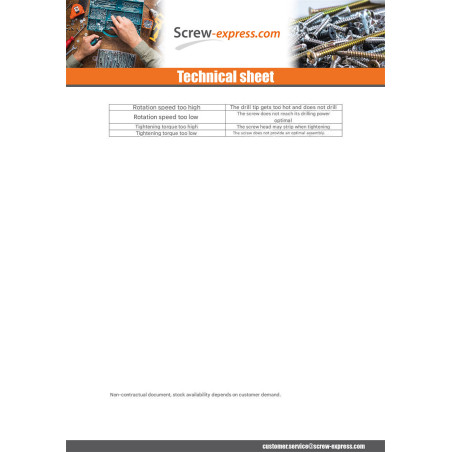

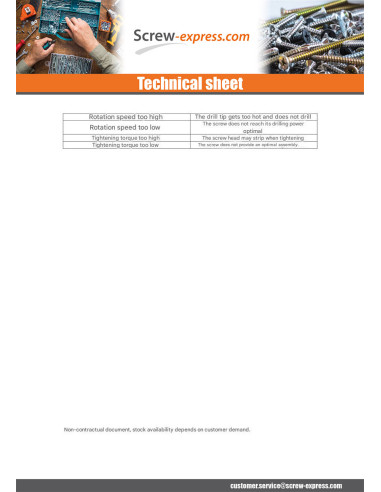

Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
20
28233 Items
3663072038103
Self Drilling Countersunk Head Phillips 6.3X32 Sheet Metal Thread Zinc Plated Other Reference : TFC63032 VAUTF6,3X32Z 612566332Z 070C000426 2BOAF0631G DIV9327 400316 VAUTF6,3X32Z NFF21313 2400901 42500021 /AN VISATF004 3663072038103
