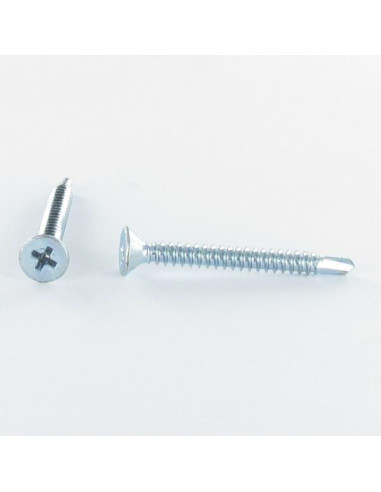

1 x Self Drilling Countersunk Head Phillips 4.8X25 Sheet Metal Thread Zinc Plated

3124102502_1
In stock 124538 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €5.80 €25.30

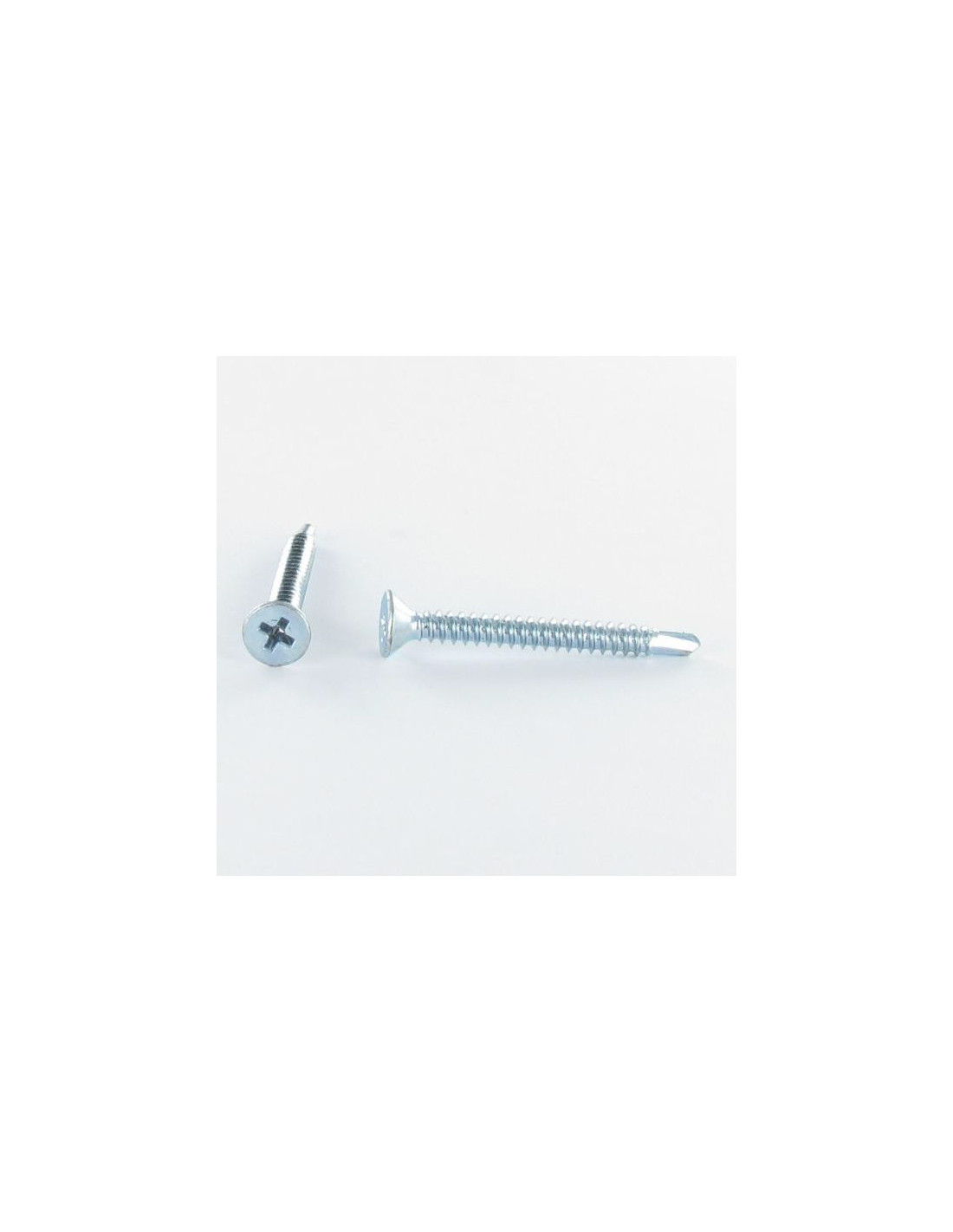

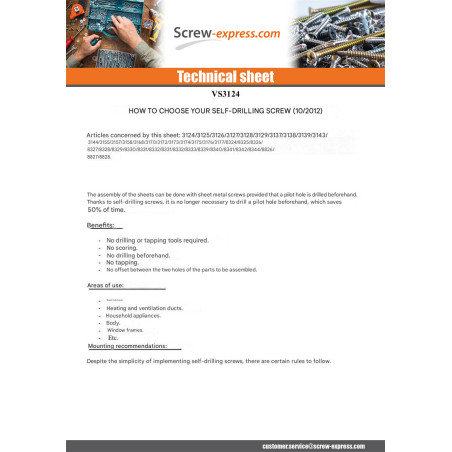

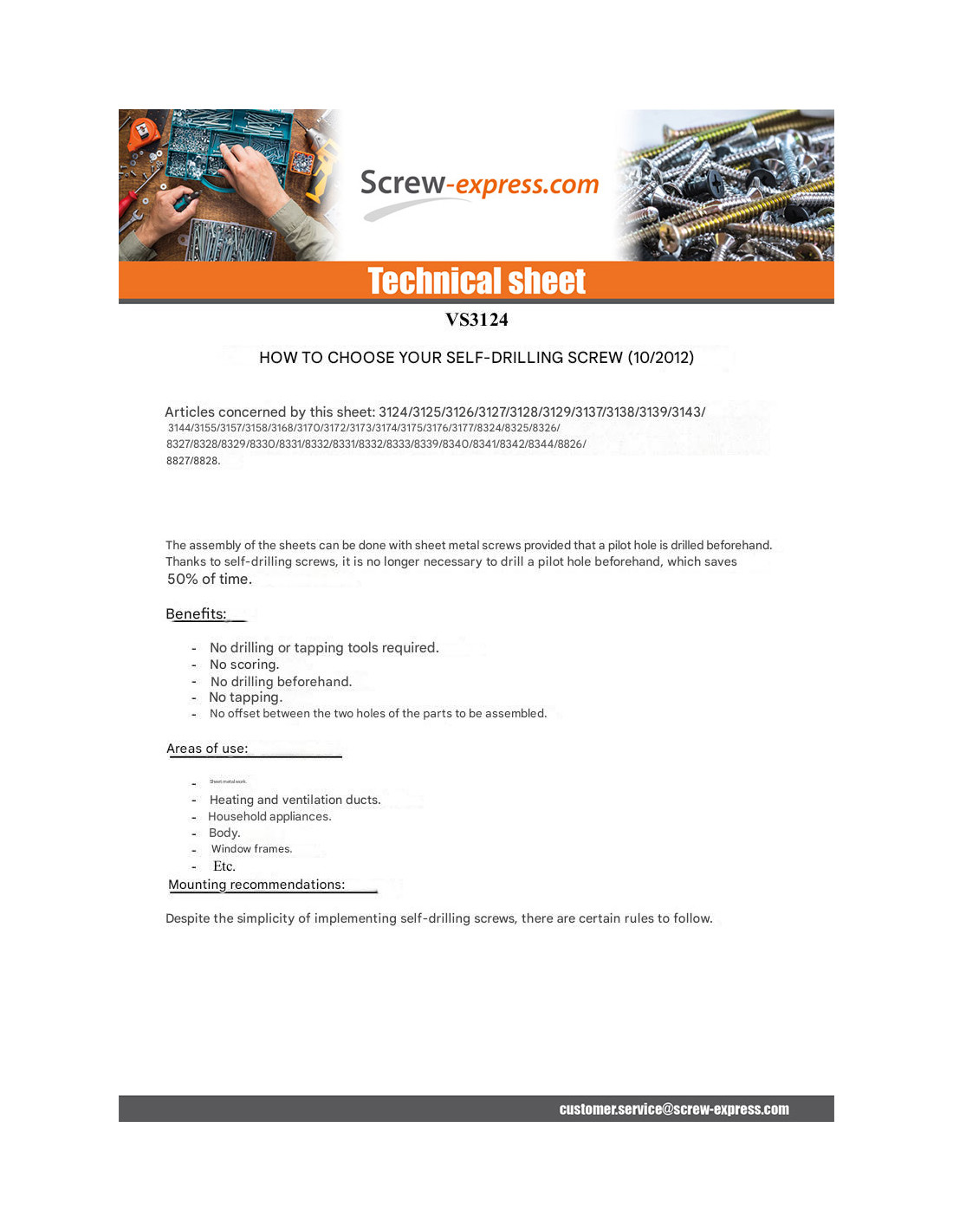

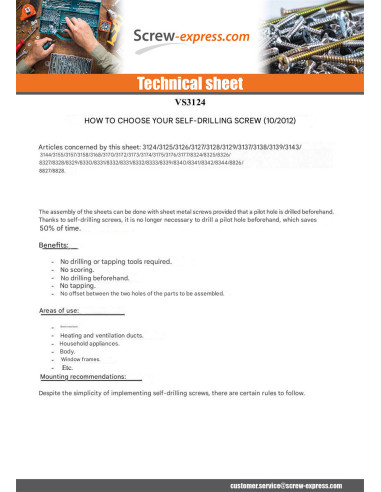

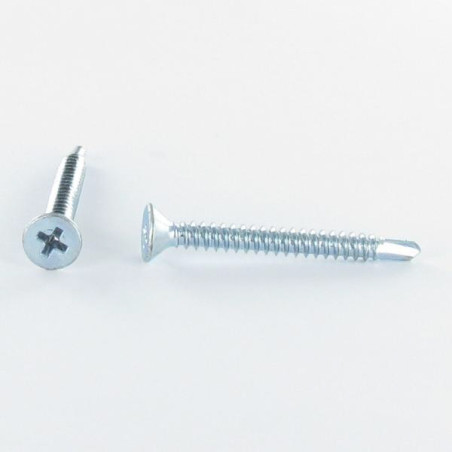

DIN 7504P + VS3124 - Self Drilling Countersunk Head Phillips 4.8X25 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
25
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504P + VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
2.65 GR

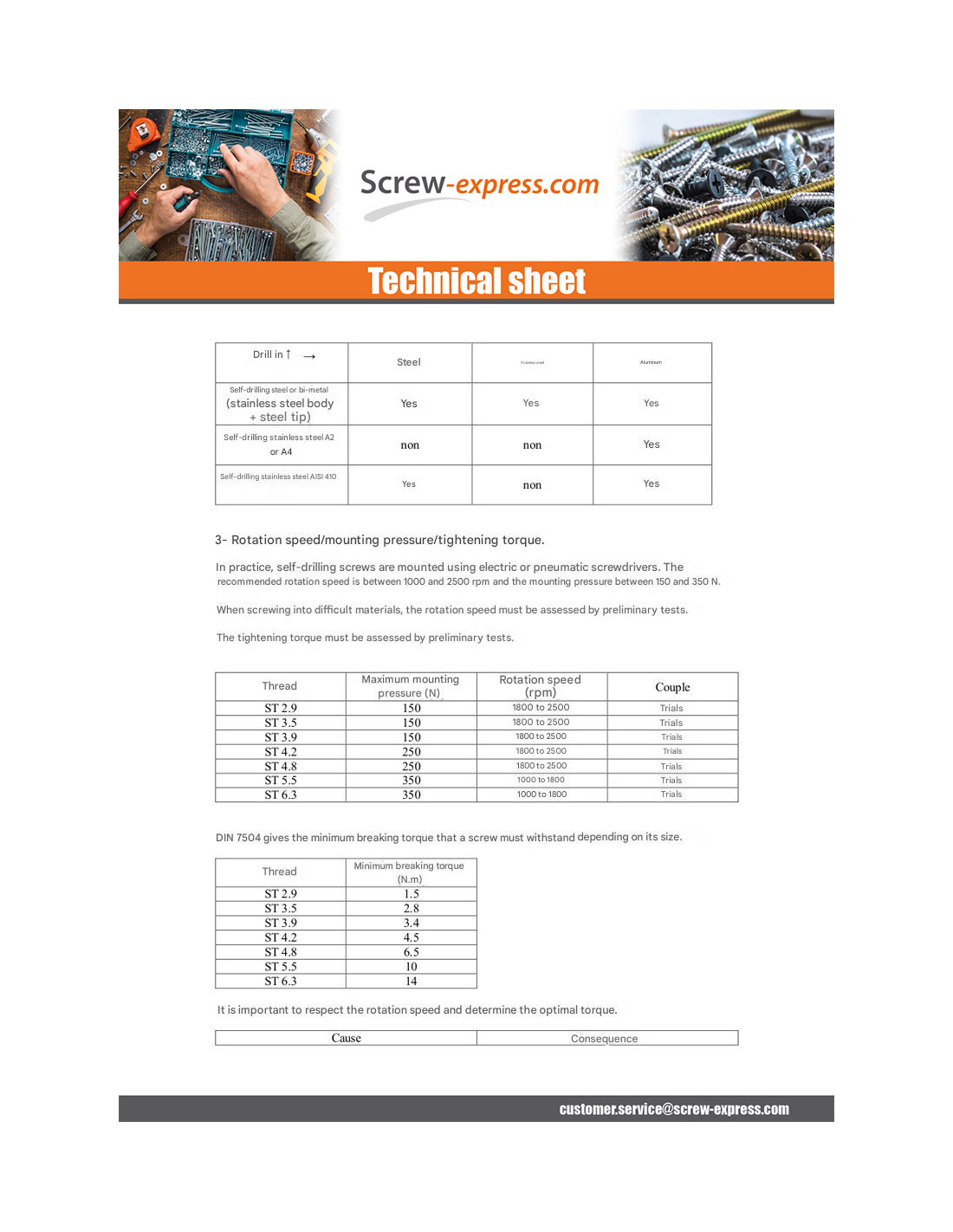

Mounting pressure (N)
250

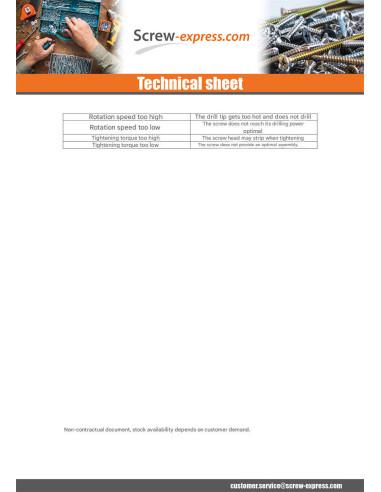

Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5

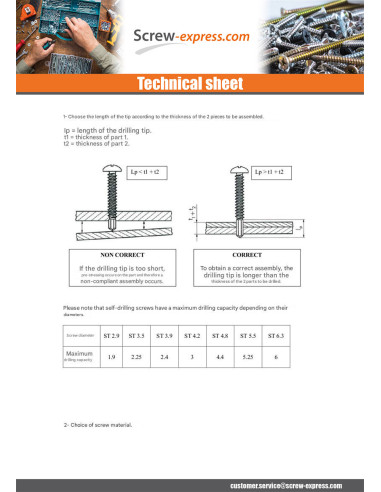

Maximum thickness to be fixed
14.7
124538 Items
3663072037946
Self Drilling Countersunk Head Phillips 4.8X25 Sheet Metal Thread Zinc Plated Other Reference : TFC48025 CP8000001212 14257 VV04805Z V021342500 0413464 170010028 85700005 VAATFP4825 CP8000001212 5170180 5170180 5170180 93320525 VS/ZL/FZ/TL0 841048 3 31-317225 0405246 020574822 VISAUT4.8.25 9VATF148025 TFPNZN4.8X25 MV0319 PERTF4.8X25 15102 MP015115 2 VA/21944 15102 15102 15102 110101 61470248025 VTAPTHPH48X2 02124825 VISAP4825 689561 001579 AVAP4825 QVSAF040 021248 25 10000218 V000007 3663072037946
AURELIEN C. (vis-express.fr)
2024-12-01

For roller shutters To fix apron clips on romfy shutters
