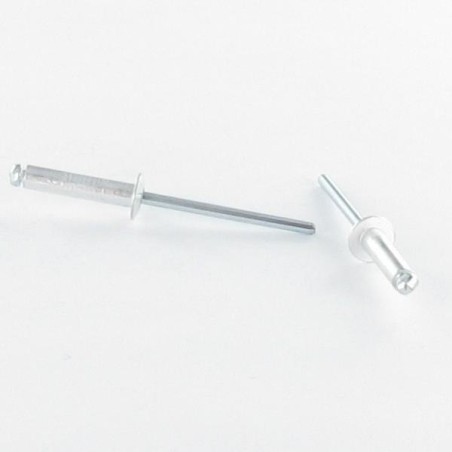

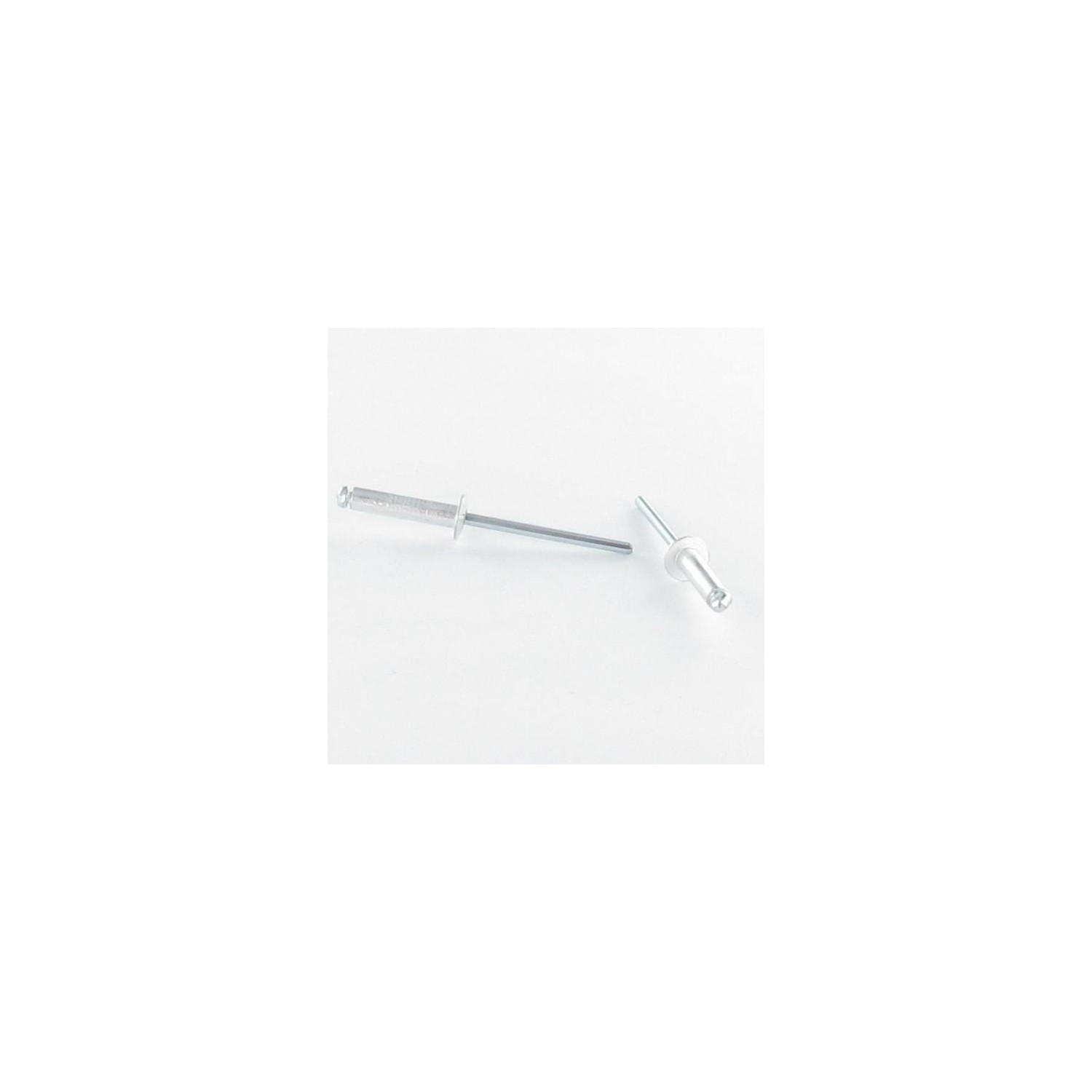

1 x Rivet Steel/ steel 6X25 Head Flat

Name: 1 x Rivet Steel/ steel 6X25 Head Flat
Brand: Vis-Express
SKU: 9076311253
Price: 4.25 EUR
Availability: InStock

Reference 9076311253_1

In stock 910 Pièces

€4.25 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	250
Lot price VAT included	€4.25	€8.45	€19.50	€162.15

DOC 3702 - Rivet Steel/ steel 6X25 Head Flat

Packaging

1 unit
10 units
30 units
250 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 6
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 25
Material: Steel
Sub product family: Flat Head
WEIGHT For THERE unit: 1 GR

In stock 910 Items

ean13 3663072357747

Application

metal construction
industrial maintenance
heavy bodywork

Description

Rivet Steel/ steel 6X25 Head Flat
Diameter = 6, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Steel / rod Steel

dimensional guide (mm)

Diameter	3	3	3	3	3	3	3	3	3.2	3.2	3.2	3.2	3.2	3.2	3.2	4	4	4	4	4	4	4	4.8	4.8	4.8	4.8	4.8	4.8	5	5	5	5	5	5	5	5	5	5	5	5	5	6	6	6	6	6	6	6.4	6.4	6.4	6.4	6.4	6.4
Length	5	6	8	10	12	16	18	20	6	8	10	12	16	18	20	6	8	10	12	16	18	20	25	8	10	12	16	20	25	8	10	12	14	16	18	20	25	30	35	40	45	50	10	12	14	16	20	25	8	12	16	18	20	25
d Perc	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.3	3.3	3.3	3.3	3.3	3.3	3.3	4.9	4.9	4.9	4.9	4.9	4.9	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	6.5	6.5	6.5	6.5	6.5	6.5
Crimp thickness	0.5-2	2-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-2.5	2.5-4.5	4.5-6.5	6.5-8.5	8.5-12	12-14	14-16	16-21	1.5-4	4-6	6-8	8-11	11-15	15-20	1.5-4	4-6	6-8	8-9.5	9.5-11	11-13	13-15	15-20	20-25	25-30	30-34	34-39	39-44	2.5-4.5	4.5-6.5	6.5-8.5	8.5-10.5	10.5-14.5	14.5-19.5	1-3	3-6	6-9	9-11	11-13	13-17
