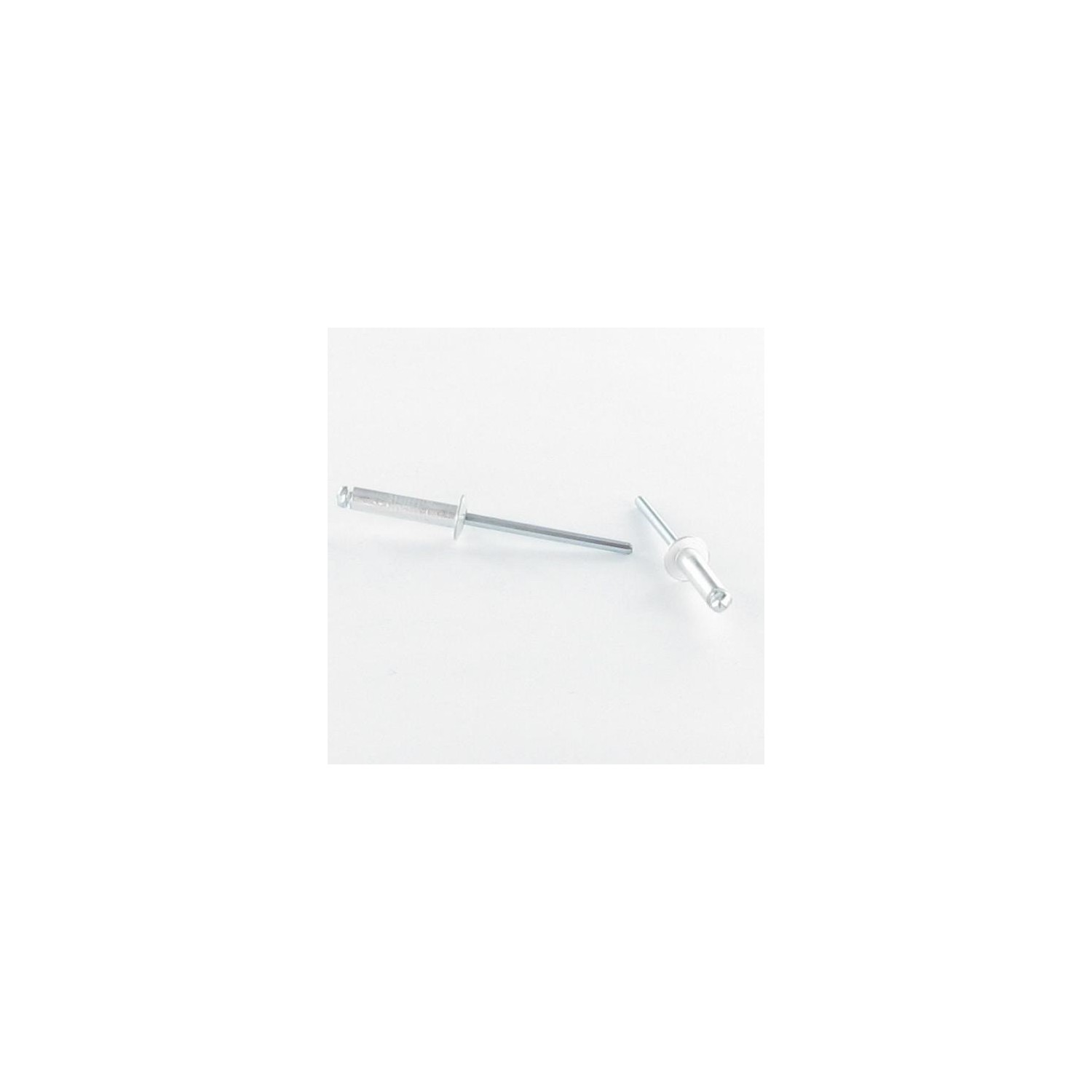

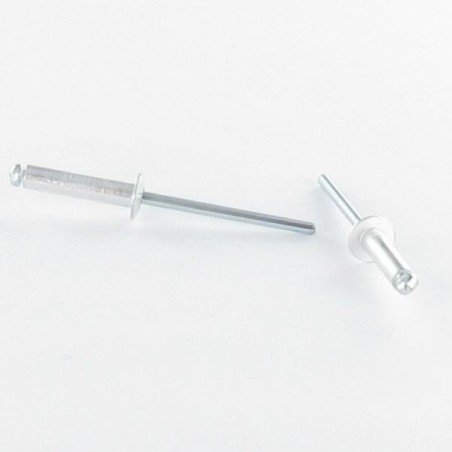

1 x Rivet Steel/ steel 4X10 Head Flat

Name: 1 x Rivet Steel/ steel 4X10 Head Flat
Brand: Vis-Express
SKU: 9076310451
Price: 3.85 EUR
Availability: InStock

Reference 9076310451_1

In stock 22 Pièces

€3.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500
Lot price VAT included	€3.85	€7.70	€9.90	€47.15

DOC 3702 - Rivet Steel/ steel 4X10 Head Flat

Packaging

1 unit
10 units
100 units
500 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 3
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 10
Material: Steel
Sub product family: Flat Head
WEIGHT For THERE unit: 2.6 GR

In stock 22 Items

ean13 3663072357457

Application

metal construction
industrial maintenance
heavy bodywork

Description

Rivet Steel/ steel 4X10 Head Flat
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Steel / rod Steel

dimensional guide (mm)

Diameter	3	3	3	3	3	3	3	3	3.2	3.2	3.2	3.2	3.2	3.2	3.2	4	4	4	4	4	4	4	4.8	4.8	4.8	4.8	4.8	4.8	5	5	5	5	5	5	5	5	5	5	5	5	5	6	6	6	6	6	6	6.4	6.4	6.4	6.4	6.4	6.4
Length	5	6	8	10	12	16	18	20	6	8	10	12	16	18	20	6	8	10	12	16	18	20	25	8	10	12	16	20	25	8	10	12	14	16	18	20	25	30	35	40	45	50	10	12	14	16	20	25	8	12	16	18	20	25
d Perc	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.3	3.3	3.3	3.3	3.3	3.3	3.3	4.9	4.9	4.9	4.9	4.9	4.9	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	6.5	6.5	6.5	6.5	6.5	6.5
Crimp thickness	0.5-2	2-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-2.5	2.5-4.5	4.5-6.5	6.5-8.5	8.5-12	12-14	14-16	16-21	1.5-4	4-6	6-8	8-11	11-15	15-20	1.5-4	4-6	6-8	8-9.5	9.5-11	11-13	13-15	15-20	20-25	25-30	30-34	34-39	39-44	2.5-4.5	4.5-6.5	6.5-8.5	8.5-10.5	10.5-14.5	14.5-19.5	1-3	3-6	6-9	9-11	11-13	13-17
